Low Profile (1.5")
Single, Dual, Triple
and Quad Outputs
Universal Input
Worldwide Agency
Approvals
Smaller than
Comparable Models
Stock to 6 Weeks
Delivery
100% Burn-in/HiPot
Tested

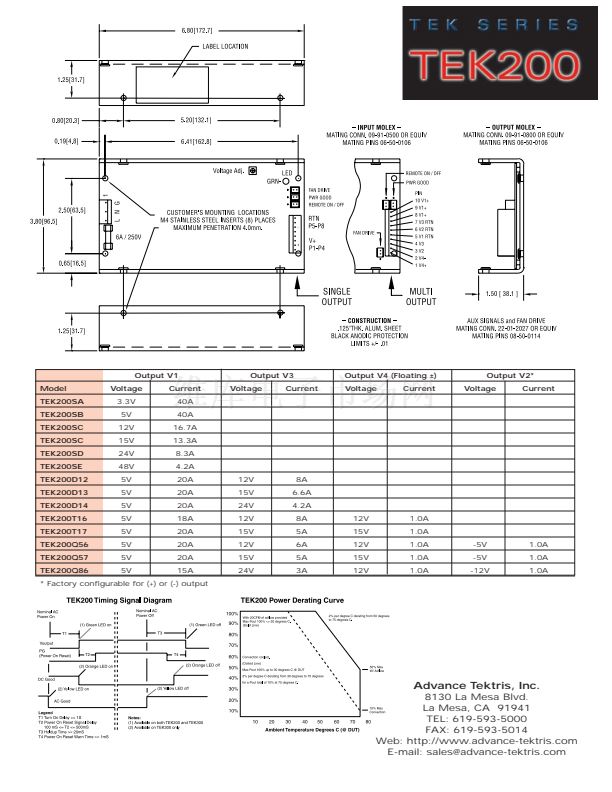

Model TEK 200
200 Watt Switch Mode
Power Supply
The compact TEK200 is
offered in single, dual, triple
and quad outputs, complete
with short-circuit and
overvoltage protection.
The universal input TEK200
series is designed for
compliance with international
safety and EMI standards and
carrying the CE mark.
Specifications
Input Specifications
Input Voltage:
90-264VAC
(auto-selectable)
Input Frequency:
47-63 Hz
Input Surge (cold start):
50A max.
Key Features
Short-Circuit Protection:
Auto-recovery
Overvoltage Protection:
V1:
110-125%,programmable
Auxiliary Outputs:
25%
Overtemperature Protection
Environmental
- Operating
Temperature:
0 to 50擄C
Relative Humidity:
8 to 90%,
non-condensing
- Storage
Temperature:
-20 to 85擄C
Relative Humidity: 5 to 95%,
non-condensing
Output Specifications
Output Voltages:
3.3, 5, 12, 15,
24, 48 VDC
Adjustability:
V1:鹵5%
Output Current:
see model table
Power Output:
110 W,
convection cooling
200 W, forced air cooling
Efficiency (@ max load):
70% min.
- Total Regulation
Single Output:
鹵1% (20-100% load)
Multiple Output:
Main Output:
鹵3%
Auxiliary Outputs:
鹵5%
Temperature Coefficient:
0.1%/擄C, maximum
Ripple and Noise:
1% p-p
Overshoot (turn on/off): No overshoot
Step Load Response:
<5% for 20-100% change
Turn-on Delay(120VAC):
1 sec, max.
Hold-up Time (120VAC):
20 ms
Design Standards
Safety:
UL, cUL, TUV, VDE, CE
EMI:
FCC Part 15 Class B
VDE 0871 Class A
EN55022
Options
115-230 VAC Jumper Selectable
