APRIL 2002
PRELIMINARY
XRT75L03D
REV. P1.0.0
THREE-CHANNEL E3/DS3/STS-1 LINE INTERFACE UNIT WITH SONET DESYNCHRONIZER
鈥?/div>
Meets Jitter Tolerance Requirements, as specified
in ITU-T G.823_1993 for E3 Applications
鈥?/div>
Meets Jitter Tolerance Requirements, as specified
in Bellcore GR-499-CORE for DS3 Applications
GENERAL DESCRIPTION
The XRT75L03D is a Three-Channel fully integrated
Line Interface Unit (LIU) and Jitter Attenuator for E3/
DS3/STS-1 applications. It incorporates three
independent Receivers, Transmitters and Jitter
Attenuators in a single 128-Lead QFP package.
Each channel of the XRT75L03D can be
independently configured to operate in E3 (34.368
MHz), DS3 (44.736 MHz) or STS-1 (51.84 MHz)
rates. Each transmitter can be turned off and tri-
stated for redundancy support and power
conservation.
The XRT75L03D鈥檚 differential receivers provide high
noise interference margin and are able to receive the
data over 1000 feet of cable, or with cable attenuation
of up to 12 dB.
The XRT75L03D incorporates an advanced crystal-
less jitter attenuator per channel that can be selected
either in the transmit or receive path. The jitter attenu-
ator performance meets the ETSI TBR-24 and
Bellcore GR-499 specifications. Also the jitter attenu-
ator can be used for clock smoothing in SONET STS-
1 to DS3 de-mapping.
The XRT75L03D provides both Serial Microprocessor
Interface as well as Hardware mode for programming
and control.
The XRT75L03D supports local,remote and digital
loop-backs. The XRT75L03D also contains an on-
board Pseudo Random Binary Sequence (PRBS)
generator and detector with the ability to insert and
detect single bit error.

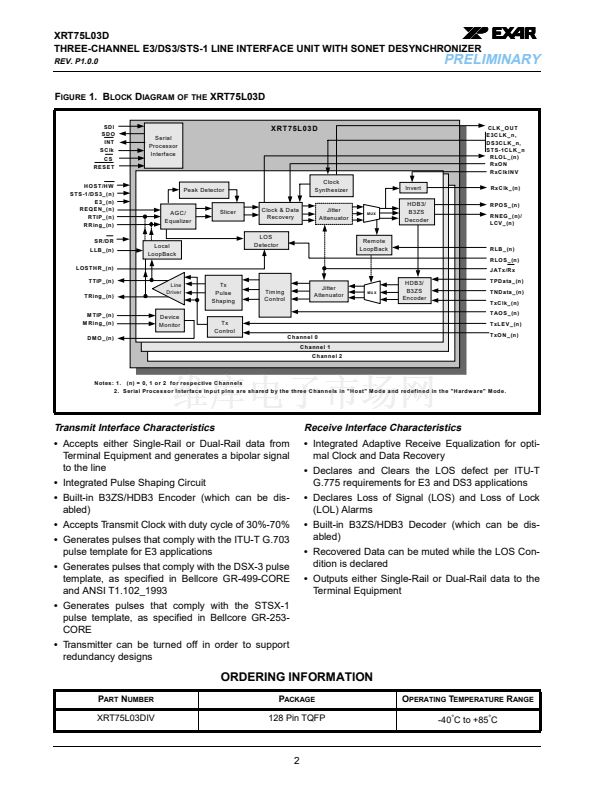

FEATURES
Receiver:
鈥?/div>
On chip Clock and Data Recovery circuit for high
input jitter tolerance
鈥?/div>
Meets E3/DS3/STS-1 Jitter Tolerance Require-
ments
鈥?/div>
Detects and Clears LOS as per G.775
鈥?/div>
Receiver Monitor mode handles up to 20 dB flat
loss with 6 dB cable attenuation
鈥?/div>
On chip B3ZS/HDB3 encoder and decoder that can
be either enabled or disabled
鈥?/div>
On-chip Clock Synthesizer generates the appropri-
ate rate clock from a single frequency Crystal
鈥?/div>
Provides low jitter clock outputs for either E3, DS3
or STS-1 rates
Transmitter:
鈥?/div>
Compliant with Bellcore GR-499, GR-253 and ANSI
T1.102 Specification for transmit pulse
鈥?/div>
Tri-state Transmit output capability for redundancy
applications
鈥?/div>
Transmitter can be turned on or off
Jitter Attenuator:
鈥?/div>
On chip advanced crystal-less Jitter Attenuators
鈥?/div>
Jitter Attenuators can be selected in Receive or
Transmit paths
鈥?/div>
Compliant with jitter transfer template outlined in
ITU G.751, G.752, G.755, GR-253 and GR-499-
CORE,1995 standards
鈥?/div>
Meets ETSI TBR 24 Jitter Transfer Requirements
鈥?/div>
16, 32 or 128 bits selectable FIFO size
鈥?/div>
De-Synchronizer for SONET STS-1 to DS3 de-
mapping
鈥?/div>
Meets the Jitter and Wander
described in the ANSI T1.105.03b
鈥?/div>
Jitter Attenuators can be disabled
specifications
Control and Diagnostics:
鈥?/div>
5 wire Serial Microprocessor Interface for control
and configuration
鈥?/div>
Supports optional internal Transmit Driver Monitor-
ing
鈥?/div>
PRBS Error Counter Register to accumulate errors
鈥?/div>
Hardware Mode for control and configuration
鈥?/div>
Supports Local, Remote and Digital Loop-backs
鈥?/div>
Single 3.3 V 鹵 5% power supply
鈥?/div>
5 V Tolerant I/O
鈥?/div>
Available in 128 pin TQFP
鈥?/div>
-40擄C to 85擄C Industrial Temperature Range
APPLICATIONS
鈥?/div>
E3/DS3 Access Equipment
鈥?/div>
STS1-SPE to DS3 Mapper
鈥?/div>
DSLAMs
鈥?/div>
Digital Cross Connect Systems
鈥?/div>
CSU/DSU Equipment
鈥?/div>
Routers
鈥?/div>
Fiber Optic Terminals
Exar
Corporation 48720 Kato Road, Fremont CA, 94538
鈥?/div>
(510) 668-7000
鈥?/div>
FAX (510) 668-7017
鈥?/div>
www.exar.com

XRT75L03DIV 產品屬性

  • XRT75L03D

  • 72

  • 集成電路 (IC)

  • 接口 - 驅動器，接收器，收發器

  • -

  • 線路接口裝置（LIU）

  • 3/3

  • DS3，E3，STS-1

  • 3.135 V ~ 3.465 V

  • 表面貼裝

  • 128-LQFP 裸露焊盤

  • 128-LQFP（14x20）

  • 托盤
