XRD9826

16-Bit Linear CIS/CCD Sensor

Signal Processor with Serial Control

October 2000-1

FEATURES

APPLICATIONS

路

16-Bit Resolution

One-channel 6MSPS Pixel Rate

Triple-channel 2MSPS Pixel Rate

6-Bit Programmable Gain Amplifier

8-Bit Programmable Offset Adjustment

CIS or CCD Compatibility

Internal Clamp for CIS or CCD AC Coupled

Configurations

3.3V or 5V Operation & I/O Compatibility

Serial Load Control Registers

Low Power CMOS: 200mW-typ

Low Cost 20-Lead Packages

USB Compliant

路

Color and Grayscale Flatbed Scanners

Color and Grayscale Sheetfed Scanners

Multifunction Peripherals

Digital Color Copiers

General Purpose CIS or CCD Imaging

Low Cost Data Acquisition

Simple and Direct Interface to Canon 600 DPI

Sensors

GENERAL DESCRIPTION

The XRD9826 is a complete linear CIS or CCD sensor

signal processor on a single monolithic chip. The

XRD9826 includes a high speed 16-bit resolution ADC,

a 6-bit Programmable Gain Amplifier with gain adjust-

ment of 1 to 10, and 8-bit programmable input referred

offset calibration range of 800mV.

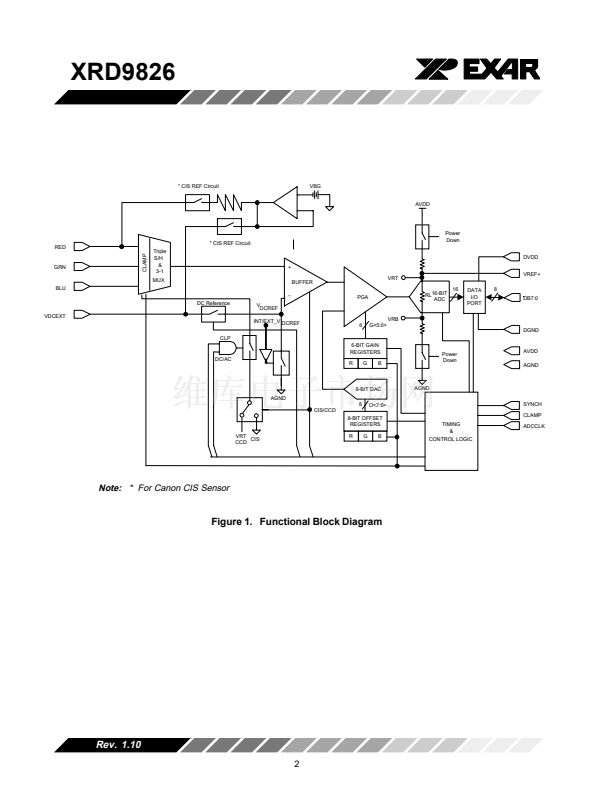

In the CCD configuration the input signal is AC coupled

with an external capacitor. An internal clamp sets the

black level. In the CIS configuration, the clamp switch

can be disabled and the CIS output signal is DC

coupled from the CIS sensor to the XRD9826. The CIS

signal is level shifted to VRB in order to use the full

range of the ADC. In the CIS configuration the input

can also be AC coupled similar to the CCD configura-

tion. This enables CIS signals with large black levels

to be internally clamped to a DC reference equal to the

black level. The DC reference is internally subtracted

from the input signal.

The CIS configuration can also be used in other

applications that do not require CDS function, such as

low cost data acquisition.

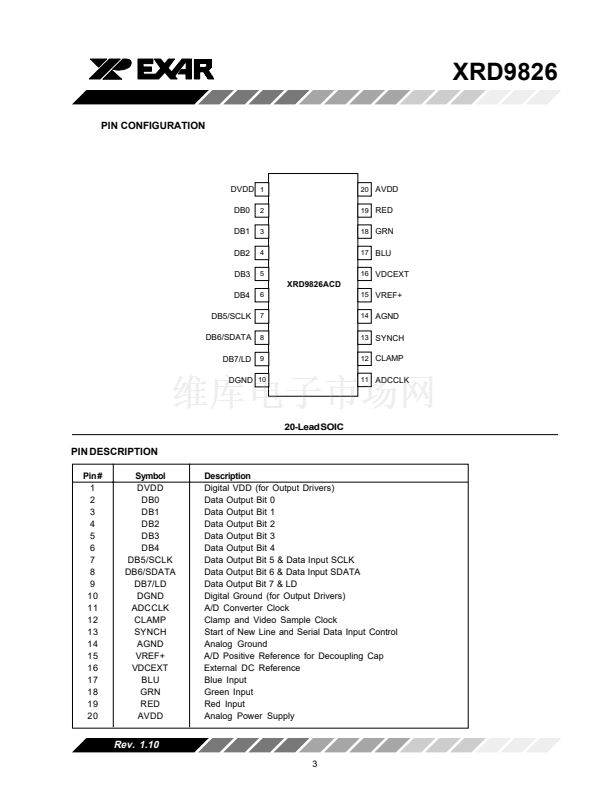

ORDERING INFORMATION

Package Type

20-Lead SOIC

20-Lead SSOP

Temperature Range

0擄C to +70擄C

Part Number

XRD9826ACD

XRD9826ACU

Rev. 1.10

EXAR

Corporation, 48720 Kato Road, Fremont, CA 94538

鈥?/div>

(510) 668-7000

鈥?/div>

FAX (510) 668-7017

鈥?/div>

www.exar.com

數據列表
XRD9826
標準包裝
66
類別
集成電路 (IC)
家庭
數據采集 - 模擬前端 (AFE)
系列
-
位數
16
通道數
3
功率（瓦特）
-
電壓 - 電源，模擬
3V，5V
電壓 - 電源，數字
3V，5V
封裝/外殼
20-SSOP（0.209"，5.30mm 寬）
供應商設備封裝
20-SSOP
包裝
