XE5620G
August 2002
Smallest World-Wide 56 KBPS Modem
Description
Xecom鈥檚 XE5620G simplifies integration of dial-up
communications into embedded systems. It offers a
single modem solution for use throughout the world,
and its PLCC package allows the XE5620G to fit in the
tightest system layout. It is a breakthrough for the
embedded system designer.
The XE5620G offers unprecidented design flexibility.
It offers a common communications solution for
countries around the world, and the Hybrid PLCC
package (HyPLCC鈩? is both the smallest complete
modem and the only surface mount modem you can
buy. The XE5620G fits a 68-Pin PLCC socket and
therefore can be mounted in a socket or soldered onto
the board. As the world鈥檚 smallest complete modem,
you can place the XE5620G where no other modem
will fit.
The surface mount package and small size of the
XE5620G are particularly impressive when you realize
it is a complete modem. The DAA, RAM, ROM,
Crystal; everything is included. The XE5620G even
includes transferrable FCC Part 68 Registration. No
further testing is required for US applications
Features

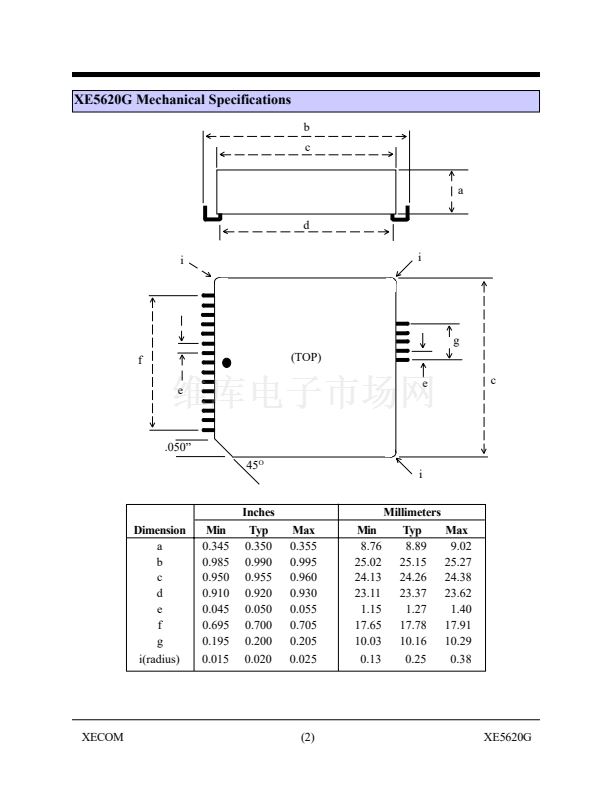

* Small Size: The HyPLCC鈩?measures less than 1
inch by 1 inch square and 0.350 inches thick
* Surface-mountable: The HyPLCC鈩?package is
equivalent to a 68-Pin PLCC device.
* Data transfer at all rates from 300 BPS to 56 KBPS
using V.90, V.34bis, V.34, V.32bis, V.32, V.22bis,
V.22, V.23, V.21, Bell 212A, and Bell 103 Protocols
* Modem Control and Configuration via industry
standard AT Commands.
* Nonvolatile memory stores modem configuration
and permits stored number dialing.
* Incorporates Fax send and receive capabilities
controlled by Class 1 Fax commands.
* Complete integrated DAA includes, Ring Detect,
Loop Current Holding Circuit, Hook Switch.
Metallic Surge Protection, and Solid-State DAA
* User Transferrable FCC Part 68 Registration
(pending)
* Compliant with telecom requirements around the
world.
* UL60950 Recognition (pending)
* Low Power operation, 3.3 Volts, 300 milliwatt;
XE5620G BLOCK DIAGRAM
XECOM
(1)
XE5620G
