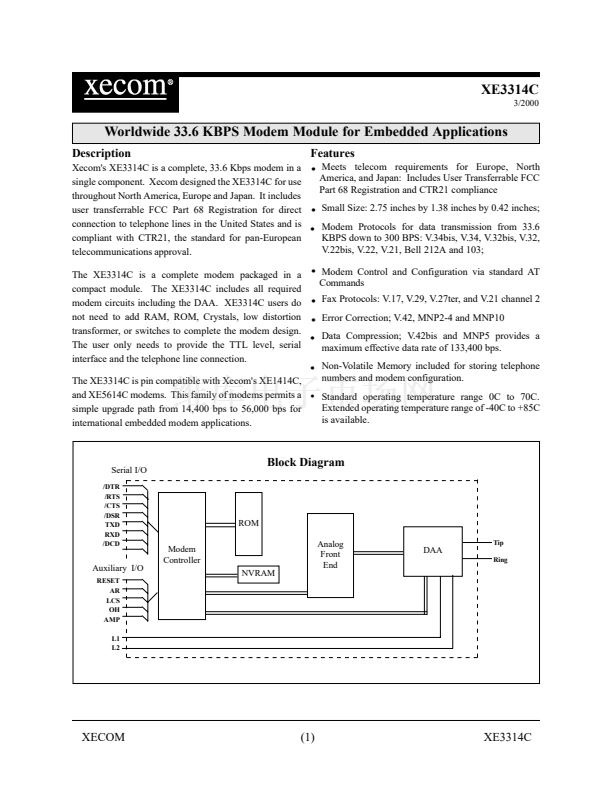

XE3314C

3/2000

Worldwide 33.6 KBPS Modem Module for Embedded Applications

Description

Features

Xecom's XE3314C is a complete, 33.6 Kbps modem in a

鈥?/div>

Meets telecom requirements for Europe, North

America, and Japan: Includes User Transferrable FCC

single component. Xecom designed the XE3314C for use

Part 68 Registration and CTR21 compliance

throughout North America, Europe and Japan. It includes

user transferrable FCC Part 68 Registration for direct

鈥?/div>

Small Size: 2.75 inches by 1.38 inches by 0.42 inches;

connection to telephone lines in the United States and is

鈥?/div>

Modem Protocols for data transmission from 33.6

compliant with CTR21, the standard for pan-European

KBPS down to 300 BPS: V.34bis, V.34, V.32bis, V.32,

V.22bis, V.22, V.21, Bell 212A and 103;

telecommunications approval.

The XE3314C is a complete modem packaged in a

compact module. The XE3314C includes all required

modem circuits including the DAA. XE3314C users do

not need to add RAM, ROM, Crystals, low distortion

transformer, or switches to complete the modem design.

The user only needs to provide the TTL level, serial

interface and the telephone line connection.

鈥?/div>

Modem Control and Configuration via standard AT

Commands

鈥?/div>

Fax Protocols: V.17, V.29, V.27ter, and V.21 channel 2

鈥?/div>

Error Correction; V.42, MNP2-4 and MNP10

鈥?/div>

Data Compression; V.42bis and MNP5 provides a

maximum effective data rate of 133,400 bps.

numbers and modem configuration.

The XE3314C is pin compatible with Xecom's XE1414C,

and XE5614C modems. This family of modems permits a

鈥?/div>

Standard operating temperature range 0C to 70C.

Extended operating temperature range of -40C to +85C

simple upgrade path from 14,400 bps to 56,000 bps for

is available.

international embedded modem applications.

鈥?/div>

Non-Volatile Memory included for storing telephone

Serial I/O

/DTR

/RTS

/CTS

/DSR

TXD

RXD

/DCD

Block Diagram

ROM

Modem

Controller

NVRAM

Analog

Front

End

Tip

DAA

Ring

Auxiliary I/O

RESET

LCS

AMP

XECOM

(1)
