XC3190A Datasheet

  • XC3190A

  • Logic Cell Array Families

  • 50頁

  • XILINX   XILINX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

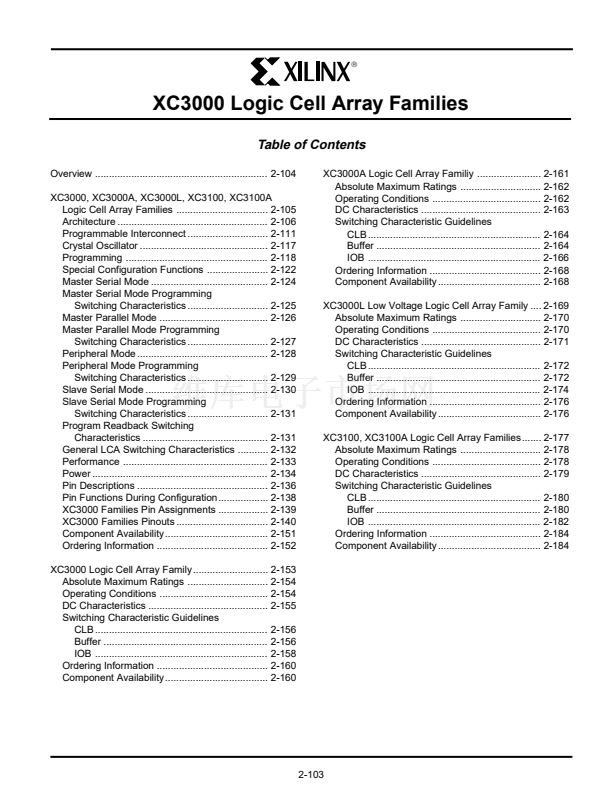

XC3000 Logic Cell Array Families
Table of Contents

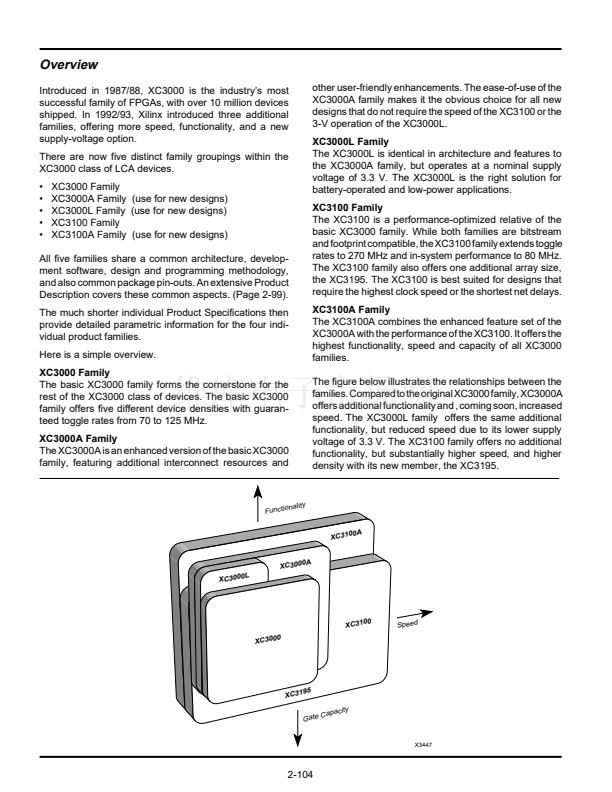

Overview .............................................................. 2-104

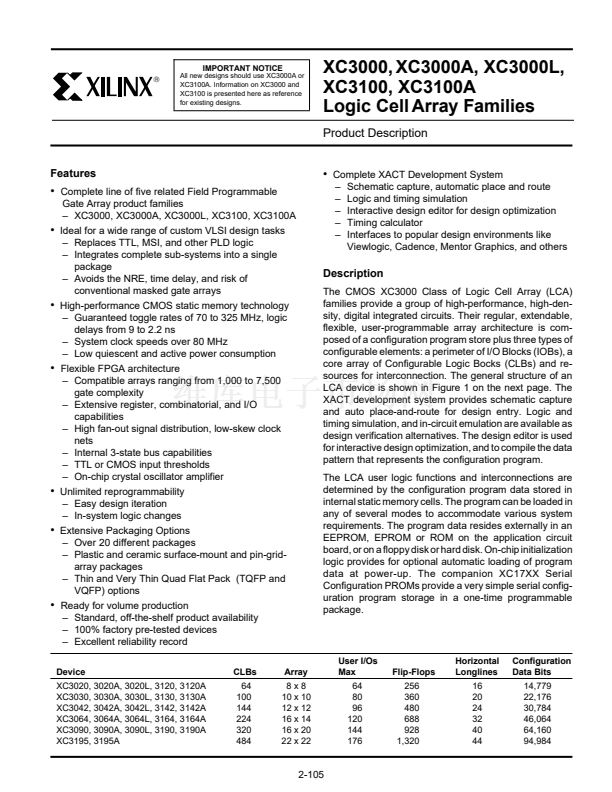

XC3000, XC3000A, XC3000L, XC3100, XC3100A
Logic Cell Array Families ................................. 2-105

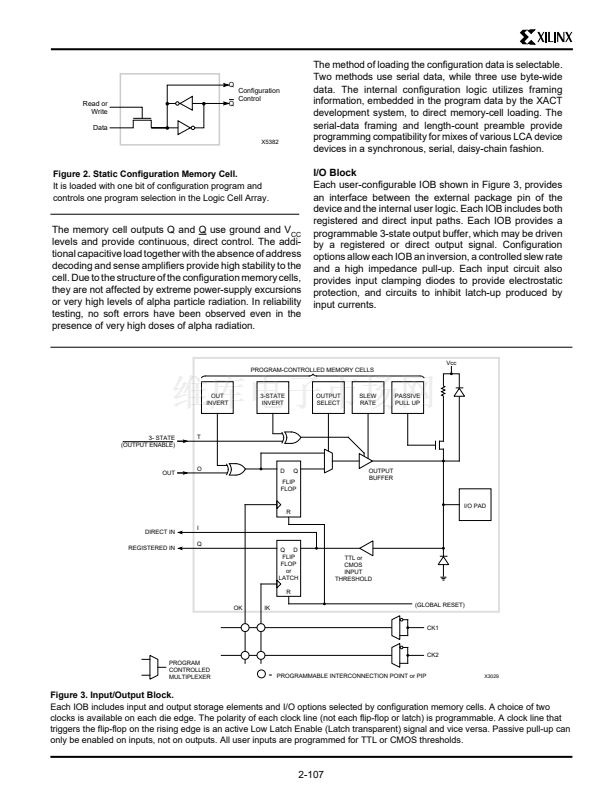

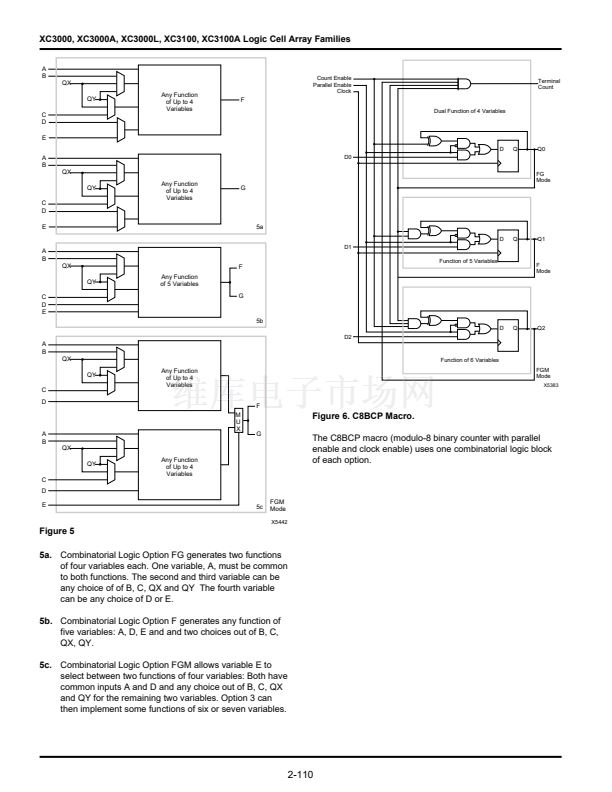

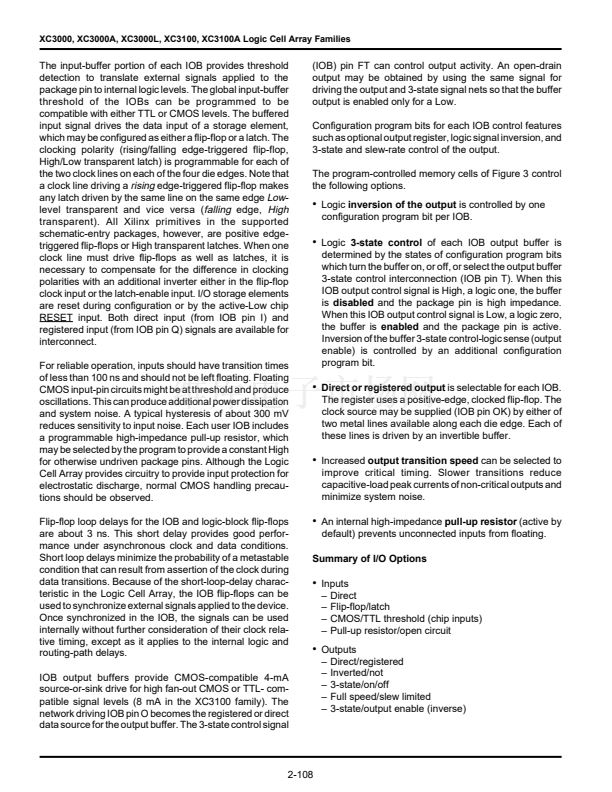

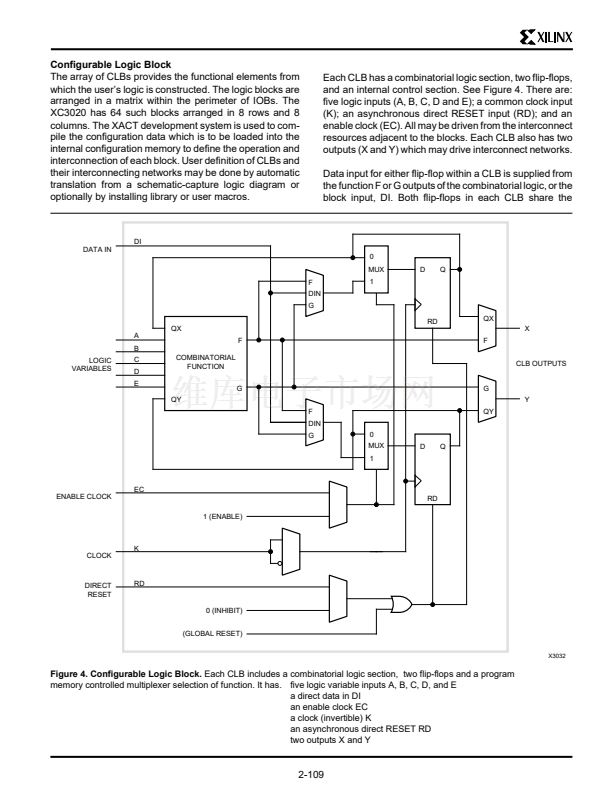

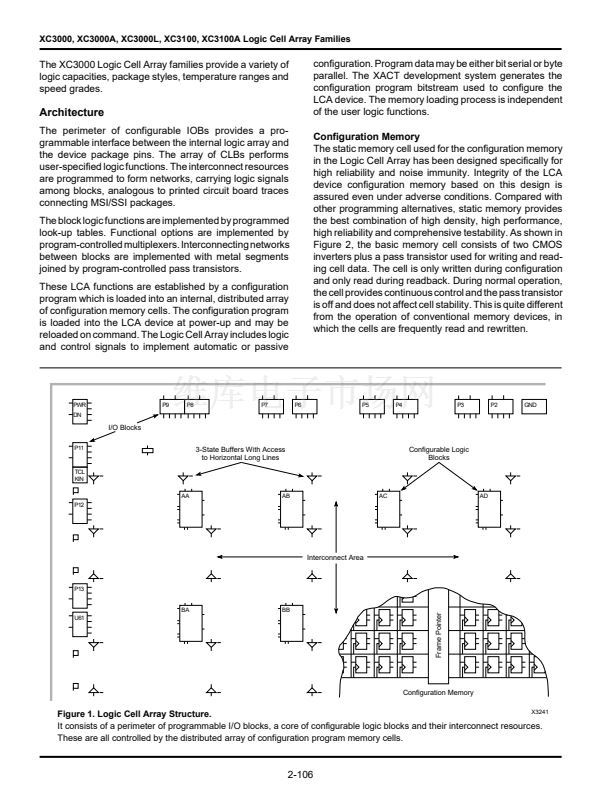

Architecture ...................................................... 2-106

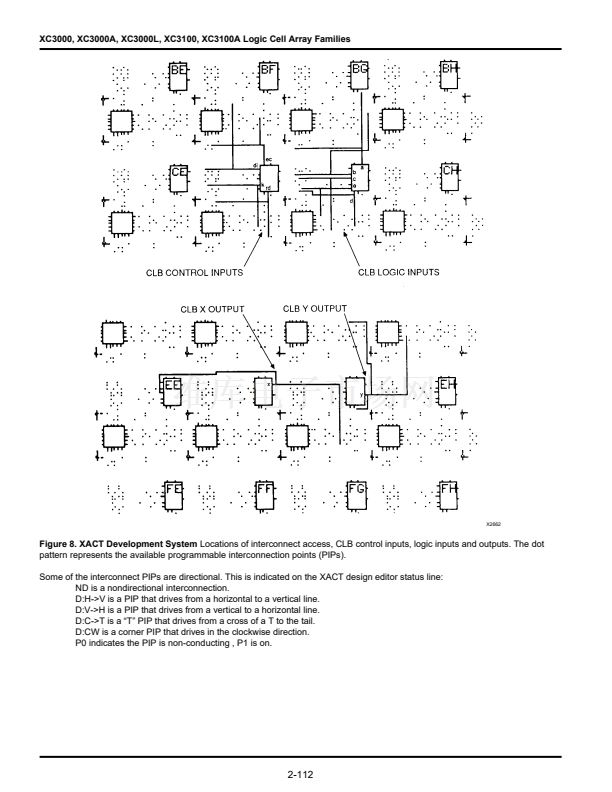

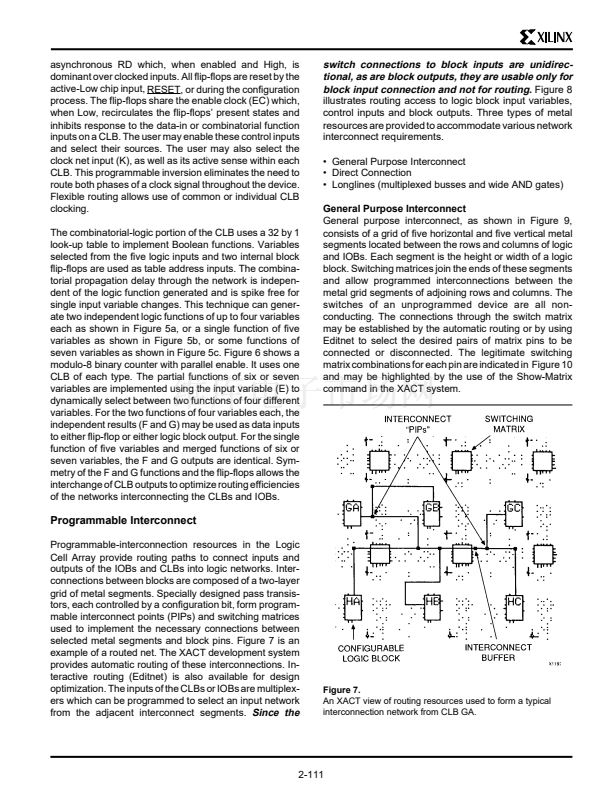

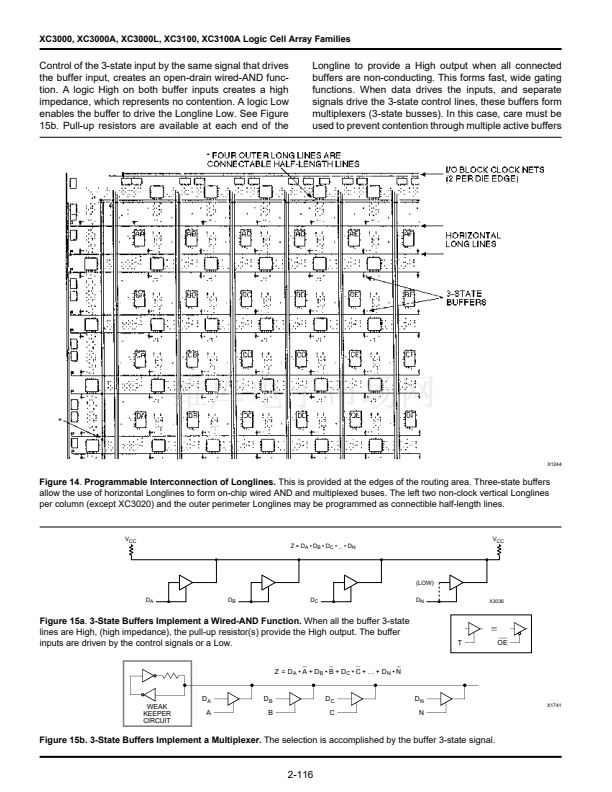

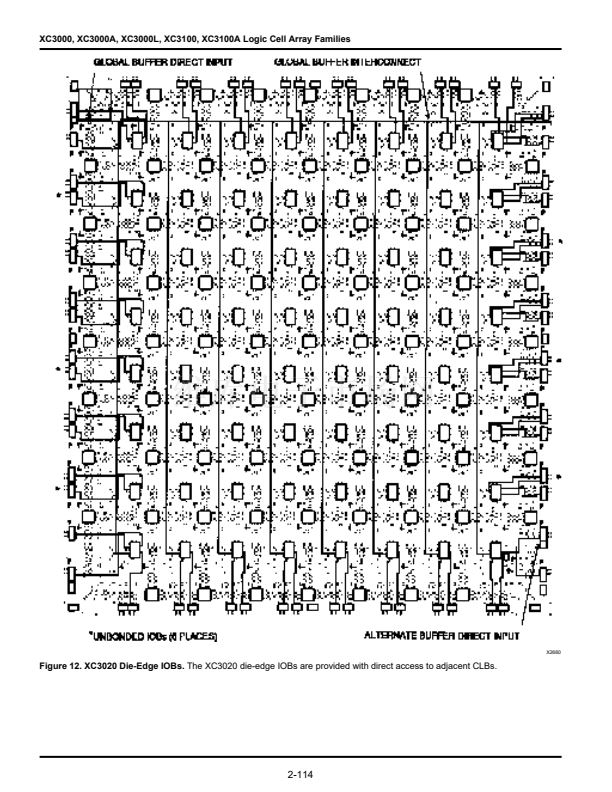

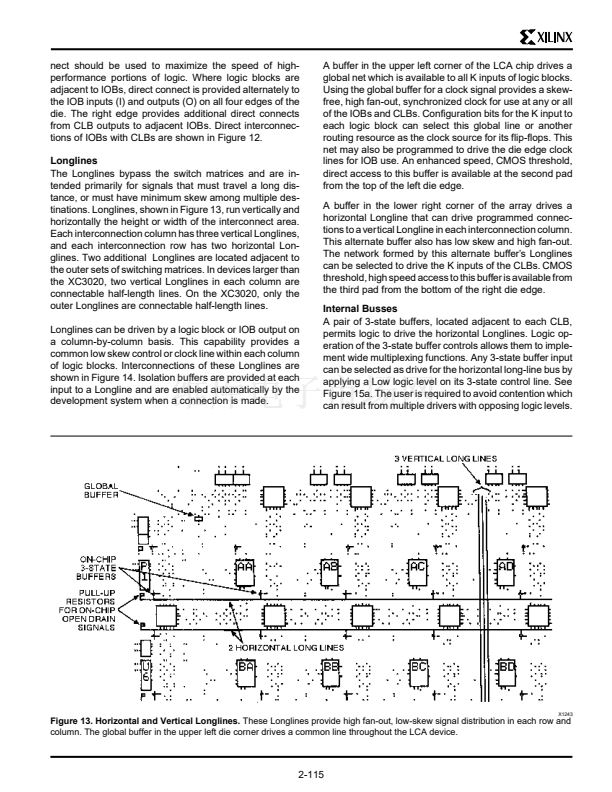

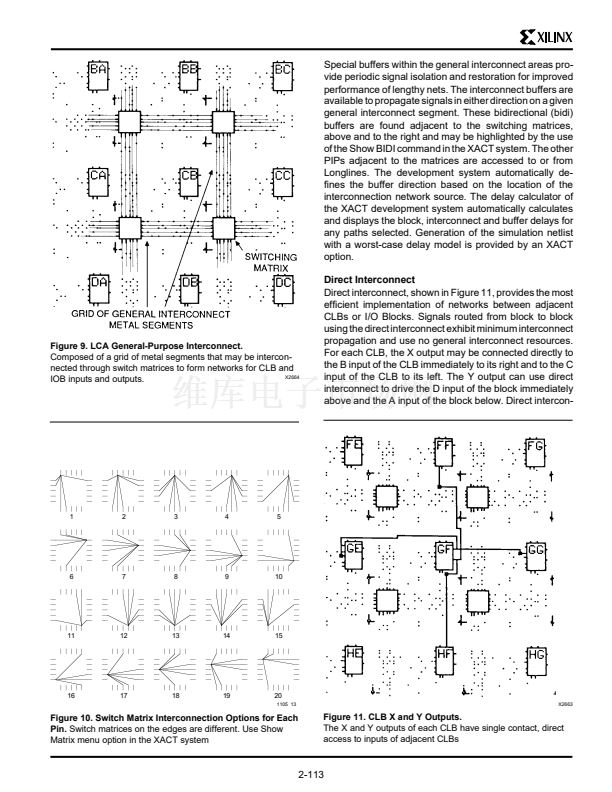

Programmable Interconnect ............................. 2-111

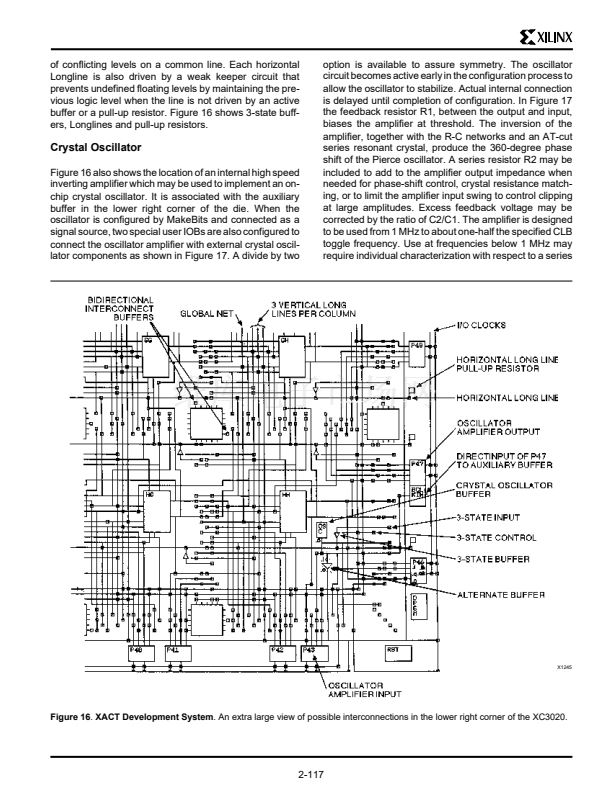

Crystal Oscillator .............................................. 2-117

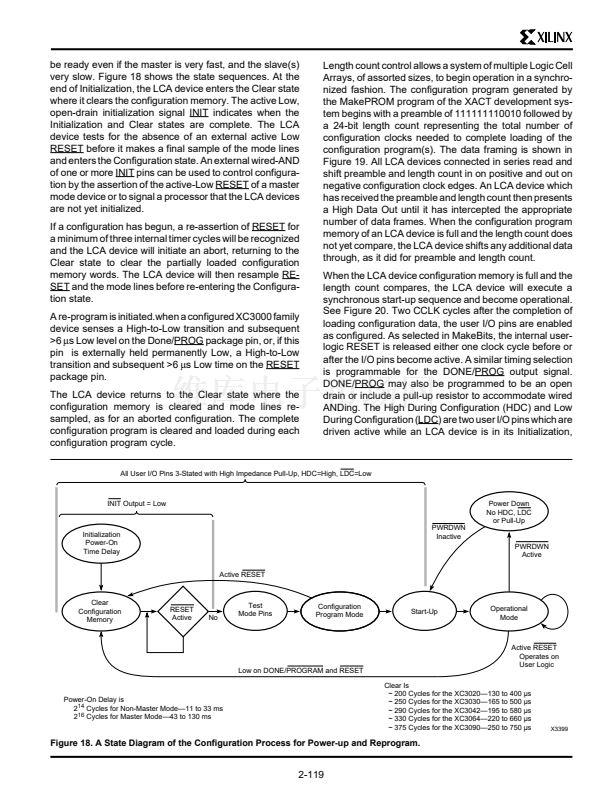

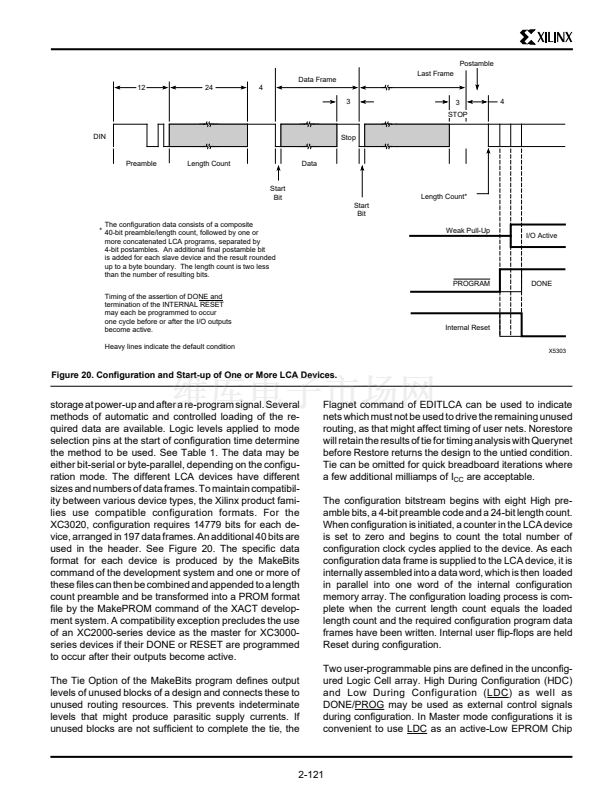

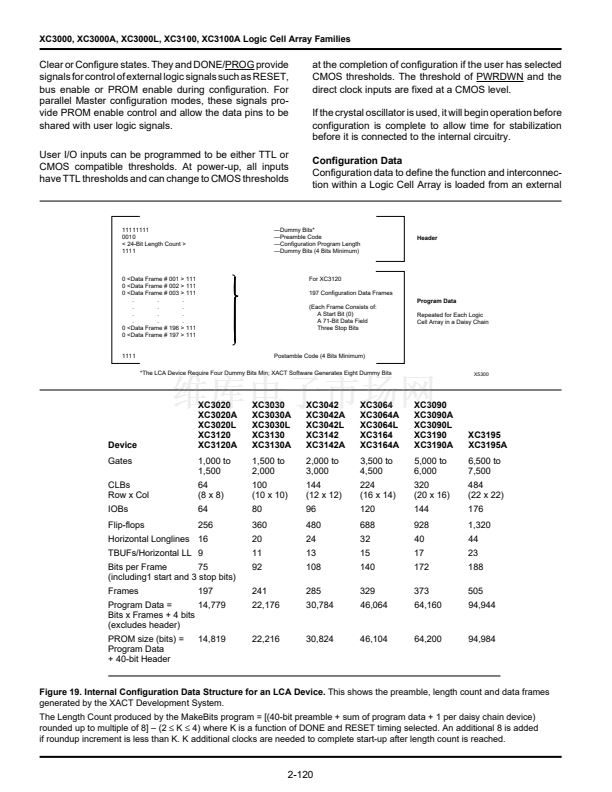

Programming ................................................... 2-118

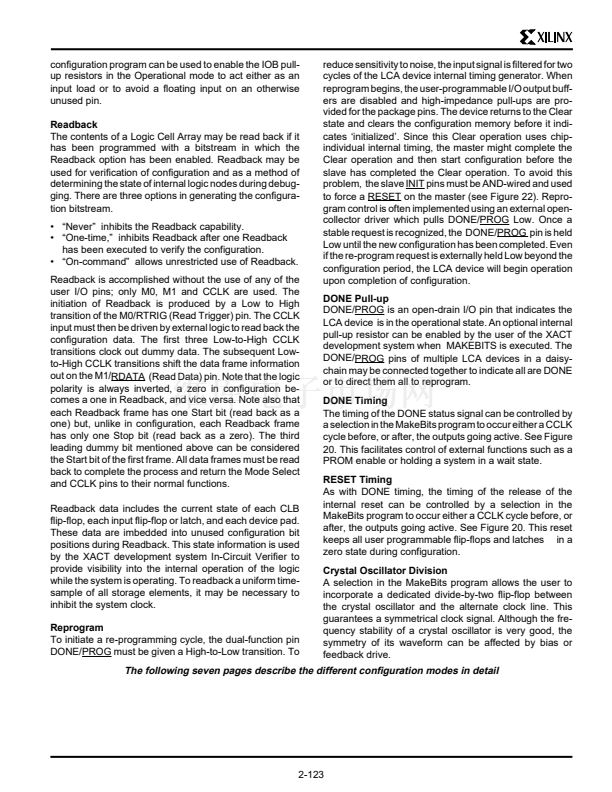

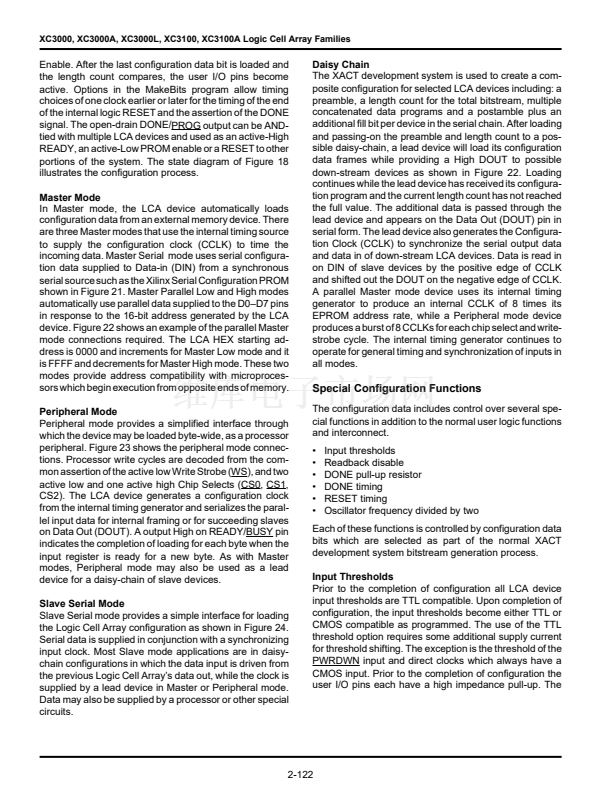

Special Configuration Functions ...................... 2-122

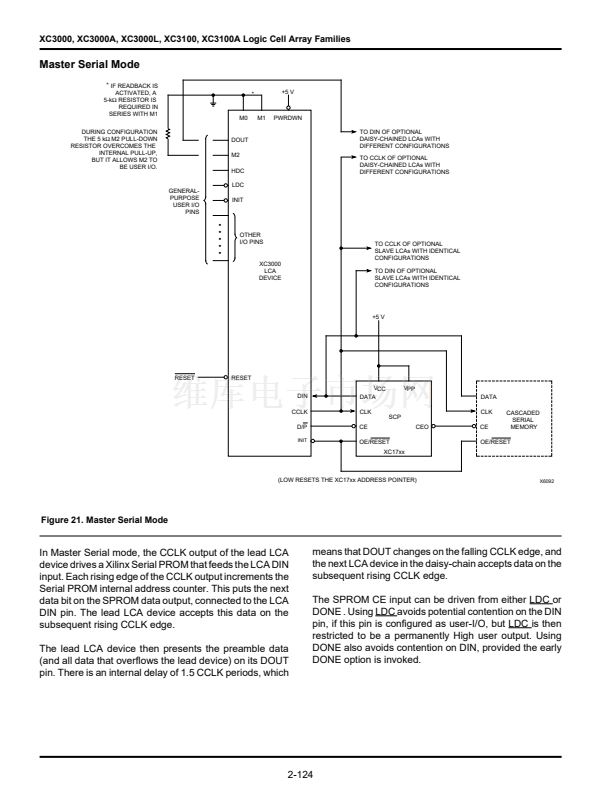

Master Serial Mode .......................................... 2-124

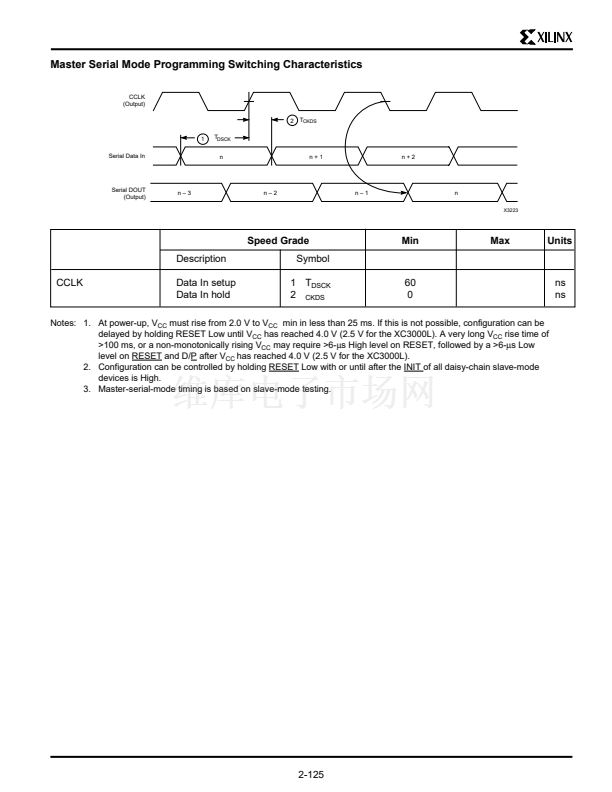

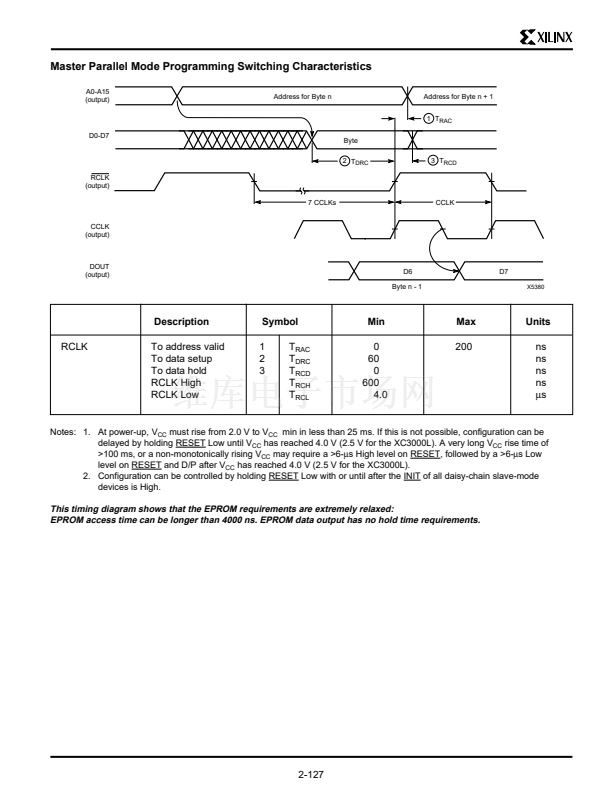

Master Serial Mode Programming
Switching Characteristics ............................. 2-125

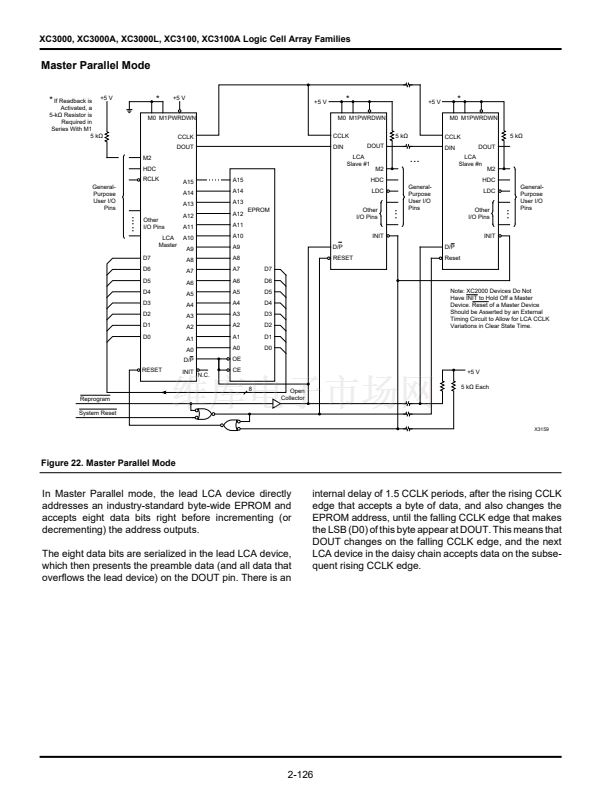

Master Parallel Mode ....................................... 2-126
Master Parallel Mode Programming
Switching Characteristics ............................. 2-127

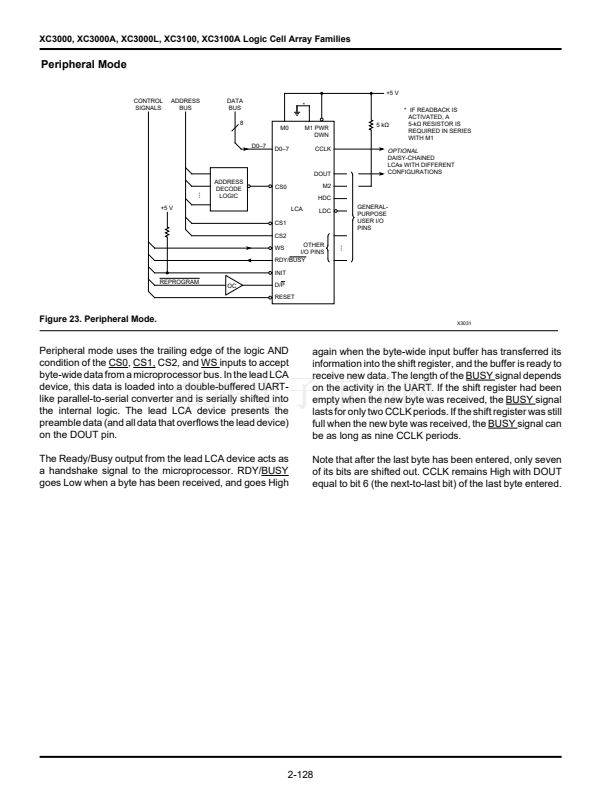

Peripheral Mode ............................................... 2-128

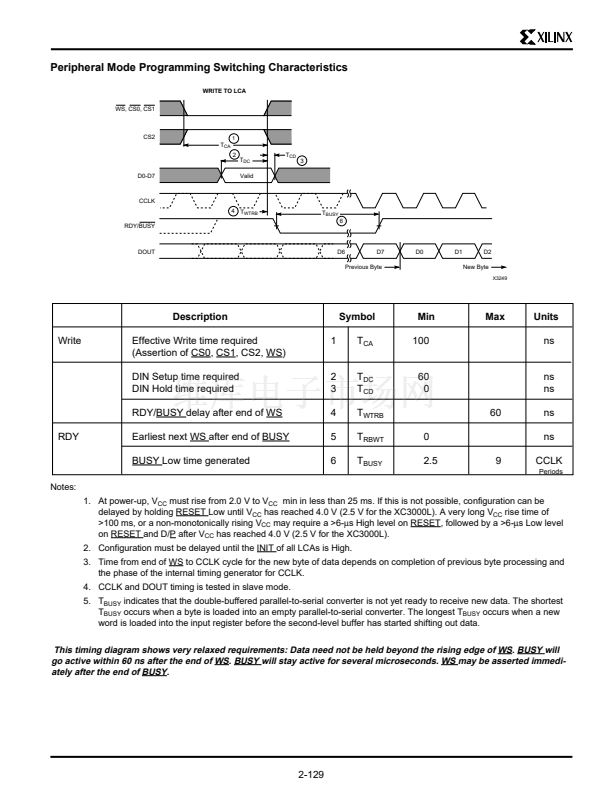

Peripheral Mode Programming
Switching Characteristics ............................. 2-129

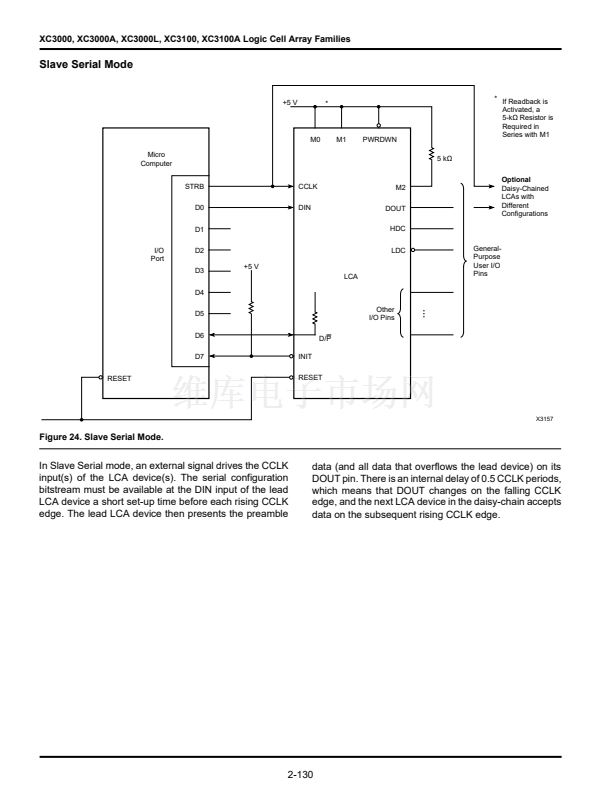

Slave Serial Mode ............................................ 2-130

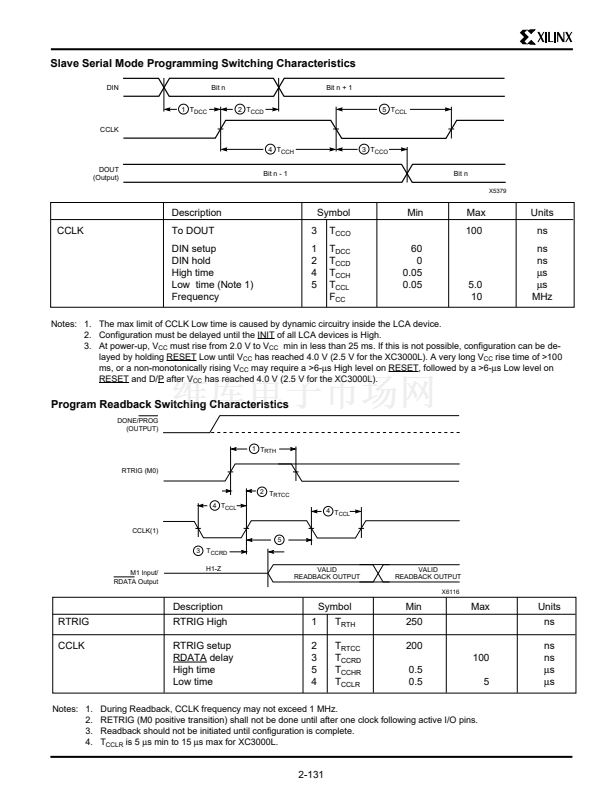

Slave Serial Mode Programming
Switching Characteristics ............................. 2-131
Program Readback Switching
Characteristics ............................................. 2-131

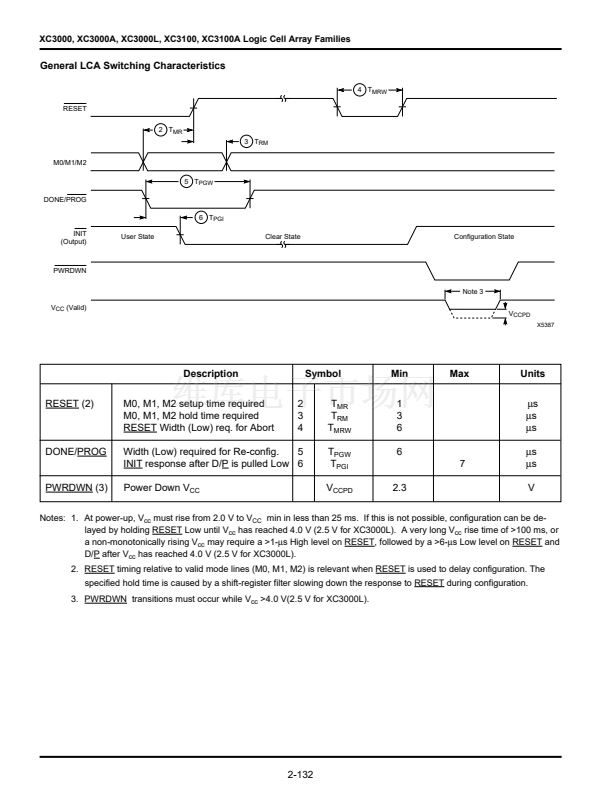

General LCA Switching Characteristics ........... 2-132
Performance .................................................... 2-133

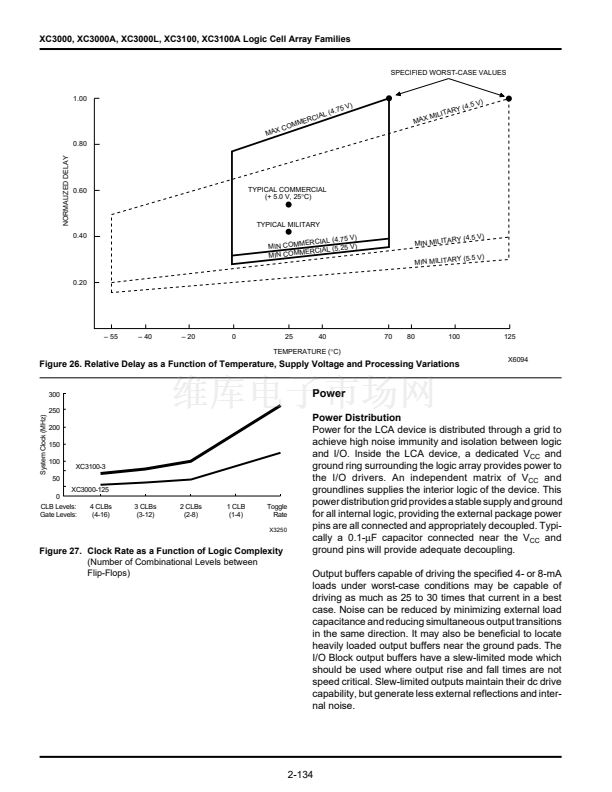

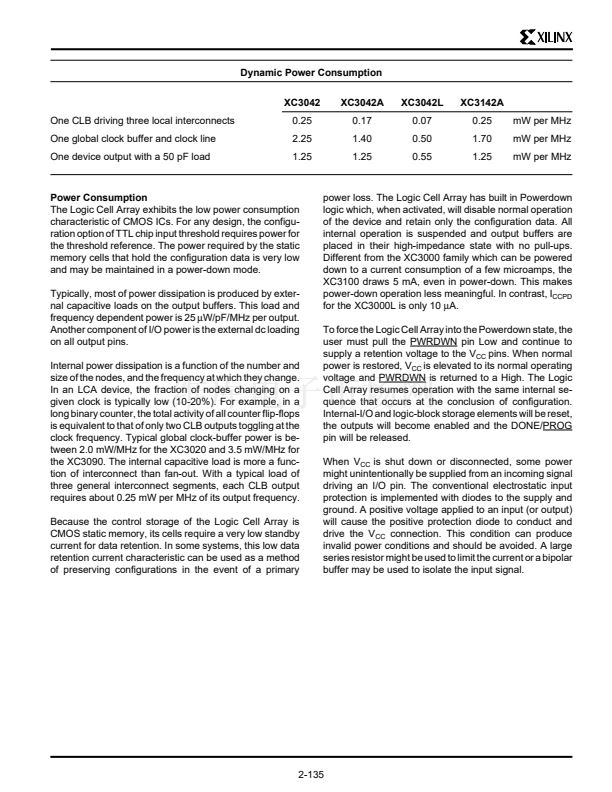

Power ............................................................... 2-134

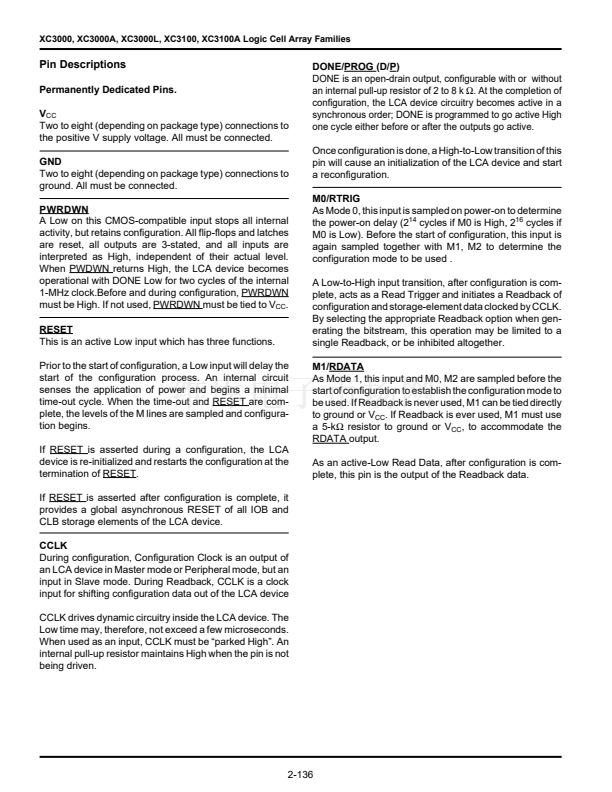

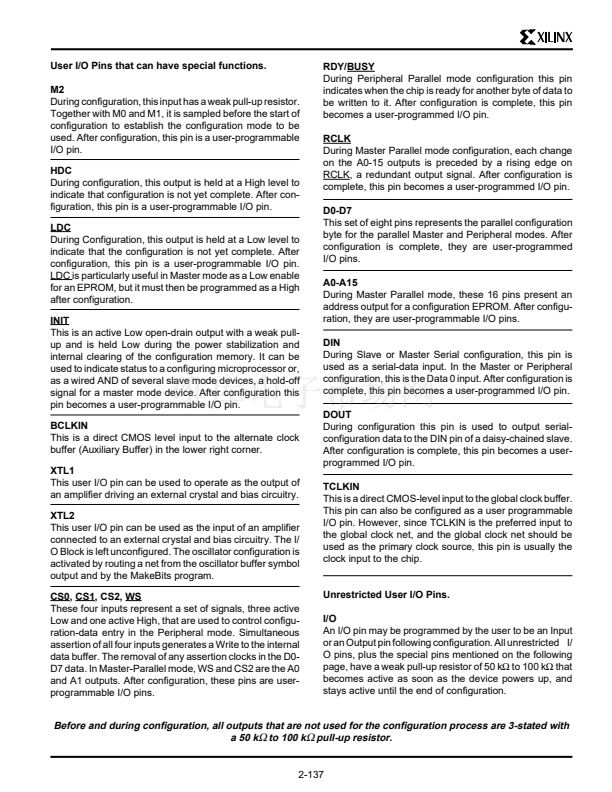

Pin Descriptions ............................................... 2-136

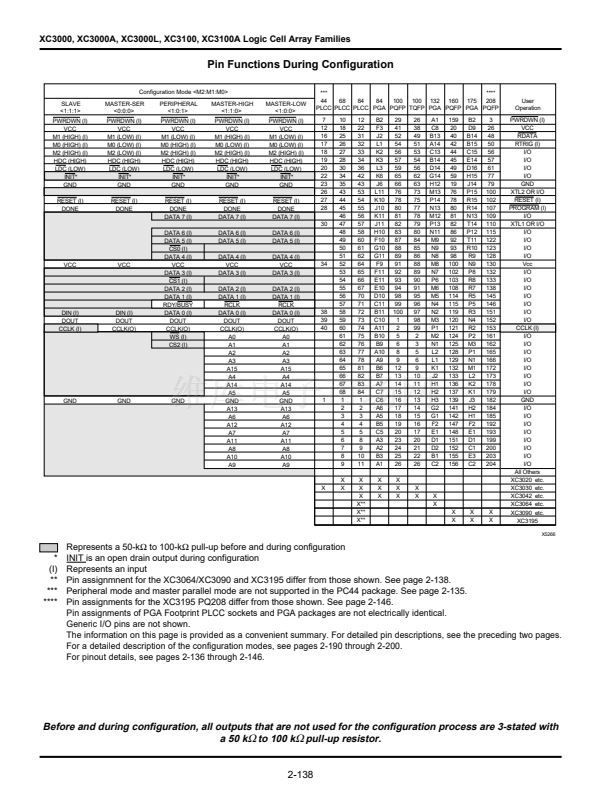

Pin Functions During Configuration.................. 2-138

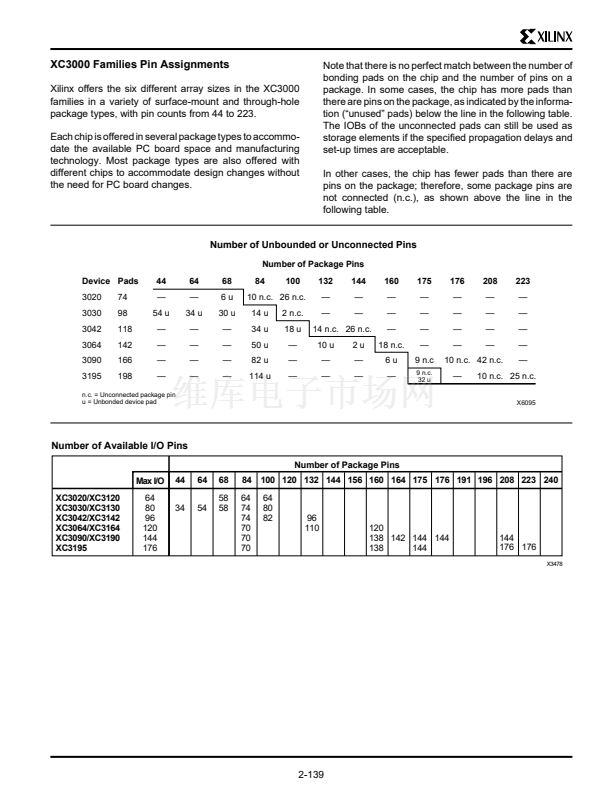

XC3000 Families Pin Assignments .................. 2-139

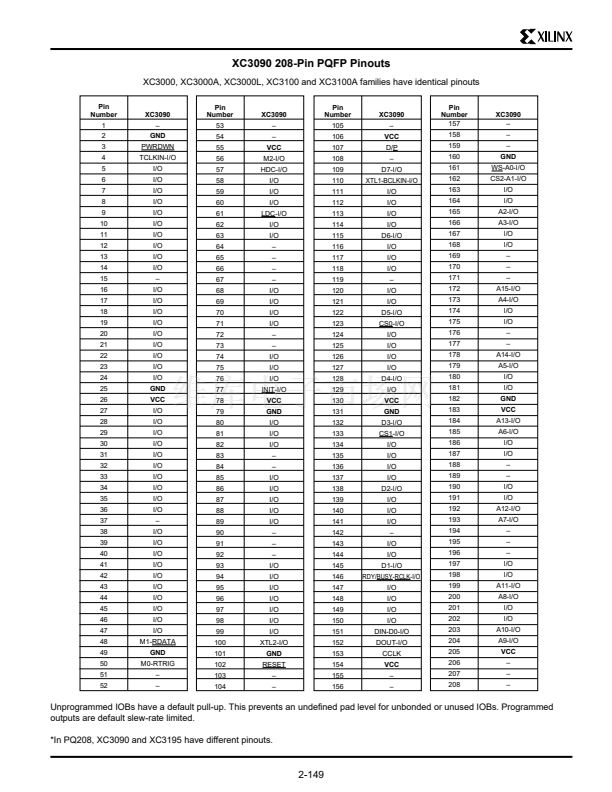

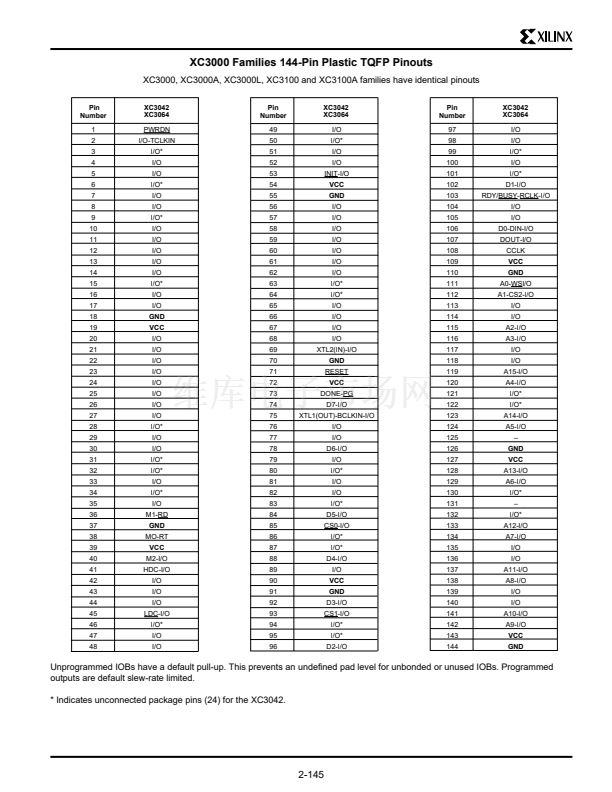

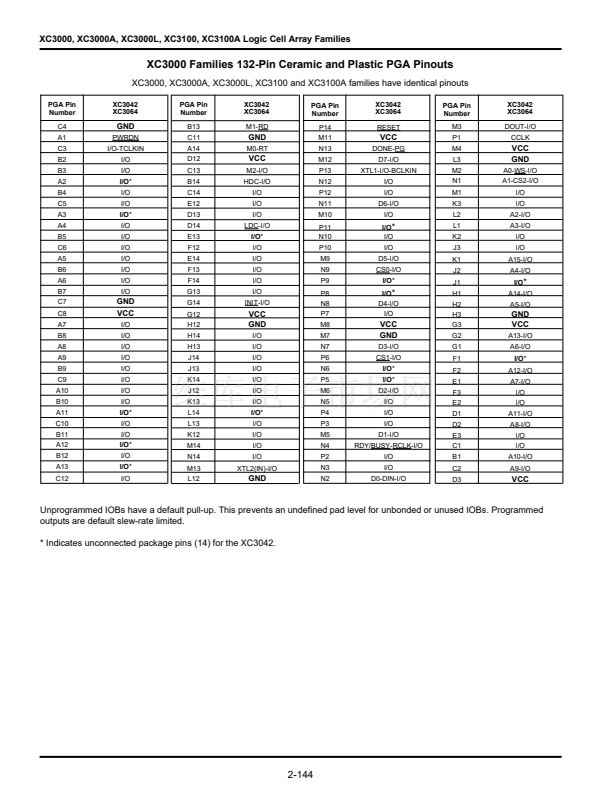

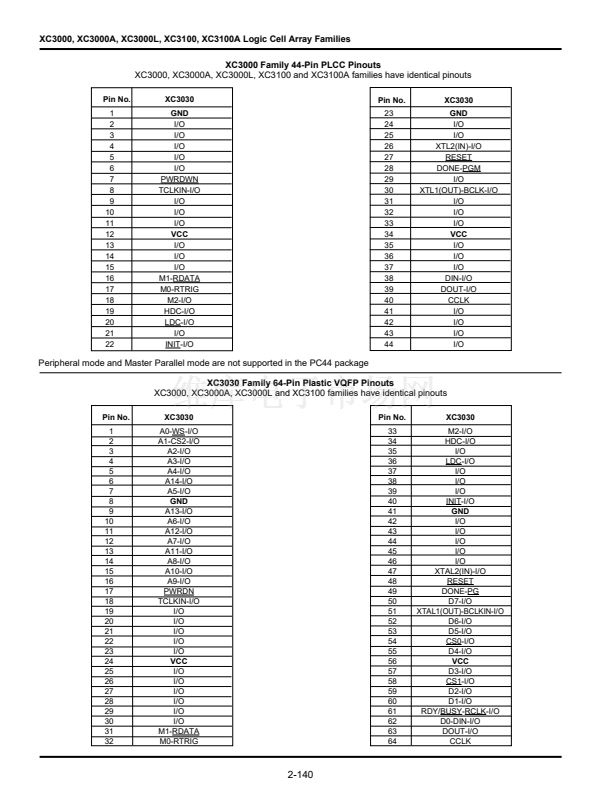

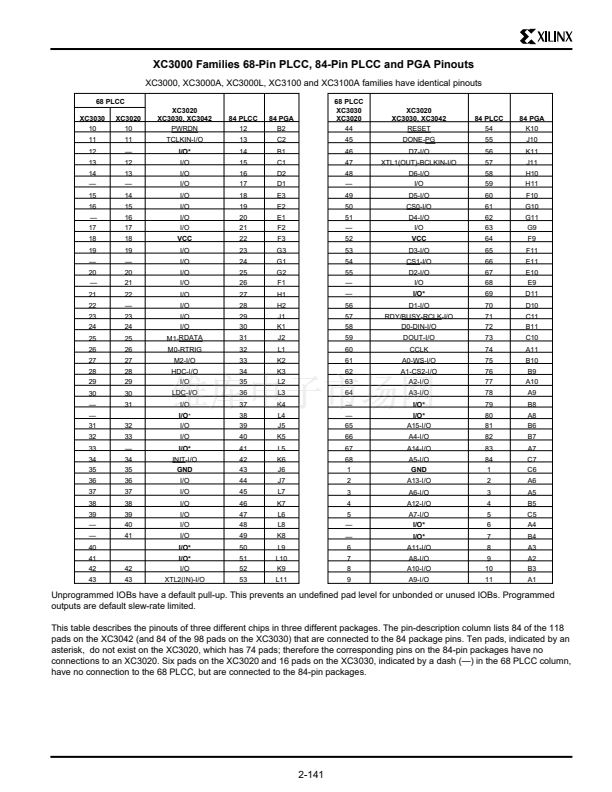

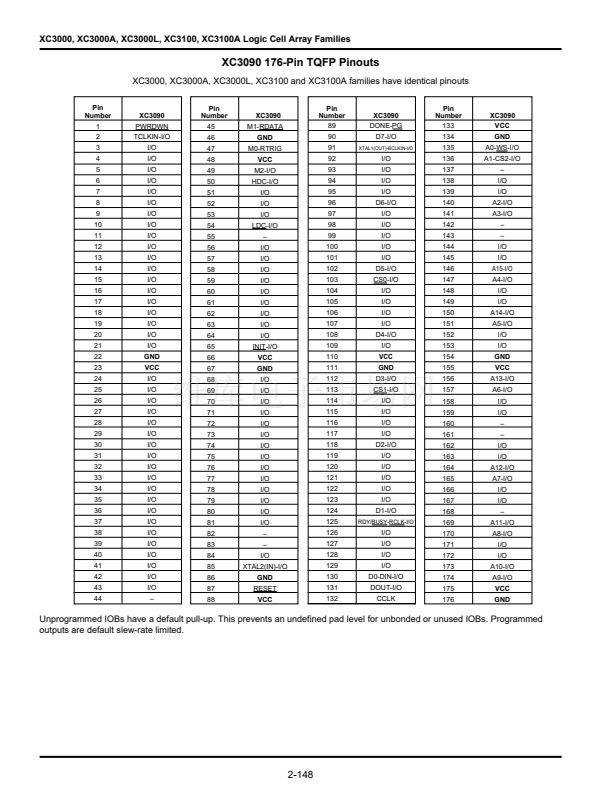

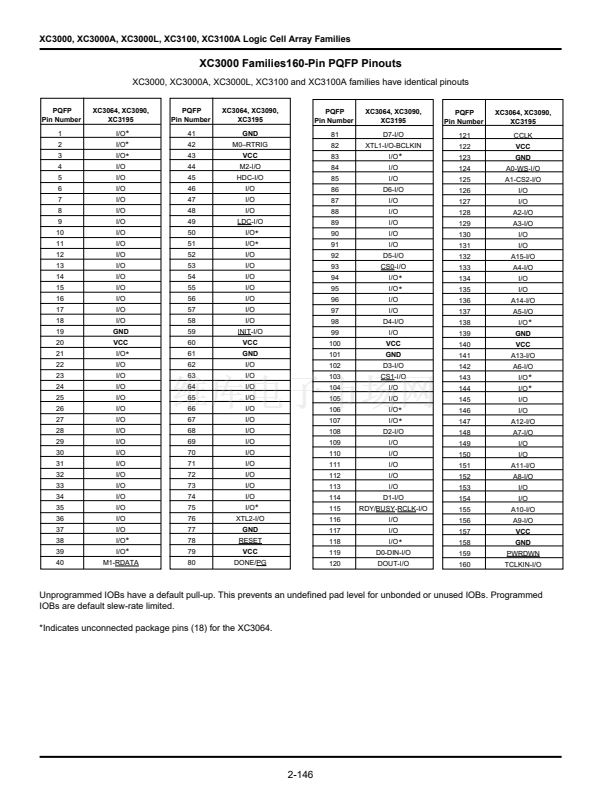

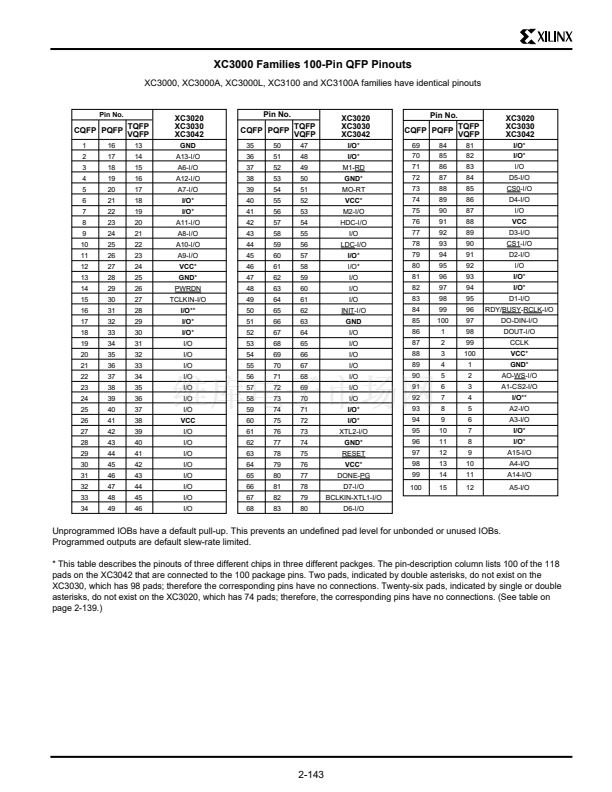

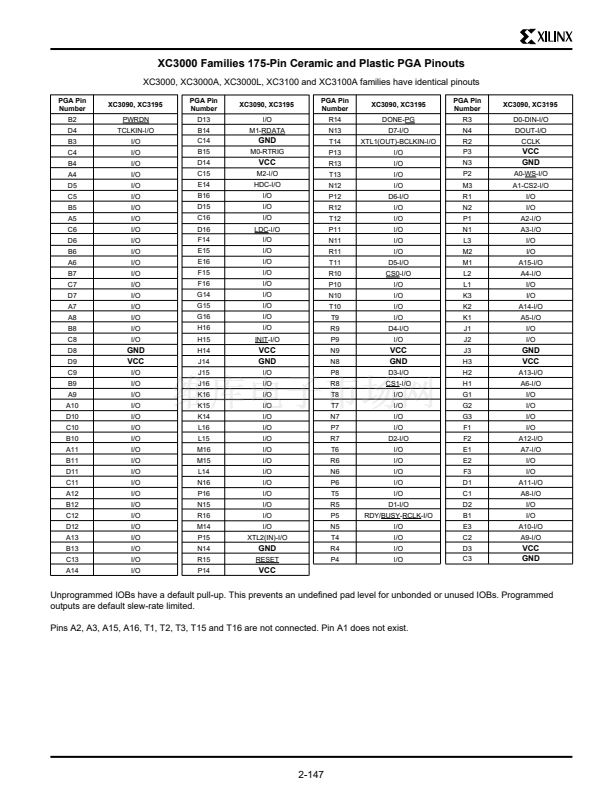

XC3000 Families Pinouts ................................. 2-140

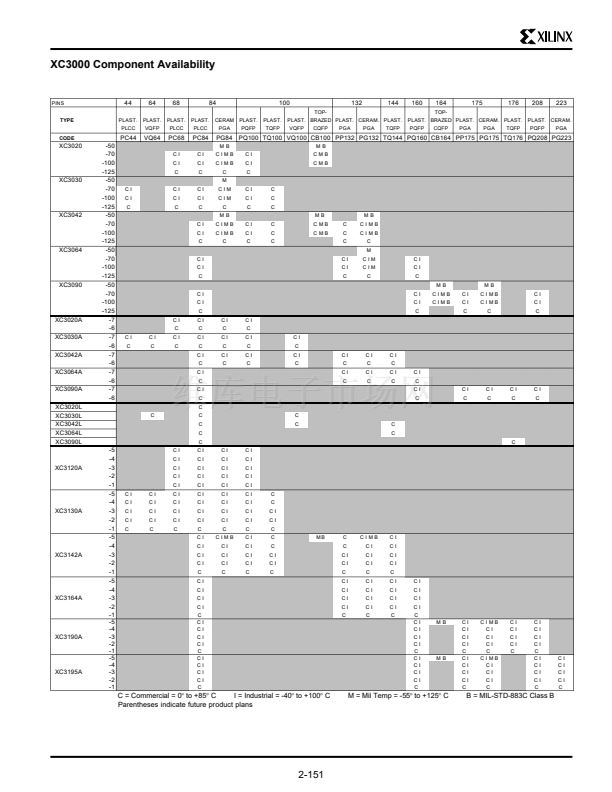

Component Availability ..................................... 2-151

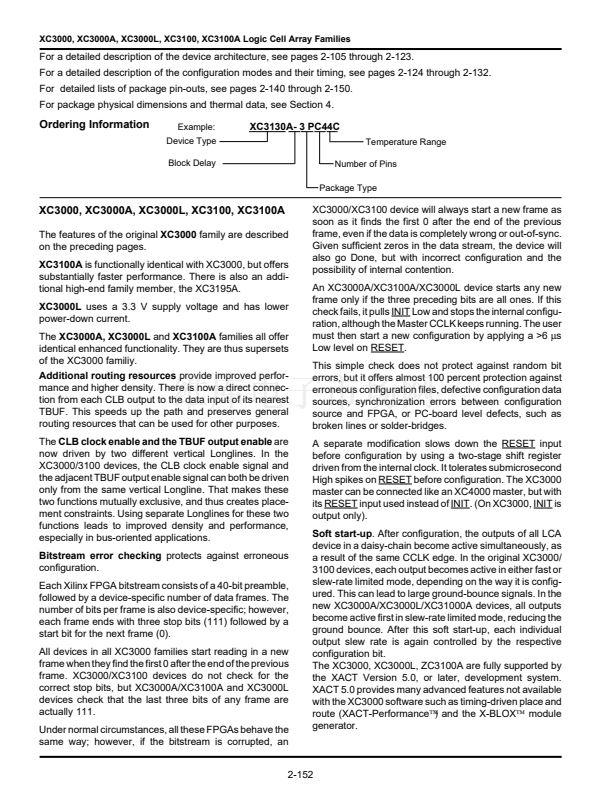

Ordering Information ........................................ 2-152
XC3000 Logic Cell Array Family ........................... 2-153
Absolute Maximum Ratings ............................. 2-154
Operating Conditions ....................................... 2-154
DC Characteristics ........................................... 2-155
Switching Characteristic Guidelines
CLB .............................................................. 2-156
Buffer ........................................................... 2-156
IOB .............................................................. 2-158
Ordering Information ........................................ 2-160
Component Availability ..................................... 2-160
XC3000A Logic Cell Array Familiy ....................... 2-161
Absolute Maximum Ratings ............................. 2-162
Operating Conditions ....................................... 2-162
DC Characteristics ........................................... 2-163
Switching Characteristic Guidelines
CLB .............................................................. 2-164
Buffer ........................................................... 2-164
IOB .............................................................. 2-166
Ordering Information ........................................ 2-168
Component Availability ..................................... 2-168
XC3000L Low Voltage Logic Cell Array Family .... 2-169
Absolute Maximum Ratings ............................. 2-170
Operating Conditions ....................................... 2-170
DC Characteristics ........................................... 2-171
Switching Characteristic Guidelines
CLB .............................................................. 2-172
Buffer ........................................................... 2-172
IOB .............................................................. 2-174
Ordering Information ........................................ 2-176
Component Availability ..................................... 2-176
XC3100, XC3100A Logic Cell Array Families ....... 2-177
Absolute Maximum Ratings ............................. 2-178
Operating Conditions ....................................... 2-178
DC Characteristics ........................................... 2-179
Switching Characteristic Guidelines
CLB .............................................................. 2-180
Buffer ........................................................... 2-180
IOB .............................................................. 2-182
Ordering Information ........................................ 2-184
Component Availability ..................................... 2-184
2-103
