Indirect reading ammeters and voltmeters X
AC moving iron DC moving coil
DIN standard instruments in 48, 72 and
96mm square cases. Conforming to BS89,
IEC 51, VDE 0410 and DIN 43700,
43701
s
s
72 and 96 sizes supplied without scale
For shunt, current transformer or analogue
electronics connection
Options and ordering codes
X
Meter without scale
E
72
S5
5A
Rated secondary 鈥?value
see table below
X
E
W
72
96
S1
S5
L
Moving iron 鈥?AC
Moving coil 鈥?DC
Full scale
AC ammeters only
5 x overload scale
AC ammeters only
Linear scale
DC meters only
AC voltmeters
PRICE
INFORMATION
AND ORDERING
72mm square
96mm square
Rated Secondary Value 鈥?Indirect Meters
Moving iron (AC)
Moving coil (DC)
1A
5A
(Current transformer secondaries) Please enquire for voltage transformer connection
60mV*
10V
1mA
5mA
10mA
20mA**
*60mV for shunt connection.

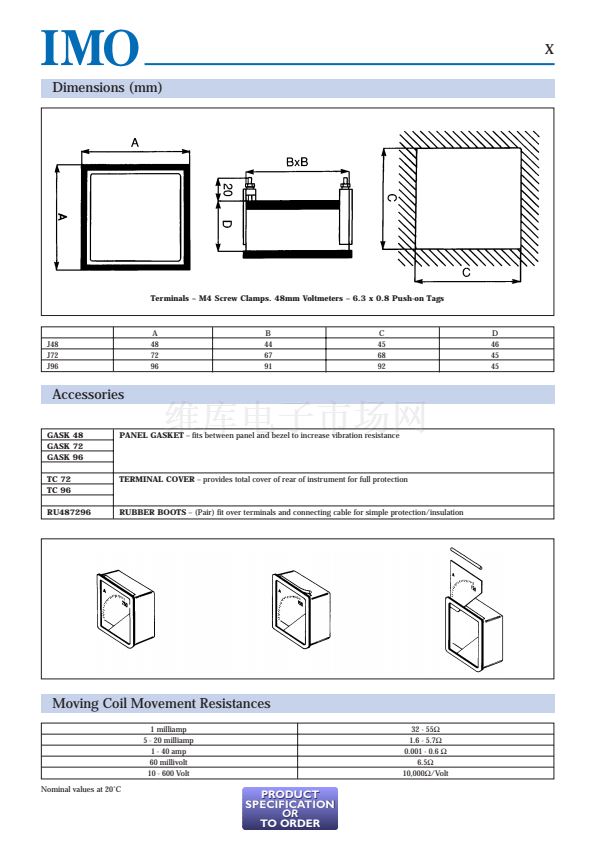

Dimensions and accessories please see page 128
** Also for 4-20mA reading with appropriate scale
Current Transformers, Shunts and Transducers
Please see pages 131 to 134
Examples of Scales
1
2
