WSD705

WSD706

Surface Mount Schottky Barrier Diodes

Features:

*Extremely Fast Switching Speed

*Low Forward Voltage

*Very Small Conduction Losses

*Schottky Barrier Diodes Encapsulated in a SOT-23 Package

SMALL SIGNAL

SCHOTTKY DIODES

30m AMPERES

40 VOLTS

Description:

These schottky barrier diodes are designed for high speed

switching applications circuit protection, and voltage clamping,

Extremely low forward voltage reduces conduction loss,

Miniature surface mount package is excellent for hand held and

portable applications where space is limited.

1

2

3

SOT-23

SOT-23 Outline Dimensions

Dim

A

B

C

D

E

G

H

J

K

L

M

Min

0.35

1.19

2.10

0.85

0.46

1.70

2.70

0.01

0.89

0.30

0.076

Max

0.51

1.40

3.00

1.05

1.00

2.10

3.10

0.13

1.10

0.61

0.25

Unit:mm

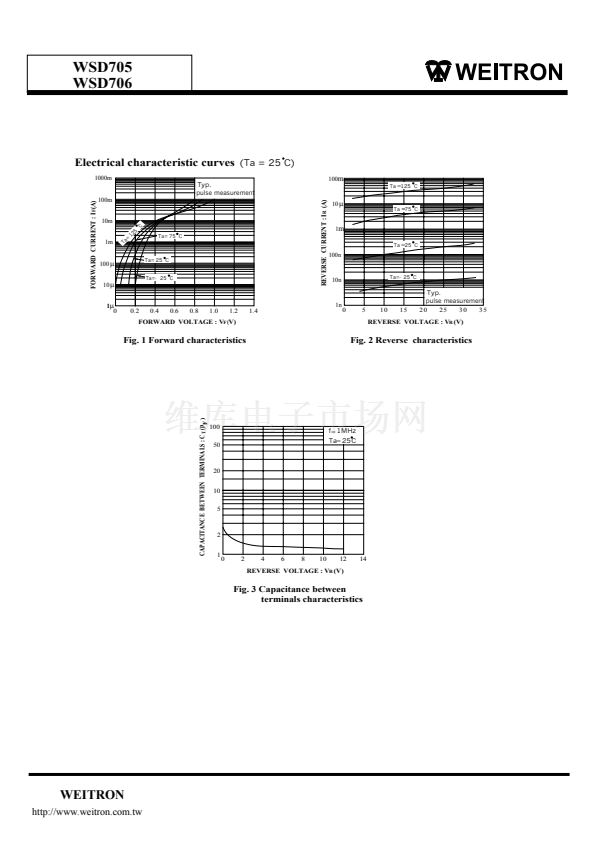

WEITRON

http://www.weitron.com.tw
