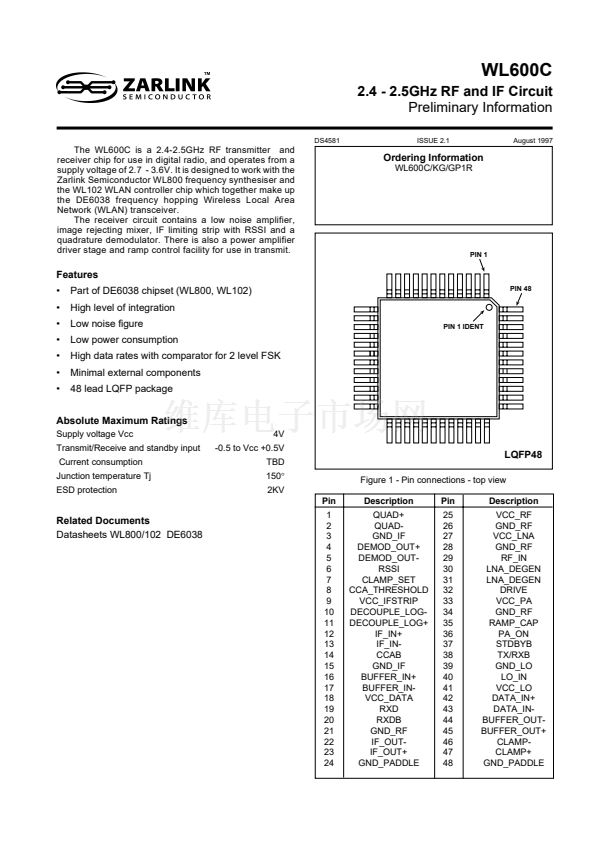

WL600C

2.4 - 2.5GHz RF and IF Circuit

Preliminary Information

DS4581

ISSUE 2.1

August 1997

The WL600C is a 2.4-2.5GHz RF transmitter and

receiver chip for use in digital radio, and operates from a

supply voltage of 2.7 - 3.6V. It is designed to work with the

Zarlink Semiconductor WL800 frequency synthesiser and

the WL102 WLAN controller chip which together make up

the DE6038 frequency hopping Wireless Local Area

Network (WLAN) transceiver.

The receiver circuit contains a low noise amplifier,

image rejecting mixer, IF limiting strip with RSSI and a

quadrature demodulator. There is also a power amplifier

driver stage and ramp control facility for use in transmit.

Ordering Information

WL600C/KG/GP1R

PIN 1

Features

鈥?/div>

Part of DE6038 chipset (WL800, WL102)

High level of integration

Low noise figure

Low power consumption

High data rates with comparator for 2 level FSK

Minimal external components

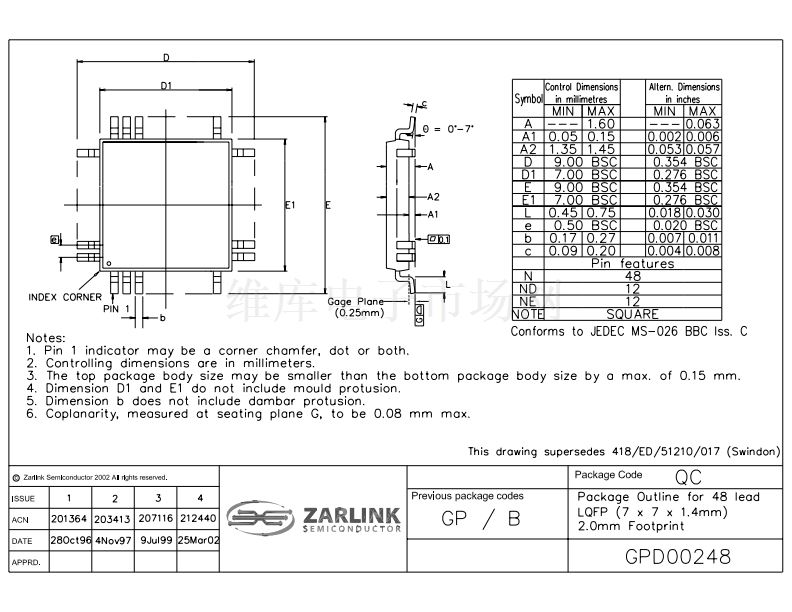

48 lead LQFP package

PIN 1 IDENT

PIN 48

Absolute Maximum Ratings

Supply voltage Vcc

Transmit/Receive and standby input

Current consumption

Junction temperature Tj

ESD protection

4V

-0.5 to Vcc +0.5V

TBD

150擄

2KV

Description

QUAD+

QUAD-

GND_IF

DEMOD_OUT+

DEMOD_OUT-

RSSI

CLAMP_SET

CCA_THRESHOLD

VCC_IFSTRIP

DECOUPLE_LOG-

DECOUPLE_LOG+

IF_IN+

IF_IN-

CCAB

GND_IF

BUFFER_IN+

BUFFER_IN-

VCC_DATA

RXD

RXDB

GND_RF

IF_OUT-

IF_OUT+

GND_PADDLE

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

Description

VCC_RF

GND_RF

VCC_LNA

GND_RF

RF_IN

LNA_DEGEN

DRIVE

VCC_PA

GND_RF

RAMP_CAP

PA_ON

STDBYB

TX/RXB

GND_LO

LO_IN

VCC_LO

DATA_IN+

DATA_IN-

BUFFER_OUT-

BUFFER_OUT+

CLAMP-

CLAMP+

GND_PADDLE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

LQFP48

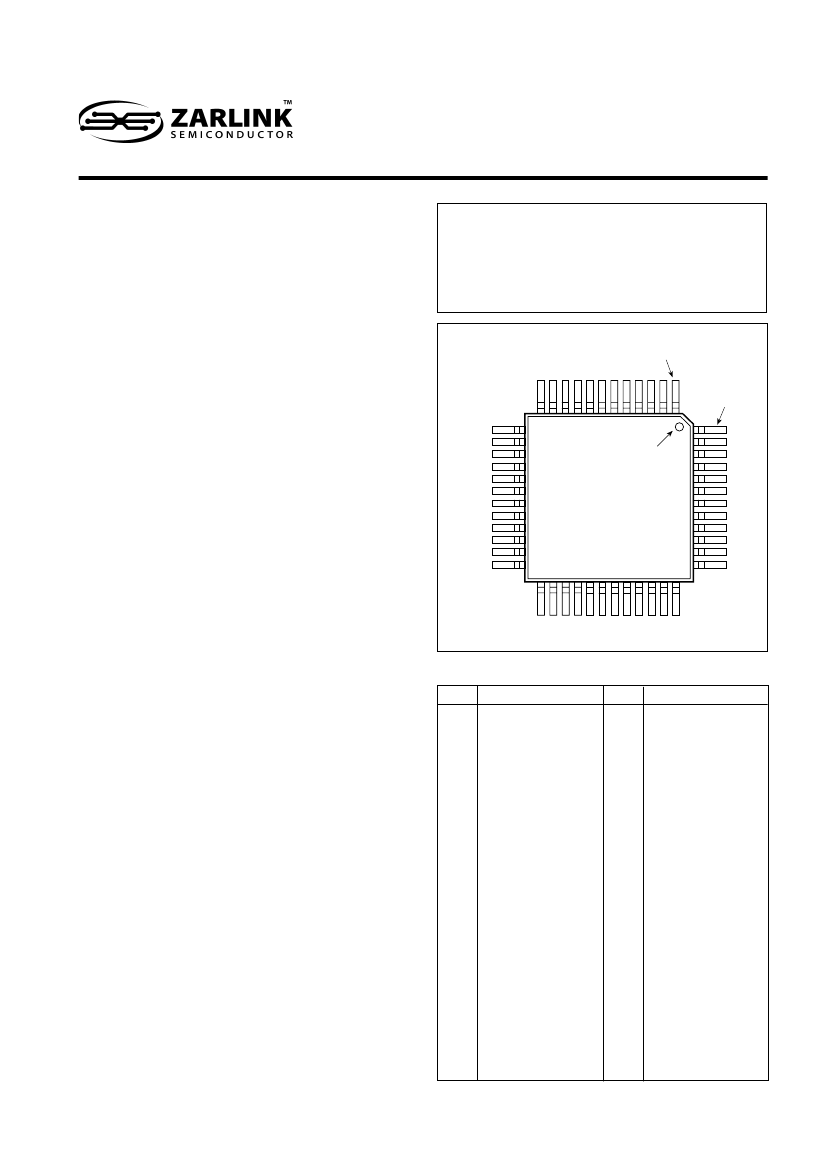

Figure 1 - Pin connections - top view
