WFP6131AGSR Datasheet

  • WFP6131AGSR

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

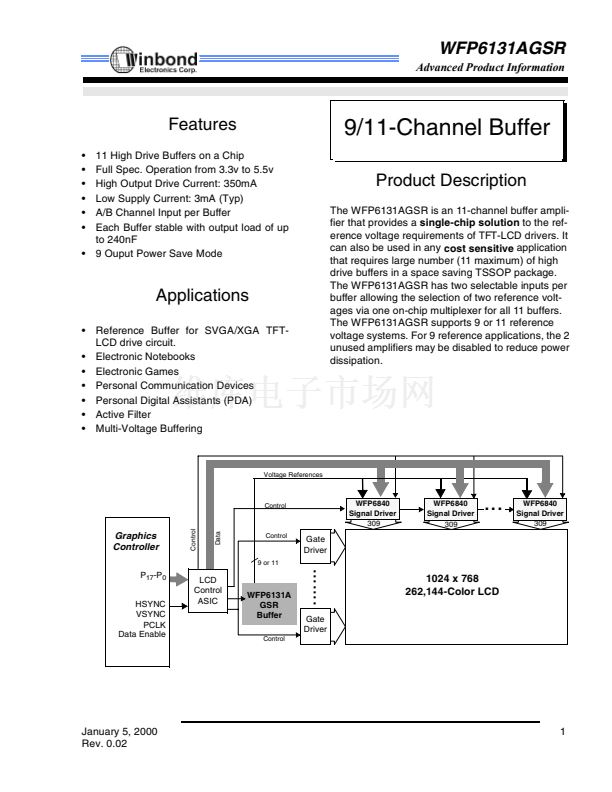

WFP6131AGSR
Advanced Product Information
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
11 High Drive Buffers on a Chip
Full Spec. Operation from 3.3v to 5.5v
High Output Drive Current: 350mA
Low Supply Current: 3mA (Typ)
A/B Channel Input per Buffer
Each Buffer stable with output load of up
to 240nF
鈥?9 Ouput Power Save Mode
9/11-Channel Buffer
Product Description
The WFP6131AGSR is an 11-channel buffer ampli-
fier that provides a
single-chip solution
to the ref-
erence voltage requirements of TFT-LCD drivers. It
can also be used in any
cost sensitive
application
that requires large number (11 maximum) of high

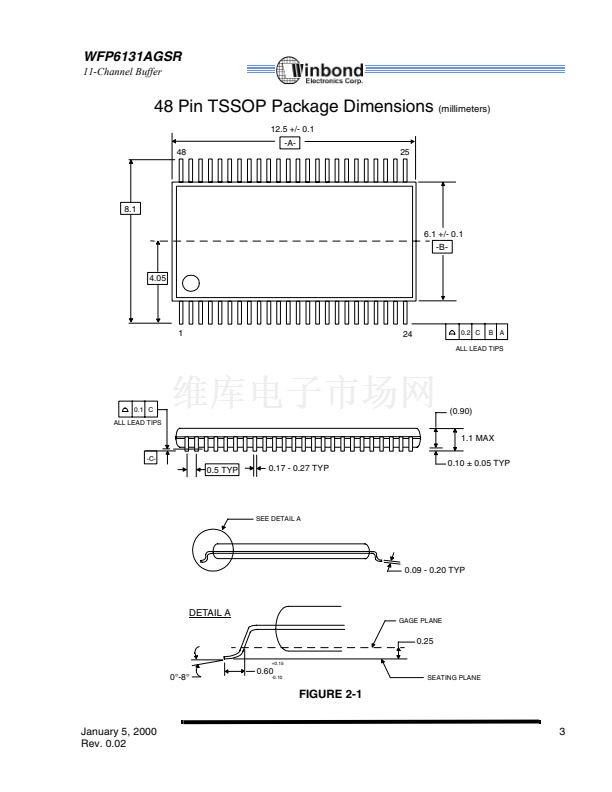

drive buffers in a space saving TSSOP package.

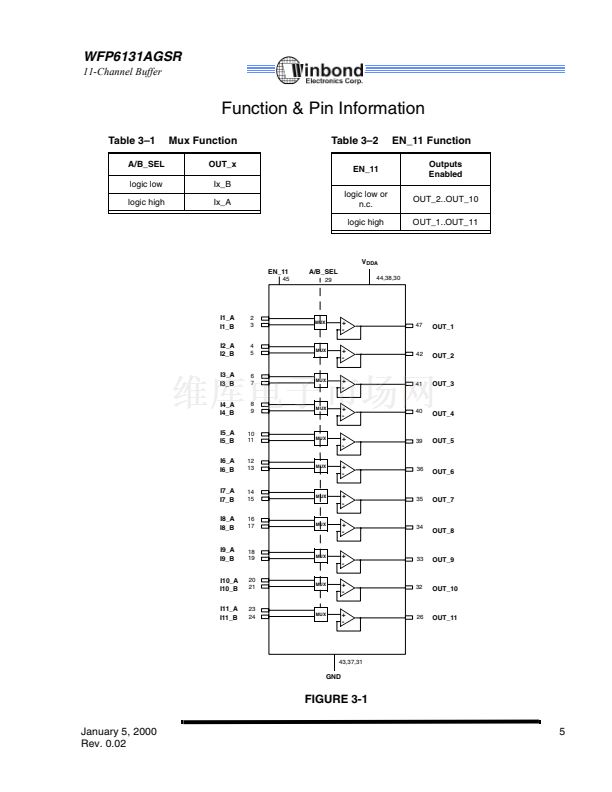

The WFP6131AGSR has two selectable inputs per
buffer allowing the selection of two reference volt-
ages via one on-chip multiplexer for all 11 buffers.

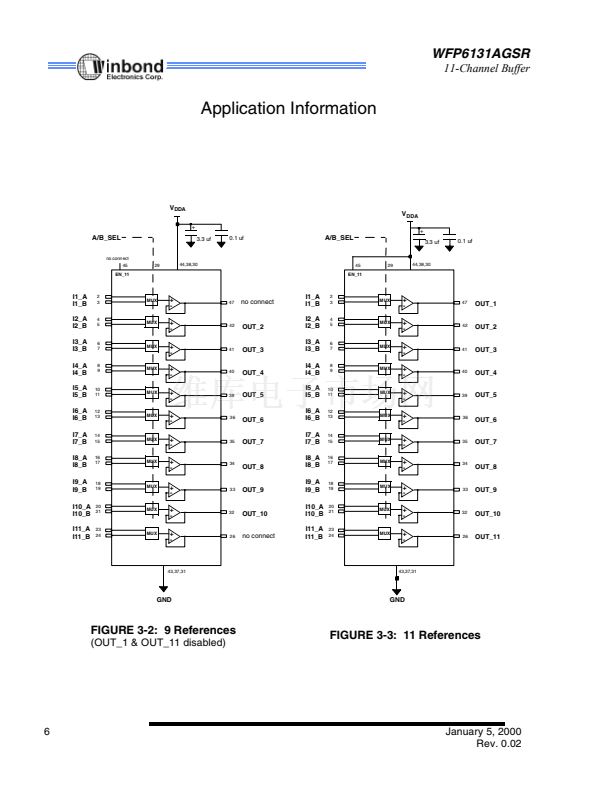

The WFP6131AGSR supports 9 or 11 reference
voltage systems. For 9 reference applications, the 2
unused amplifiers may be disabled to reduce power
dissipation.
Applications
鈥?Reference Buffer for SVGA/XGA TFT-
LCD drive circuit.
鈥?Electronic Notebooks
鈥?Electronic Games
鈥?Personal Communication Devices
鈥?Personal Digital Assistants (PDA)
鈥?Active Filter
鈥?Multi-Voltage Buffering
Voltage References
Control
WFP6840
Signal Driver
309
WFP6840
Signal Driver
309
...
WFP6840
Signal Driver
309
Control
Graphics
Controller
P
17
-P
0
HSYNC
VSYNC
PCLK
Data Enable
Data
Control
Gate
Driver
9 or 11
.......
LCD
Control
ASIC
WFP6131A
GSR
Buffer
Control
1024 x 768
262,144-Color LCD
Gate
Driver
January 5, 2000
Rev. 0.02
1
