WEDPN8M72VR-
WEDPN8M72VR-XBX
8Mx72 Registered Synchronous DR AM
DRAM
FEATURES
FEATURES
!
Registered for enhanced performance of bus speeds of
!
!
!
!
!
!
!
!
!
!
GENERAL
GENER AL DESCRIPTION
The 64MByte (512Mb) SDRAM is a high-speed CMOS, dy-
namic random-access ,memory using 5 chips containing
134,217,728 bits. Each chip is internally configured as a
quad-bank DRAM with a synchronous interface. Each of the
chip鈥檚 33,554,432-bit banks is organized as 4,096 rows by

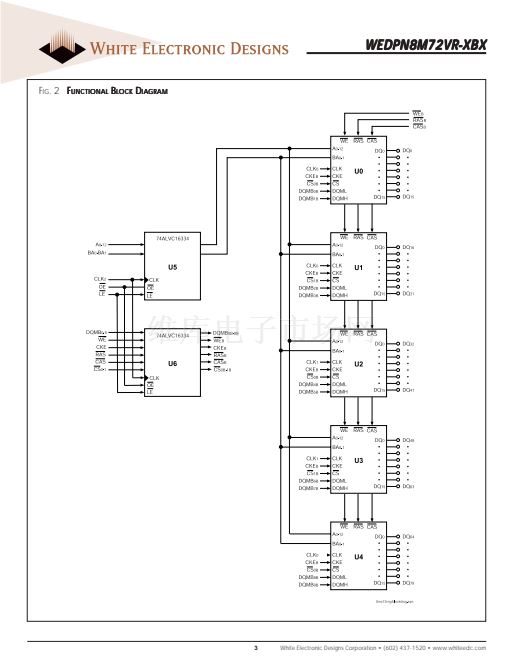

512 columns by 16 bits. The MCP also incorporates two
16-bit universal bus drivers for address and input control
signals.

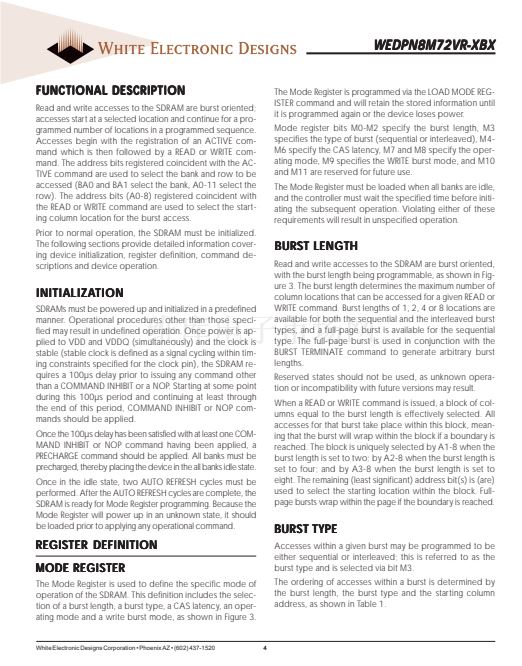

Read and write accesses to the SDRAM are burst oriented;
accesses start at a selected location and continue for a pro-
grammed number of locations in a programmed sequence.
Accesses begin with the registration of an ACTIVE com-
mand, which is then followed by a READ or WRITE com-
mand. The address bits registered coincident with the AC-
TIVE command are used to select the bank and row to be
accessed (BA0, BA1 select the bank; A0-11 select the row).
The address bits registered coincident with the READ or
WRITE command are used to select the starting column lo-
cation for the burst access.
The SDRAM provides for programmable READ or WRITE burst
lengths of 1, 2, 4 or 8 locations, or the full page, with a
burst terminate option. An AUTO PRECHARGE function may
be enabled to provide a self-timed row precharge that is
initiated at the end of the burst sequence.
The 512Mb SDRAM uses an internal pipelined architecture
to achieve high-speed operation. This architecture is com-
patible with the 2n rule of prefetch architectures, but it also
allows the column address to be changed on every clock
cycle to achieve a high-speed, fully random access.
Precharging one bank while accessing one of the other three
banks will hide the precharge cycles and provide seam-
less, high-speed, random-access operation.
The 512Mb SDRAM is designed to operate in 3.3V, low-
power memory systems. An auto refresh mode is provided,
along with a power-saving, power-down mode.
All inputs and outputs are LVTTL compatible. SDRAMs offer
substantial advances in DRAM operating performance, in-
cluding the ability to synchronously burst data at a high data
rate with automatic column-address generation, the ability
to interleave between internal banks in order to hide
precharge time and the capability to randomly change col-
umn addresses on each clock cycle during a burst access.
66 MHz and 100 MHz
Package:
鈥?219 Plastic Ball Grid Array (PBGA), 32 x 25mm
Single 3.3V 鹵0.3V power supply
Fully Synchronous; all signals registered on positive edge
of system clock cycle
Internal pipelined operation; column address can be
changed every clock cycle
Internal banks for hiding row access/precharge
Programmable Burst length 1,2,4,8 or full page
4096 refresh cycles
Commercial, Industrial and Military Temperature Ranges
Organized as 8M x 72
Weight: WEDPN8M72VR-XBX - 2.5 grams typical
BENEFITS
!
48% SPACE SAVINGS
!
Reduced part count
!
Reduced I/O count
!
!
!
!
鈥?40% I/O Reduction
Laminate interposer for optimum TCE match
Glueless connection to memory controller/PCI bridge
Suitable for hi-reliability applications
Upgradeable to 16M x 72 density (contact factory for
information)
* This datasheet describes a product that is subject to change without notice.
November 2003 Rev. 4
1
White Electronic Designs Corporation 鈥?(602) 437-1520 鈥?www.whiteedc.com
