WEDPN4M72V-XBX
4Mx72 Synchronous DRAM
FEATURES
!
!
!
!
!
!
!
!
!
!
!
High Frequency = 100, 125MHz
Package:

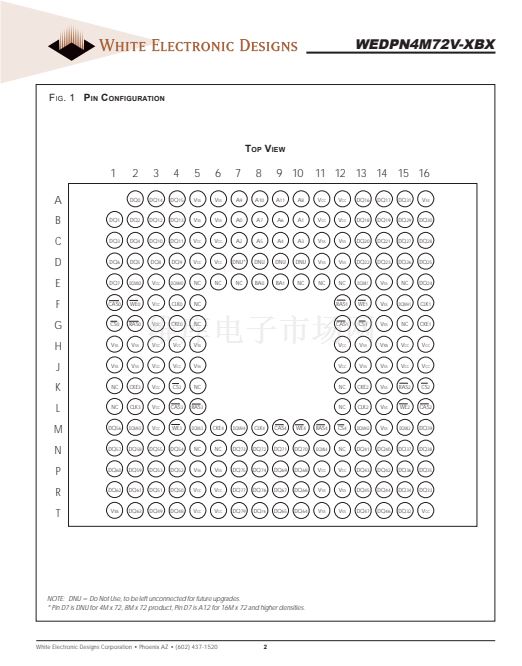

鈥?219 Plastic Ball Grid Array (PBGA), 25 x 21mm
Single 3.3V 鹵0.3V power supply
Fully Synchronous; all signals registered on positive
edge of system clock cycle
Internal pipelined operation; column address can be
changed every clock cycle
Internal banks for hiding row access/precharge
Programmable Burst length 1,2,4,8 or full page
4096 refresh cycles
Commercial, Industrial and Military Temperature Ranges
Organized as 4M x 72
Weight: WEDPN4M72V-XBX - 2 grams typical
GENERAL DESCRIPTION

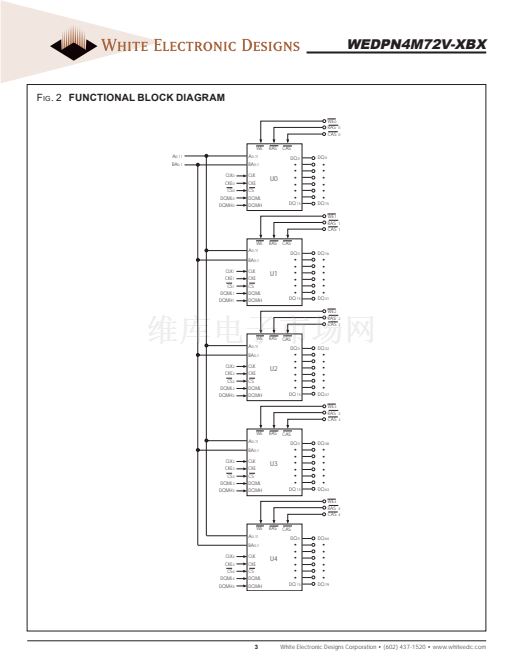

The 32MByte (256Mb) SDRAM is a high-speed CMOS, dy-
namic random-access ,memory using 5 chips containing
67,108,864 bits. Each chip is internally configured as a quad-
bank DRAM with a synchronous interface. Each of the chip鈥檚
16,777,216-bit banks is organized as 4,096 rows by 256
columns by 16 bits.

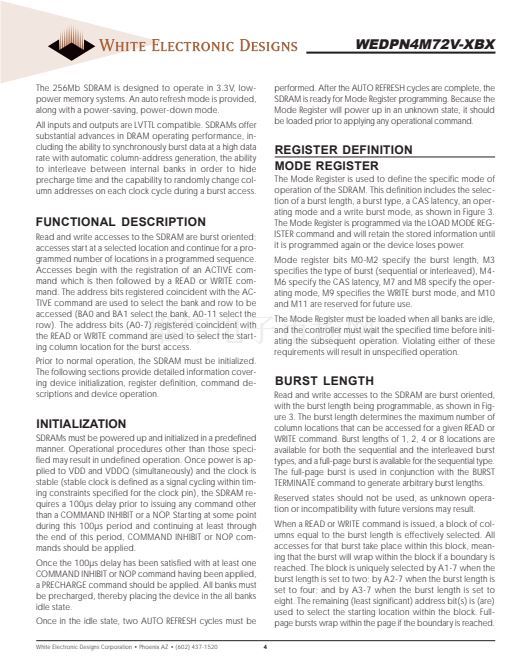

Read and write accesses to the SDRAM are burst oriented;
accesses start at a selected location and continue for a pro-
grammed number of locations in a programmed sequence.
Accesses begin with the registration of an ACTIVE com-
mand, which is then followed by a READ or WRITE com-
mand. The address bits registered coincident with the AC-
TIVE command are used to select the bank and row to be
accessed (BA0, BA1 select the bank; A0-11 select the row).
The address bits registered coincident with the READ or
WRITE command are used to select the starting column lo-
cation for the burst access.
The SDRAM provides for programmable READ or WRITE burst
lengths of 1, 2, 4 or 8 locations, or the full page, with a
burst terminate option. An AUTO PRECHARGE function may
be enabled to provide a self-timed row precharge that is
initiated at the end of the burst sequence.
The 256Mb SDRAM uses an internal pipelined architecture
to achieve high-speed operation. This architecture is com-
patible with the 2n rule of prefetch architectures, but it also
allows the column address to be changed on every clock
cycle to achieve a high-speed, fully random access.
Precharging one bank while accessing one of the other three
banks will hide the precharge cycles and provide seam-
less, high-speed, random-access operation.
BENEFITS
!
!
!
!
!
!
60% SPACE SAVINGS
Reduced part count
Reduced I/O count
鈥?19% I/O Reduction
Lower inductance and capacitance for low noise
performance
Suitable for hi-reliability applications
Upgradeable to 8M x 72 density with same footprint
(contact factory for information)
*This product is subject to change without notice.
Discrete Approach
11.9
11.9
11.9
11.9
11.9
ACTUAL SIZE
21
22.3
54
TSOP
54
TSOP
54
TSOP
54
TSOP
54
TSOP
White Electronic Designs
WEDPN4M72V-XBX
25
S
A
V
I
N
G
S
60%
19%
Area
I/O
Count
November 2003 Rev. 14
5 x 265mm
2
= 1328mm
2
5 x 54 pins = 270 pins
1
525mm
2
219 Balls
White Electronic Designs Corporation 鈥?(602) 437-1520 鈥?www.whiteedc.com
