W921E880A/W921C880
4-BIT MICROCONTROLLER

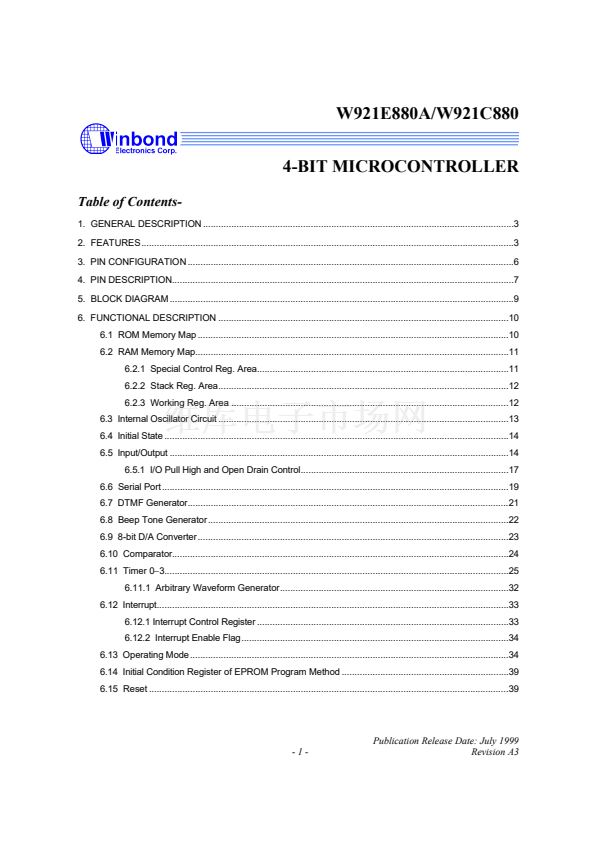

Table of Contents-
1. GENERAL DESCRIPTION .........................................................................................................................3
2. FEATURES.................................................................................................................................................3
3. PIN CONFIGURATION ...............................................................................................................................6
4. PIN DESCRIPTION.....................................................................................................................................7
5. BLOCK DIAGRAM ......................................................................................................................................9
6. FUNCTIONAL DESCRIPTION .................................................................................................................10
6.1 ROM Memory Map .........................................................................................................................10
6.2 RAM Memory Map..........................................................................................................................11
6.2.1 Special Control Reg. Area..................................................................................................11
6.2.2 Stack Reg. Area.................................................................................................................12
6.2.3 Working Reg. Area ............................................................................................................12
6.3 Internal Oscillator Circuit .................................................................................................................13
6.4 Initial State ......................................................................................................................................14
6.5 Input/Output ....................................................................................................................................14
6.5.1 I/O Pull High and Open Drain Control.................................................................................17
6.6 Serial Port.......................................................................................................................................19
6.7 DTMF Generator.............................................................................................................................21
6.8 Beep Tone Generator.....................................................................................................................22
6.9 8-bit D/A Converter.........................................................................................................................23
6.10 Comparator...................................................................................................................................24
6.11 Timer 0
鈭?/div>
3......................................................................................................................................25
6.11.1 Arbitrary Waveform Generator.........................................................................................32
6.12 Interrupt.........................................................................................................................................33
6.12.1 Interrupt Control Register ..................................................................................................33
6.12.2 Interrupt Enable Flag........................................................................................................34
6.13 Operating Mode............................................................................................................................34
6.14 Initial Condition Register of EPROM Program Method .................................................................39
6.15 Reset ............................................................................................................................................39
-1-
Publication Release Date: July 1999
Revision A3
