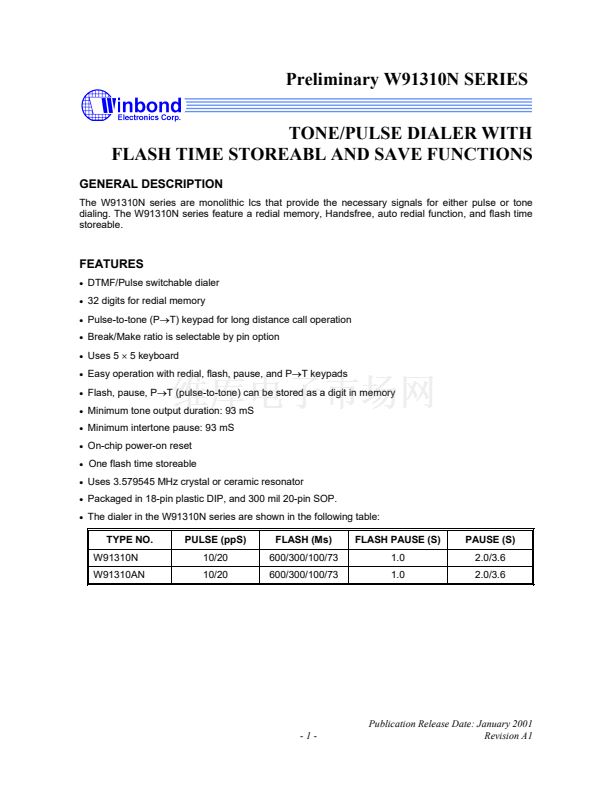

Preliminary W91310N SERIES
TONE/PULSE DIALER WITH
FLASH TIME STOREABL AND SAVE FUNCTIONS
GENERAL DESCRIPTION
The W91310N series are monolithic Ics that provide the necessary signals for either pulse or tone
dialing. The W91310N series feature a redial memory, Handsfree, auto redial function, and flash time
storeable.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
DTMF/Pulse switchable dialer
32 digits for redial memory
Pulse-to-tone (P鈫扵) keypad for long distance call operation
Break/Make ratio is selectable by pin option
Uses 5
脳
5 keyboard
Easy operation with redial, flash, pause, and P鈫扵 keypads
Flash, pause, P鈫扵 (pulse-to-tone) can be stored as a digit in memory
Minimum tone output duration: 93 mS
Minimum intertone pause: 93 mS
On-chip power-on reset
One flash time storeable
Uses 3.579545 MHz crystal or ceramic resonator
Packaged in 18-pin plastic DIP, and 300 mil 20-pin SOP.
The dialer in the W91310N series are shown in the following table:
TYPE NO.
W91310N
W91310AN
PULSE (ppS)
10/20
10/20
FLASH (Ms)
600/300/100/73
600/300/100/73
FLASH PAUSE (S)
1.0
1.0
PAUSE (S)
2.0/3.6
2.0/3.6
-1-
Publication Release Date: January 2001
Revision A1
