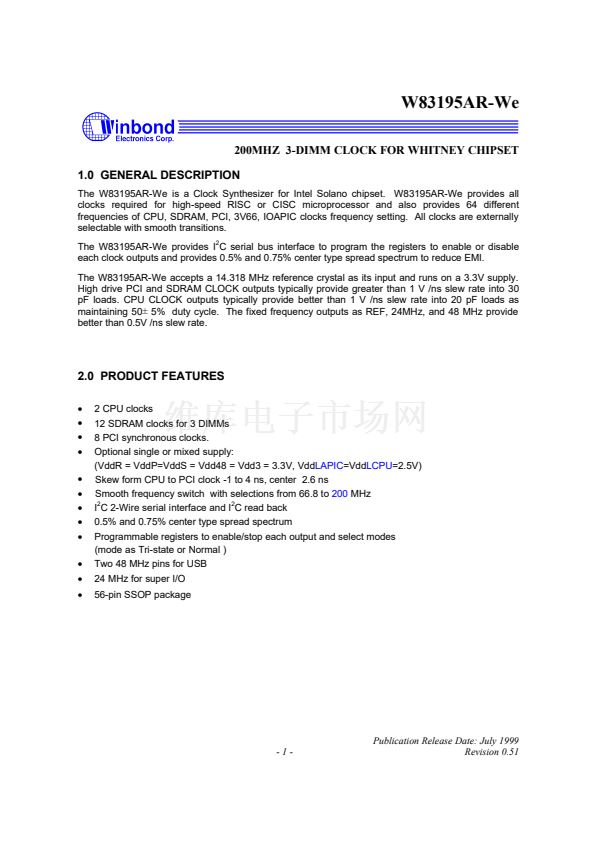

W83195AR-We
200MHZ 3-DIMM CLOCK FOR WHITNEY CHIPSET
1.0 GENERAL DESCRIPTION
The W83195AR-We is a Clock Synthesizer for Intel Solano chipset. W83195AR-We provides all
clocks required for high-speed RISC or CISC microprocessor and also provides 64 different
frequencies of CPU, SDRAM, PCI, 3V66, IOAPIC clocks frequency setting. All clocks are externally
selectable with smooth transitions.
The W83195AR-We provides I C serial bus interface to program the registers to enable or disable
each clock outputs and provides 0.5% and 0.75% center type spread spectrum to reduce EMI.
The W83195AR-We accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply.
High drive PCI and SDRAM CLOCK outputs typically provide greater than 1 V /ns slew rate into 30
pF loads. CPU CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as
maintaining 50鹵 5% duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide
better than 0.5V /ns slew rate.
2
2.0 PRODUCT FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2 CPU clocks
12 SDRAM clocks for 3 DIMMs
8 PCI synchronous clocks.
Optional single or mixed supply:
(VddR = VddP=VddS = Vdd48 = Vdd3 = 3.3V, VddLAPIC=VddLCPU=2.5V)
Skew form CPU to PCI clock -1 to 4 ns, center 2.6 ns
Smooth frequency switch with selections from 66.8 to
200
MHz
2
2
I C 2-Wire serial interface and I C read back
0.5% and 0.75% center type spread spectrum
Programmable registers to enable/stop each output and select modes
(mode as Tri-state or Normal )
Two 48 MHz pins for USB
24 MHz for super I/O

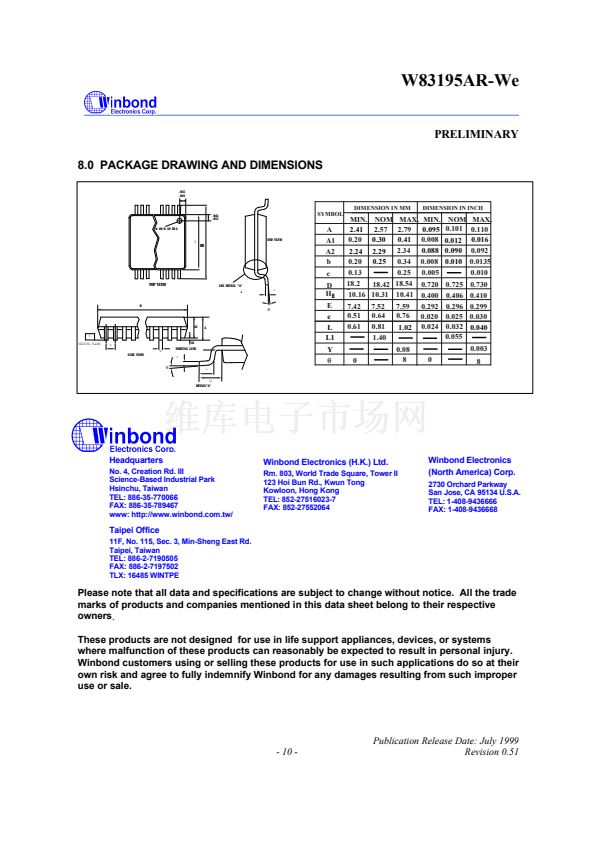

56-pin SSOP package
-1-
Publication Release Date: July 1999
Revision 0.51
