W78E51C Datasheet

  • W78E51C

  • 8 bit micocontroller

  • 23頁

  • WINBOND

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

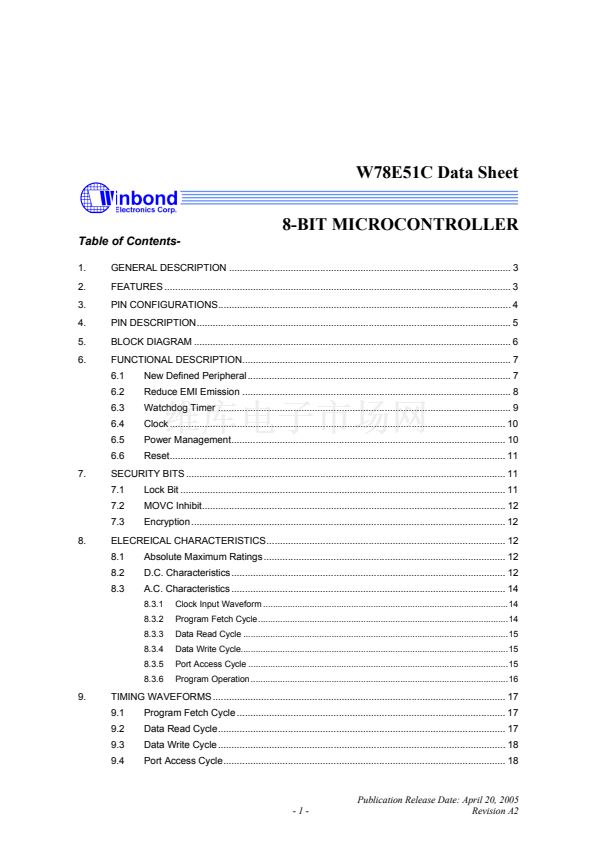

W78E51C Data Sheet
8-BIT MICROCONTROLLER
Table of Contents-
1.
2.
3.
4.
5.
6.

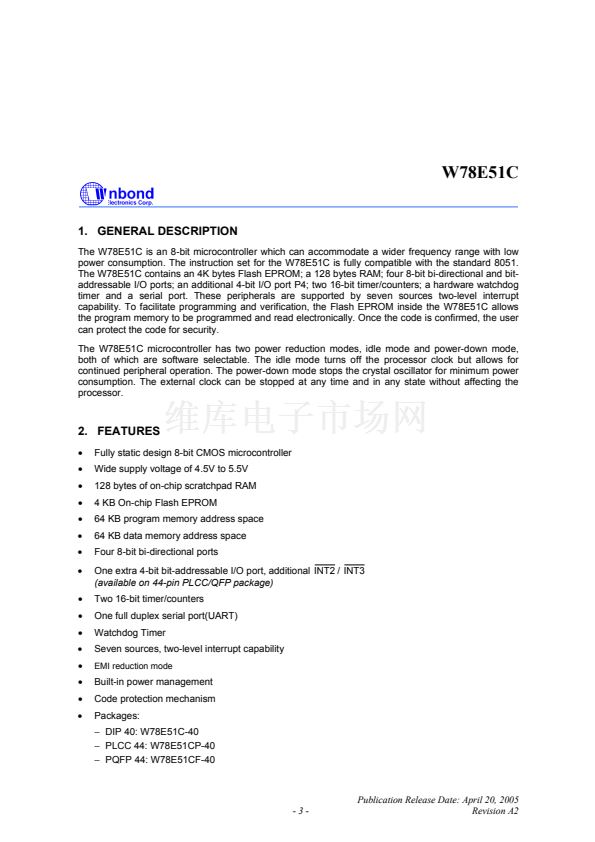

GENERAL DESCRIPTION ......................................................................................................... 3
FEATURES ................................................................................................................................. 3

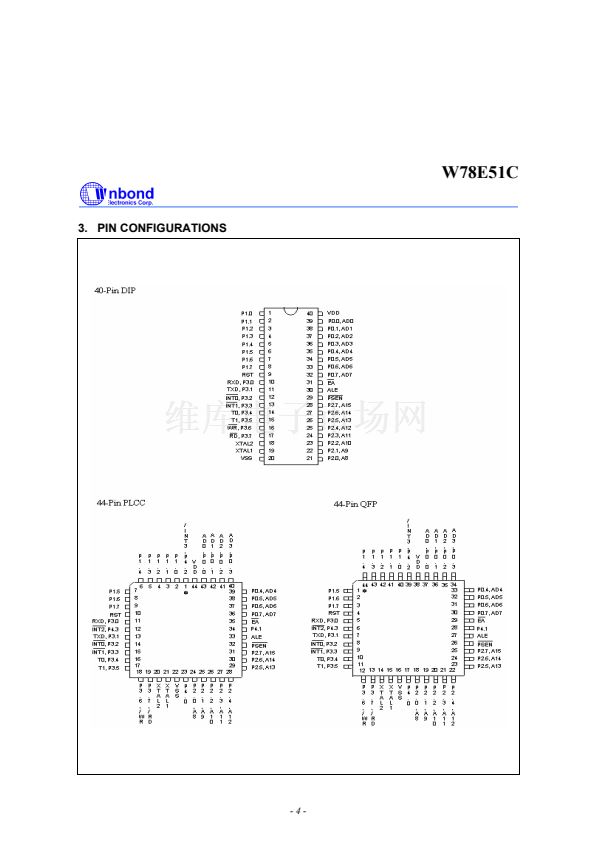

PIN CONFIGURATIONS............................................................................................................. 4

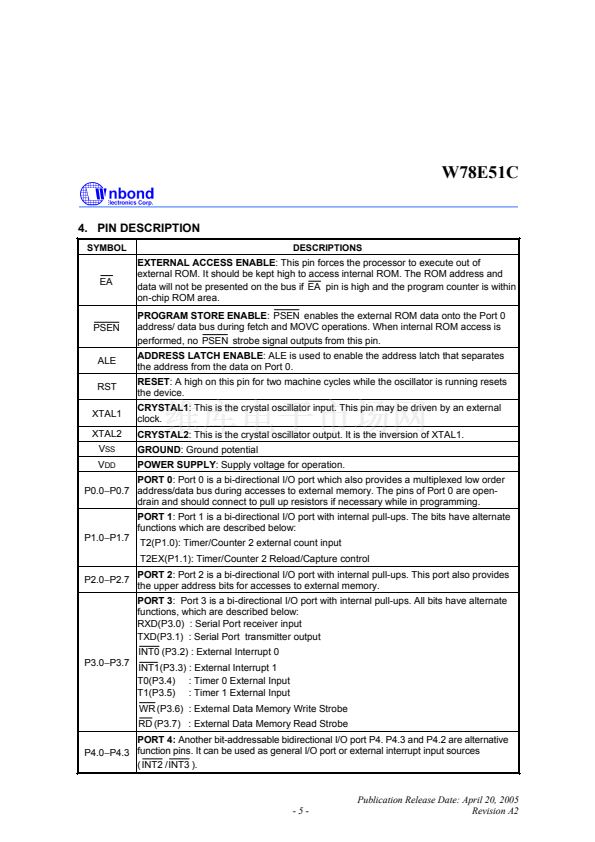

PIN DESCRIPTION..................................................................................................................... 5

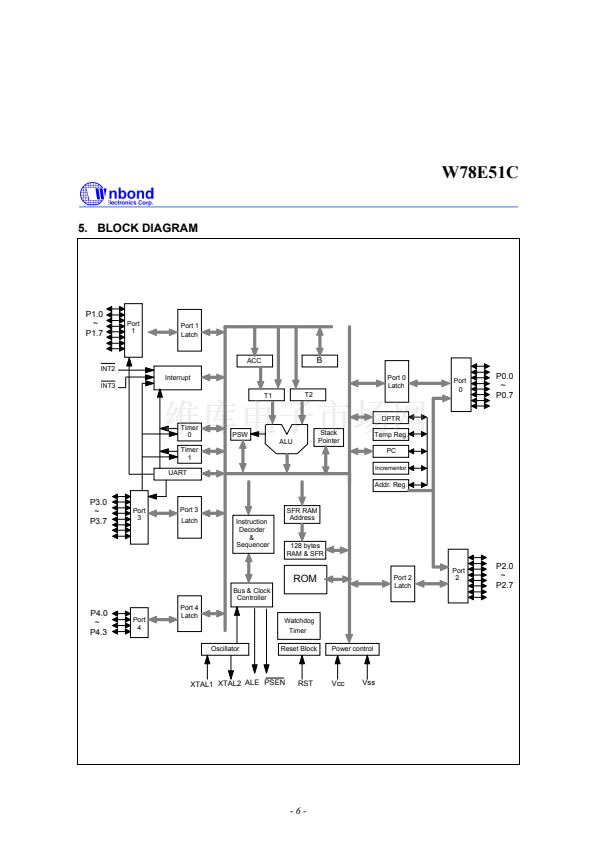

BLOCK DIAGRAM ...................................................................................................................... 6
FUNCTIONAL DESCRIPTION.................................................................................................... 7
6.1
6.2
6.3
6.4
6.5
6.6
7.
7.1
7.2
7.3
8.
8.1
8.2
8.3

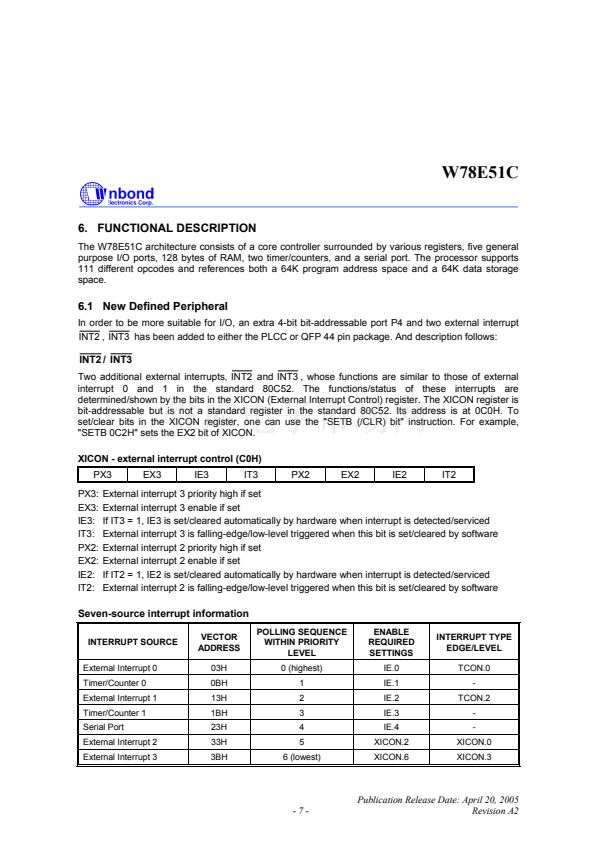

New Defined Peripheral.................................................................................................. 7

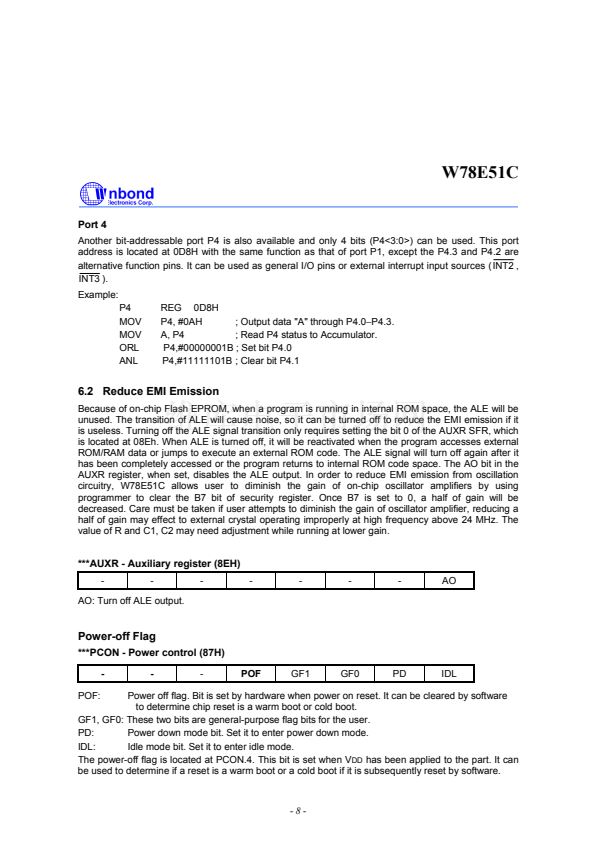

Reduce EMI Emission .................................................................................................... 8

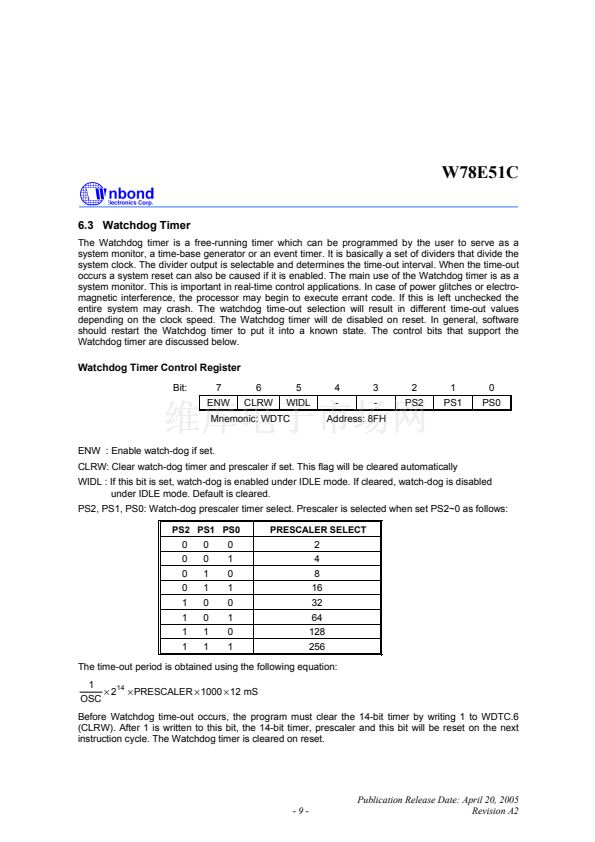

Watchdog Timer ............................................................................................................. 9
Clock ............................................................................................................................. 10
Power Management...................................................................................................... 10

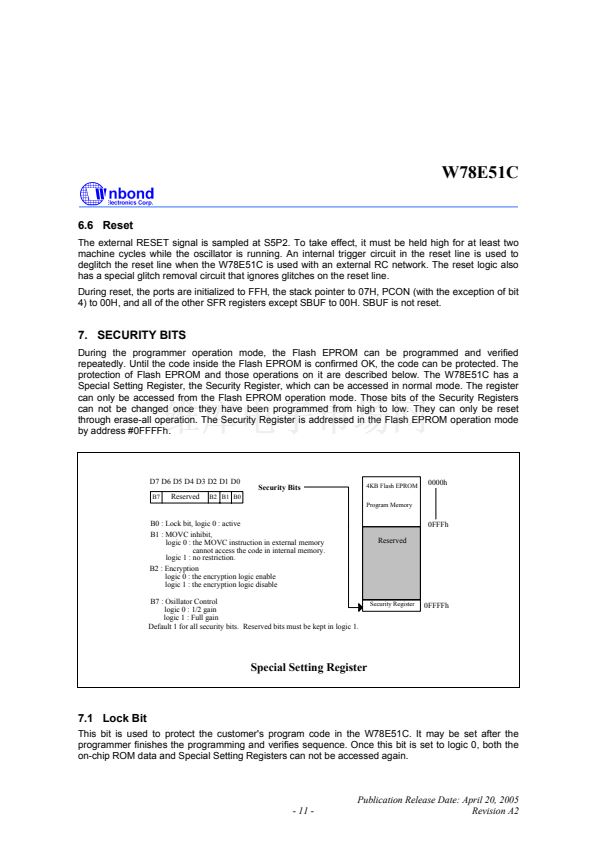

Reset............................................................................................................................. 11
Lock Bit ......................................................................................................................... 11

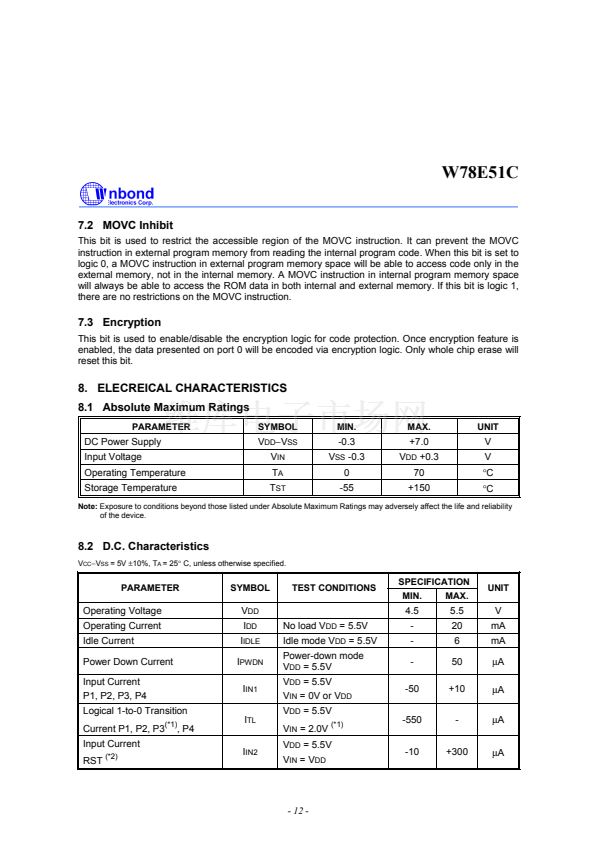

MOVC Inhibit................................................................................................................. 12
Encryption ..................................................................................................................... 12
Absolute Maximum Ratings .......................................................................................... 12

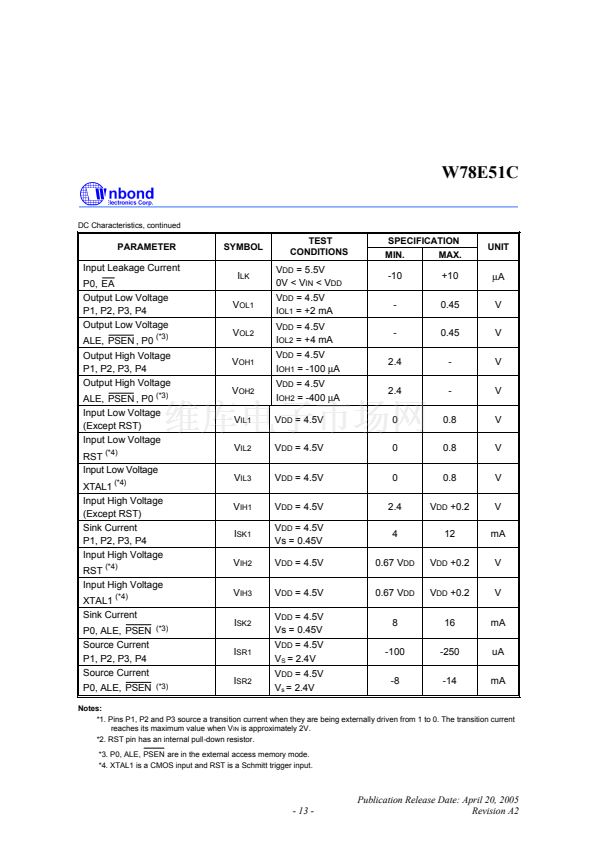

D.C. Characteristics ...................................................................................................... 12

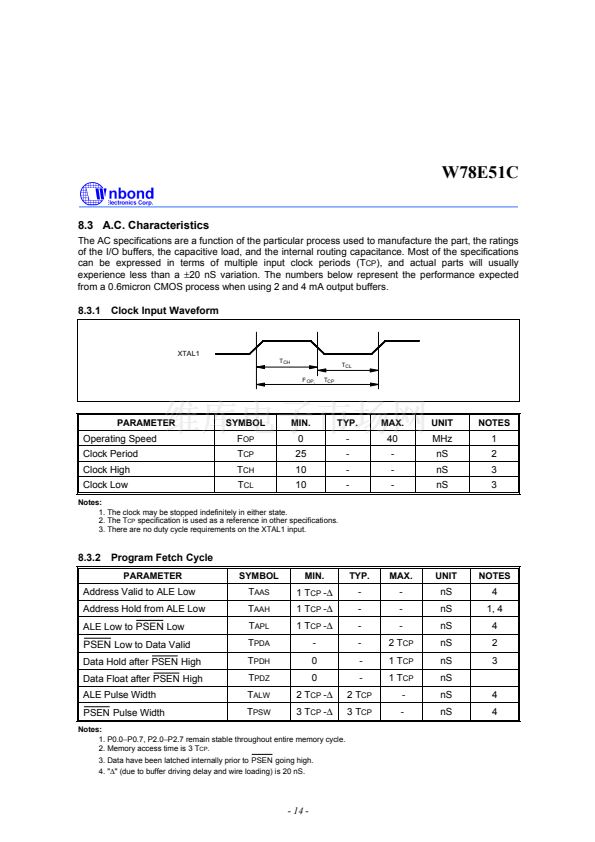

A.C. Characteristics ...................................................................................................... 14
8.3.1
8.3.2
8.3.3
8.3.4
8.3.5
8.3.6
Clock Input Waveform ....................................................................................................14
Program Fetch Cycle......................................................................................................14

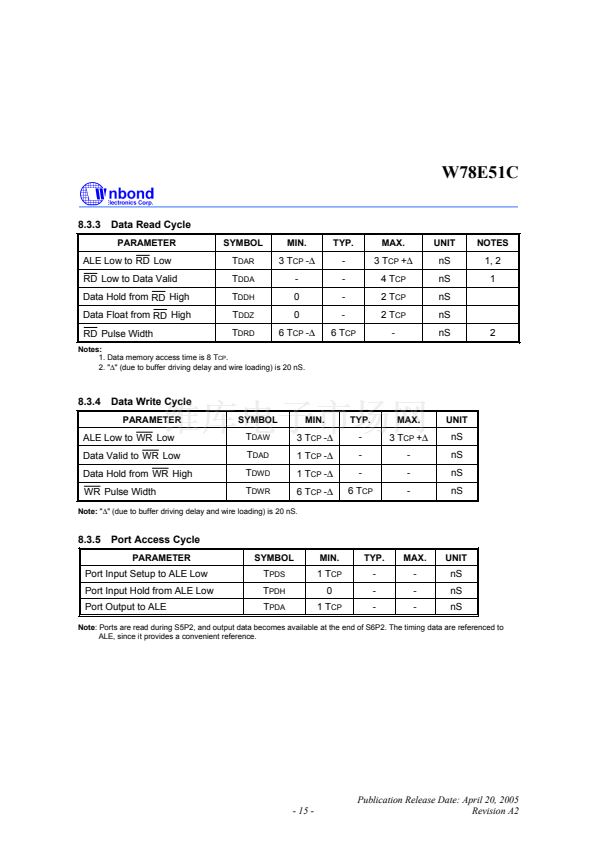

Data Read Cycle ............................................................................................................15
Data Write Cycle.............................................................................................................15
Port Access Cycle ..........................................................................................................15

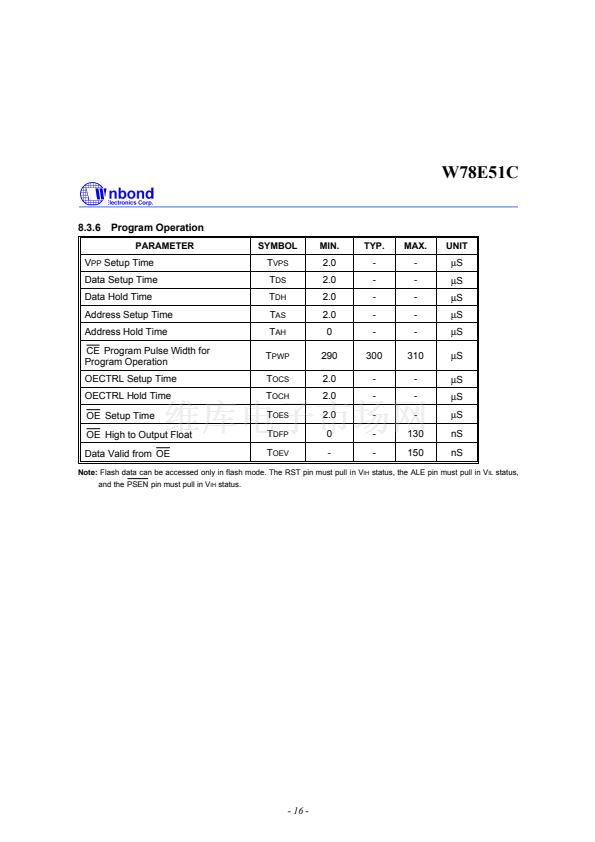

Program Operation .........................................................................................................16
SECURITY BITS ....................................................................................................................... 11
ELECREICAL CHARACTERISTICS......................................................................................... 12
9.

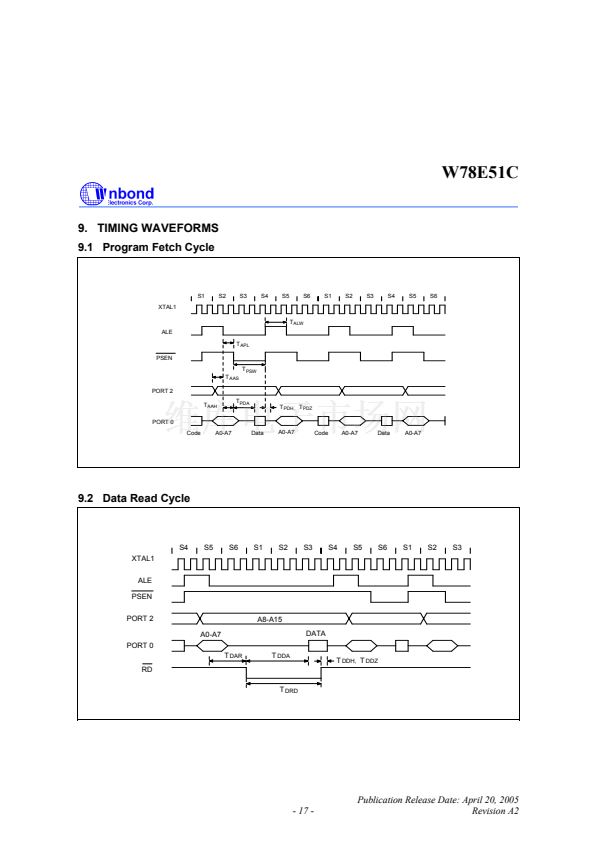

TIMING WAVEFORMS ............................................................................................................. 17
9.1
9.2
9.3
9.4
Program Fetch Cycle .................................................................................................... 17
Data Read Cycle........................................................................................................... 17

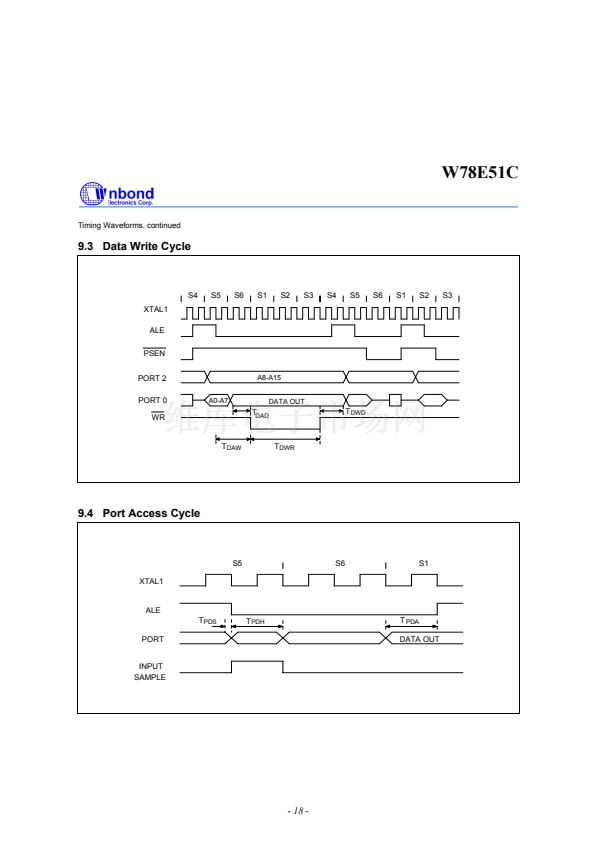

Data Write Cycle ........................................................................................................... 18
Port Access Cycle......................................................................................................... 18
-1-
Publication Release Date: April 20, 2005
Revision A2
