W78CE354P Datasheet

  • W78CE354P

  • MONITOR MICROCONTROLLER

  • 422.19KB

  • 44頁

  • WINBOND

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

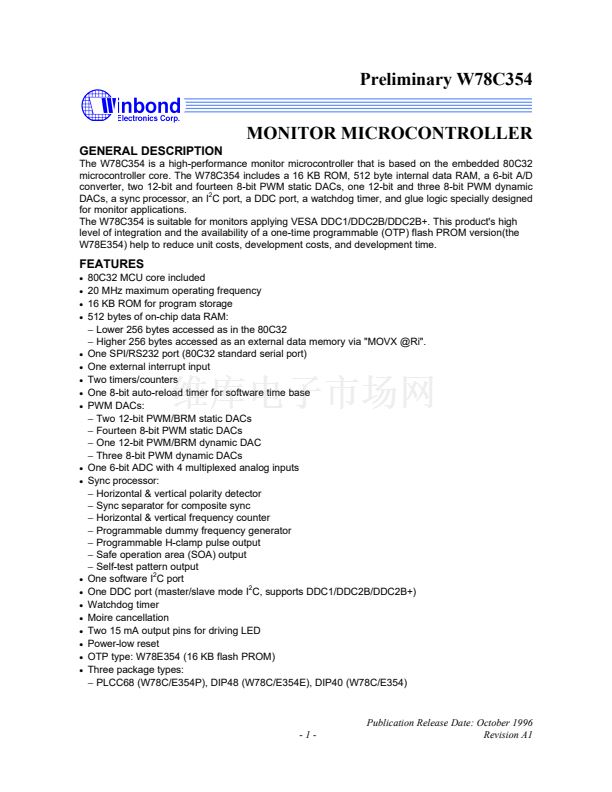

Preliminary W78C354
MONITOR MICROCONTROLLER
GENERAL DESCRIPTION

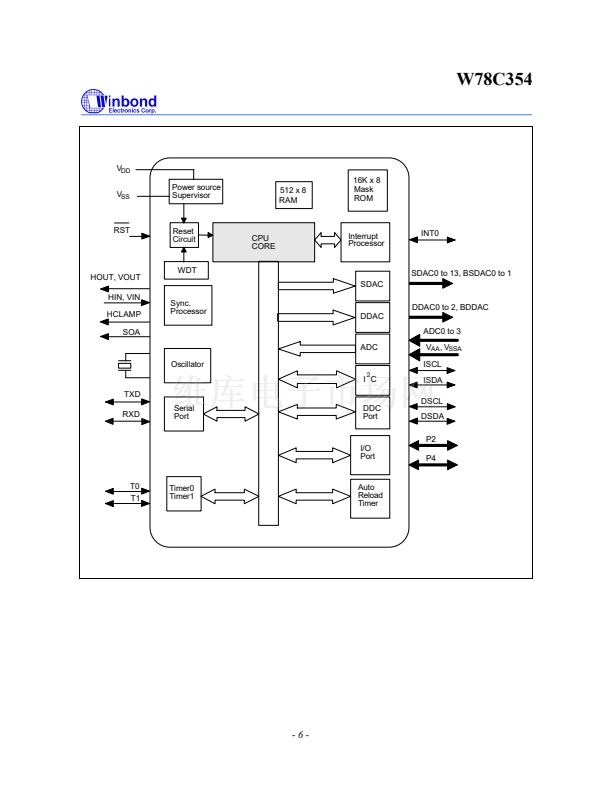

The W78C354 is a high-performance monitor microcontroller that is based on the embedded 80C32
microcontroller core. The W78C354 includes a 16 KB ROM, 512 byte internal data RAM, a 6-bit A/D
converter, two 12-bit and fourteen 8-bit PWM static DACs, one 12-bit and three 8-bit PWM dynamic
DACs, a sync processor, an I
2
C port, a DDC port, a watchdog timer, and glue logic specially designed
for monitor applications.

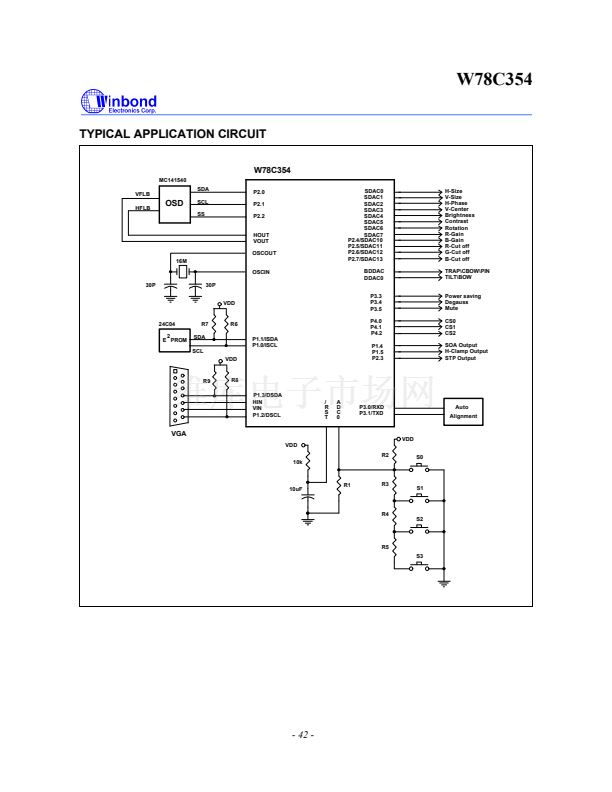

The W78C354 is suitable for monitors applying VESA DDC1/DDC2B/DDC2B+. This product's high
level of integration and the availability of a one-time programmable (OTP) flash PROM version(the
W78E354) help to reduce unit costs, development costs, and development time.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
80C32 MCU core included
20 MHz maximum operating frequency
16 KB ROM for program storage
512 bytes of on-chip data RAM:
鈭?/div>
Lower 256 bytes accessed as in the 80C32
鈭?/div>
Higher 256 bytes accessed as an external data memory via "MOVX @Ri".

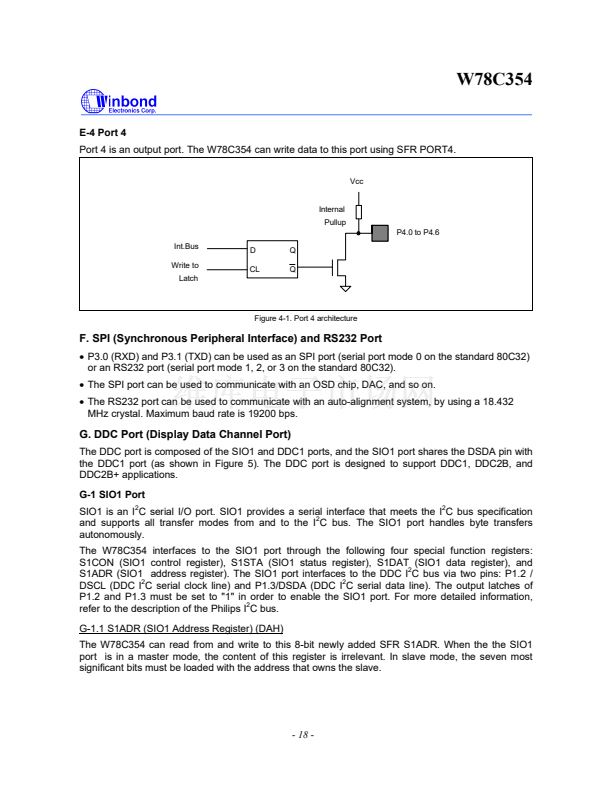

One SPI/RS232 port (80C32 standard serial port)

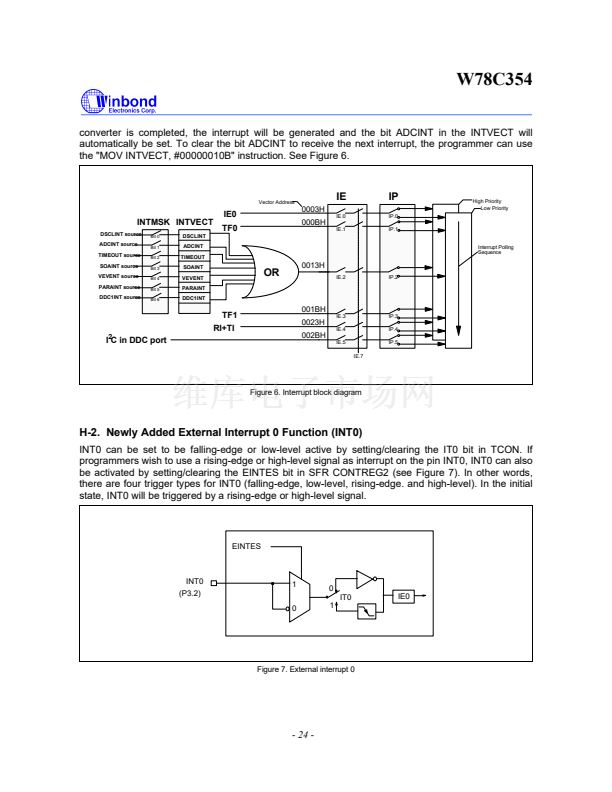

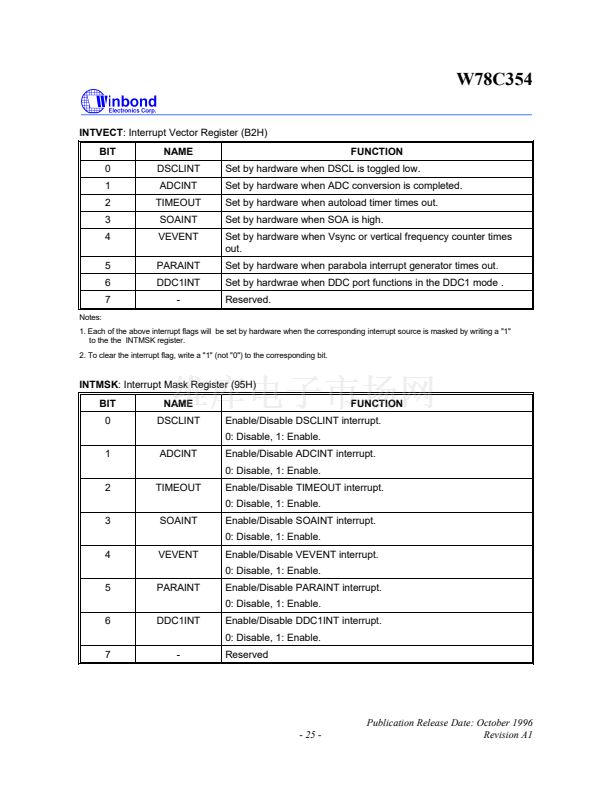

One external interrupt input
Two timers/counters
One 8-bit auto-reload timer for software time base

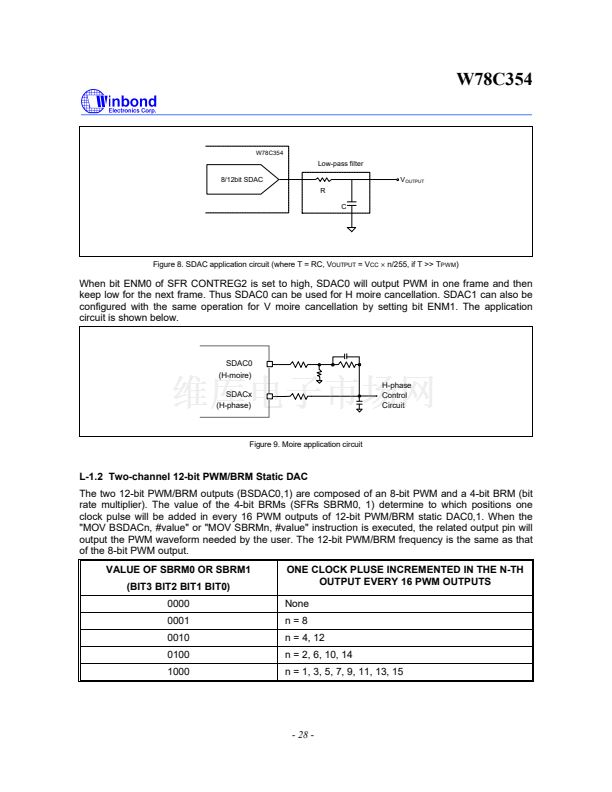

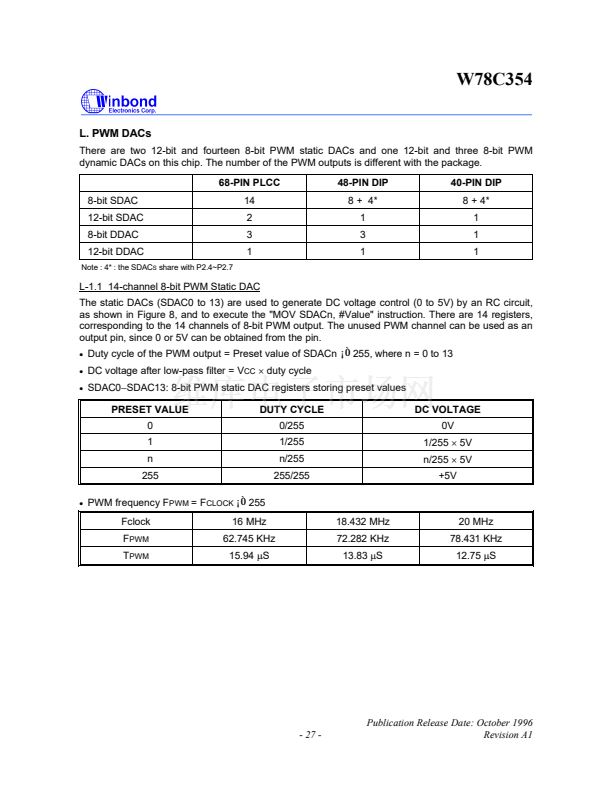

PWM DACs:
鈭?/div>
Two 12-bit PWM/BRM static DACs
鈭?/div>
Fourteen 8-bit PWM static DACs
鈭?/div>

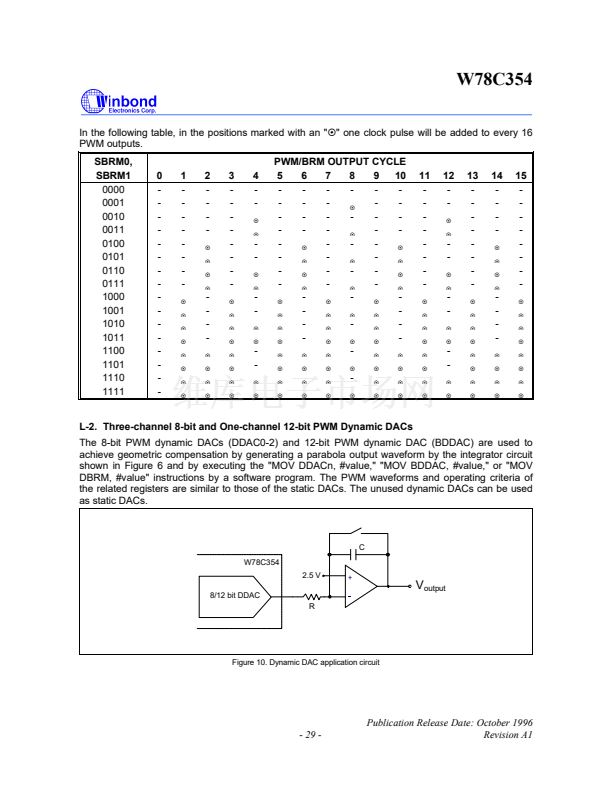

One 12-bit PWM/BRM dynamic DAC
鈭?/div>
Three 8-bit PWM dynamic DACs
One 6-bit ADC with 4 multiplexed analog inputs

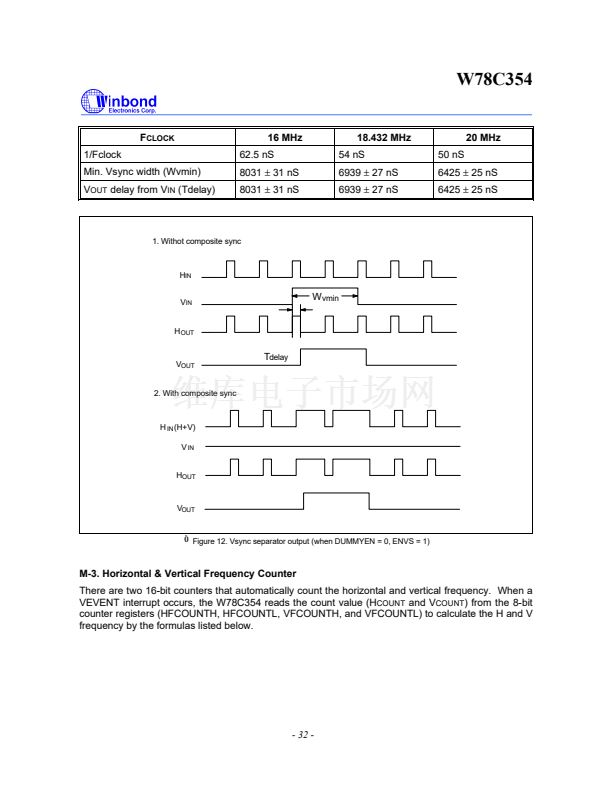

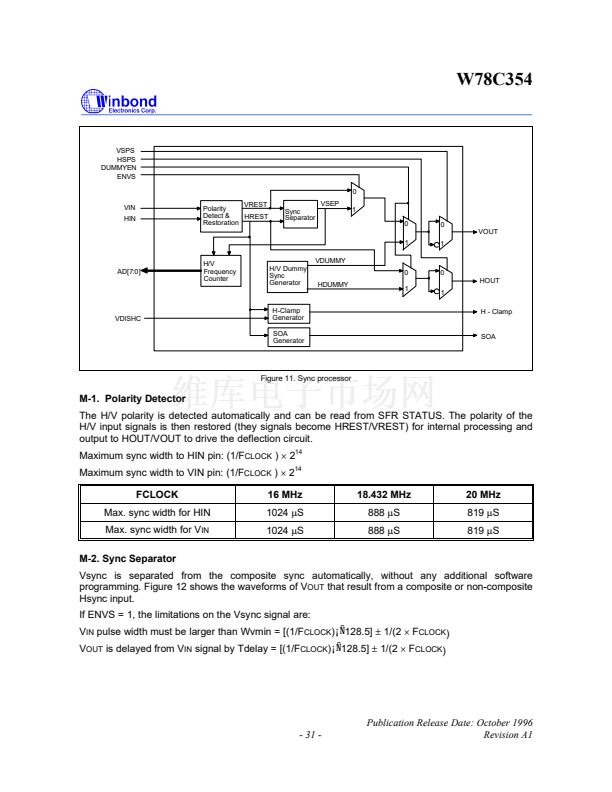

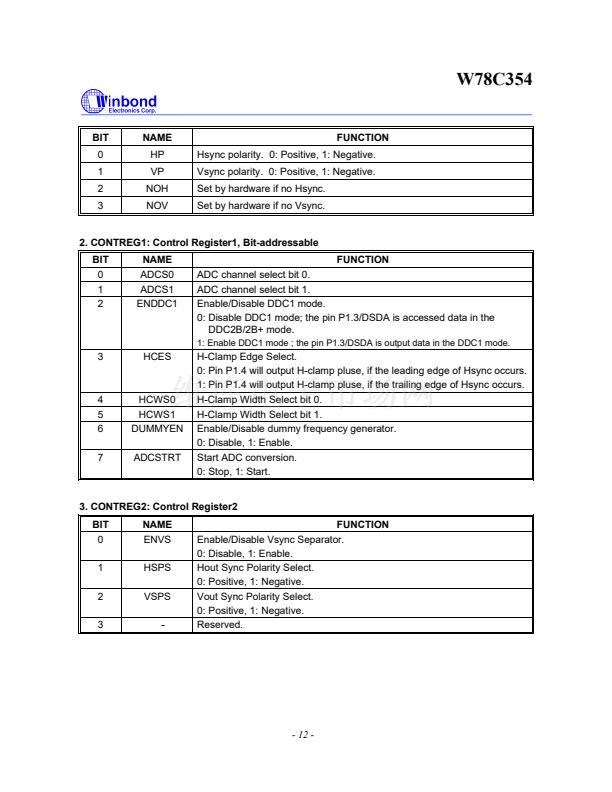

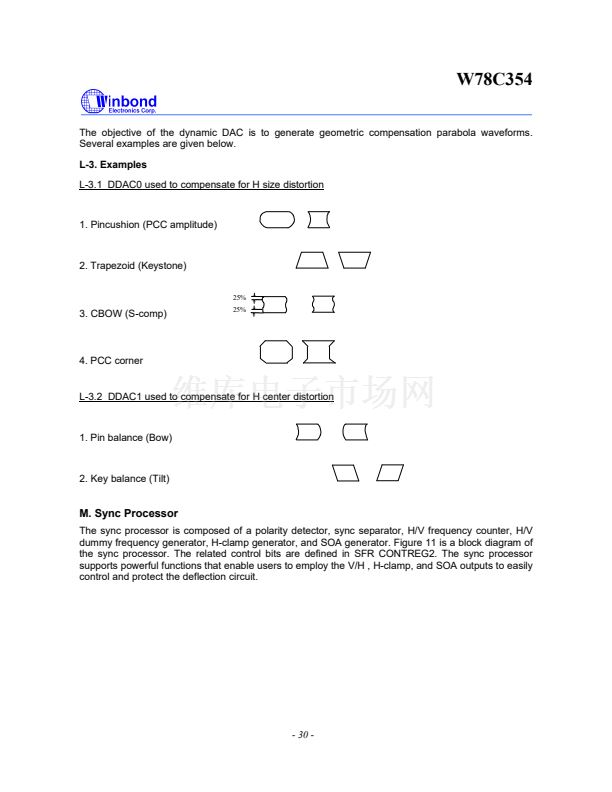

Sync processor:
鈭?/div>
Horizontal & vertical polarity detector
鈭?/div>
Sync separator for composite sync
鈭?/div>

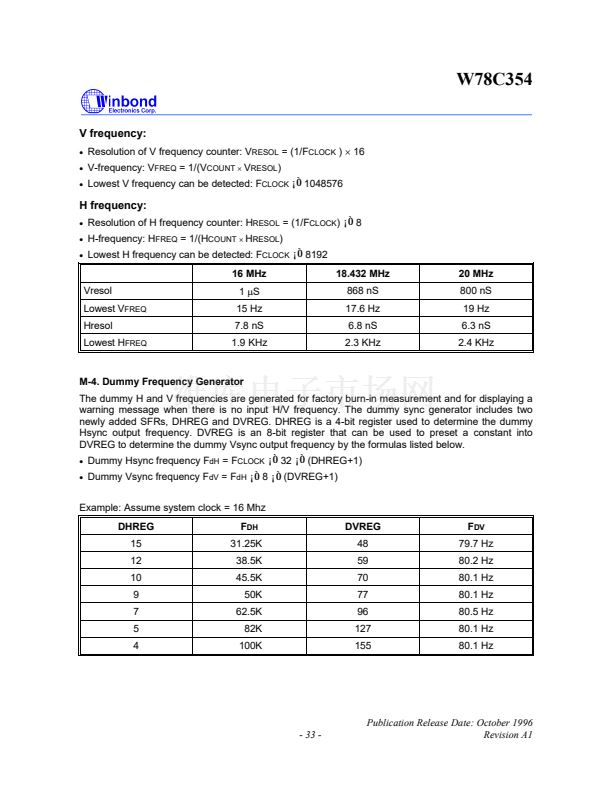

Horizontal & vertical frequency counter
鈭?/div>
Programmable dummy frequency generator
鈭?/div>

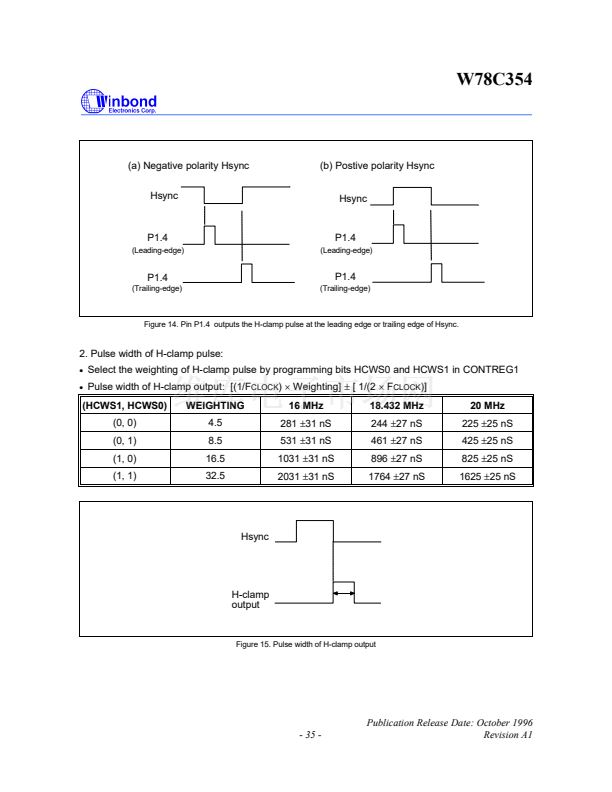

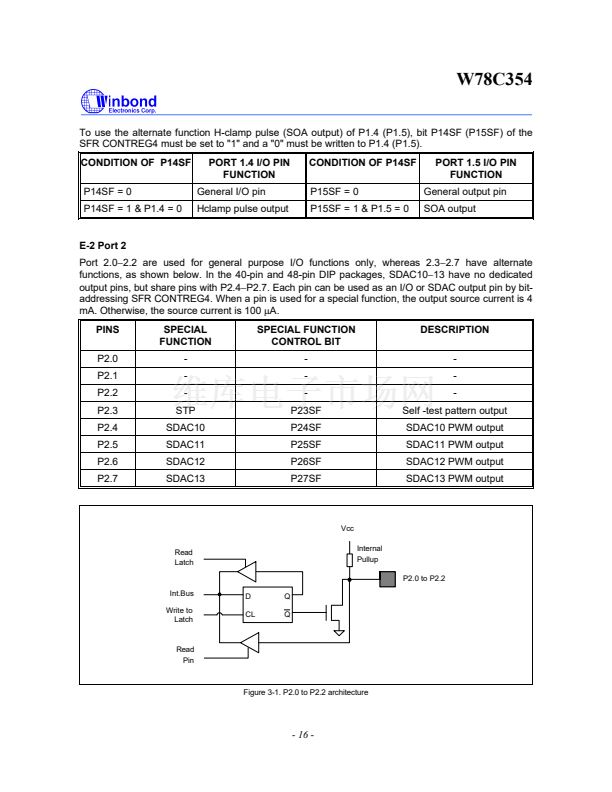

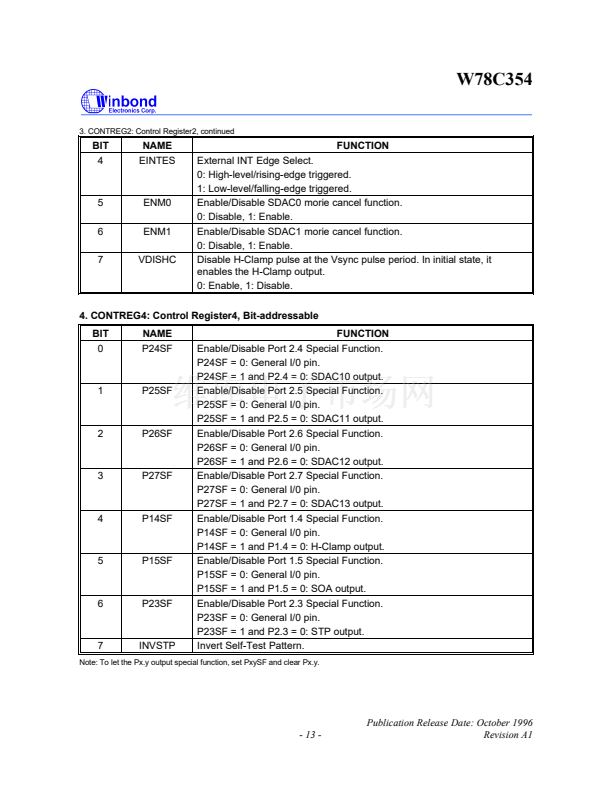

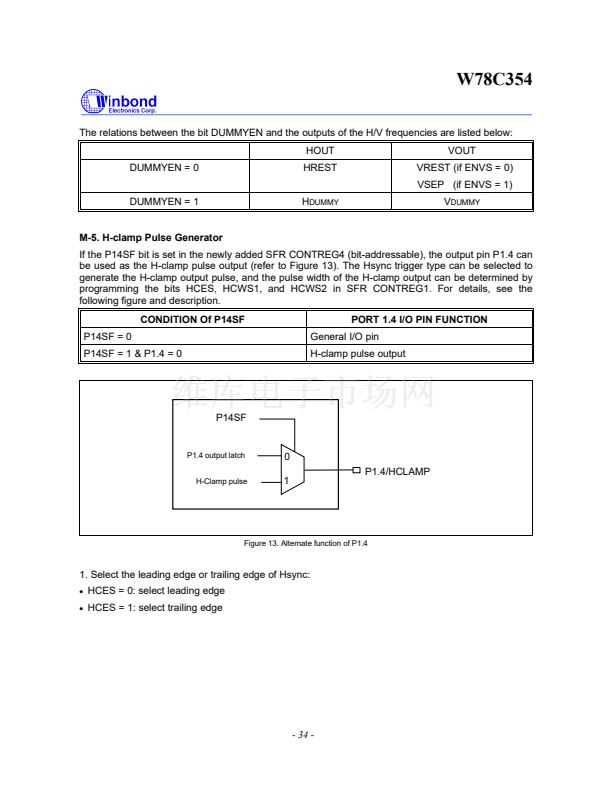

Programmable H-clamp pulse output
鈭?/div>

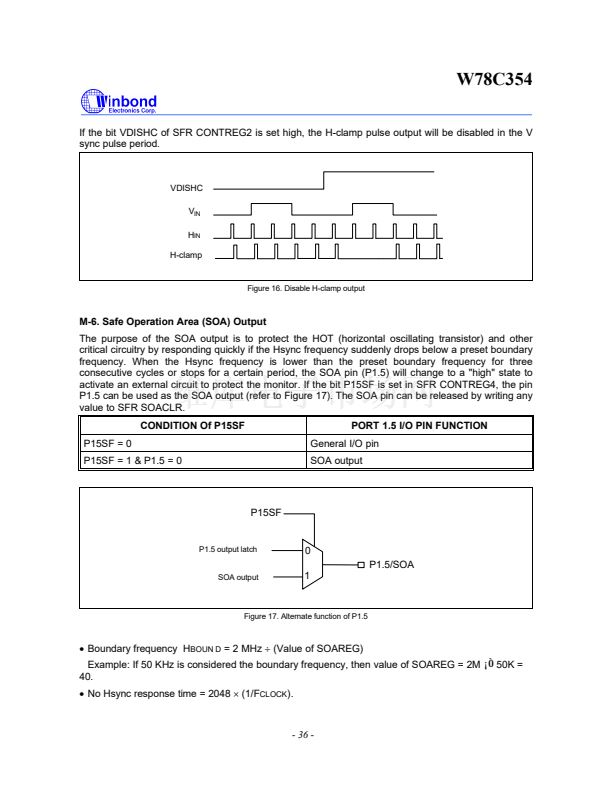

Safe operation area (SOA) output
鈭?/div>

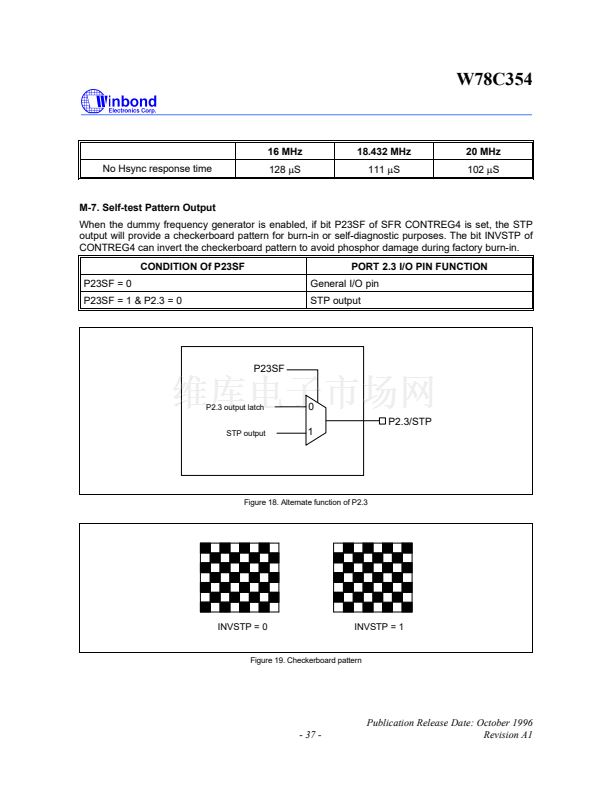

Self-test pattern output

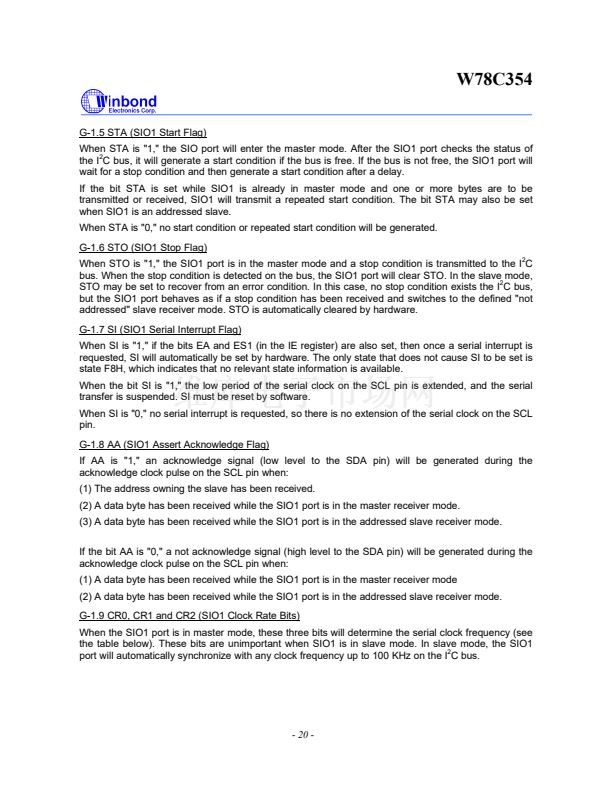

One software I
2
C port

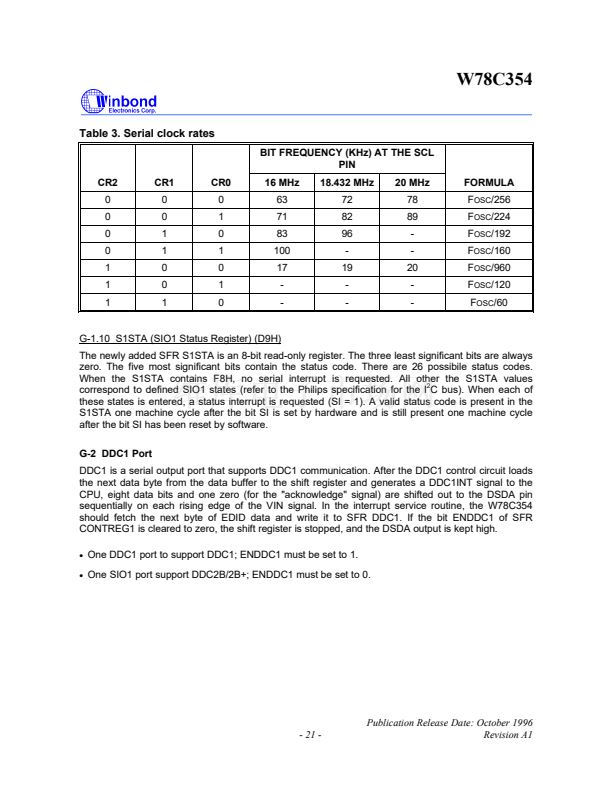

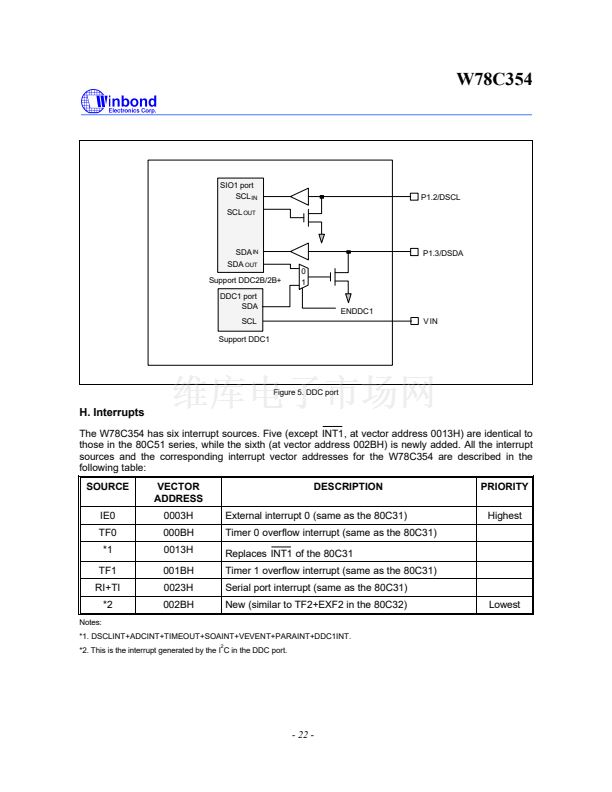

One DDC port (master/slave mode I
2
C, supports DDC1/DDC2B/DDC2B+)

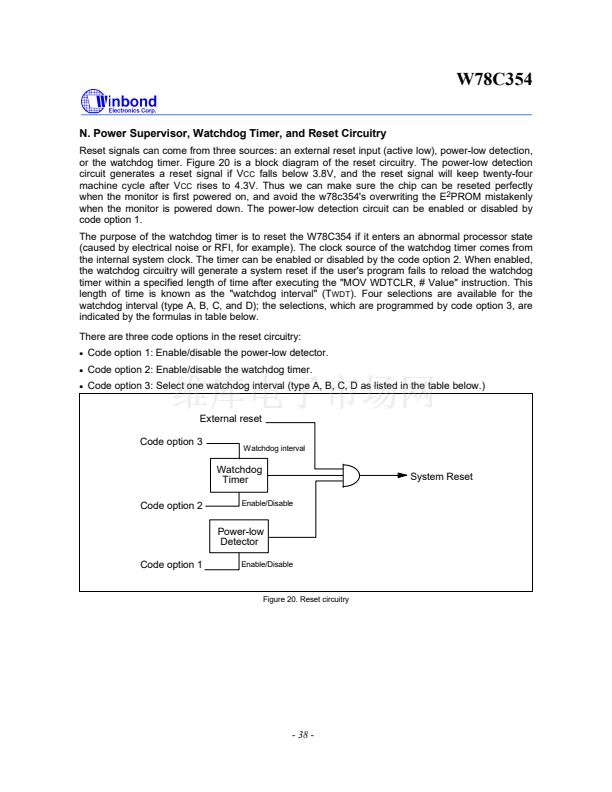

Watchdog timer
Moire cancellation
Two 15 mA output pins for driving LED
Power-low reset
OTP type: W78E354 (16 KB flash PROM)

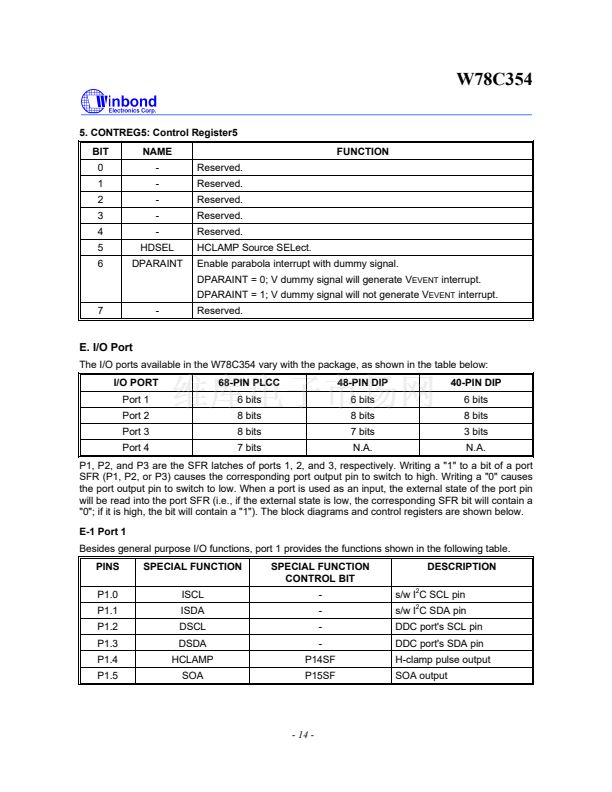

Three package types:
鈭?/div>

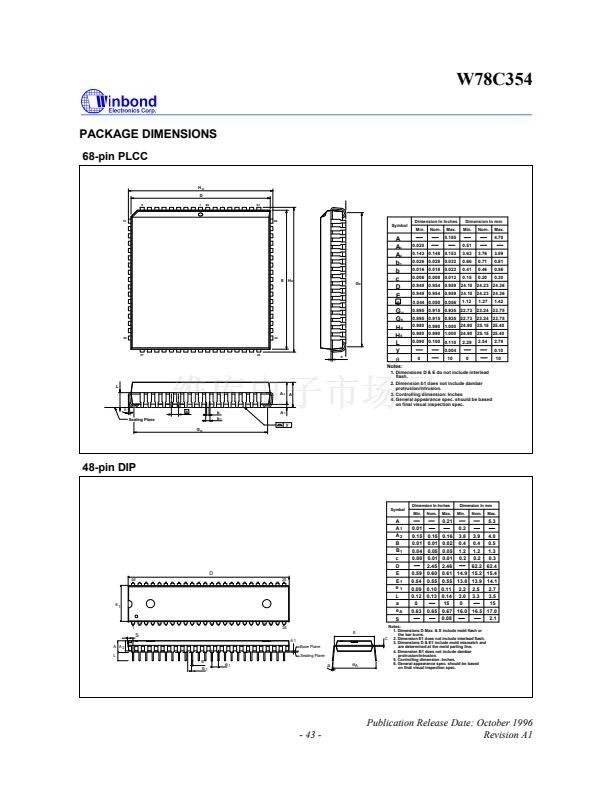

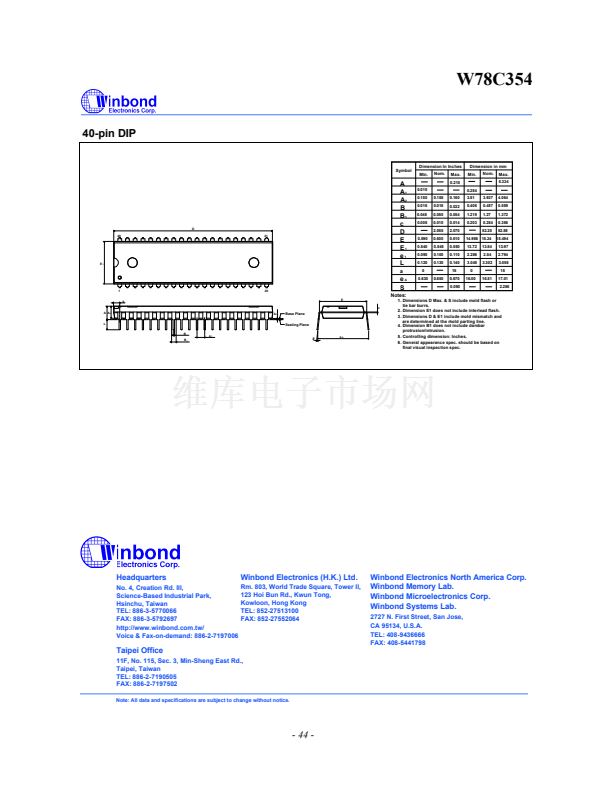

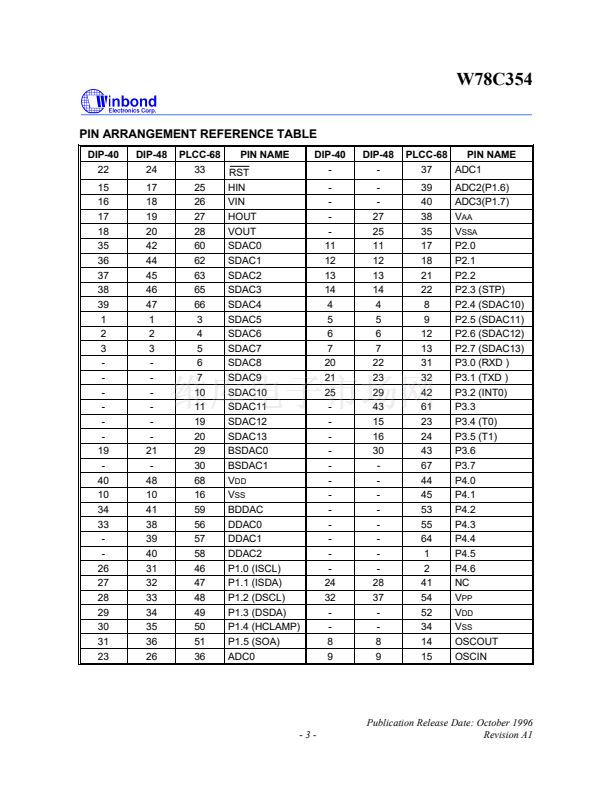

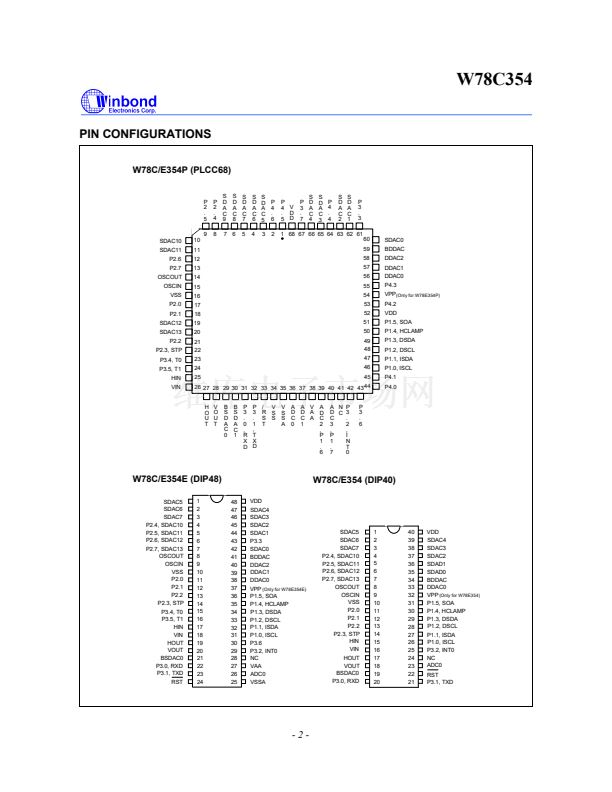

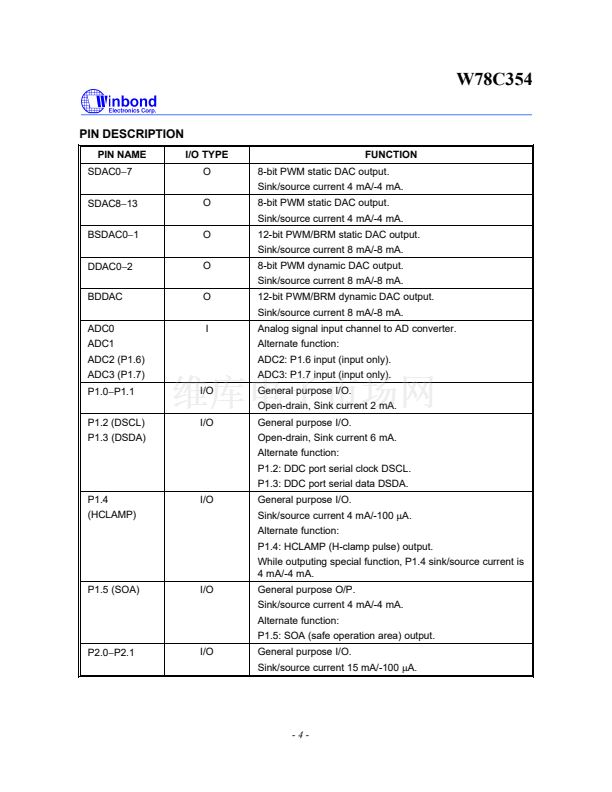

PLCC68 (W78C/E354P), DIP48 (W78C/E354E), DIP40 (W78C/E354)

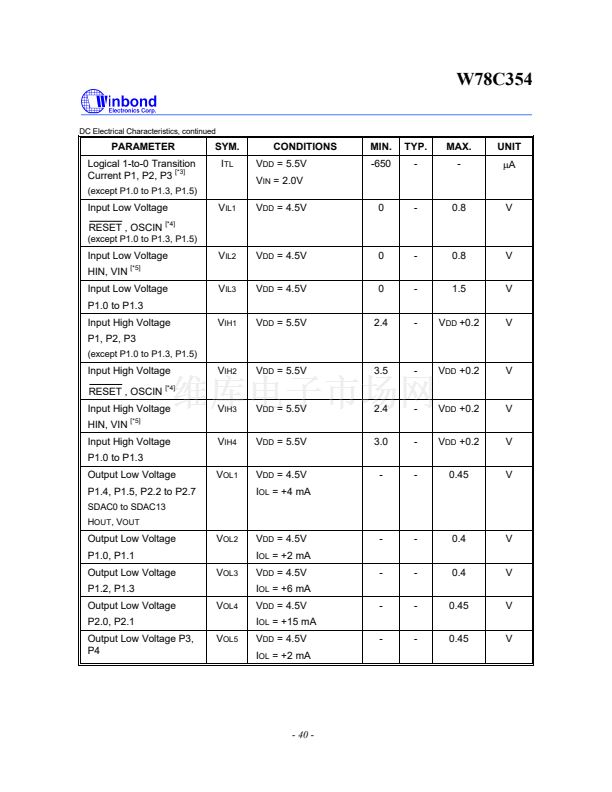

-1-
Publication Release Date: October 1996
Revision A1
