W58300 Datasheet

  • W58300

  • PowerSpeech IC Family

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

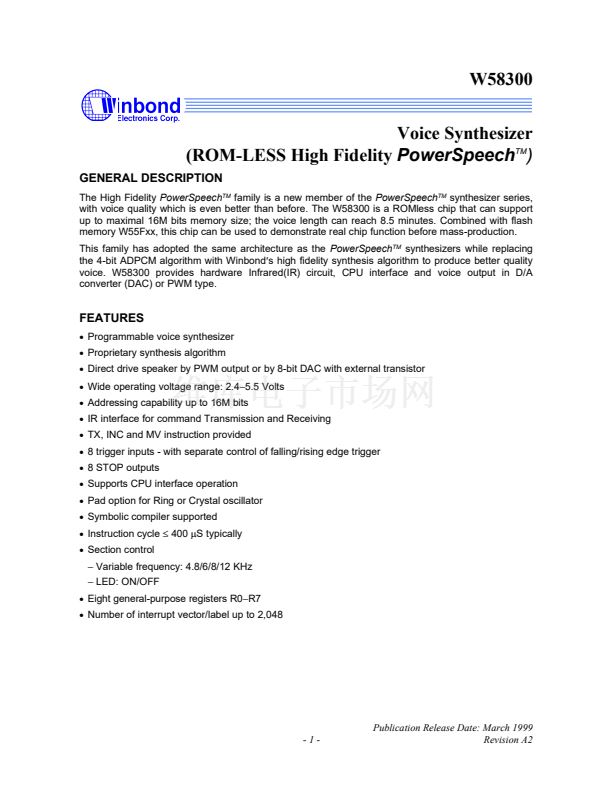

W58300
Voice Synthesizer
(ROM-LESS High Fidelity
PowerSpeech
TM
)
GENERAL DESCRIPTION
The High Fidelity
PowerSpeech
TM
family is a new member of the
PowerSpeech
TM
synthesizer series,
with voice quality which is even better than before. The W58300 is a ROMless chip that can support
up to maximal 16M bits memory size; the voice length can reach 8.5 minutes. Combined with flash
memory W55Fxx, this chip can be used to demonstrate real chip function before mass-production.
This family has adopted the same architecture as the
PowerSpeech
TM
synthesizers while replacing
the 4-bit ADPCM algorithm with Winbond鈥瞫 high fidelity synthesis algorithm to produce better quality
voice. W58300 provides hardware Infrared(IR) circuit, CPU interface and voice output in D/A
converter (DAC) or PWM type.
FEATURES
鈥?/div>
Programmable voice synthesizer
鈥?/div>
Proprietary synthesis algorithm
鈥?/div>
Direct drive speaker by PWM output or by 8-bit DAC with external transistor
鈥?/div>
Wide operating voltage range: 2.4鈭?.5 Volts
鈥?/div>
Addressing capability up to 16M bits
鈥?/div>
IR interface for command Transmission and Receiving
鈥?/div>
TX, INC and MV instruction provided
鈥?/div>
8 trigger inputs - with separate control of falling/rising edge trigger
鈥?/div>
8 STOP outputs
鈥?/div>
Supports CPU interface operation
鈥?/div>
Pad option for Ring or Crystal oscillator
鈥?/div>
Symbolic compiler supported
鈥?/div>
Instruction cycle
鈮?/div>
400
碌S
typically
鈥?/div>
Section control
鈭?/div>
Variable frequency: 4.8/6/8/12 KHz
鈭?/div>
LED: ON/OFF
鈥?/div>
Eight general-purpose registers R0鈭扲7
鈥?/div>
Number of interrupt vector/label up to 2,048
-1-
Publication Release Date: March 1999
Revision A2
