W536090K Datasheet

  • W536090K

  • ViewTalkTM Family

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽


















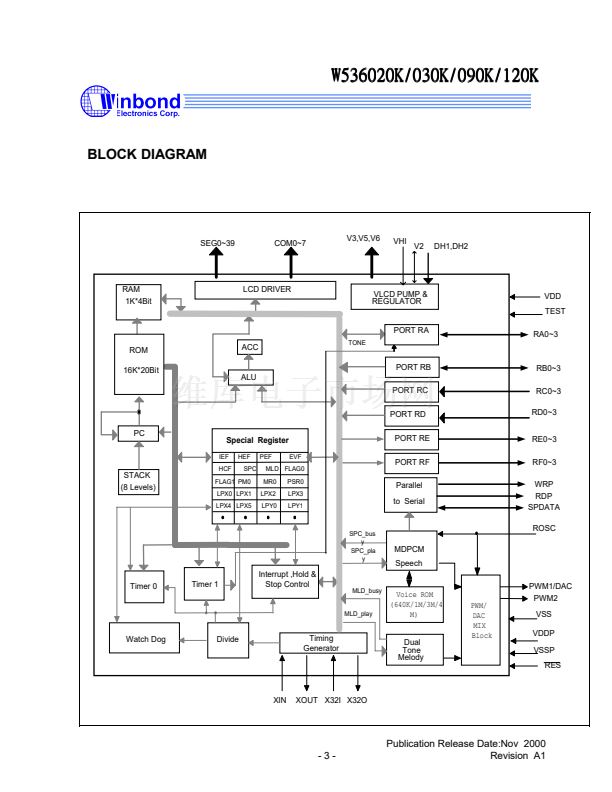

GENERAL DESCRIPTION
The W536XXXK, a member of
ViewTalk
family, is a high-performance 4-bit micro-controller (uC) with
built-in speech unit, melody unit and 40seg * 8 com LCD driver unit which includes internal regulator,
pump circuit and dedicated one page LCD RAM. The 4-bit uC core contains dual clock source, 4-bit
ALU, two 8-bit timers, one 14 bits divider, maximum 24 pads for input or output, 8 interrupt sources and
8-level nesting for subroutine/interrupt applications. Speech unit, integrated as a single chip with
maximum 128 seconds (based on 6.4K sample rate with 5 bits MDPCM) , is capable of expanding to
512 seconds speech addressed by external memory W55XXX with serial bus interface. It can be
implemented with Winbond Power Speech using MDPCM algorithm. Melody unit provides dual tone
output and can store up to 1k notes. Power reduction mode is also built in to minimize power dissipation.
It is ideal for games, educational toys, remote controllers, watches, clocks and other application
products which incorporate both LCD display and speech.
TM
Body
Voice
I/O pad
W536020K
20 sec
4I/O,8I
(RA/RC/RD)
W536030K
30 sec
4I/O, 8I
(RA/RC/RD)
W536090K
W536120K
90 sec
120 sec
8I/O, 8I, 8O
8I/O, 8I, 8O
(RA/RB/RC/RD/RE/RF) (RA/RB/RC/RD/RE/RF)
WDT
disable/Enable
Y
Y
Y
Y
(Mask Option)
Sub-clock
RC/XTAL mode
Y
Y
Y
Y
(Mask Option)
RD port shared as
serial bus
N
Y(1)
N
N (2)
(Mask Option)
Tri-state serial bus
Y
Y
Y
Y
(Mask Option) ( 3)
Cascaded Voice
ROM through
N
Y(1)
N
Y
serial bus (2)
(1) Share 3 pads of RD port (RD1/RDP, RD2/SPDATA and RD3/WRP)
(2) Dedicate serial bus 3 pads (RDP, SPDATA and WRP) to interface with W55XXX. Cascaded
Voice ROM can help to expand voice up to 512 sec by W55XXX chip.
(3) Tri-state serial bus mask option can float serial bus while voice playing is no active. Let this
mask option is disabled to get minimum power consumption in general.
FEATURES

鈥?/div>
Operating voltage: 2.4 volt ~ 5.5 volt
鈥?/div>
Watch dog disabled/enabled by mask option
鈥?/div>
Dual clock operating system
鈭?/div>
Main clock with RC/Crystal (400 KHz to 4 MHz)
鈭?/div>
Sub-clock with 32.768 KHz RC/Crystal by mask option
鈥?/div>
Memory
-1-
Publication Release Date: Nov 2000
Revision A1
