W110 Dual-Speed Ethernet Controller

100Mbps + 10Mbps Ethernet Media Access Controller Mega Macrofunction

DESCRIPTION

The W110 is a 100BASE-T Ethernet Media Access Controller (MAC) mega macrofunction for dual-speed

operation (100Mbps/10Mbps) and an MII interface. Implemented in 0.5碌m and 0.8碌m technologies, the

W110 supports a wide range of physical layer (PHY) devices, including both 100Mbps and 10Mbps

devices for wired, optical, and wireless networks, operating in half- or full-duplex mode.

The W110 mega macrofunction is available in various configurations, depending upon customer parti-

tioning requirements. The W110 contains two main submodules, called MAC110 and PCS110. The

MAC110 submodule contains the key transmit/receive functions and performs the CSMA/CD function

specified in ISO/IEC 8802-3: 1993 and the supplemental IEEE standard 802.3u-1995. The PCS110 submod-

ule contains various PHY support modules and MII support.

Potential applications include network interface controllers (NICs), multiport switches, switching routers,

hubs, and test equipment.

The MAC110 submodule contains ~10.1k gates. The final top-level gate count is determined by which par-

ticular PCS option is chosen by the user. The W110M option (transmit and receive function with MII inter-

face only) contains ~7.1k gates. A gate-level model of the mega macrofunction is available in Verilog or

VHDL.

FEATURES

鈥?Support for 10 or 100 Mbps MII-based PHY devices,

including:

Support for ENDEC devices

Full-duplex Ethernet support

PCS functions 4B/5B, and scrambling

Optimized for switching and multi-port applications

Generic interface supporting various buses, including

ISA, PCI, MCA, VLB, SBus, NuBus, SCSI, and

MULTIBUS

鈥?Additional submodules available for packet filtering,

statistics collection, and bus interface with FIFO

鈥?/div>

- 100BASE-TX

- 100BASE-FX

- 100BASE-T4

鈥?Support for TP-PMD and fiber-PMD (FDDI) devices

鈥?Complies with ISO/IEC 802-3:1993 and IEEE std.

802.3u-1995

鈥?Generates transmit/receive statistics vectors

鈥?Autonegotiation support

Supported ASIC Families

Family Name

MSM38S0000

0.8碌m

MSM98S000

MSM12R/32R0000

MSM13R/30R0000

MSM98R/92R000

0.5碌m

TLM Customer Structured Array

DLM Sea of Gates

TLM Sea of Gates

TLM Customer Structured Array

Technology

Family Type

TLM Sea of Gates

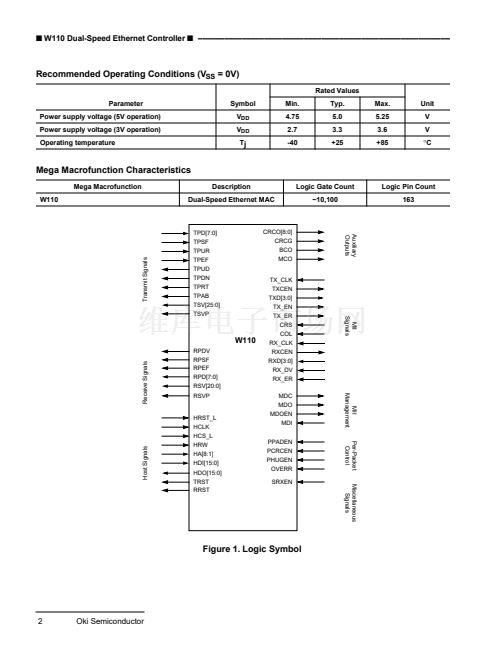

Oki Semiconductor
