VND830P Datasheet

  • VND830P

  • DOUBLE CHANNEL HIGH SIDE DRIVER

  • 19頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

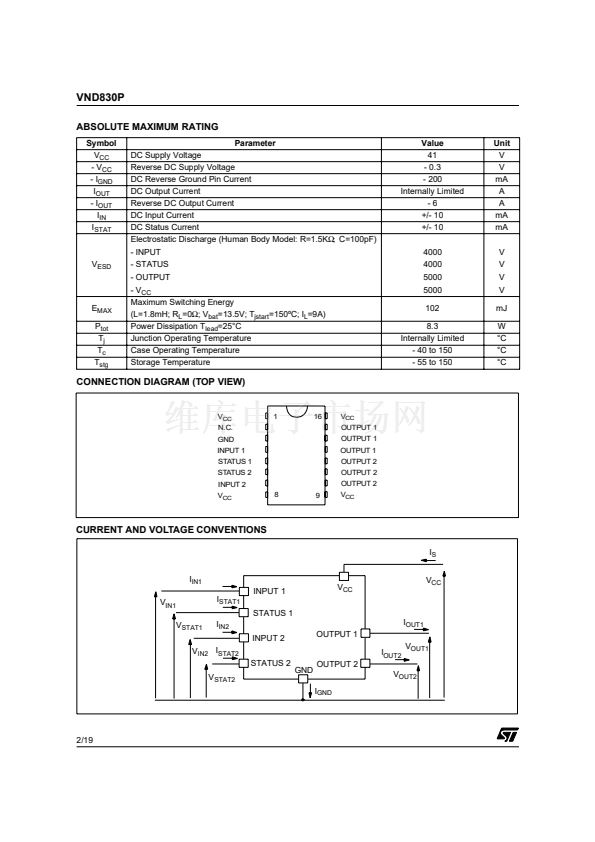

VND830P
DOUBLE CHANNEL HIGH SIDE DRIVER
TARGET SPECIFICATION
TYPE
VND830P
R
DS(on)
60 m鈩?(*)
I
OUT
6 A (*)
V
CC
36 V
(*) Per each channel
CMOS COMPATIBLE INPUTS
OPEN DRAIN STATUS OUTPUTS
s
ON STATE OPEN LOAD DETECTION
s
OFF STATE OPEN LOAD DETECTION
s
SHORTED LOAD PROTECTION
s
UNDERVOLTAGE AND OVERVOLTAGE
SHUTDOWN
s
LOSS OF GROUND PROTECTION
s
VERY LOW STAND-BY CURRENT
s
REVERSE BATTERY PROTECTION (**)
s
s
SO-16L
ORDER CODES
PACKAGE
SO-16L
TUBE
VND830P
T&R
VND830P13TR
DESCRIPTION
The VND830P is a monolithic device made by
using
STMicroelectronics
VIPower
M0-3
Technology, intended for driving any kind of load
with one side connected to ground. Active V
CC
pin
voltage clamp protects the devices against low
BLOCK DIAGRAM
energy
spikes
(see
ISO7637
transient
compatibility table). Active current limitation
combined with thermal shutdown and automatic
restart protects the device against overload. The
device detects open load condition both is on and
off state. Output shorted to V
CC
is detected in the
off state. Device automatically turns off in case of
ground pin disconnection.
V
CC
V
CC
CLAMP
OVERVOLTAGE
UNDERVOLTAGE
GND
INPUT1
STATUS1
CLAMP 1
OUTPUT1
DRIVER 1
CLAMP 2
CURRENT LIMITER 1
LOGIC
OVERTEMP. 1
OPENLOAD ON 1
CURRENT LIMITER 2
DRIVER 2
OUTPUT2
INPUT2
OPENLOAD OFF 1
STATUS2
OPENLOAD OFF 2
OVERTEMP. 2
OPENLOAD ON 2
(**) See application schematic at page 8
October 2003 - Revision 1.2 (Working document)
1/19
This is preliminary information on a new product foreseen to be developed. Details are subject to change without notice.
