VND830ASP Datasheet

  • VND830ASP

  • DOUBLE CHANNEL HIGH SIDE SOLID STATE RELAY

  • 17頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
VND830ASP
DOUBLE CHANNEL HIGH SIDE SOLID STATE RELAY
TYPE
VND830ASP
(*) Per channel
R
DS(on)
60 m鈩?(*)
I
OUT
6 A (*)
V
CC
36 V (*)
10
DC SHORT CIRCUIT CURRENT: 6A
s
CMOS COMPATIBLE INPUTS
s
PROPORTIONAL LOAD CURRENT SENSE
s
UNDERVOLTAGE AND OVERVOLTAGE
SHUT-DOWN
s
OVERVOLTAGE CLAMP
s
THERMAL SHUT-DOWN
s
CURRENT LIMITATION
s
VERY LOW STAND-BY POWER DISSIPATION
s
1
PowerSO-10鈩?/div>
ORDER CODES
PACKAGE
TUBE
T&R
PowerSO-10鈩?/div>
VND830ASP VND830ASP13TR
side connected to ground. Active V
CC
pin voltage
clamp protects the device against low energy
spikes (see ISO7637 transient compatibility table).
This device has two channels in high side
configuration; each channel has an analog sense
output on which the sensing current is proportional
(according to a known ratio) to the corresponding
load current. Built-in thermal shut-down and
outputs current limitation protect the chip from
over temperature and short circuit. Device turns off
in case of ground pin disconnection.
PROTECTION AGAINST:
LOSS OF GROUND AND LOSS OF V
CC
s
REVERSE BATTERY PROTECTION (**)
s
DESCRIPTION
The
VND830ASP
is a monolithic device made using
STMicroelectronics VIPower M0-3 technology. It
is intended for driving any kind of load with one
BLOCK DIAGRAM
V
CC
OVERVOLTAGE
V
CC
CLAMP
UNDERVOLTAGE
PwCLAMP 1
DRIVER 1
INPUT 1
LOGIC
INPUT 2
GND
DRIVER 2
I
LIM1
V
dslim1
I
OUT1
K
Ot1
OUTPUT 1
CURRENT
SENSE 1
OUTPUT 2
Ot2
PwCLAMP 2
Ot1
I
LIM2
V
dslim2
I
OUT2
OVERTEMP. 1
OVERTEMP. 2
Ot2
K
CURRENT
SENSE 2
(**) See application schematic at page 8
July 2003
1/17

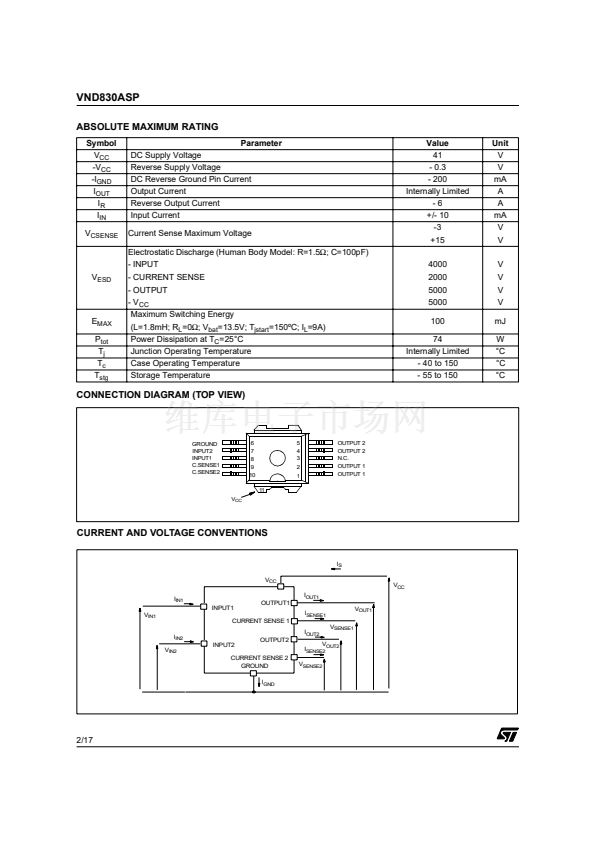

VND830ASP 產品屬性

  • VND830ASP View All Specifications

  • 50

  • 集成電路 (IC)

  • PMIC - MOSFET，電橋驅動器 - 內部開關

  • VIPower™

  • 高端

  • 非反相

  • 2

  • 60 毫歐

  • -

  • 10A

  • 5.5 V ~ 36 V

  • -40°C ~ 150°C

  • 表面貼裝

  • PowerSO-10 裸露底部焊盤

  • PowerSO-10

  • 管件
