VN750SM Datasheet

  • VN750SM

  • HIGH SIDE DRIVER

  • 18頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
M

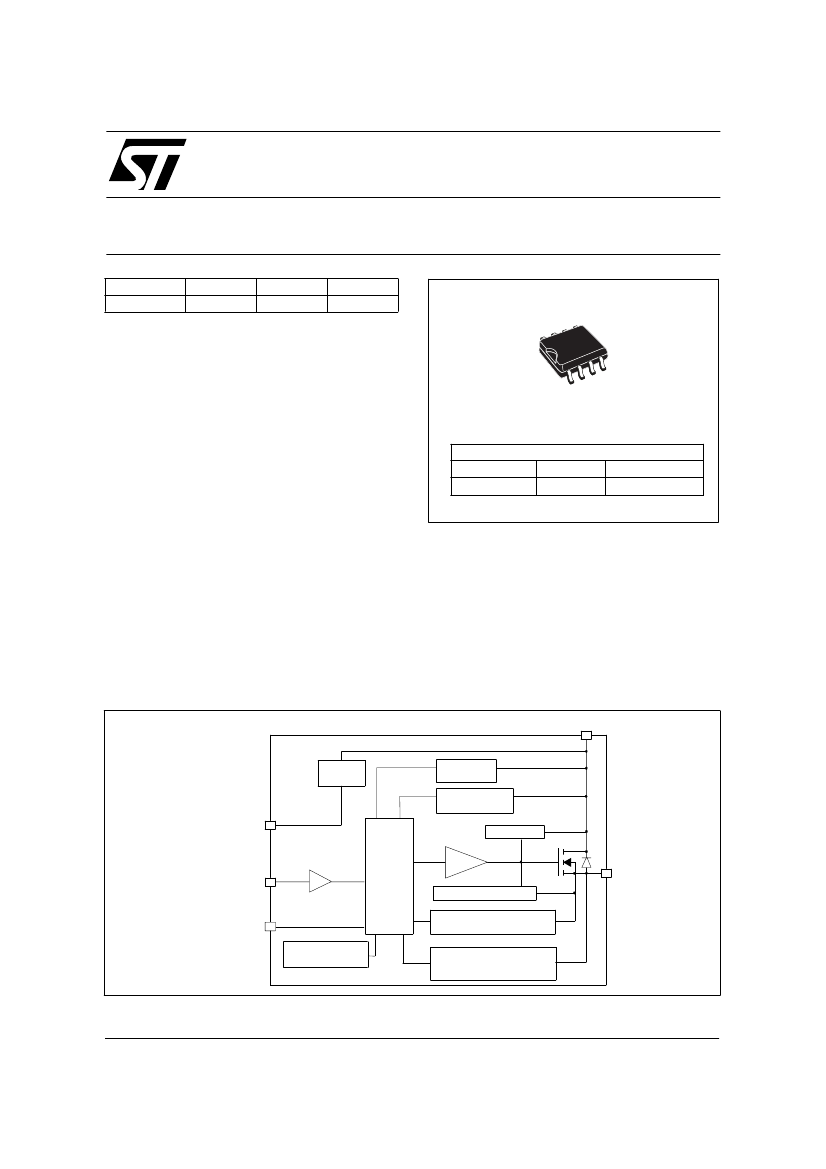

VN750SM
HIGH SIDE DRIVER
TYPE
VN750SM
s
R
DS(on)
55 m鈩?/div>
I
OUT
6A
V
CC
36 V
CMOS COMPATIBLE INPUT
s
ON STATE OPEN LOAD DETECTION
s

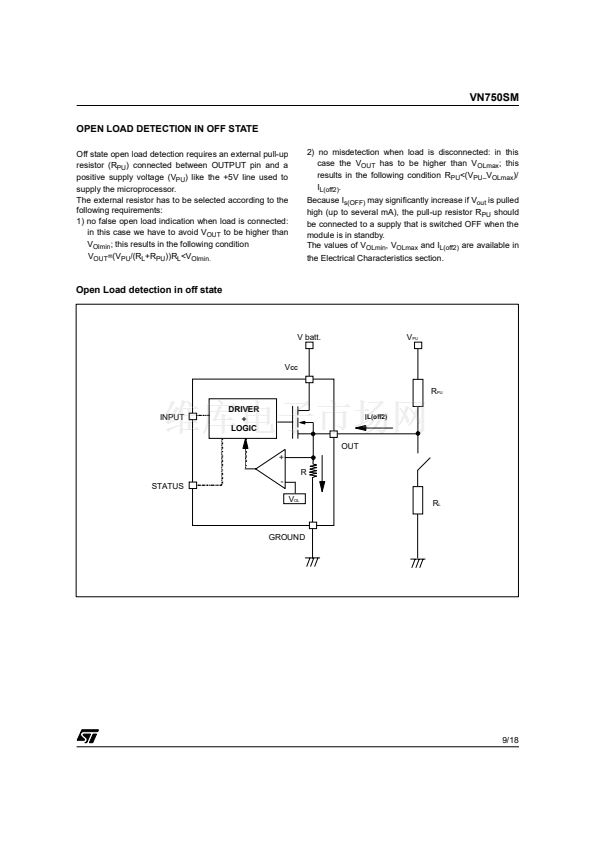

OFF STATE OPEN LOAD DETECTION
s
SHORTED LOAD PROTECTION
s
UNDERVOLTAGE AND OVERVOLTAGE
SHUTDOWN
s
PROTECTION AGAINST LOSS OF GROUND
s
VERY LOW STAND-BY CURRENT
s
SO-8

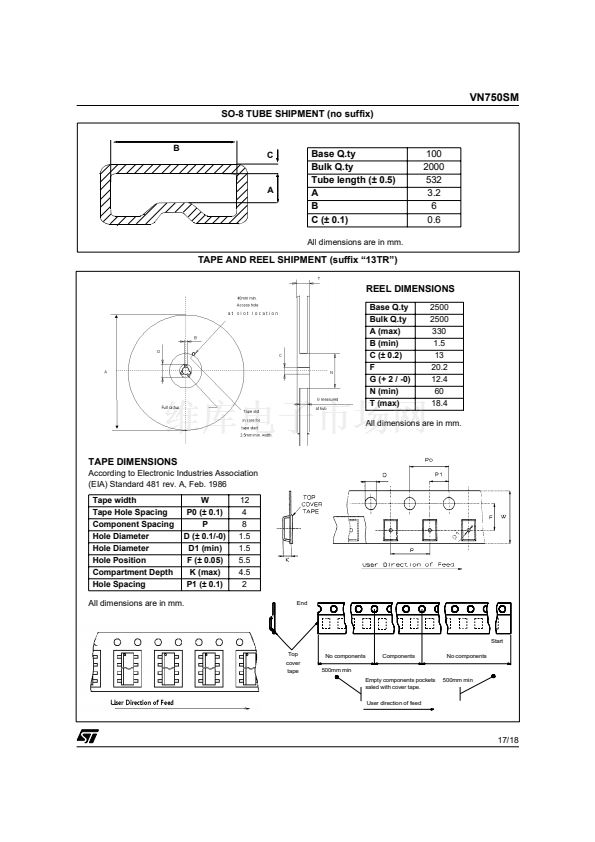

ORDER CODES
PACKAGE
TUBE
VN750SM
T&R
VN750SM
13TR
REVERSE BATTERY PROTECTION (*)
SO-8
DESCRIPTION

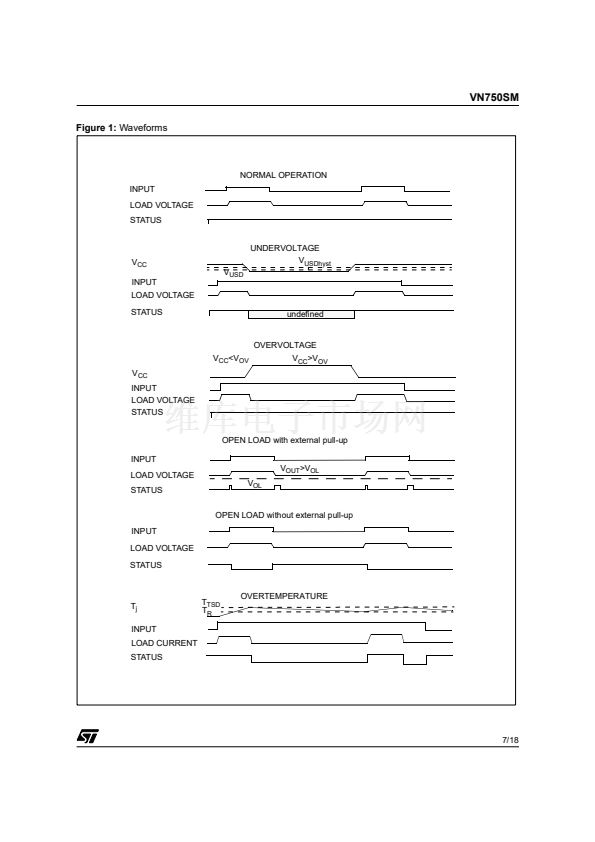

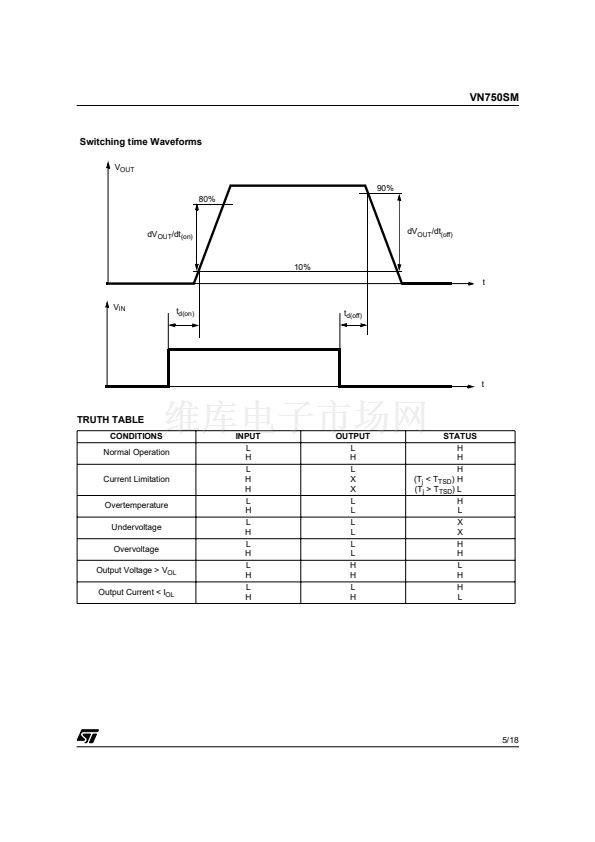

The VN750SM is a monolithic device designed in
STMicroelectronics VIPower M0-3 Technology,
intended for driving any kind of load with one side
connected to ground.
Active V
CC
pin voltage clamp protects the device

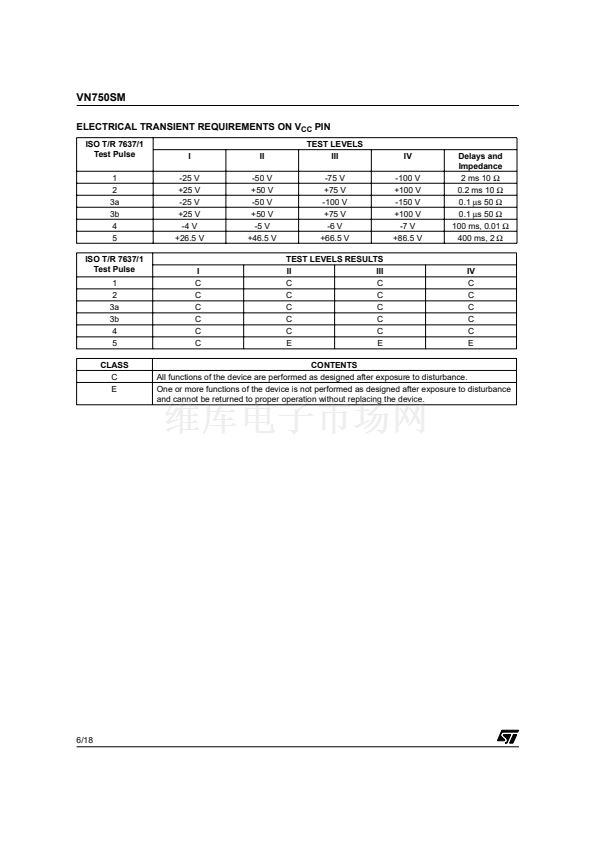

against low energy spikes (see ISO7637 transient
compatibility table). Active current limitation
combined with thermal shutdown and automatic
restart protect the device against overload.

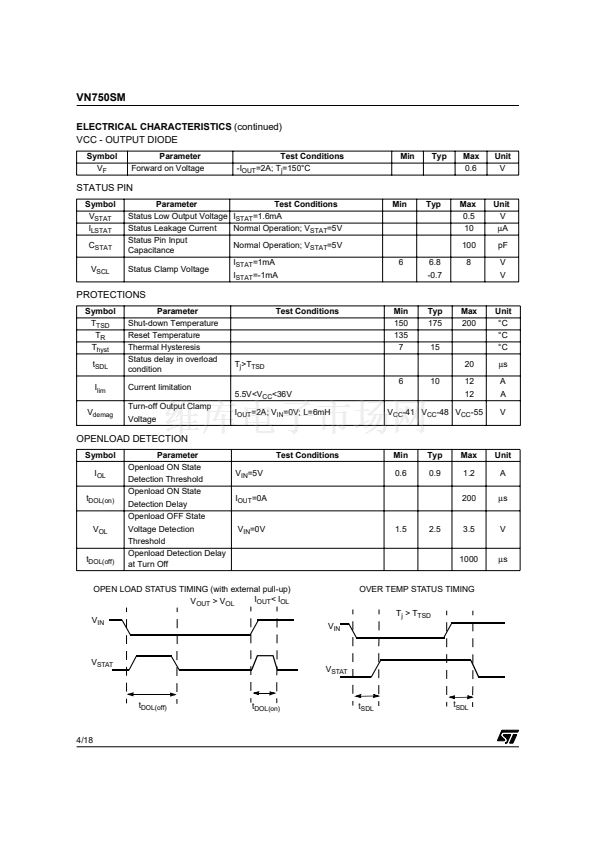

The device detects open load condition both in on
and off state. The openload threshold is aimed at
BLOCK DIAGRAM
detecting the 5W/12V standard bulb as an
openload fault in the on state. Output shorted to
V
CC
is detected in the off state. Device
automatically turns off in case of ground pin
disconnection.
V
CC
V
CC
CLAMP
OVERVOLTAGE
DETECTION
UNDERVOLTAGE
DETECTION
GND
Power CLAMP
INPUT
LOGIC
DRIVER
OUTPUT
CURRENT LIMITER
STATUS
ON STATE OPENLOAD
DETECTION
OVERTEMPERATURE
DETECTION
OFF STATE OPENLOAD
AND OUTPUT SHORTED TO V
CC
DETECTION

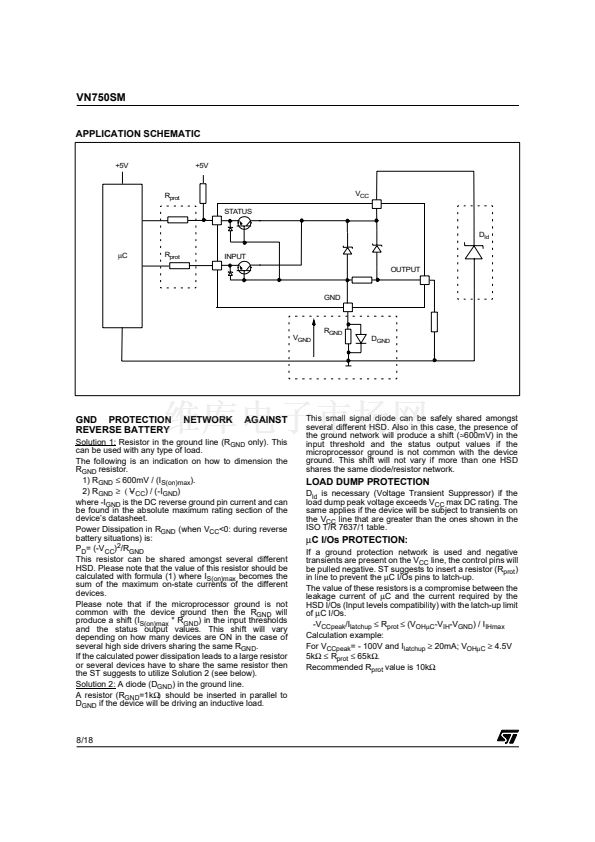

(*) See application schematic at page 8
July 2002
1/18
1

VN750SM 產品屬性

  • 100

  • 集成電路 (IC)

  • PMIC - MOSFET，電橋驅動器 - 內部開關

  • VIPower™

  • 高端

  • 非反相

  • 1

  • 55 毫歐

  • 6A

  • -

  • 5.5 V ~ 36 V

  • -40°C ~ 150°C

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm 寬）

  • 8-SO

  • 管件
