VN340SP Datasheet

  • VN340SP

  • QUAD HIGH SIDE SMART POWER SOLID STATE RELAY

  • 9頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
VN340SP
QUAD HIGH SIDE SMART
POWER SOLID STATE RELAY
TYPE
VN340SP
(*) Per channel
V
demag
(*)
Vcc-55V
R
DSon
(*)
0.2鈩?/div>
I
out
(*)
0.7A
V
cc
36 V
n
OUTPUT CURRENT : 0.7A PER CHANNEL
n
DIGITAL I/O鈥檚 CLAMPED AT 32V MINIMUM
VOLTAGE
n
SHORTED LOAD AND OVERTEMPERATURE
PROTECTIONS
n
PROTECTION AGAINST LOSS OF GROUND
n
BUILT-IN CURRENT LIMITER
n
UNDERVOLTAGE SHUT-DOWN
n
OPEN DRAIN DIAGNOSTIC OUTPUT
n
FAST DEMAGNETIZATION OF INDUCTIVE
LOADS
n
CONFORMS TO IEC 1131-2
DESCRIPTION
The VN340SP is a monolithic device made using
STMicroelectronics VIPower technology, intended
for driving four indipendent resistive or inductive
loads with one side connected to ground. Active
current limitation avoids dropping the system
BLOCK DIAGRAM
10
1
PowerSO-10
TM
power supply in case of shorted load. Built-in
thermal shut-down protects the chip from
overtemperature and short circuit. The open drain
diagnostic output indicates overtemperature
conditions. Each I/O is pulled down when
overtemperature condition of the relative channel
is verified.
August 2000
1/9

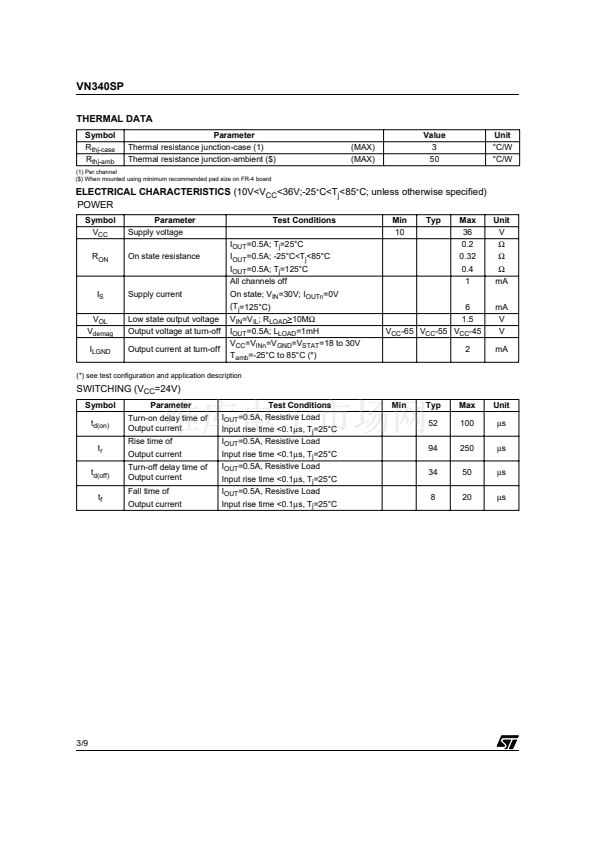

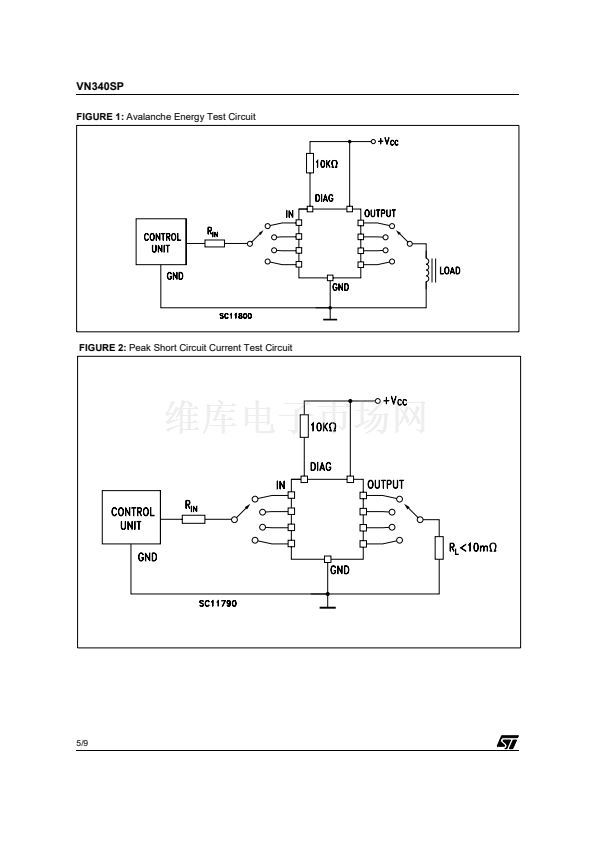

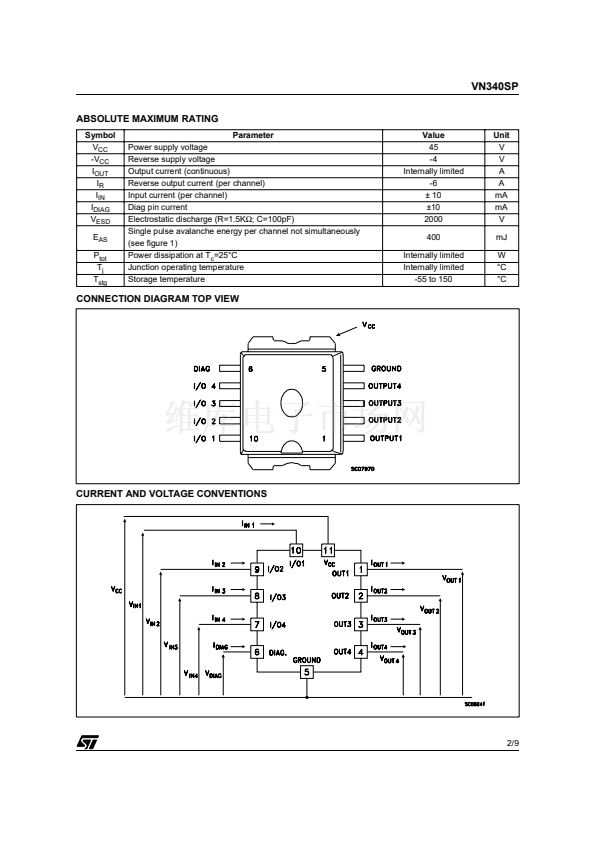

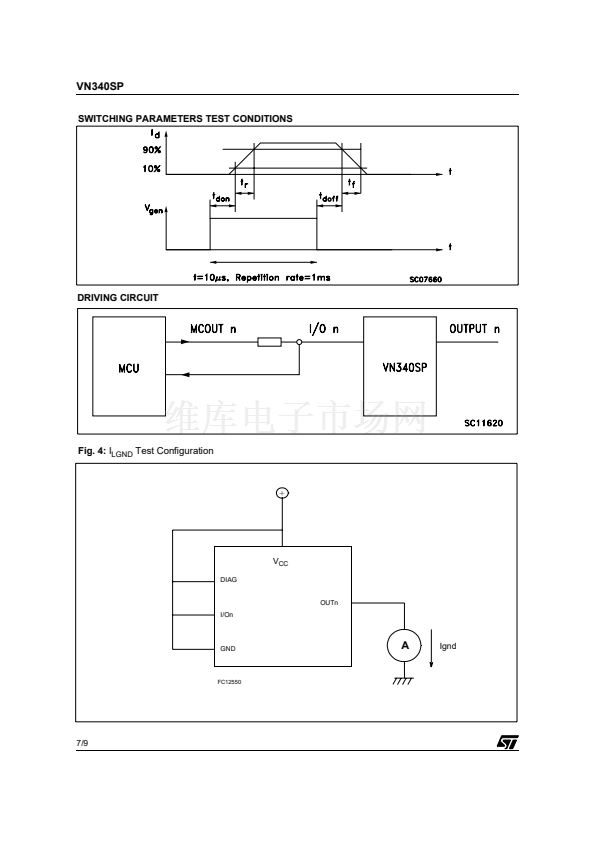

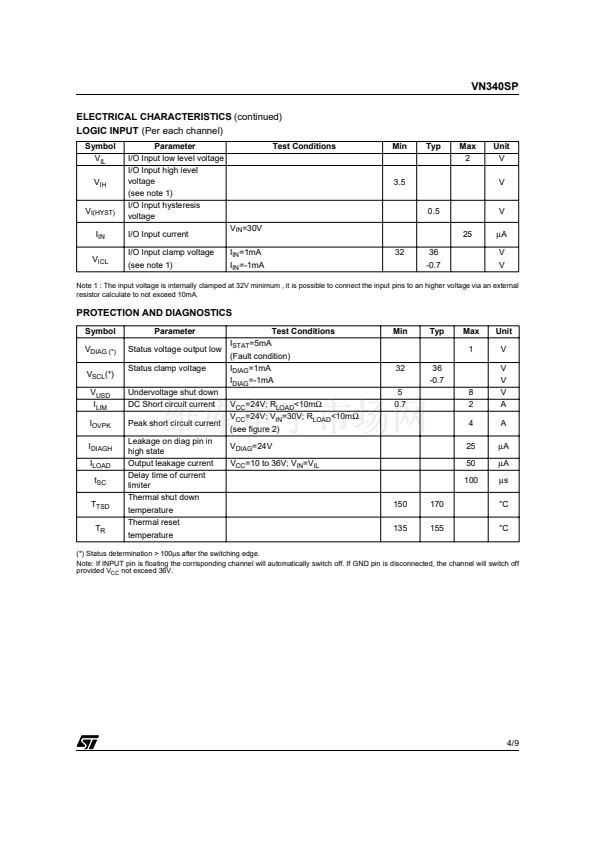

1

VN340SP 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - MOSFET，電橋驅動器 - 內部開關

  • -

  • 高端

  • 非反相

  • 4

  • 200 毫歐

  • 700mA

  • 4A

  • 10 V ~ 36 V

  • -

  • 表面貼裝

  • PowerSO-10 裸露底部焊盤

  • PowerSO-10

  • 管件

  • 497-5511-ND - EVAL BOARD FOR 4CH HI SIDE DRVR

  • 497-2706-5
