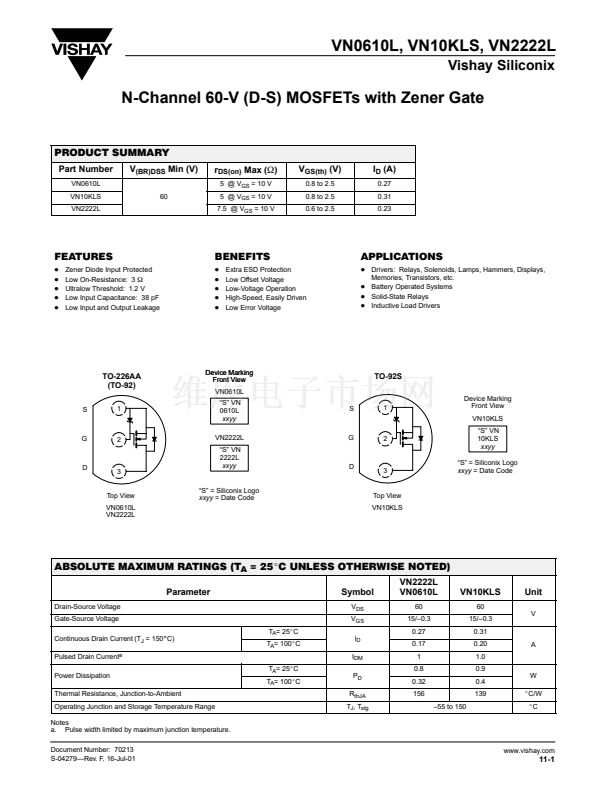

VN0610L, VN10KLS, VN2222L
Vishay Siliconix
N-Channel 60-V (D-S) MOSFETs with Zener Gate
PRODUCT SUMMARY
Part Number
VN0610L
VN10KLS
VN2222L
60
V
(BR)DSS
Min (V)
r
DS(on)
Max (W)
5 @ V
GS
= 10 V
5 @ V
GS
= 10 V
7.5 @ V
GS
= 10 V
V
GS(th)
(V)
0.8 to 2.5
0.8 to 2.5
0.6 to 2.5
I
D
(A)
0.27
0.31
0.23
FEATURES
D
D
D
D
D
Zener Diode Input Protected
Low On-Resistance: 3
W
Ultralow Threshold: 1.2 V
Low Input Capacitance: 38 pF
Low Input and Output Leakage
BENEFITS
D
D
D
D
D
Extra ESD Protection
Low Offset Voltage
Low-Voltage Operation
High-Speed, Easily Driven
Low Error Voltage
APPLICATIONS
D
Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc.
D
Battery Operated Systems
D
Solid-State Relays
D
Inductive Load Drivers
TO-226AA
(TO-92)
S
1
Device Marking
Front View
VN0610L
鈥淪鈥?VN
0610L
xxyy
VN2222L
鈥淪鈥?VN
2222L
xxyy
S
TO-92S
Device Marking
Front View
VN10KLS
G
2
鈥淪鈥?VN
10KLS
xxyy
鈥淪鈥?= Siliconix Logo
xxyy
= Date Code
1
G
2
D
3
D
3
Top View
VN0610L
VN2222L
鈥淪鈥?= Siliconix Logo
xxyy
= Date Code
Top View
VN10KLS
ABSOLUTE MAXIMUM RATINGS (T
A
= 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (T
J
= 150_C)
_
Pulsed Drain Current
a
Power Dissipation
Thermal Resistance, Junction-to-Ambient
Operating Junction and Storage Temperature Range
Notes
a. Pulse width limited by maximum junction temperature.
Document Number: 70213
S-04279鈥擱ev. F, 16-Jul-01
www.vishay.com
T
A
= 25_C
T
A
= 100_C
T
A
= 25_C
T
A
= 100_C
Symbol
V
DS
V
GS
I
D
I
DM
P
D
R
thJA
T
J
, T
stg
VN2222L
VN0610L
60
15/鈥?.3
0.27
0.17
1
0.8
0.32
156
VN10KLS
60
15/鈥?.3
0.31
0.20
1.0
0.9
0.4
139
Unit
V
A
W
_C/W
_C
鈥?5 to 150
11-1
