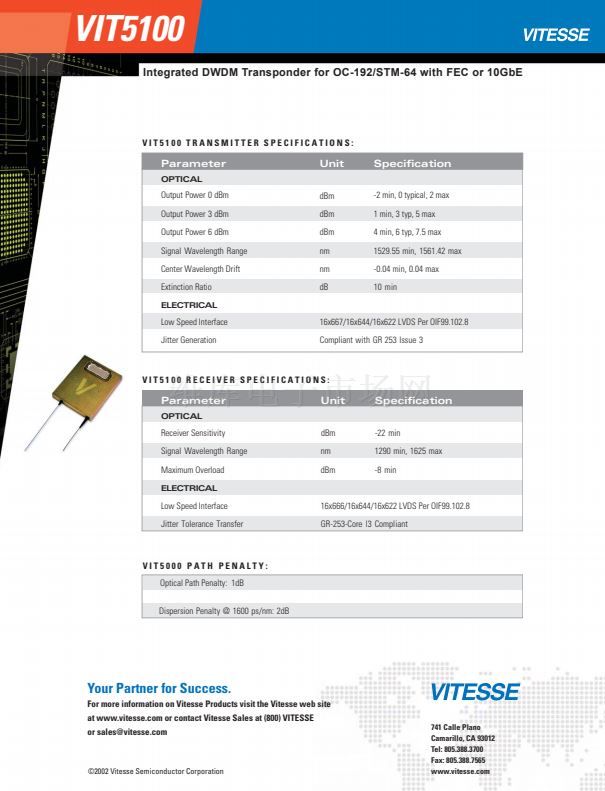

Transponder Dimensions: 3.25鈥?x 4鈥?x 0.53鈥?/div>
Fiber Interface: SMF-28 9/125 Micron with 900 Micron Buffer, 1m, SC/LC
Total Power Dissipation: 12W max
Operating Case Temperature: 70擄C Maximum Optional
Storage Case Temperature: -40擄C min, 85擄C max
F E AT U R E S :
Integrated DWDM Transponder for OC-192/STM-64 with FEC
(9.953Gb/s to 10.709Gb/s) or 10GbE (10.3Gb/s) Applications
Extended Long Reach up to 80km (w/o FEC) or 1600 ps/nm
Available with 0, 3, or 6dBm Output Power
Selectable on 100 GHz ITU Grid Spacing
Lithium Niobate (LiNb03) Modulator
Minimum Fiber Bend Radius: 1.25 maximum
Link Budget up to 26dB
Small Form Factor (3.25鈥?x 4鈥?x 0.53鈥?
State of the Art OAM&P Features including Alarms,
Performance, Monitoring, Decision Threshold and I
2
C
Industry Standard Electrical Interface per OIF99.102.8/802.3ae
300-pin MSA Compatible
Custom Optical Link Design Using Integrated Micro Procesor
EEPROM
Built-in Clock Clean-up
Telcordia Standards:
- GR-63-CORE
- GR-253-CORE
- GR-468-CORE
- GR-1312-CORE
- TA-TSY-000983
- TR-NWT-000357
- TR-NWT-000870
- TR-NWT-000930
Supply Voltages:
- Vcc -0.5 min, 6 max
- Vdd -0.5 min, +3.6 max
- Vee -5.7 min, +0.5 max
Relative Humidity - Operating (Non-Condensing): 90% max
Static Discharge Voltage: 500 VDC maximum
Voltage on LVDS Pin:
-Vdd 0 minimum
PA RT OF THE VIT10 FAMILY OF TR AN SP O ND ER S
PB-VIT5100-001
