VIS

Description

VG26(V)(S)18165C

1,048,576 x 16 - Bit

CMOS Dynamic RAM

The device CMOS Dynamic RAM organized as 1,048,576 words x 16 bits with extended data out access

mode. It is fabricated with an advanced submicron CMOS technology and designed to operate from a single

5V only or 3.3V oniy power supply. Low voltage operation is more suitable to be used on battery backup,

portable electronic application. A new refresh feature called 鈥渟elf-refresh鈥?is supported and very slow CBR

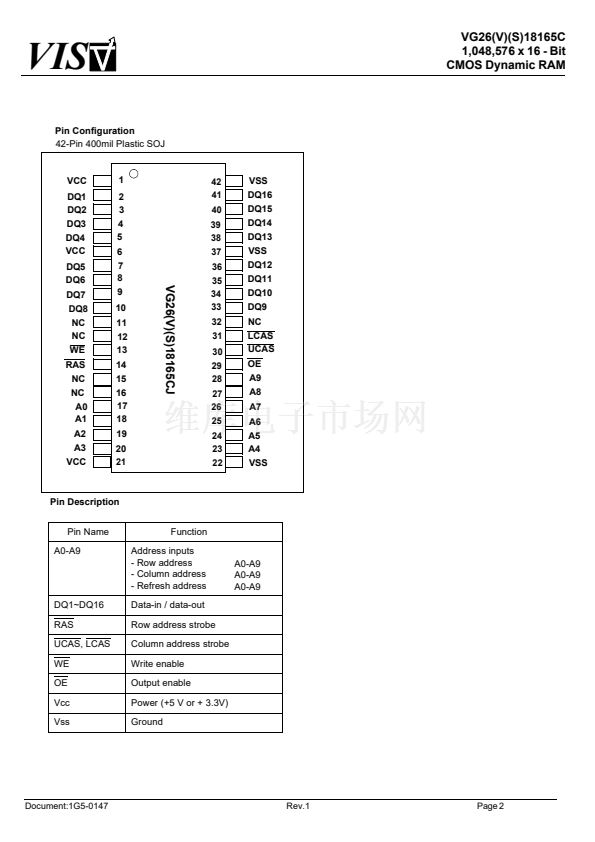

cycles are being performed. lt is packaged in JEDEC standard 42-pin plastic SOJ.

Features

鈥?Single 5V(

鹵

10 %) or 3.3V(

鹵

10 %) only power supply

鈥?High speed t

RAC

acess time: 50/60ns

鈥?Low power dissipation

- Active wode : 5V version 660/605 mW (Mas)

3.3V version 432/396 mW (Mas)

- Standby mode: 5V version 1.375 mW (Mas)

3.3V version 0.54 mW (Mas)

鈥?Extended - data - out(EDO) page mode access

鈥?I/O level: TTL compatible (Vcc = 5V)

LVTTL compatible (Vcc = 3.3V)

鈥?1024 refresh cycle in 16 ms(Std.) or 128 ms(S-version)

鈥?4 refresh modes:

- RAS only refresh

- CAS - before - RAS refresh

- Hidden refresh

- Self-refresh(S-version)

Document:1G5-0147

Rev.1

Page 1
