VCS
SERIES
VERTICAL
LIQUID LEVEL
SENSORS
Operational Characteristics
Contact Configuration
Contact ratings maximum (resistive loads)
Volts DC
Volts AC
Amps
Watts
Volts
Ohms
SPST
100
250
1.0
15
800
0.25
High or low level sensing
Normally open or
normally closed operation
by float reversal
Reed switch reliability up
to 15 watt rating (UL File
E153493)
Polypropylene housing
and float
Internal fit
NPT taper or
M8 x 1.25mm thread
Sealing 'O' ring on VCS-02
and VCS-04 suitable for a
wide range of chemicals
Temperature range up
to 70擄C
30mm or 22mm diameter
float options
Minimum SG 0.70
Overall length less than
60mm (2
1
/
2
inches)
Interface control system
available
VCS-01 and VCS-02
foamed polypropylene
float-magnet wetted
VCS-03 & VC5-04 hollow
polypropylene
float-magnet (sealed)
q
q
q
q
1
/
8
"
Minimum withstand across open contacts
Initial contact resistance
q
The above contact ratings are for resistive loads. For inductive, capacitive and tungsten filament lamp loads refer to the circuit protection notebook.

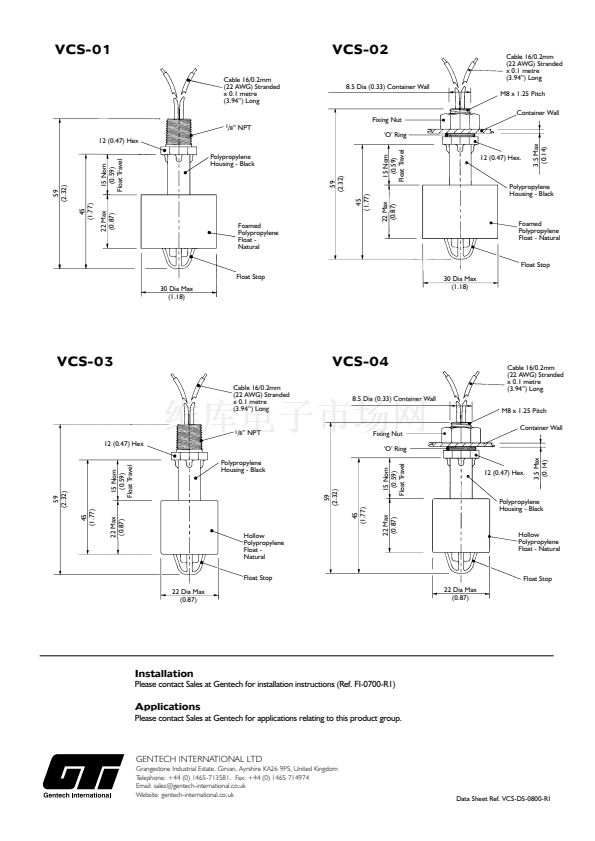

When the non magnet end of the float is positioned against the float stop (as shown in the drawings over) the switch contacts are closed. The switch function can be
changed from contacts normally closed to contacts normally open by simply compressing the float stop arms, removing and reversing the float and reassembling.
q
q
Environmental Specifications
HOUSING AND FLOAT MATERIAL
NITRILE 鈥極鈥?RING
OPERATING TEMPERATURE
-30擄 to +70擄C
Polypropylene
q
q
q
Detailed chemical resistance information for speciflc liquids is available on request.
q
Mechanical Specification
Mounting
Position
Operate
Window
Shock
Vibration
q
鹵15潞 from
vertical
within 5mm
(0.196鈥? from float stop
50g for 11ms duration
(reed switch only)
35g up to 500Hz
(reed switch only)
Electrical Connections
Fitted with 2 x 0.1 metres of 22 AWG, 16/0.2mm stranded, with PVC insulation.
1
