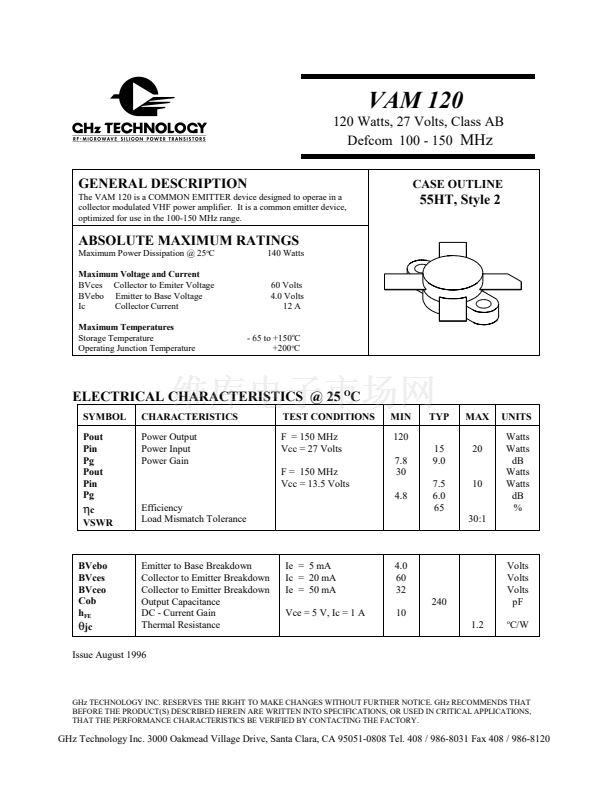

VAM 120
120 Watts, 27 Volts, Class AB
Defcom 100 - 150
MHz
GENERAL DESCRIPTION
The VAM 120 is a COMMON EMITTER device designed to operae in a
collector modulated VHF power amplifier. It is a common emitter device,
optimized for use in the 100-150 MHz range.
CASE OUTLINE
55HT, Style 2
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation @ 25
o
C
Maximum Voltage and Current
BVces Collector to Emiter Voltage
BVebo Emitter to Base Voltage
Ic
Collector Current
Maximum Temperatures
Storage Temperature
Operating Junction Temperature
140 Watts
60 Volts
4.0 Volts
12 A
- 65 to +150
o
C
+200
o
C
ELECTRICAL CHARACTERISTICS @ 25
O
C
SYMBOL
Pout
Pin
Pg
Pout
Pin
Pg
畏
c
VSWR
CHARACTERISTICS
Power Output
Power Input
Power Gain
TEST CONDITIONS
F = 150 MHz
Vcc = 27 Volts
F = 150 MHz
Vcc = 13.5 Volts
Efficiency
Load Mismatch Tolerance
MIN
120
7.8
30
4.8
15
9.0
7.5
6.0
65
20
TYP
MAX
UNITS
Watts
Watts
dB
Watts
Watts
dB
%
10
30:1
BVebo
BVces
BVceo
Cob
h
FE
胃
jc
Emitter to Base Breakdown
Collector to Emitter Breakdown
Collector to Emitter Breakdown
Output Capacitance
DC - Current Gain
Thermal Resistance
Ie = 5 mA
Ic = 20 mA
Ie = 50 mA
Vce = 5 V, Ic = 1 A
4.0
60
32
240
10
1.2
Volts
Volts
Volts
pF
o
C/W
Issue August 1996
