V7PD-15C150 Datasheet

  • V7PD-15C150

  • Non-Isolated DC/DC Converters

  • 14頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

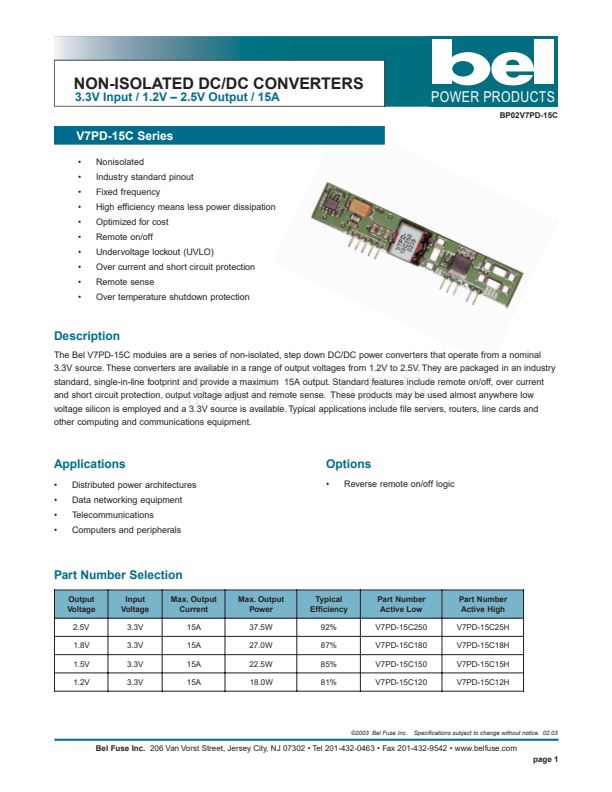

NON-ISOLATED DC/DC CONVERTERS
3.3V Input / 1.2V 鈥?2.5V Output / 15A
V7PD-15C Series
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Nonisolated
Industry standard pinout
Fixed frequency
High efficiency means less power dissipation
Optimized for cost
Remote on/off
Undervoltage lockout (UVLO)
Over current and short circuit protection
Remote sense
Over temperature shutdown protection
POWER PRODUCTS
BP02V7PD-15C
Description
The Bel V7PD-15C modules are a series of non-isolated, step down DC/DC power converters that operate from a nominal
3.3V source. These converters are available in a range of output voltages from 1.2V to 2.5V. They are packaged in an industry
standard, single-in-line footprint and provide a maximum 15A output. Standard features include remote on/off, over current
and short circuit protection, output voltage adjust and remote sense. These products may be used almost anywhere low
voltage silicon is employed and a 3.3V source is available. Typical applications include file servers, routers, line cards and
other computing and communications equipment.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Distributed power architectures
Data networking equipment
Telecommunications
Computers and peripherals
Options
鈥?/div>
Reverse remote on/off logic
Part Number Selection
Output
Voltage
2.5V
1.8V
1.5V
1.2V
Input
Voltage
3.3V
3.3V
3.3V
3.3V
Max. Output
Current
15A
15A
15A
15A
Max. Output
Power
37.5W
27.0W
22.5W
18.0W
Typical
Efficiency
92%
87%
85%
81%
Part Number
Active Low
V7PD-15C250
V7PD-15C180
V7PD-15C150
V7PD-15C120
Part Number
Active High
V7PD-15C25H
V7PD-15C18H
V7PD-15C15H
V7PD-15C12H
漏2003 Bel Fuse Inc.
Specifications subject to change without notice. 02.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
