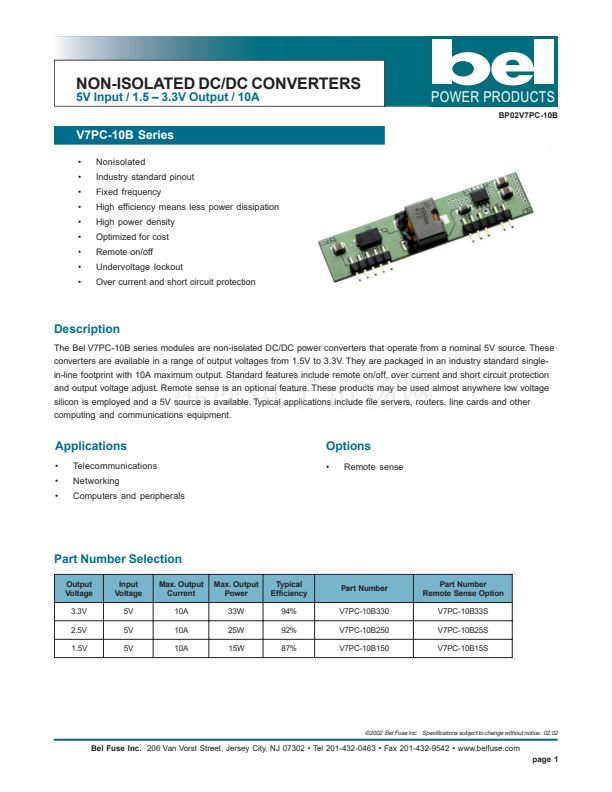

Nonisolated
Industry standard pinout
Fixed frequency
High efficiency means less power dissipation
High power density
Optimized for cost
Remote on/off
Undervoltage lockout
Over current and short circuit protection
POWER PRODUCTS
BP02V7PC-10B
Description
The Bel V7PC-10B series modules are non-isolated DC/DC power converters that operate from a nominal 5V source. These
converters are available in a range of output voltages from 1.5V to 3.3V. They are packaged in an industry standard single-
in-line footprint with 10A maximum output. Standard features include remote on/off, over current and short circuit protection
and output voltage adjust. Remote sense is an optional feature. These products may be used almost anywhere low voltage
silicon is employed and a 5V source is available. Typical applications include file servers, routers, line cards and other
computing and communications equipment.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
Telecommunications
Networking
Computers and peripherals
Options
鈥?/div>
Remote sense
Part Number Selection
Output
Voltage
3.3V
2.5V
1.5V
Input
Voltage
5V
5V
5V
Max. Output
Current
10A
10A
10A
Max. Output
Power
33W
25W
15W
Typical
Efficiency
94%
92%
87%
Part Number
V7PC-10B330
V7PC-10B250
V7PC-10B150
Part Number
Remote Sense Option
V7PC-10B33S
V7PC-10B25S
V7PC-10B15S
漏2002 Bel Fuse Inc. Specifications subject to change without notice. 02.02
