V7AH-02C500 Datasheet

  • V7AH-02C500

  • Non-Isolated DC/DC Converters

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

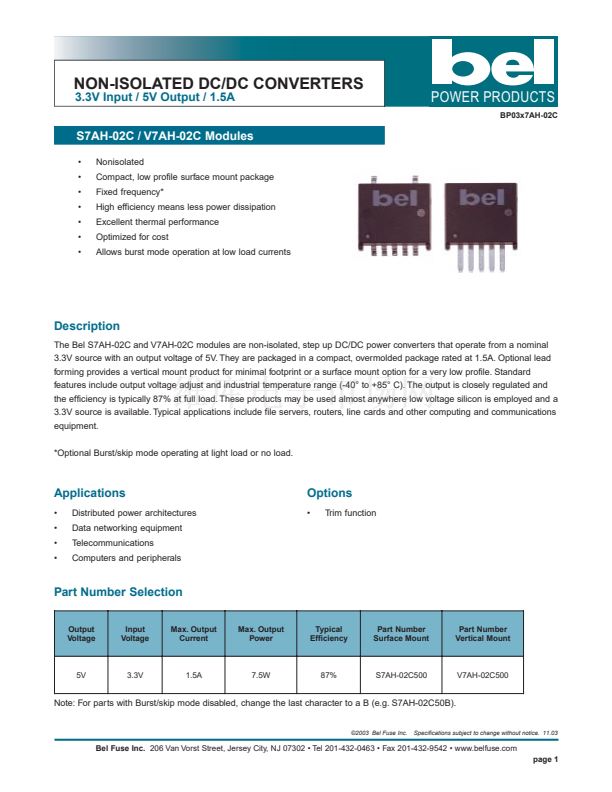

NON-ISOLATED DC/DC CONVERTERS
3.3V Input / 5V Output / 1.5A
S7AH-02C / V7AH-02C Modules
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Nonisolated
Compact, low profile surface mount package
Fixed frequency*
High efficiency means less power dissipation
Excellent thermal performance
Optimized for cost
Allows burst mode operation at low load currents
POWER PRODUCTS
BP03x7AH-02C
Description
The Bel S7AH-02C and V7AH-02C modules are non-isolated, step up DC/DC power converters that operate from a nominal
3.3V source with an output voltage of 5V. They are packaged in a compact, overmolded package rated at 1.5A. Optional lead
forming provides a vertical mount product for minimal footprint or a surface mount option for a very low profile. Standard
features include output voltage adjust and industrial temperature range (-40擄 to +85擄 C). The output is closely regulated and
the efficiency is typically 87% at full load. These products may be used almost anywhere low voltage silicon is employed and a
3.3V source is available. Typical applications include file servers, routers, line cards and other computing and communications
equipment.
*Optional Burst/skip mode operating at light load or no load.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Distributed power architectures
Data networking equipment
Telecommunications
Computers and peripherals
Options
鈥?/div>
Trim function
Part Number Selection
Output
Voltage
Input
Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Part Number
Surface Mount
Part Number
Vertical Mount
5V
3.3V
1.5A
7.5W
87%
S7AH-02C500
V7AH-02C500
Note: For parts with Burst/skip mode disabled, change the last character to a B (e.g. S7AH-02C50B).
漏2003 Bel Fuse Inc.
Specifications subject to change without notice. 11.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
