V62/06655-01XE Datasheet

  • V62/06655-01XE

  • SINGLE INVERTER BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT

  • 7頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

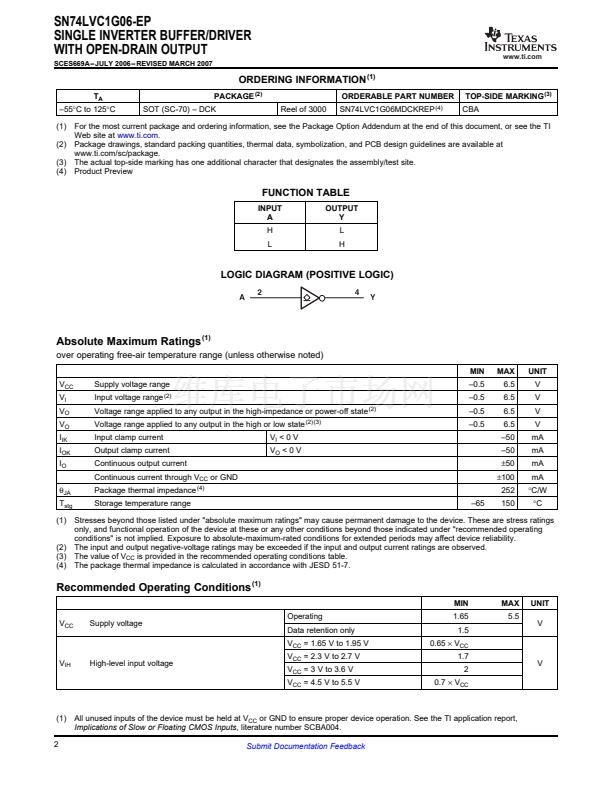

SN74LVC1G06-EP
SINGLE INVERTER BUFFER/DRIVER
WITH OPEN-DRAIN OUTPUT
www.ti.com
SCES669A 鈥?JULY 2006 鈥?REVISED MARCH 2007
FEATURES
鈥?/div>
Controlled Baseline
鈥?One Assembly Site
鈥?One Test Site
鈥?One Fabrication Site
Extended Temperature Performance of 鈥?5擄C
to 125擄C
Enhanced Diminishing Manufacturing Sources
(DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree
(1)
Available in the Texas Instruments
NanoStar鈩?and NanoFree鈩?Packages
Supports 5-V V
CC
Operation
Input and Open-Drain Output Accept
Component qualification in accordance with JEDEC and
industry standards to ensure reliable operation over an
extended temperature range. This includes, but is not limited
to, Highly Accelerated Stress Test (HAST) or biased 85/85,
temperature cycle, autoclave or unbiased HAST,
electromigration, bond intermetallic life, and mold compound
life. Such qualification testing should not be viewed as
justifying use of this component beyond specified
performance and environmental limits.
DCK PACKAGE
(TOP VIEW)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
(1)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Voltages up to 5.5 V
Max t
pd
of 4 ns at 3.3 V
Low Power Consumption, 10-碌A(chǔ) Max I
CC
鹵24-mA
Output Drive at 3.3 V
I
off
Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
鈥?2000-V Human-Body Model (A114-A)
鈥?200-V Machine Model (A115-A)
鈥?1000-V Charged-Device Model (C101)
NC
A
GND
1
2
3
5
V
CC
4
Y
See mechanical drawings for dimensions.
DESCRIPTION/ORDERING INFORMATION
The SN74LVC1G06 is a single inverter buffer/driver that is designed for 1.65-V to 5.5-V V
CC
operation.
NanoStar鈩?and NanoFree鈩?package technology is a major breakthrough in IC packaging concepts, using the
die as the package.
The output of the SN74LVC1G06 device is open drain and can be connected to other open-drain outputs to
implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.
This device is fully specified for partial-power-down applications using I
off
. The I
off
circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
NanoStar, NanoFree are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright 漏 2006鈥?007, Texas Instruments Incorporated

V62/06655-01XE 產品屬性

  • Texas Instruments

  • 緩沖器和線路驅動器

  • 1

  • 1

  • Inverting

  • 5.5 V

  • 1.65 V

  • + 125 C

  • SMD/SMT

  • SOT-5

  • Reel

  • LVC

  • CMOS

  • 32 mA

  • - 55 C

  • 1

  • Open Drain

  • 6 ns at 3.3 V

  • 3000
