V365
V06C
3/2
- MICRO SOLENOID VALVE - Normally closed (N.C.)
Series
V365V06C
- Coil Z030A - Port size M5
ISO 9001
FEATURES
- Direct acting micro solenoid valve, minimum overall dimensions, quick response time and high number of cycles.
Designed to shut off liquid and gazeous media compatible with valve materials.
MOUNTING
- In any position, vertical with coil upwards preferred.
VALVE
- Body, guide assembly, bonnet and internal parts in chemically nickel plated (Ni- P) brass. Other internal parts in stainless
steel and PEI (Polyetherimide). Seals as per table. Medium temperature from 0擄C to +90擄C. Viscosity max 3 E擄 (~22 cStokes or
mm
2
/s). Opening time from ~5ms to ~10ms. Closing time from ~5ms to ~10ms.
COIL - Rated for continuous duty in AC (alternate current) or DC (direct current). Coil in class 鈥淔鈥?(+155擄C) wound by class 鈥淗鈥?wires
(+180擄C) vacuum impregnated by polyester resin and encapsulated into glass fibre reinforced PBT (polybutylene-terephtalate).
Ambient temperature from -10擄C to +60擄C.
Standard voltages 24V /50Hz. AC and 12-24 V DC.
Voltage tolerance +10% -15% AC and +10% -5% DC.
Electric plug connection (DIN 46340) or for 3 poles micro- connector.
Protection degree IP65 as per EN 60529 if the coil is duly fitted with its micro- connector.
Max pressure (bar)
Port size
ISO UNI
4534
Orifice
size
(mm)
Kv
Gases
AC
1,2
M5
2
2,5
2,5
2,5
2,5
0,08
8
DC
8
Liquids
AC
8
DC
8
0,04
(m /h)
3
Series and type
Power absorption
AC
(VA)
Holding
DC
(W)
Seals
Weight
(kg)
Valve
Coil
Inrush
V365V06C
Z030A
6
5
4
FPM
0,090
NOTES
- These micro-solenoid valves are not suitable for stagnating media subject to vaporization which deposit solid,
calcareous, incrustant residues or similar.
- Seal: FPM = Fluoro-carbon elastomer.
- Other voltages and frequencies on request: the windings in AC are designed for max voltage 24 V .
0105/0110
SIRAI
ELETTROMECCANICA S.r.l.
Strada per Cernusco, 19 - 20060 BUSSERO (MI) 鈥?Italy
Tel. (+39) 0295038621 - 0295038712 - Fax (+39) 0295038895 - E-mail: sirai@tin.it - www.sirai.com

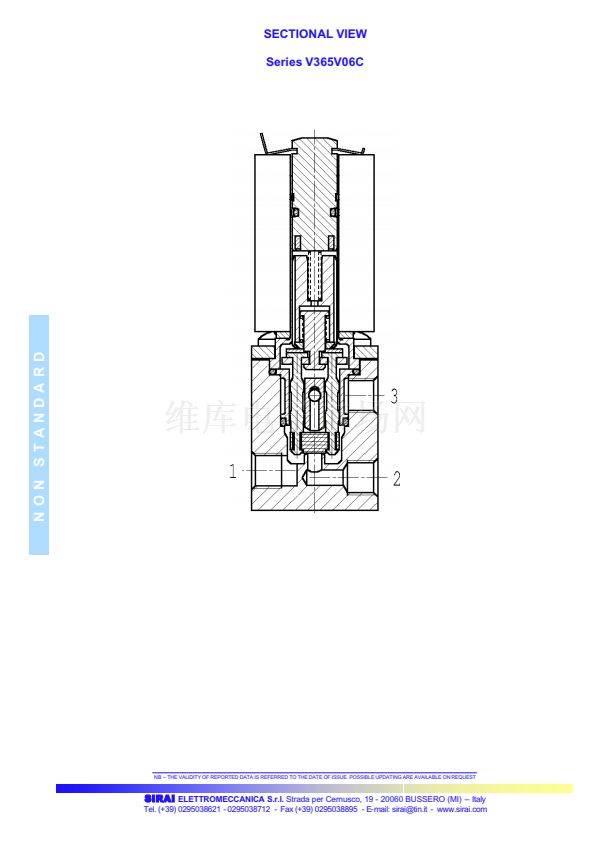

NON STANDARD
1
2
