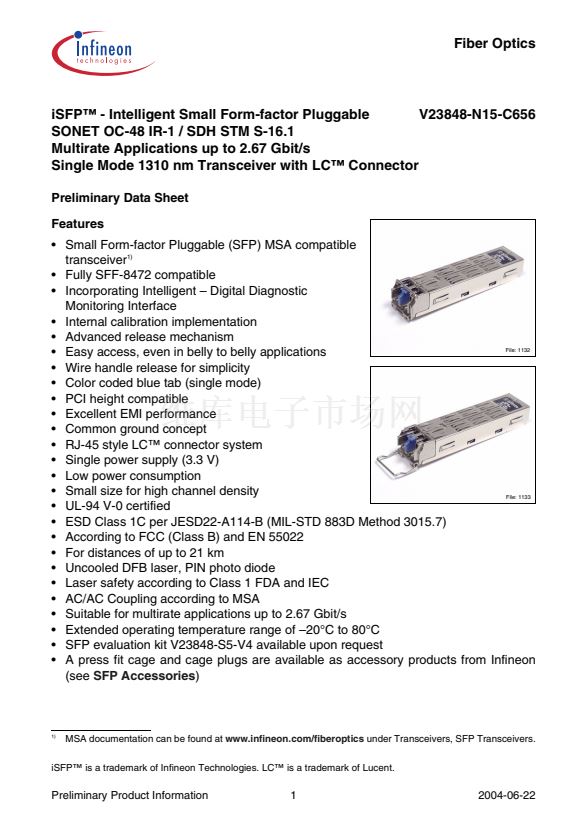

Fiber Optics

iSFP鈩?- Intelligent Small Form-factor Pluggable

V23848-N15-C656

SONET OC-48 IR-1 / SDH STM S-16.1

Multirate Applications up to 2.67 Gbit/s

Single Mode 1310 nm Transceiver with LC鈩?Connector

Preliminary Data Sheet

Features

鈥?Small Form-factor Pluggable (SFP) MSA compatible

transceiver

1)

鈥?Fully SFF-8472 compatible

鈥?Incorporating Intelligent 鈥?Digital Diagnostic

Monitoring Interface

鈥?Internal calibration implementation

鈥?Advanced release mechanism

File: 1132

鈥?Easy access, even in belly to belly applications

鈥?Wire handle release for simplicity

鈥?Color coded blue tab (single mode)

鈥?PCI height compatible

鈥?Excellent EMI performance

鈥?Common ground concept

鈥?RJ-45 style LC鈩?connector system

鈥?Single power supply (3.3 V)

鈥?Low power consumption

鈥?Small size for high channel density

File: 1133

鈥?UL-94 V-0 certified

鈥?ESD Class 1C per JESD22-A114-B (MIL-STD 883D Method 3015.7)

鈥?According to FCC (Class B) and EN 55022

鈥?For distances of up to 21 km

鈥?Uncooled DFB laser, PIN photo diode

鈥?Laser safety according to Class 1 FDA and IEC

鈥?AC/AC Coupling according to MSA

鈥?Suitable for multirate applications up to 2.67 Gbit/s

鈥?Extended operating temperature range of 鈥?0擄C to 80擄C

鈥?SFP evaluation kit V23848-S5-V4 available upon request

鈥?A press fit cage and cage plugs are available as accessory products from Infineon

(see

SFP Accessories)

1)

MSA documentation can be found at

www.infineon.com/fiberoptics

under Transceivers, SFP Transceivers.

iSFP鈩?is a trademark of Infineon Technologies. LC鈩?is a trademark of Lucent.

Preliminary Product Information

1

2004-06-22
