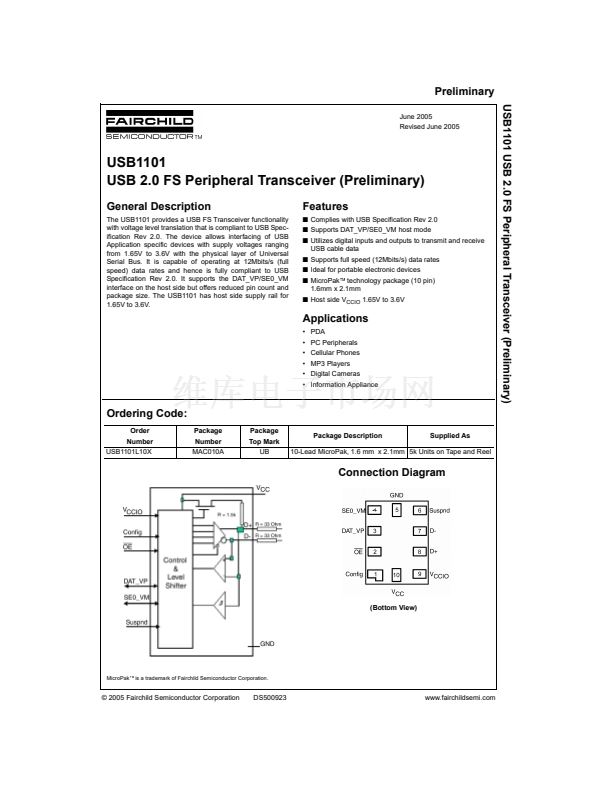

Preliminary
USB1101 USB 2.0 FS Peripheral Transceiver (Preliminary)
June 2005
Revised June 2005
USB1101
USB 2.0 FS Peripheral Transceiver (Preliminary)
General Description
The USB1101 provides a USB FS Transceiver functionality
with voltage level translation that is compliant to USB Spec-
ification Rev 2.0. The device allows interfacing of USB
Application specific devices with supply voltages ranging
from 1.65V to 3.6V with the physical layer of Universal
Serial Bus. It is capable of operating at 12Mbits/s (full
speed) data rates and hence is fully compliant to USB
Specification Rev 2.0. It supports the DAT_VP/SE0_VM
interface on the host side but offers reduced pin count and
package size. The USB1101 has host side supply rail for
1.65V to 3.6V.
Features
s
Complies with USB Specification Rev 2.0
s
Supports DAT_VP/SE0_VM host mode
s
Utilizes digital inputs and outputs to transmit and receive
USB cable data
s
Supports full speed (12Mbits/s) data rates
s
Ideal for portable electronic devices
s
MicroPak
樓
technology package (10 pin)
1.6mm x 2.1mm
s
Host side V
CCIO
1.65V to 3.6V
Applications
鈥?PDA
鈥?PC Peripherals
鈥?Cellular Phones
鈥?MP3 Players
鈥?Digital Cameras
鈥?Information Appliance
Ordering Code:
Order
Number
USB1101L10X
Package
Number
MAC010A
Package
Top Mark
UB
Package Description
Supplied As
10-Lead MicroPak, 1.6 mm x 2.1mm 5k Units on Tape and Reel
Connection Diagram
(Bottom View)
MicroPak
樓
is a trademark of Fairchild Semiconductor Corporation.
漏 2005 Fairchild Semiconductor Corporation
DS500923
www.fairchildsemi.com
