DATA SHEET
GaAs INTEGRATED CIRCUIT
碌
PG2130TB
L-BAND PA DRIVER AMPLIFIER
DESCRIPTION
The
碌
PG2130TB is GaAs MMIC for PA driver amplifier which were developed for mobile phone and another L-
band application. The device can operate with 3.0 V TYP., having the high gain and low distortion.
FEATURES
鈥?Operation frequency
鈥?Supply voltage
鈥?Circuit current
鈥?High power gain
鈥?Gain control range
鈥?Low distortion
: f
opt
= 1 429 to 1 453 MHz (1 441 MHz TYP.)
: V
DD1
= 2.7 to 3.3 V (3.0 V TYP.)
: V
DD2
= 3.0 to 4.2 V (3.5 V TYP.)
: I
DD
= 25 mA TYP. @ V
DD1
= 3.0 V, V
DD2
= 3.2 V, V
AGC
= 2.5 V, P
out
= +10 dBm
: G
P
= 30 dB TYP. @ V
DD1
= 3.0 V, V
DD2
= 3.2 V, V
AGC
= 2.5 V, P
in
=
鈭?0
dBm
: GCR = 42 dB TYP. @ V
DD1
= 3.0 V, V
DD2
= 3.2 V, V
AGC
= 0.5 to 2.5 V,
P
in
=
鈭?0
dBm
: P
adj1
=
鈭?0
dBc TYP. @ V
DD1
= 3.0 V, V
DD2
= 3.2 V, V
AGC
= 2.5 V, P
out
= +10 dBm,
鈭?/div>
f =
鹵50
kHz, 21 kHz Bandwidth.

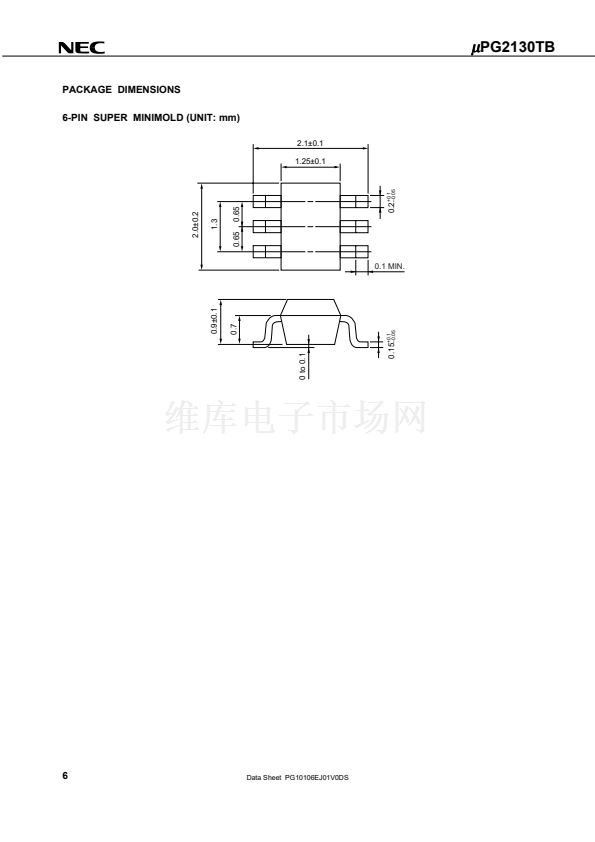

鈥?High-density surface mounting : 6-pin super minimold package (2.0
脳
1.25
脳
0.9 mm)
APPLICATION
鈥?Digital Cellular: PDC 1.5 GHz etc.
ORDERING INFORMATION
Part Number
Package
6-pin super minimold
Marking
G2P
Supplying Form
鈥?/div>
Embossed tape 8 mm wide
鈥?/div>
Pin 1, 2, 3 face the perforation side of the tape
鈥?/div>
Qty 3 kpcs/reel
碌
PG2130TB-E3
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order:
碌
PG2130TB

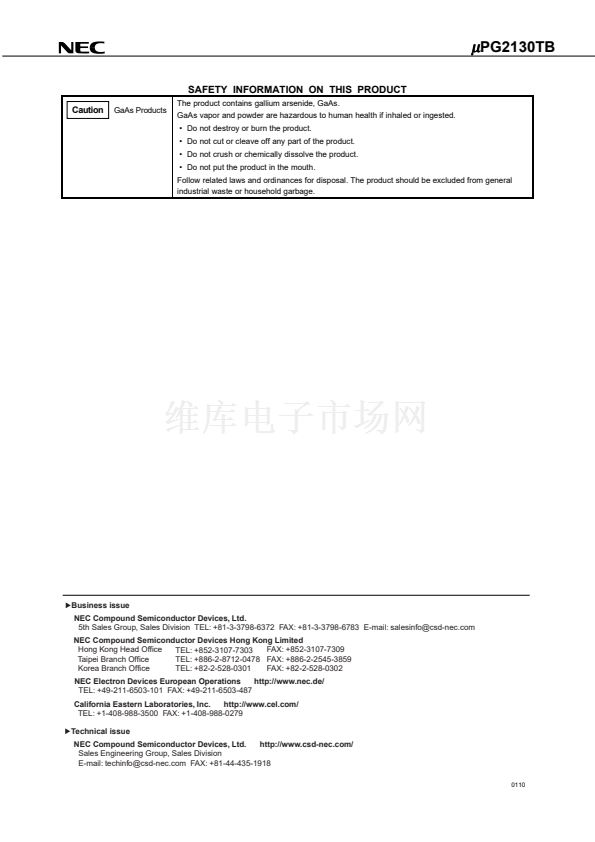

Caution Electro-static sensitive devices
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PG10106EJ01V0DS (1st edition)
Date Published March 2002 CP(K)
Printed in Japan
漏
NEC Compound Semiconductor Devices 2002
