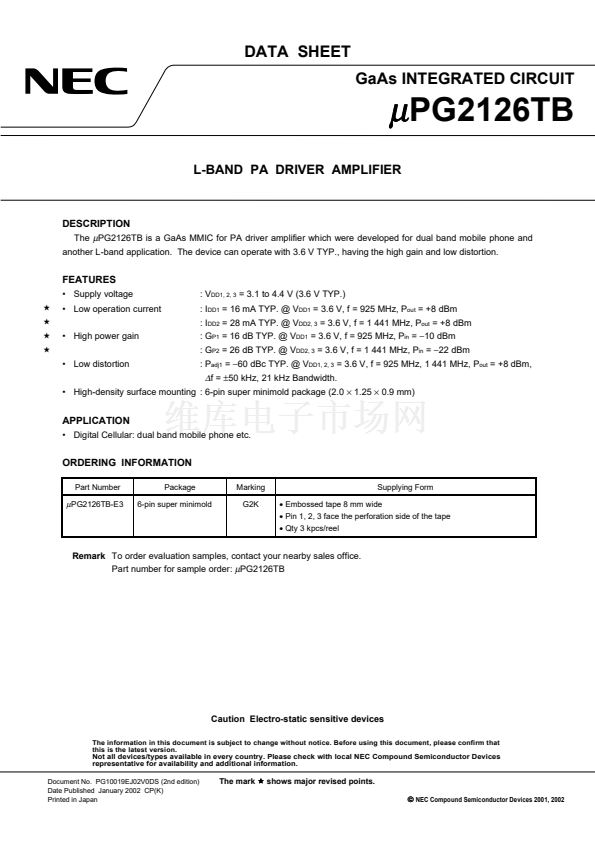

DATA SHEET
GaAs INTEGRATED CIRCUIT
碌
PG2126TB
L-BAND PA DRIVER AMPLIFIER
DESCRIPTION
The
碌
PG2126TB is a GaAs MMIC for PA driver amplifier which were developed for dual band mobile phone and
another L-band application. The device can operate with 3.6 V TYP., having the high gain and low distortion.
FEATURES
鈥?Supply voltage
!
!
!
!
鈥?Low distortion
鈥?High power gain
鈥?Low operation current
: V
DD1, 2, 3
= 3.1 to 4.4 V (3.6 V TYP.)
: I
DD1
= 16 mA TYP. @ V
DD1
= 3.6 V, f = 925 MHz, P
out
= +8 dBm
: I
DD2
= 28 mA TYP. @ V
DD2, 3
= 3.6 V, f = 1 441 MHz, P
out
= +8 dBm
: G
P1
= 16 dB TYP. @ V
DD1
= 3.6 V, f = 925 MHz, P
in
=
鈭?0
dBm
: G
P2
= 26 dB TYP. @ V
DD2, 3
= 3.6 V, f = 1 441 MHz, P
in
=
鈭?2
dBm
: P
adj1
=
鈭?0
dBc TYP. @ V
DD1, 2, 3
= 3.6 V, f = 925 MHz, 1 441 MHz, P
out
= +8 dBm,
鈭?/div>
f =
鹵50
kHz, 21 kHz Bandwidth.
鈥?High-density surface mounting : 6-pin super minimold package (2.0
脳
1.25
脳
0.9 mm)
APPLICATION
鈥?Digital Cellular: dual band mobile phone etc.
ORDERING INFORMATION
Part Number
Package
6-pin super minimold
Marking
G2K
Supplying Form
鈥?/div>
Embossed tape 8 mm wide
鈥?/div>
Pin 1, 2, 3 face the perforation side of the tape
鈥?/div>
Qty 3 kpcs/reel
碌
PG2126TB-E3
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order:
碌
PG2126TB
Caution Electro-static sensitive devices
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PG10019EJ02V0DS (2nd edition)
Date Published January 2002 CP(K)
Printed in Japan
The mark
!
shows major revised points.
錚?/div>
NEC Compound Semiconductor Devices 2001, 2002
