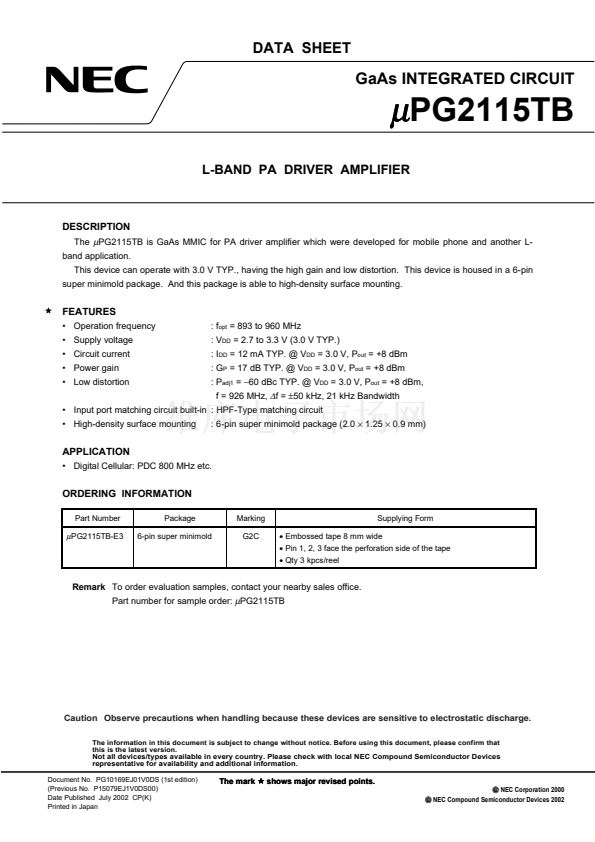

DATA SHEET
GaAs INTEGRATED CIRCUIT
碌
PG2115TB
L-BAND PA DRIVER AMPLIFIER
DESCRIPTION
The
碌
PG2115TB is GaAs MMIC for PA driver amplifier which were developed for mobile phone and another L-
band application.
This device can operate with 3.0 V TYP., having the high gain and low distortion. This device is housed in a 6-pin
super minimold package. And this package is able to high-density surface mounting.

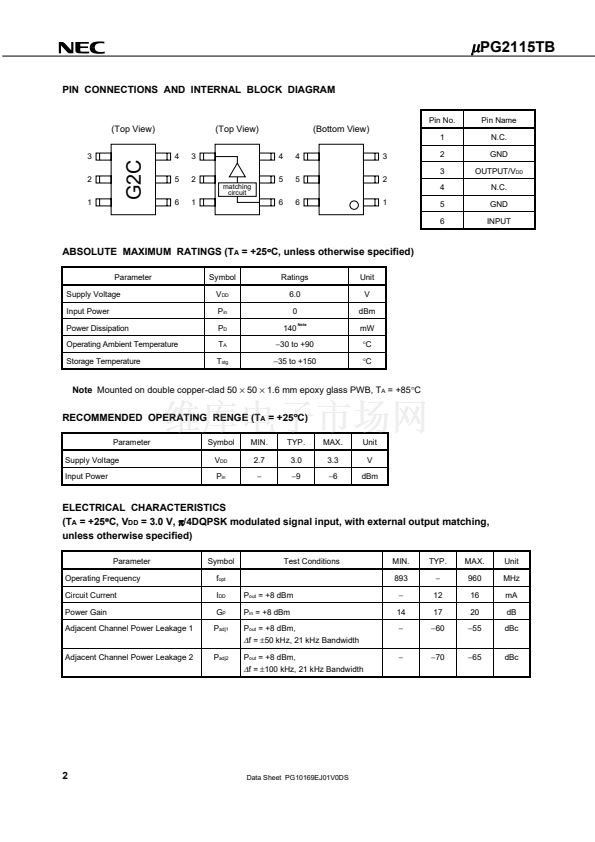

FEATURES
鈥?Operation frequency
鈥?Supply voltage
鈥?Circuit current

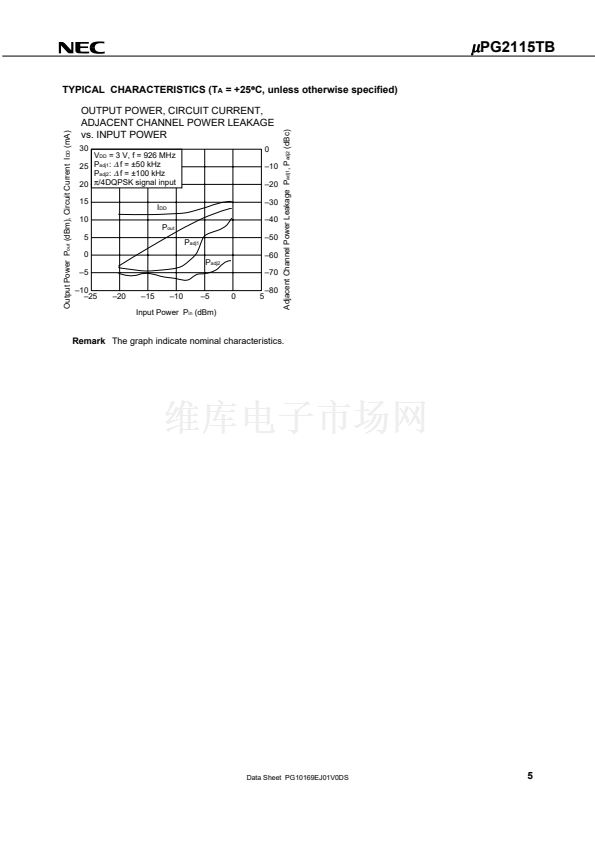

鈥?Power gain
鈥?Low distortion
: f
opt
= 893 to 960 MHz
: V
DD
= 2.7 to 3.3 V (3.0 V TYP.)
: I
DD
= 12 mA TYP. @ V
DD
= 3.0 V, P
out
= +8 dBm
: G
P
= 17 dB TYP. @ V
DD
= 3.0 V, P
out
= +8 dBm
: P
adj1
=
鈭?0
dBc TYP. @ V
DD
= 3.0 V, P
out
= +8 dBm,
f = 926 MHz,
鈭?/div>
f =
鹵50
kHz, 21 kHz Bandwidth

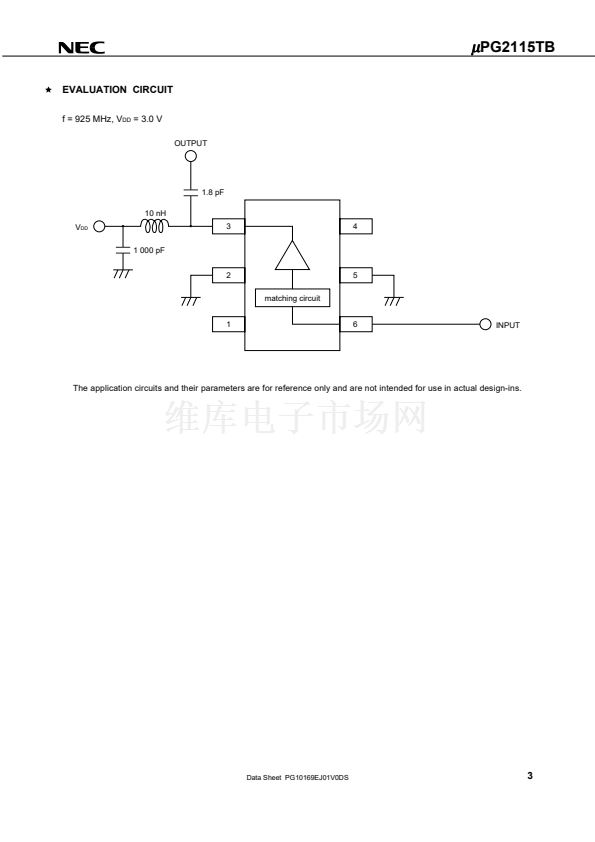

鈥?Input port matching circuit built-in : HPF-Type matching circuit

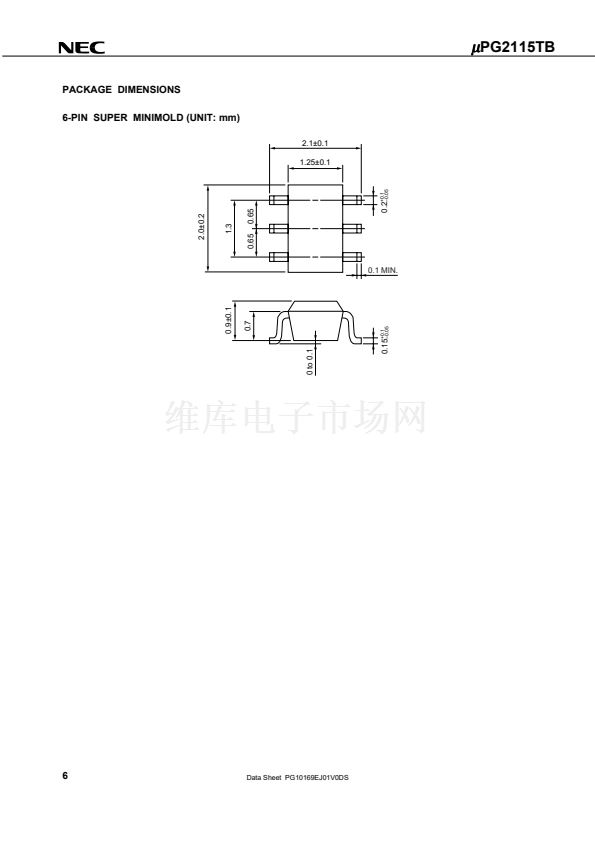

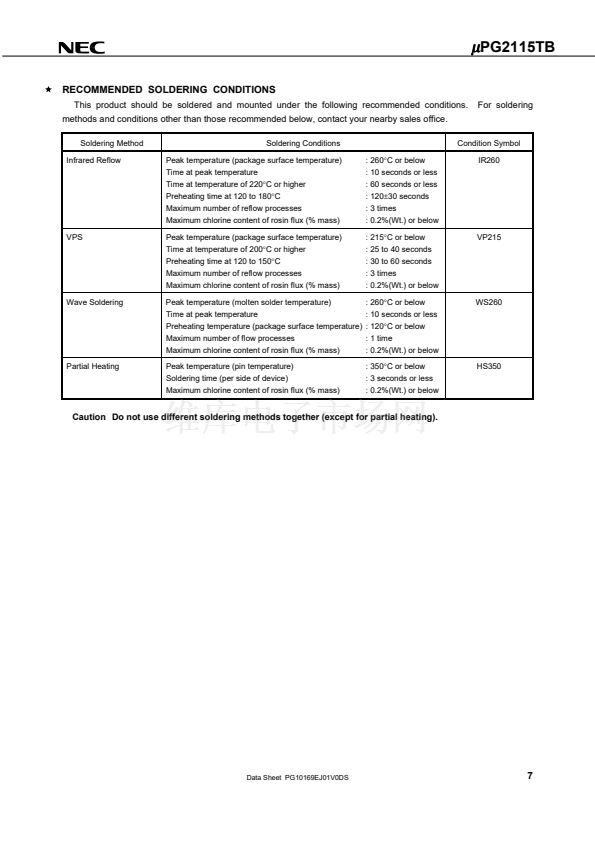

鈥?High-density surface mounting
: 6-pin super minimold package (2.0
脳
1.25
脳
0.9 mm)
APPLICATION
鈥?Digital Cellular: PDC 800 MHz etc.
ORDERING INFORMATION
Part Number
Package
6-pin super minimold
Marking
G2C
Supplying Form
鈥?/div>
Embossed tape 8 mm wide
鈥?/div>
Pin 1, 2, 3 face the perforation side of the tape
鈥?/div>
Qty 3 kpcs/reel
碌
PG2115TB-E3
Remark

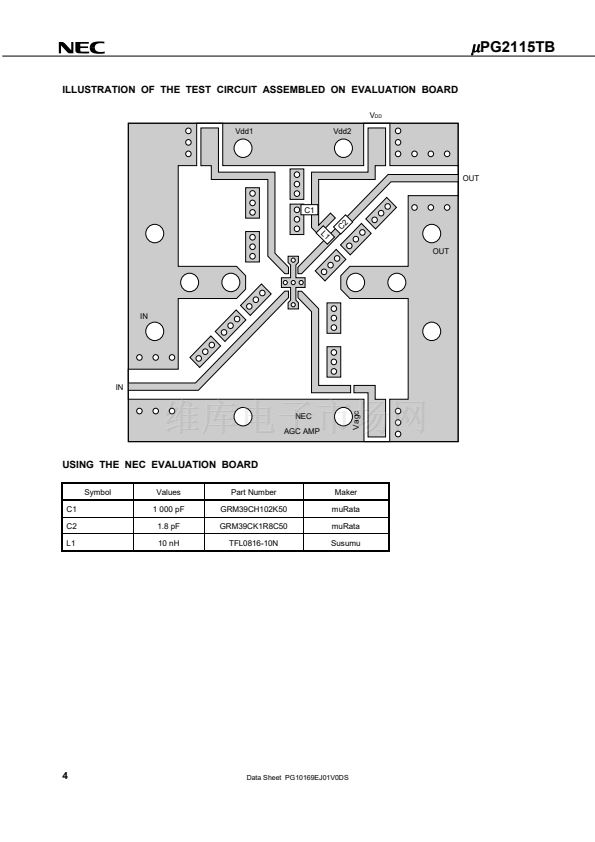

To order evaluation samples, contact your nearby sales office.
Part number for sample order:
碌
PG2115TB

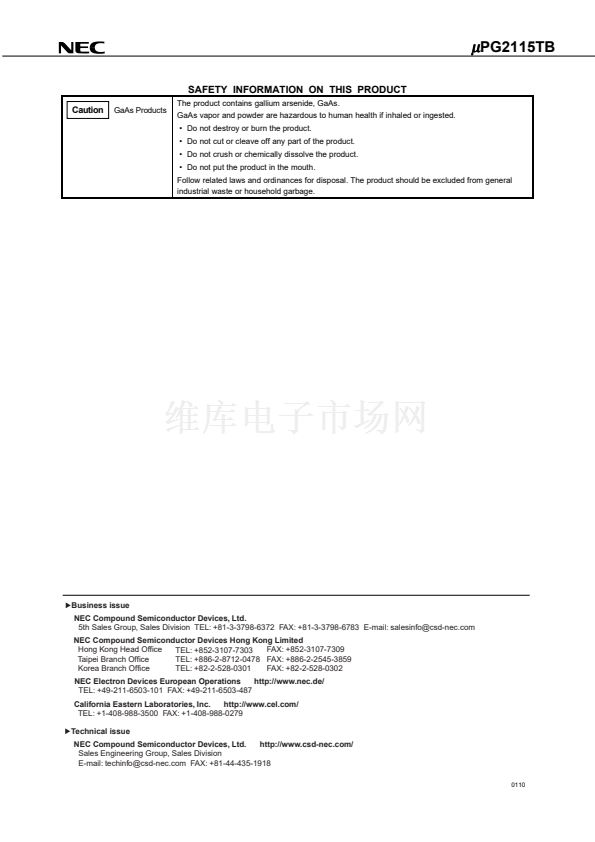

Caution Observe precautions when handling because these devices are sensitive to electrostatic discharge.
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PG10169EJ01V0DS (1st edition)
(Previous No. P15079EJ1V0DS00)
Date Published July 2002 CP(K)
Printed in Japan
The mark
鈥?/div>
shows major revised points.
漏
NEC Corporation 2000
漏
NEC Compound Semiconductor Devices 2002
