UPD8872CY Datasheet

  • UPD8872CY

  • (5400 + 5400) PIXELS x 3 COLOR CCD LINEAR IMAGE SENSOR

  • 187.98KB

  • 24頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD8872
(5400 + 5400) PIXELS
脳
3 COLOR CCD LINEAR IMAGE SENSOR

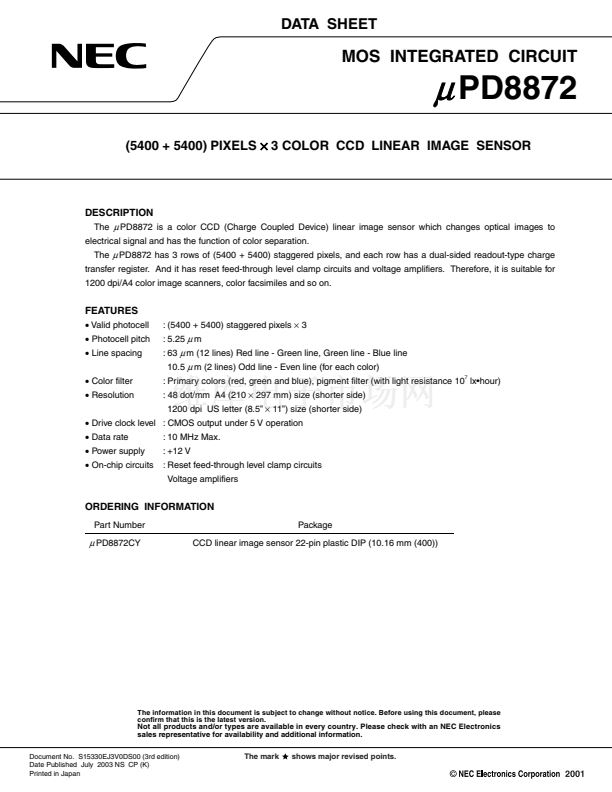

DESCRIPTION
The
碌
PD8872 is a color CCD (Charge Coupled Device) linear image sensor which changes optical images to
electrical signal and has the function of color separation.
The
碌
PD8872 has 3 rows of (5400 + 5400) staggered pixels, and each row has a dual-sided readout-type charge
transfer register. And it has reset feed-through level clamp circuits and voltage amplifiers. Therefore, it is suitable for
1200 dpi/A4 color image scanners, color facsimiles and so on.
FEATURES
鈥?/div>
Valid photocell
鈥?/div>
Photocell pitch
鈥?/div>
Line spacing
鈥?/div>
Color filter
鈥?/div>
Resolution
: (5400 + 5400) staggered pixels
脳
3
: 5.25
碌
m
: 63
碌
m (12 lines) Red line - Green line, Green line - Blue line
10.5
碌
m (2 lines) Odd line - Even line (for each color)
: Primary colors (red, green and blue), pigment filter (with light resistance 10 lx鈥our)
: 48 dot/mm A4 (210
脳
297 mm) size (shorter side)
1200 dpi US letter (8.5鈥?/div>
脳
11鈥? size (shorter side)
鈥?/div>
Drive clock level : CMOS output under 5 V operation
鈥?/div>
Data rate
鈥?/div>
Power supply
鈥?/div>
On-chip circuits
: 10 MHz Max.
: +12 V
: Reset feed-through level clamp circuits
Voltage amplifiers
7
ORDERING INFORMATION
Part Number
Package
CCD linear image sensor 22-pin plastic DIP (10.16 mm (400))
碌
PD8872CY
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. S15330EJ3V0DS00 (3rd edition)
Date Published July 2003 NS CP (K)
Printed in Japan
The mark
shows major revised points.
