DATA SHEET

MOS INTEGRATED CIRCUIT

碌

PD78F0833Y

8-BIT SINGLE-CHIP MICROCONTROLLERS

DESCRIPTION

The

碌

PD78F0833Y is a product of the

碌

PD780833Y Subseries in the 78K/0 Series, and equivalent to the

碌

PD780833Y with a flash memory in place of internal ROM.

This device can be programmed (write, delete, rewrite) without being removed from the board.

Detailed function descriptions are provided in the following user鈥檚 manuals. Be sure to read them before

designing.

碌

PD780833Y Subseries User's Manual:

U13892E

78K/0 Series User鈥檚 Manual Instructions: U12326E

FEATURES

鈥?Pin-compatible with mask ROM versions (except V

PP

pin)

鈥?Flash memory:

60 KB (self-programming supported)

鈥?Internal high-speed RAM: 1,024 bytes

鈥?Internal expansion RAM: 2,048 bytes

鈥?Supply voltage:

V

DD

= 4.5 to 5.5 V

Remark

For the differences between the flash memory version and the mask ROM version, refer to

4

DIFFERENCES BETWEEN

碌

PD78F0833Y AND MASK ROM VERSION.

APPLICATIONS

Car audios, etc.

ORDERING INFORMATION

Part Number

Package

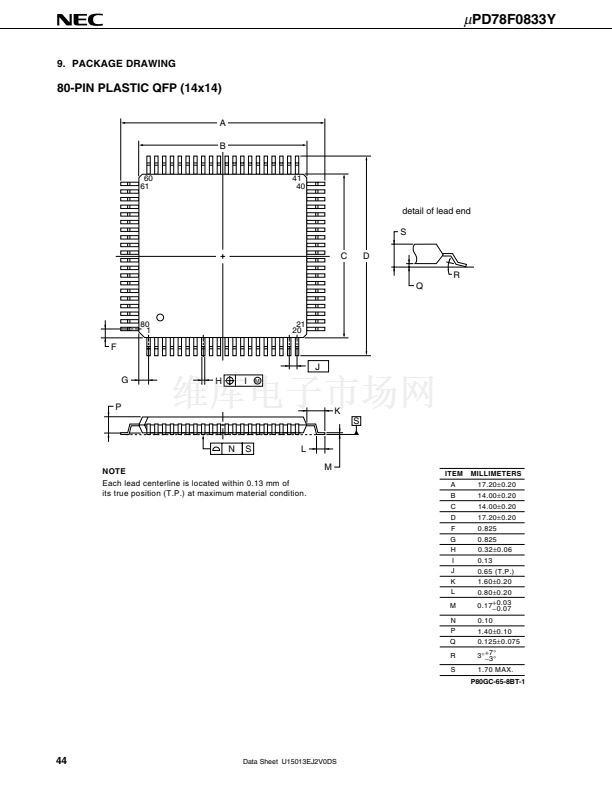

80-pin plastic QFP (14

脳

14)

碌

PD78F0833YGC-8BT

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for

availability and additional information.

Document No. U15013EJ2V0DS00 (2nd edition)

Date Published January 2001 N CP(K)

Printed in Japan

漏

2001
