K0S Family
Description
碌PD789881
Ultra-Low-Power 8-Bit Microcontroller
with LCD Controller
The 碌PD789881 is ideal for-battery-powered applications as it was designed for ultra-low
power consumption of 18 碌A(chǔ) at 2.7 volts during normal operation and 0.9 碌A(chǔ) in STOP
mode. It also has an LCD controller that can directly drive 104 LCD segments.
A built-in 500 kHz on-chip oscillator drives the CPU clock, while all peripherals operate
from an external 32 kHz clock. Users can dynamically switch between the two clock
speeds to accomodate the performance and power consumption requirements for
their applications.
The product鈥檚 extensive tool chain contains a software simulator, C compiler, relocatable
assembler, debugger, and in-circuit emulator. Programming examples for the on-chip
peripherals can be found in the microcontroller section of www.necel.com.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
18 碌A(chǔ) operating current consumption
0.9 碌A(chǔ) standby current consumption
26x4 LCD controller/driver
32 KB flash and 16 KB ROM versions
512 KB SRAM
Peripherals operating from external
32 kHz clock
500 kHz internally generated
CPU clock
4 碌s instruction execution time (min.)
Hardware multiplier
Bit manipulation instructions
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Serial UART interface
8-bit timer/counter
16-bit counter/timer
Watchdog timer
Real-time clock
Up to 28 I/O pins
Interrupt controller
Standby control (HALT, STOP
modes)
Power supply voltage: 2.7-3.5 V
Operating temperature: -40 to +85擄C
64-pin QFP (10 x 10 mm)

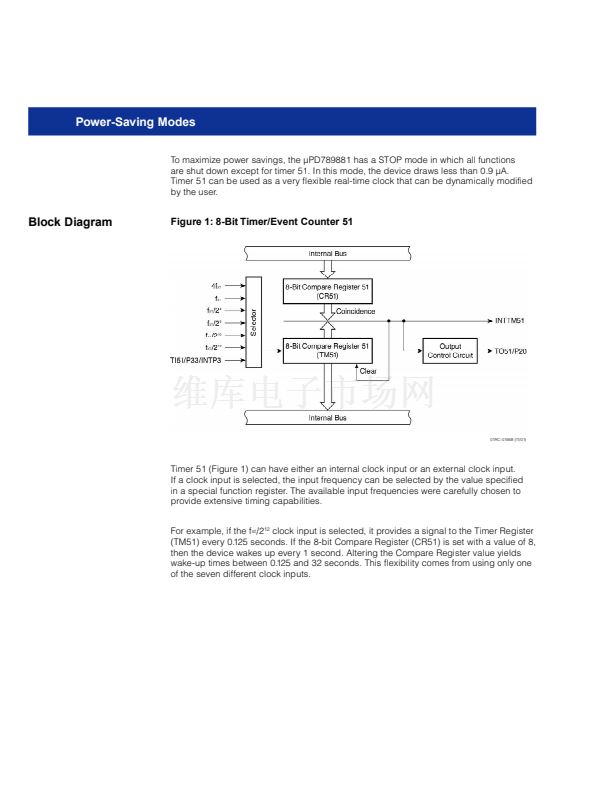

Block Diagram
