DATA SHEET

MOS INTEGRATED CIRCUIT

碌

PD780833Y

8-BIT SINGLE-CHIP MICROCONTROLLER

DESCRIPTION

The

碌

PD780833Y is a member of the

碌

PD780833Y Subseries of the 78K/0 Series, and incorporates a rich lineup

of peripheral hardware, including a J1850 (CLASS2) bus controller, A/D converter, timer, serial interface, and interrupt

controller.

A flash memory version, the

碌

PD78F0833Y, and various development tools are also available.

Detailed function descriptions are provided in the following user鈥檚 manuals. Be sure to read them before

designing.

碌

PD780833Y Subseries User鈥檚 Manual:

U13892E

78K/0 Series User鈥檚 Manual Instructions: U12326E

FEATURES

鈥?On-chip J1850 (CLASS2) bus controller

鈥?On-chip ROM and RAM

Item Program Memory

Internal ROM

Part Number

Data Memory

Internal High-

Speed RAM

60 KB

1024 bytes

Internal Expansion

RAM

2048 bytes

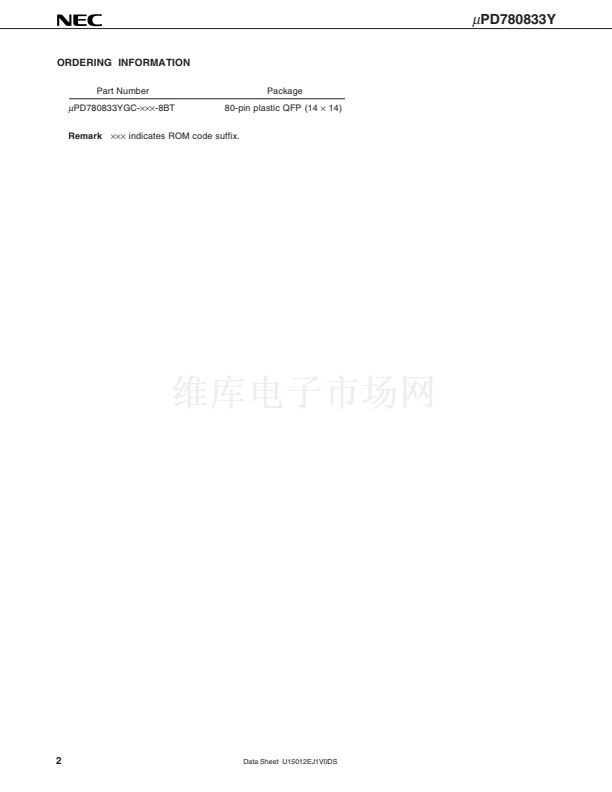

80-pin plastic QFP (14

脳

14)

Package

碌

PD780833Y

鈥?Minimum instruction execution time can be changed from high speed (0.48

碌

s) to low speed (7.68

碌

s)

鈥?I/O ports: 65 (N-ch open-drain: 3, TTL input/CMOS output: 8)

鈥?8-bit resolution A/D converter: 8 channels

脳

2

鈥?Serial interface: 4 channels

鈥?Timer: 7 channels

鈥?Power supply voltage: V

DD

= 4.5 to 5.5 V

APPLICATIONS

Car audios, etc.

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all devices/types available in every country. Please check with local NEC representative for availability

and additional information.

Document No. U15012EJ1V0DS00 (1st edition)

Date Published January 2001 N CP(K)

Printed in Japan

漏

2001
