4375 System Controller

Data Sheet

August 2000

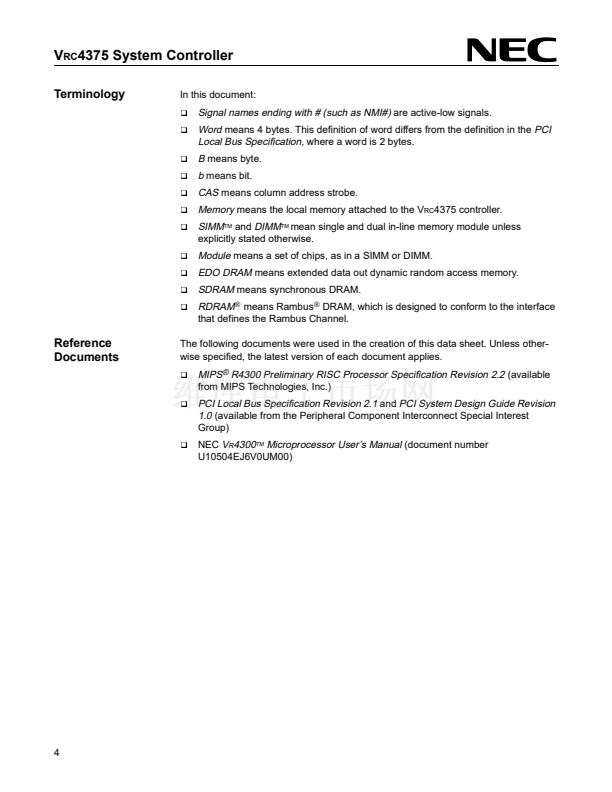

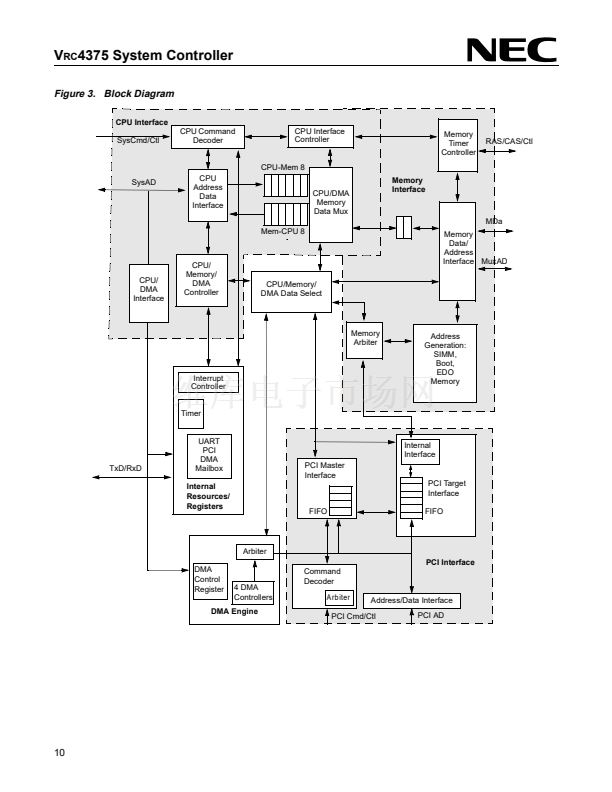

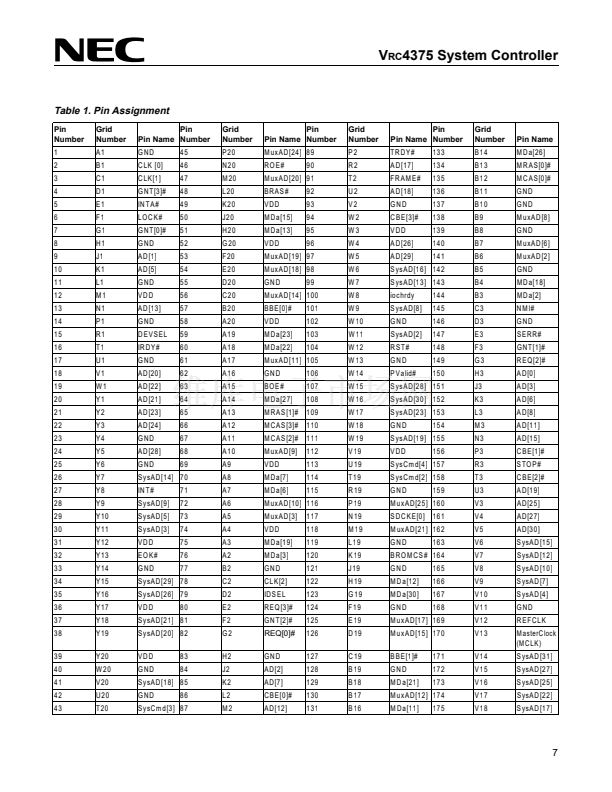

Description

The V

4375

system controller is a software-configurable chip that interfaces directly

with an NEC V

43xx

64-bit MIPS

餂?/div>

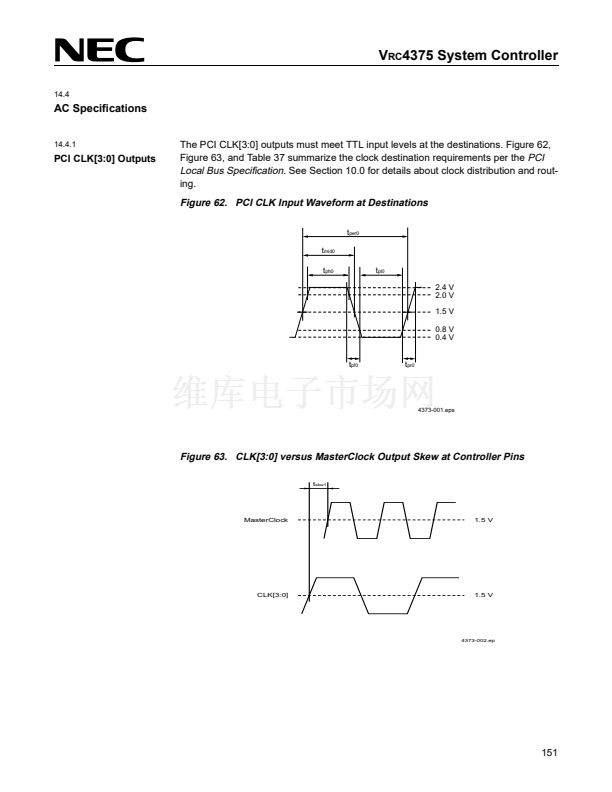

RISC CPU and PCI bus without external logic or

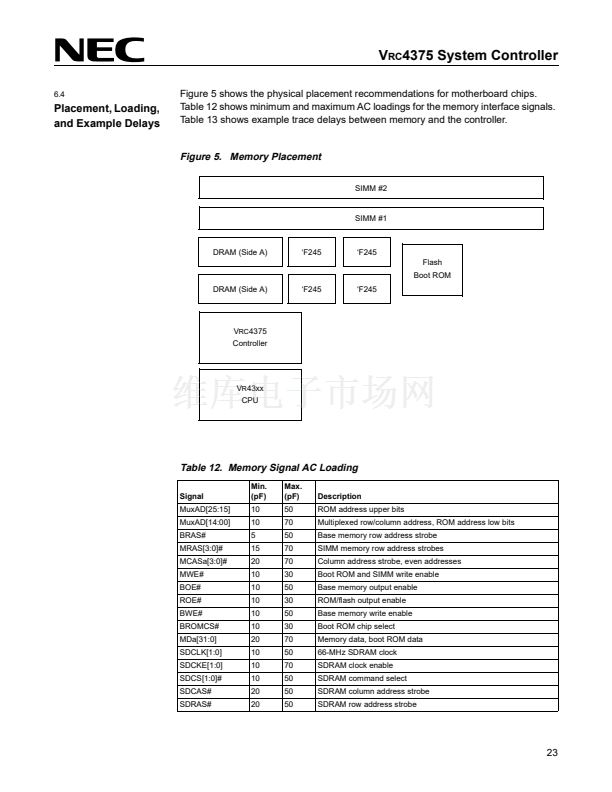

buffering. The system controller also interfaces with memory (SDRAM, EDO, fast-page

DRAM, and flash/boot ROM) with minimal to no buffering. The memory bus can also

interface with SRAM and general-purpose I/O devices. As an interface with the V

43xx

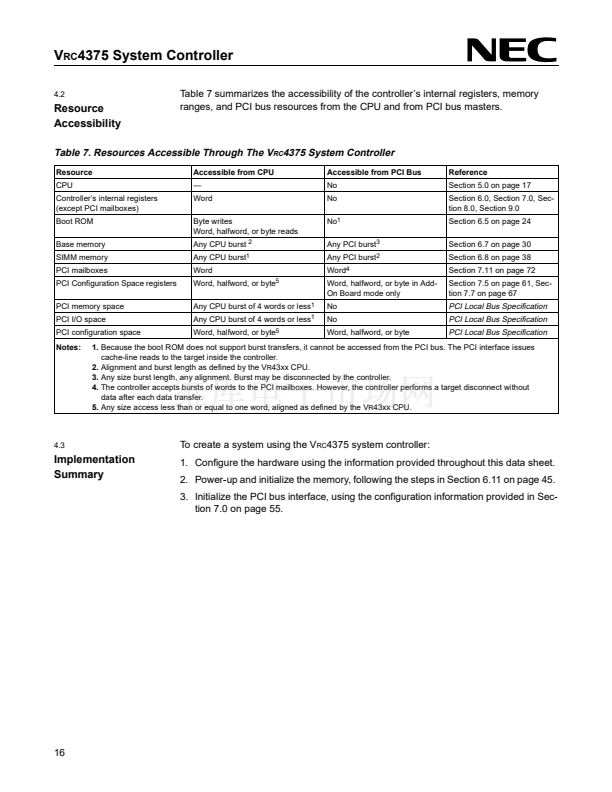

CPU, the V

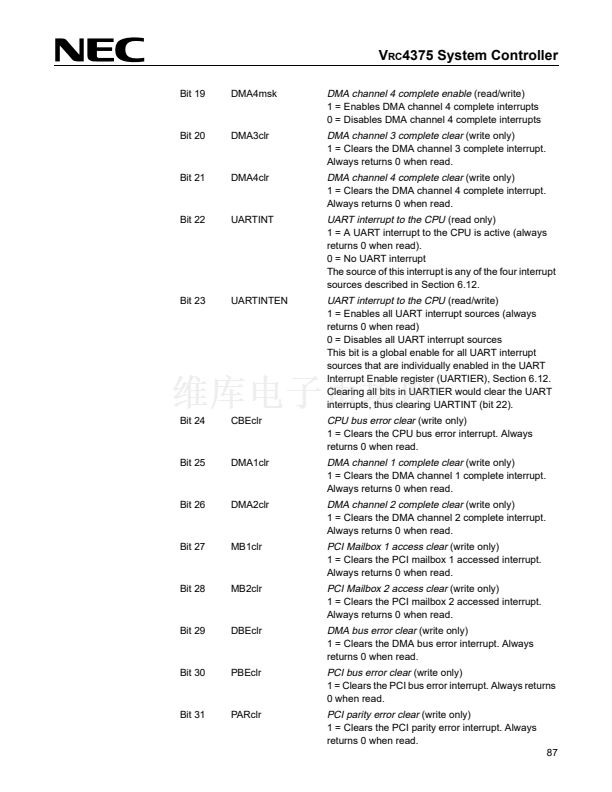

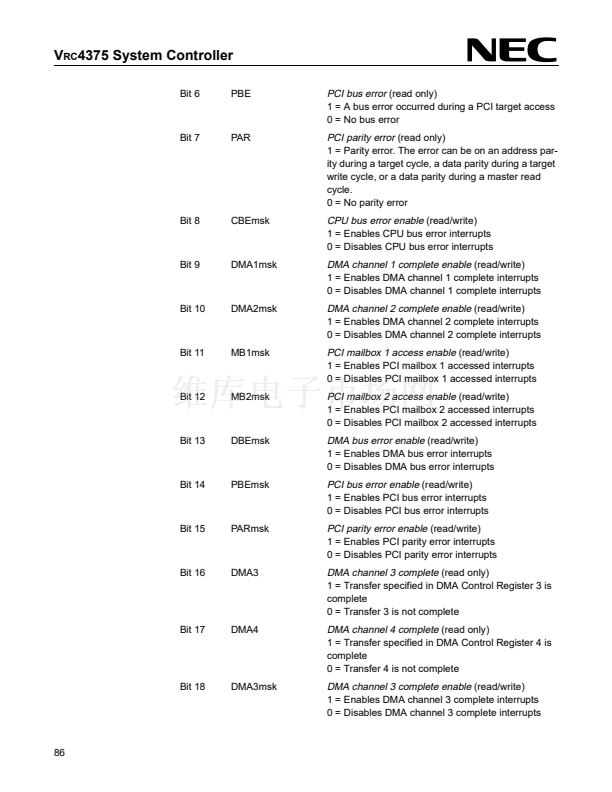

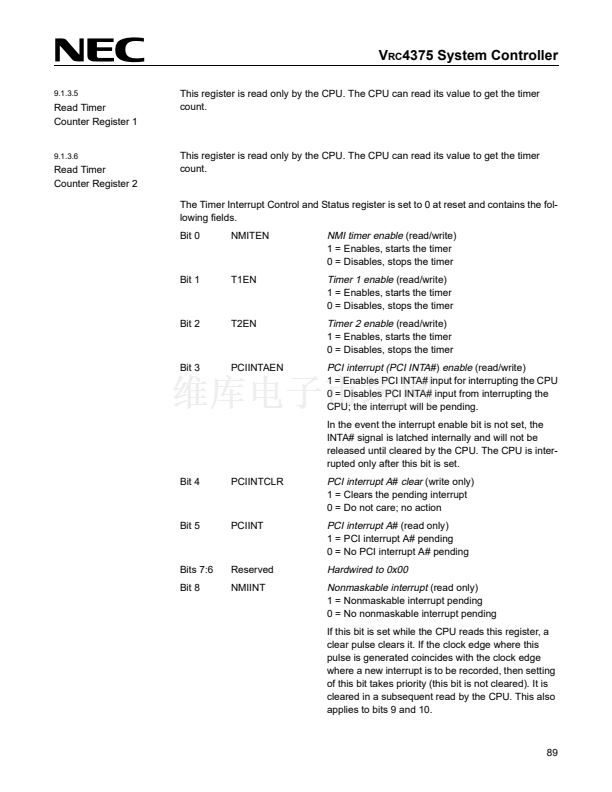

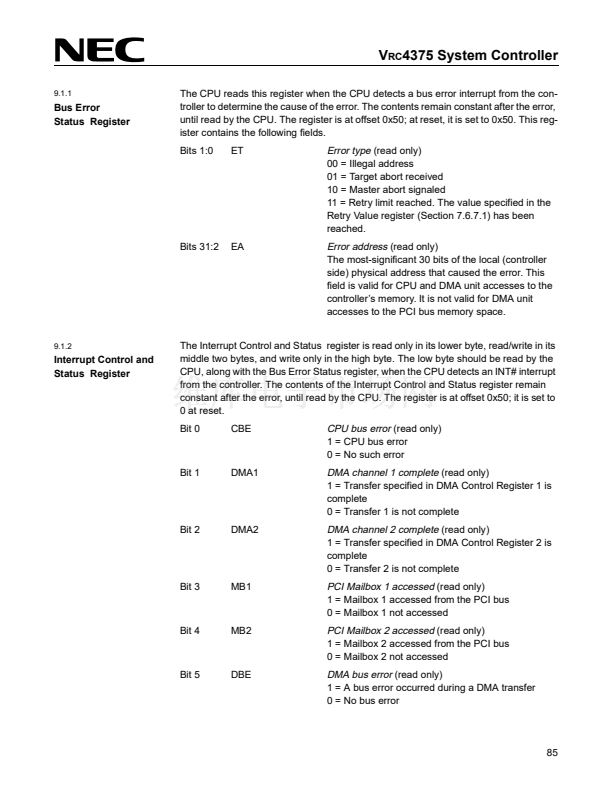

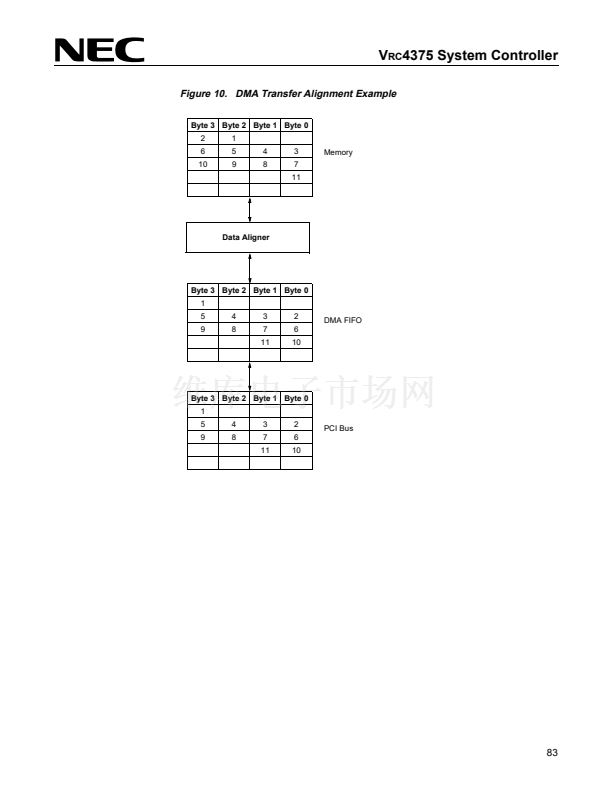

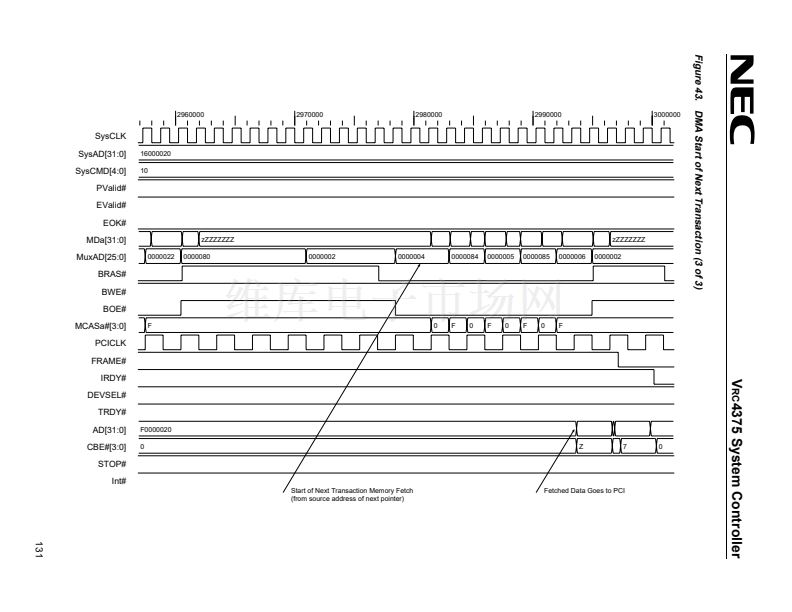

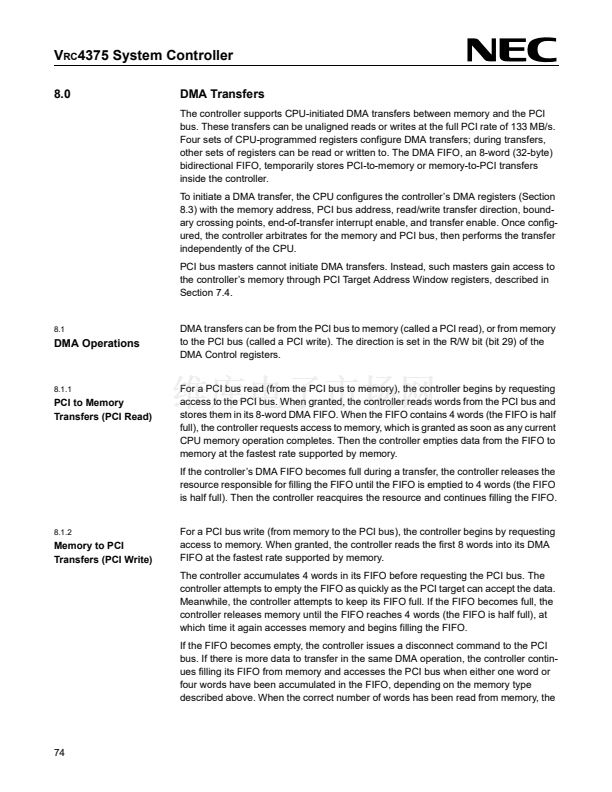

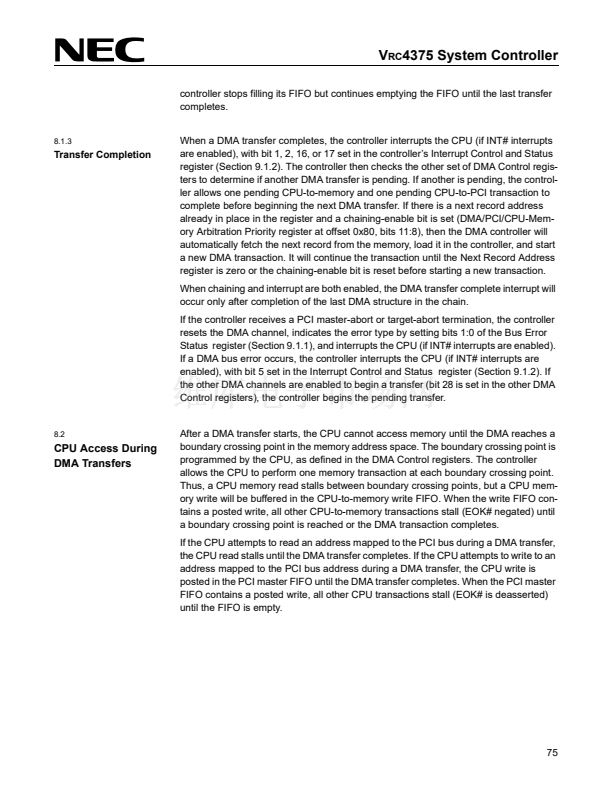

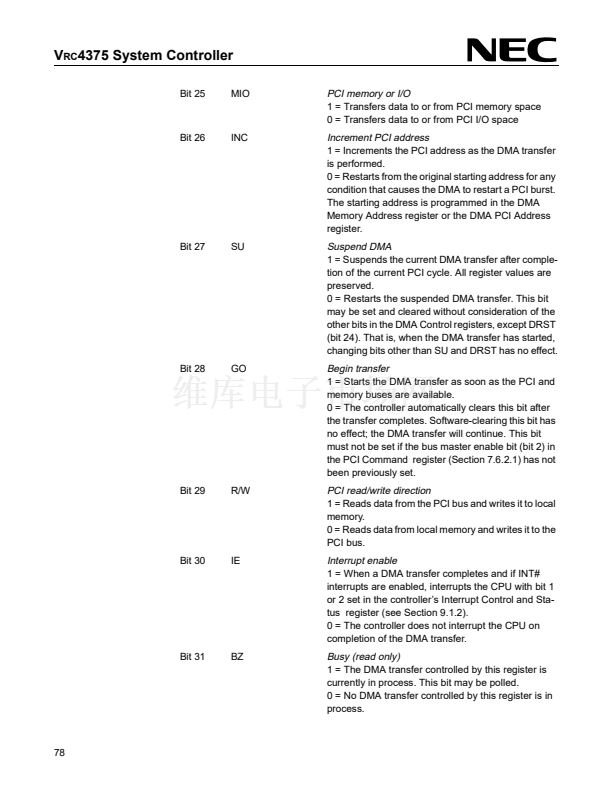

4375 acts as a memory controller, DMA controller, and PCI bridge. As an

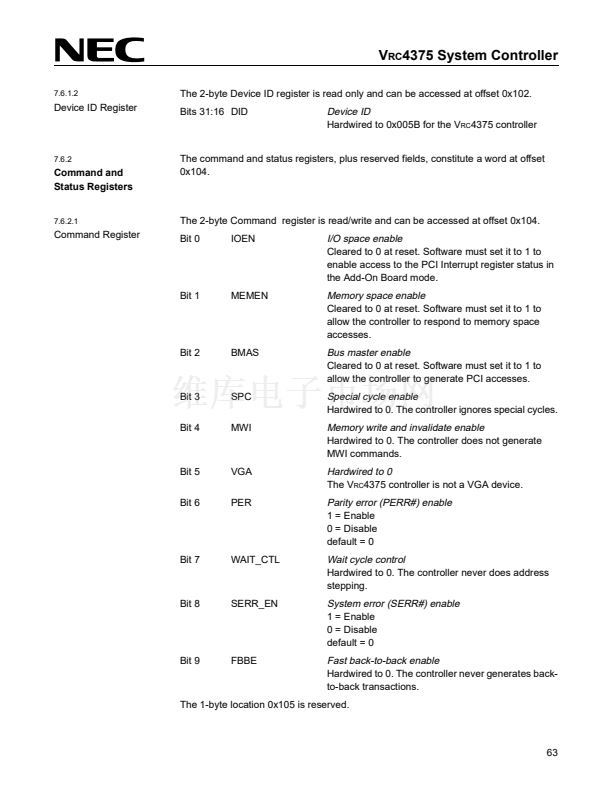

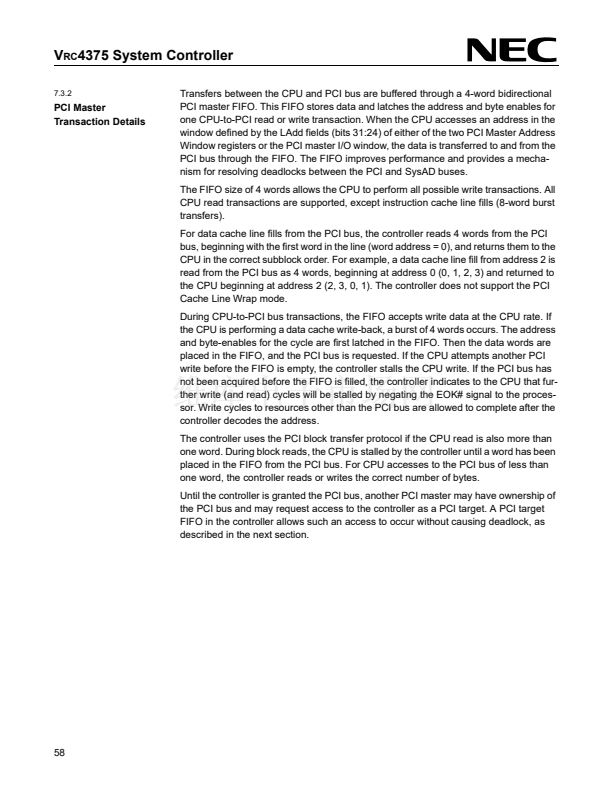

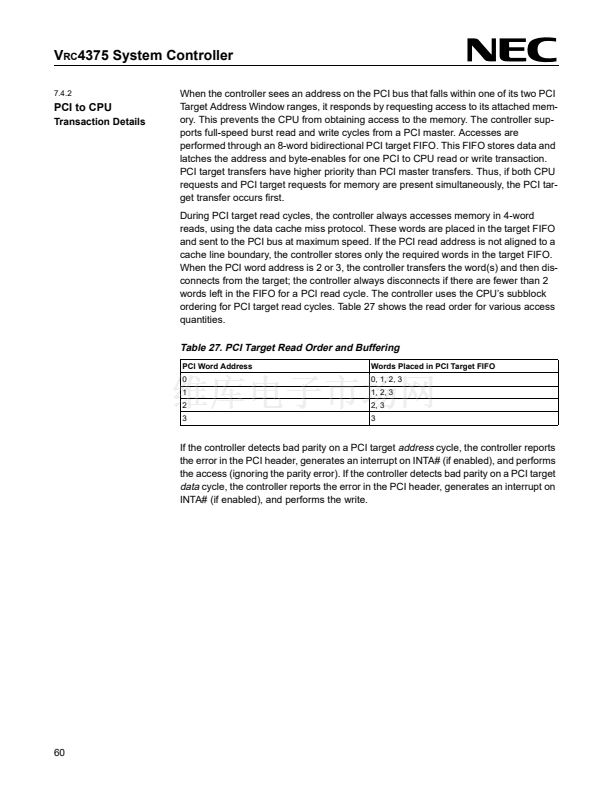

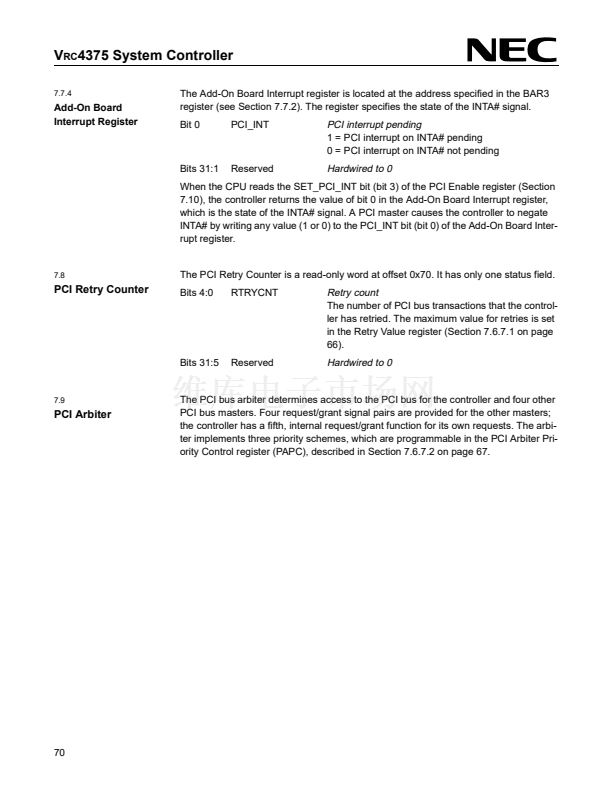

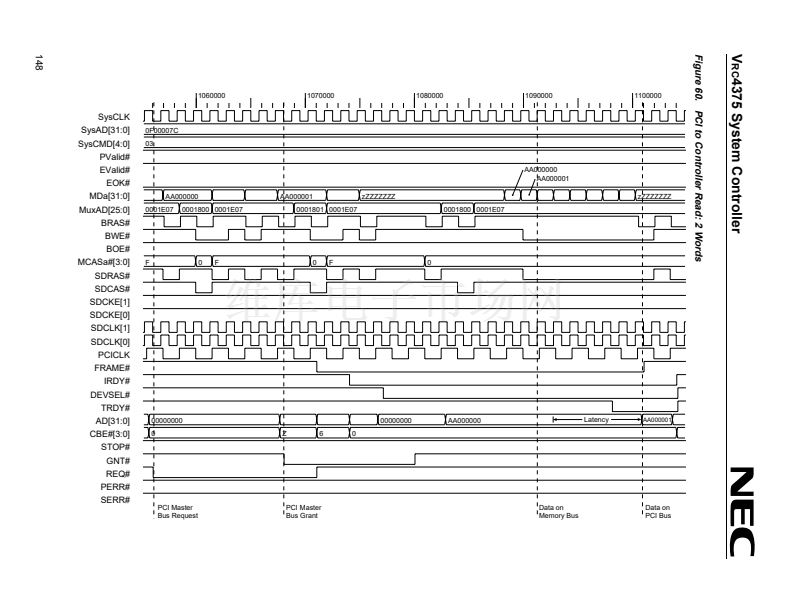

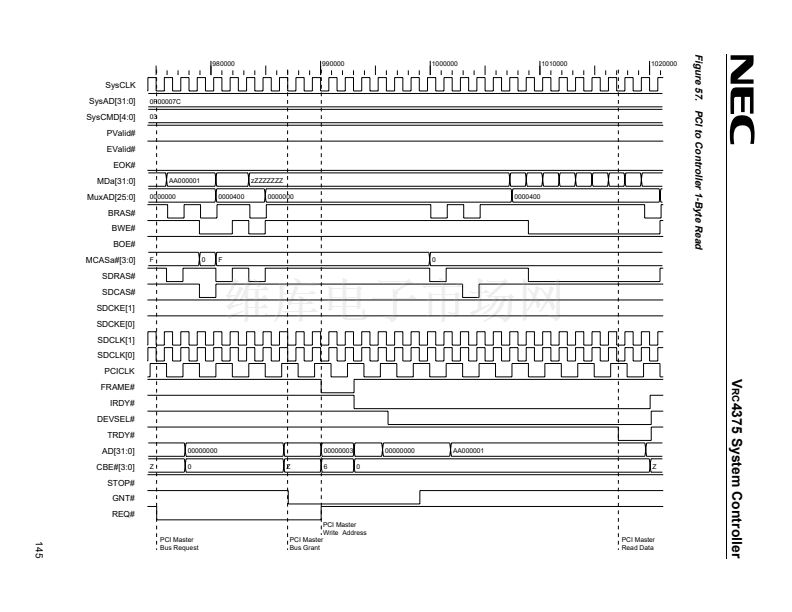

interface with PCI agents, the V

4375 acts as either a PCI bus master or a PCI bus

target. Alternatively, the V

4375 may be located on a PCI bus add-on board.

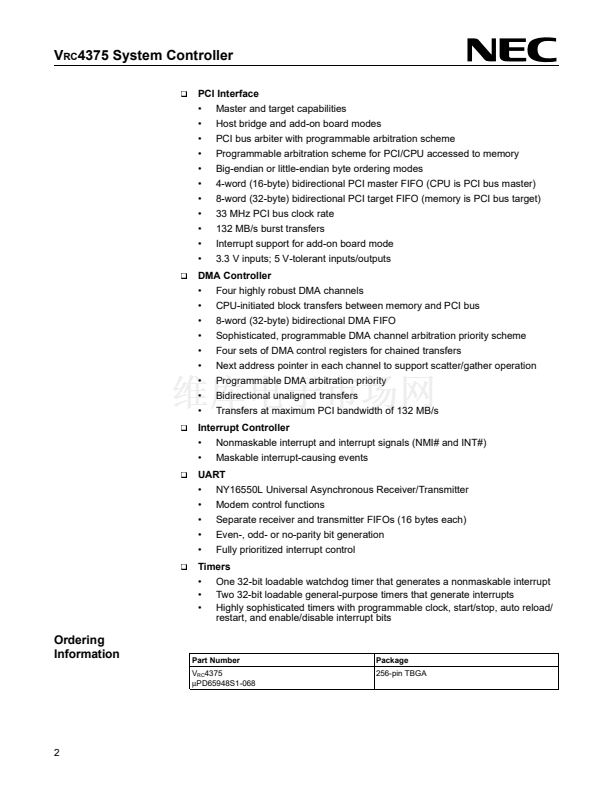

Features

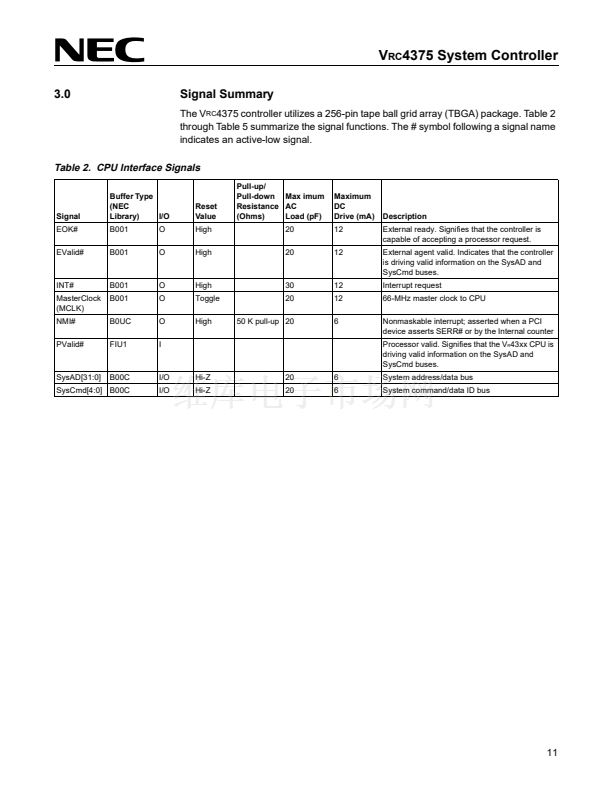

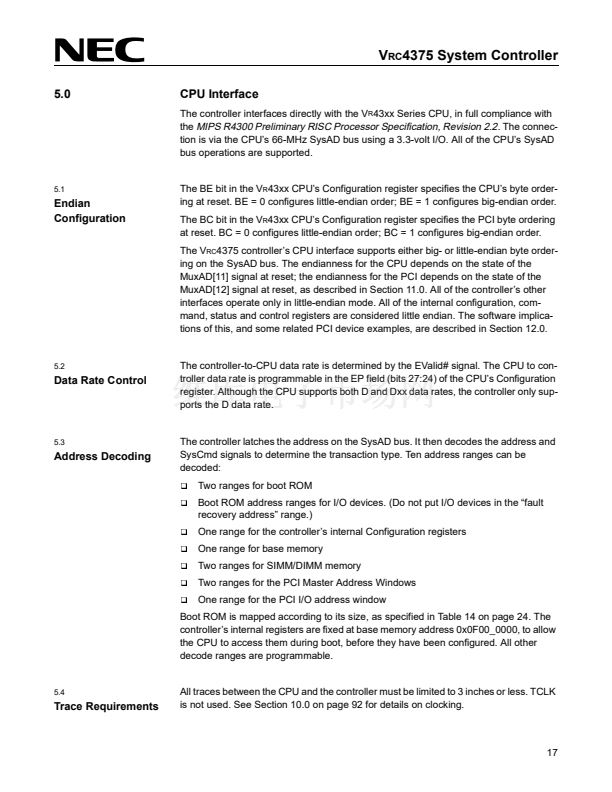

CPU Interface

鈥?/div>

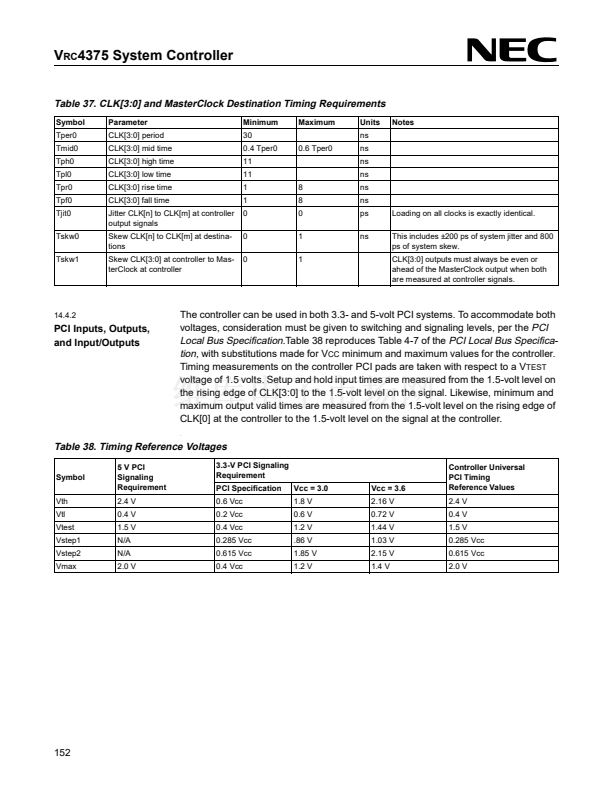

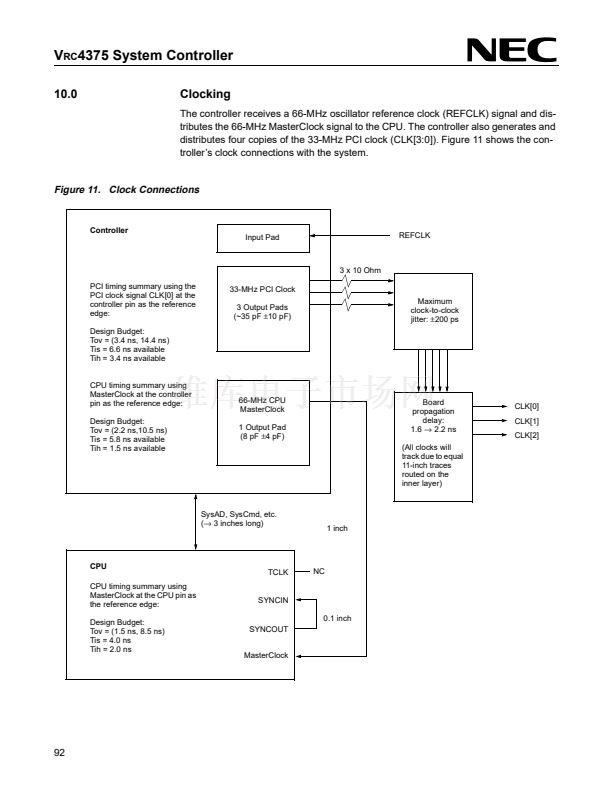

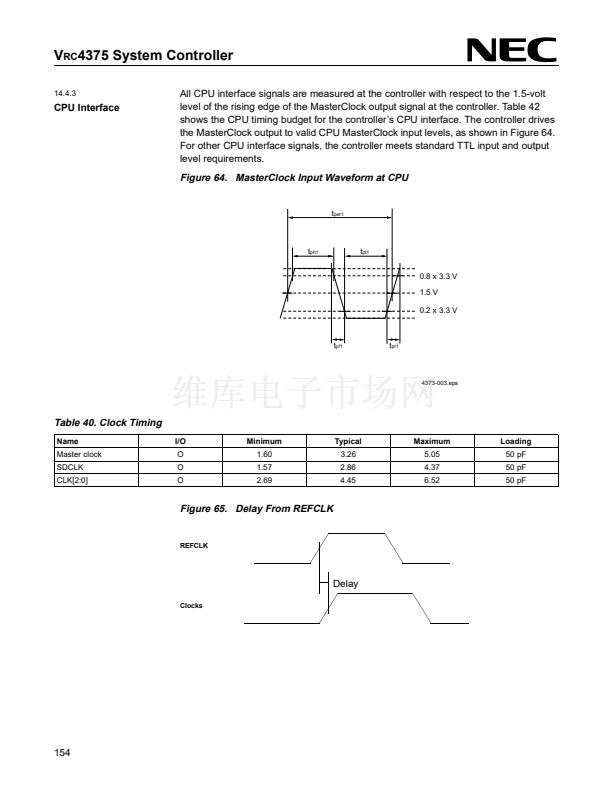

Direct connection to the 66 MHz V

43xx CPU bus

3.3-volt I/O

Support for all V

43xx bus cycles

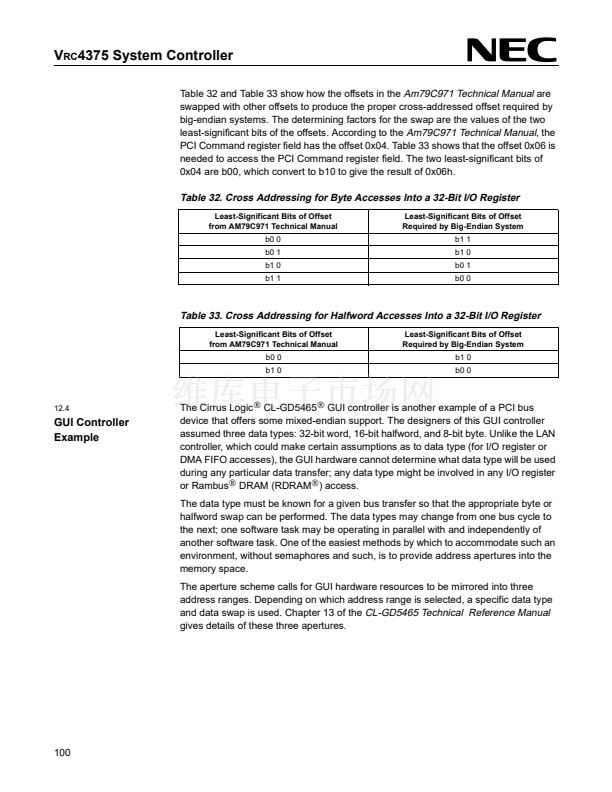

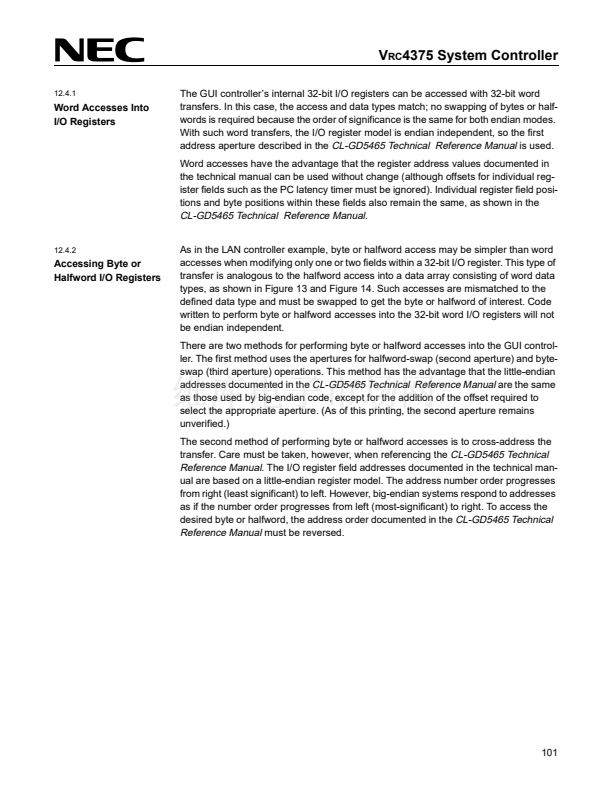

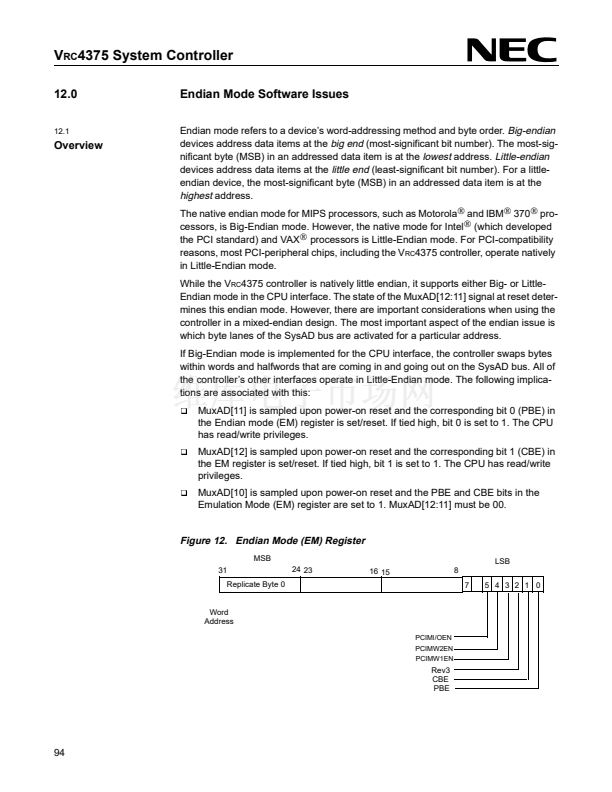

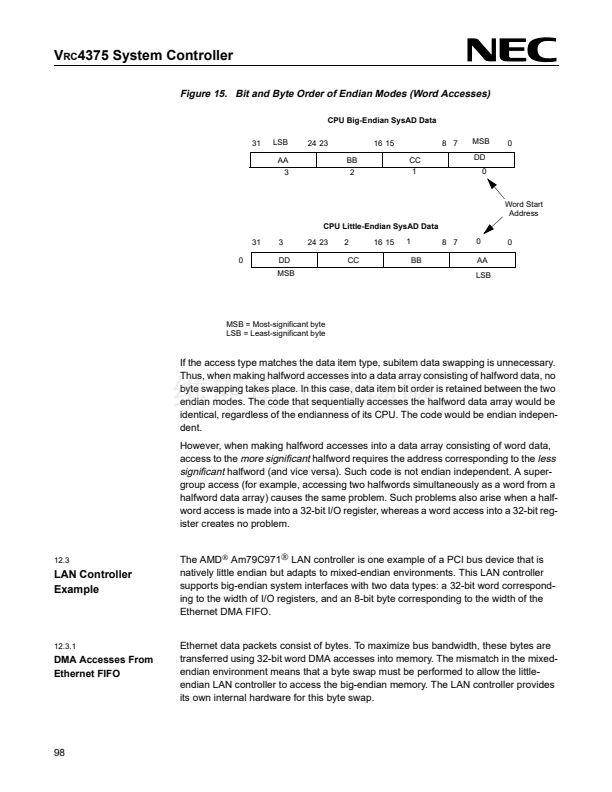

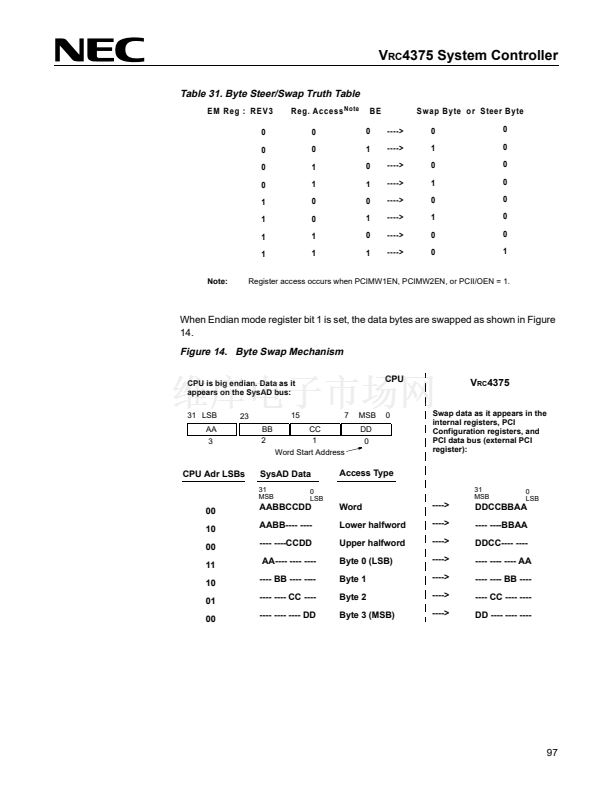

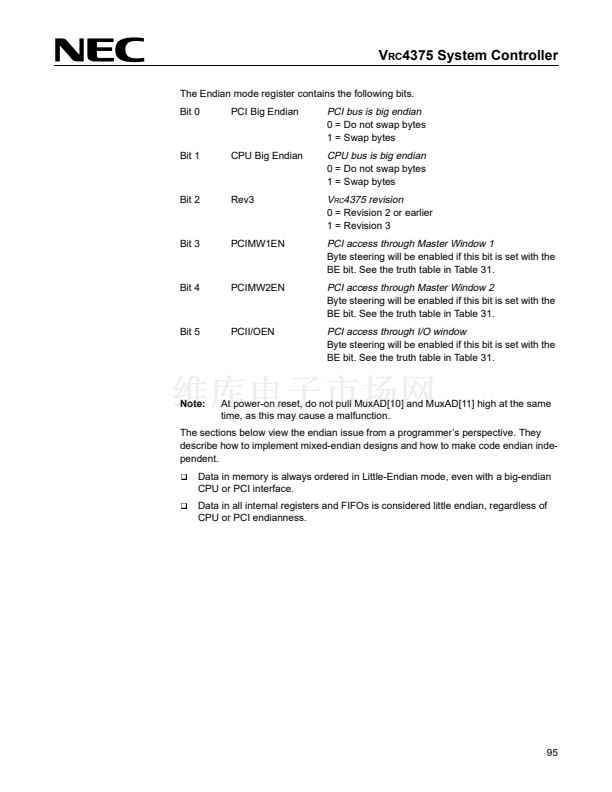

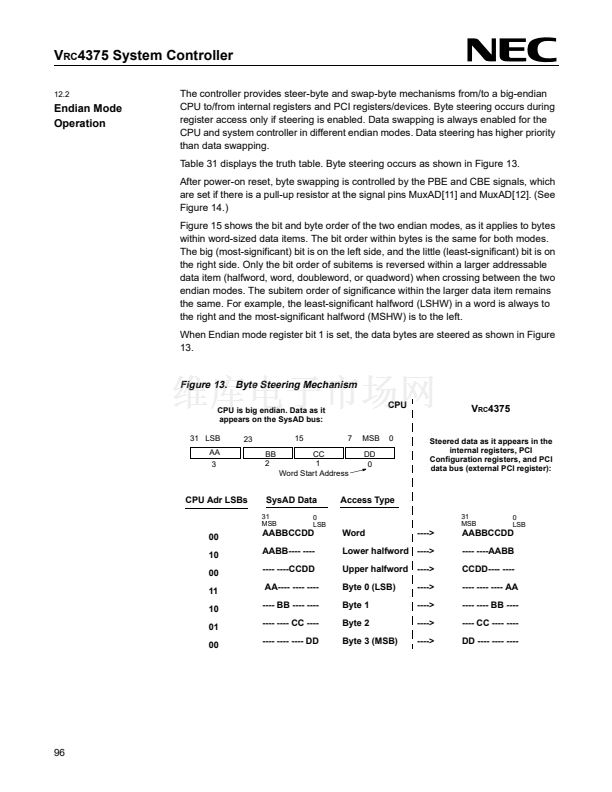

Little-endian or big-endian byte ordering modes

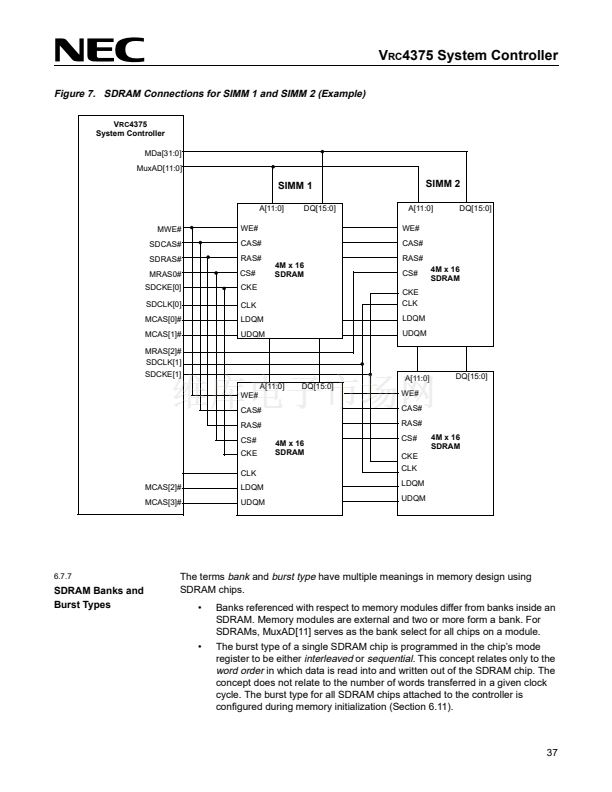

Support for boot ROM/flash memory, base memory, and up to two SIMMs

SIMM capacity of up to 128 MB

Programmable address ranges for base and SIMM memory

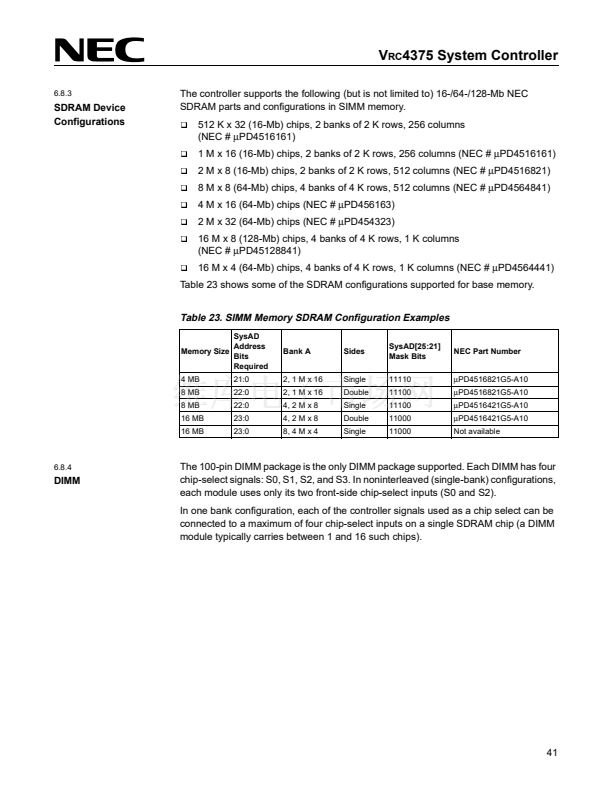

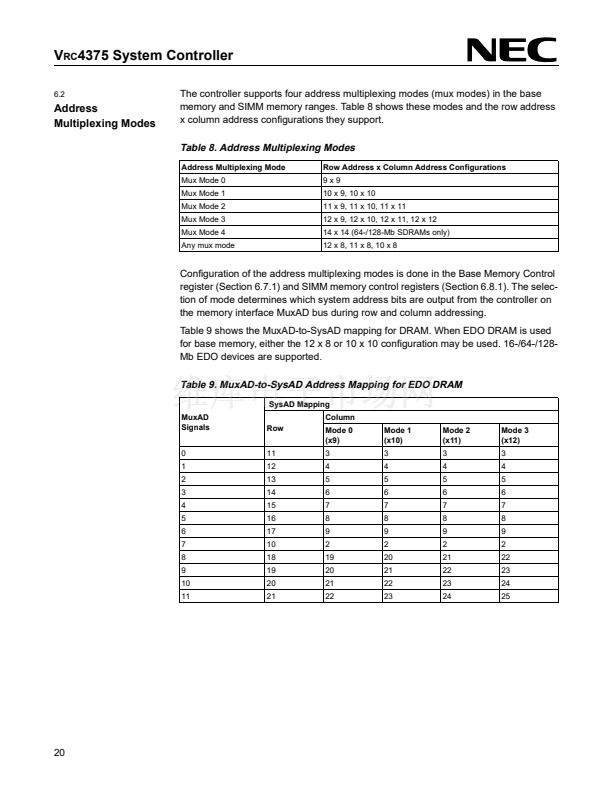

Support for two-bank 4/16 Mb devices and four-bank 64/128/256 Mb devices

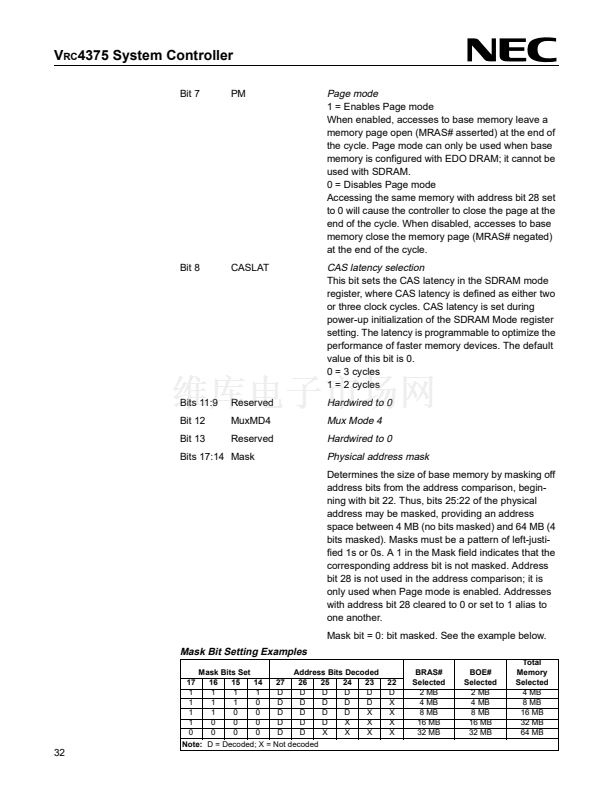

CAS latency of 2 or 3 in base memory or SIMM SDRAM, programmable to

support faster new devices or slower legacy devices

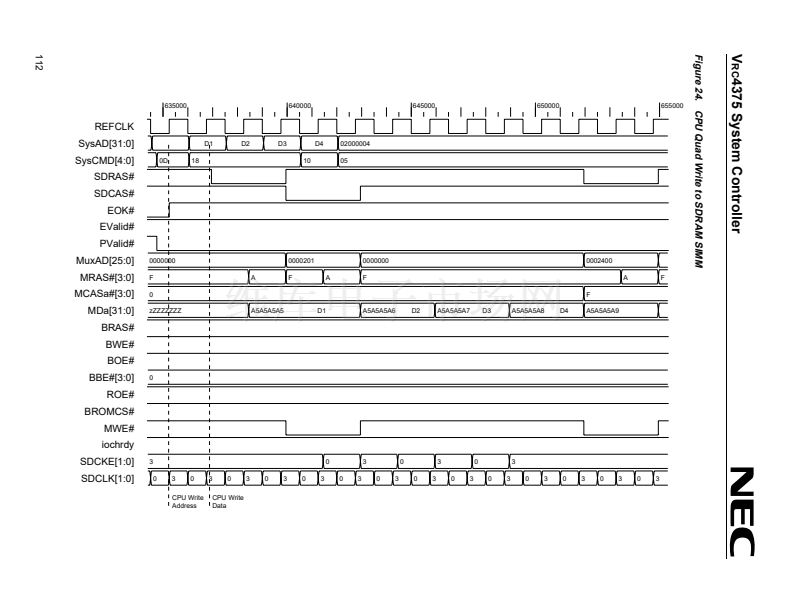

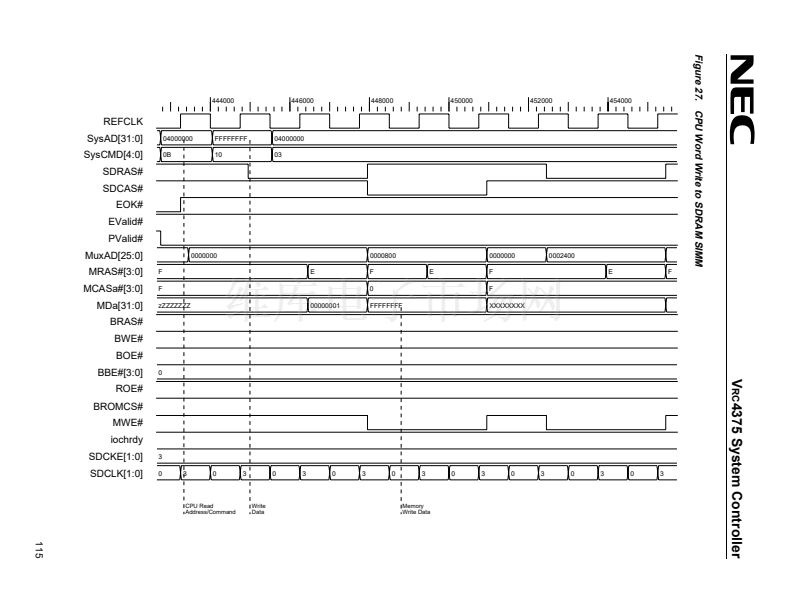

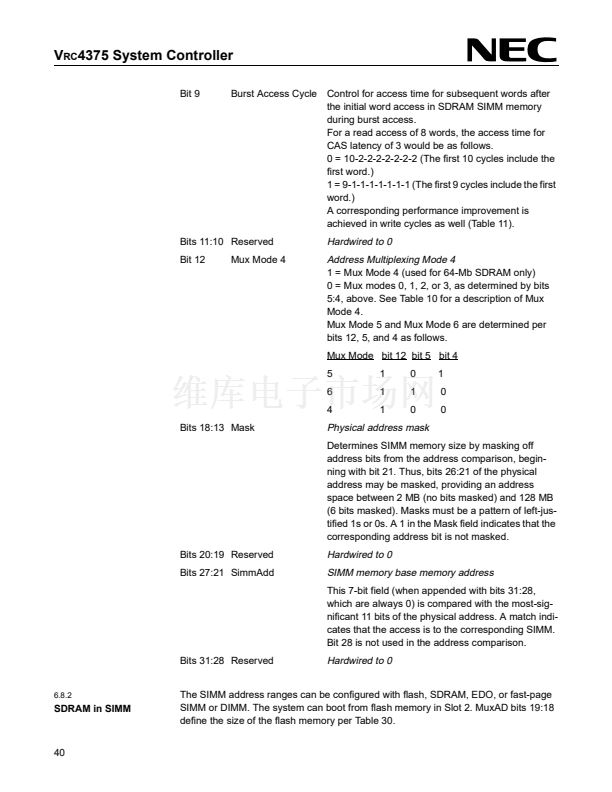

SIMM burst access time programmable in one or two cycle(s)

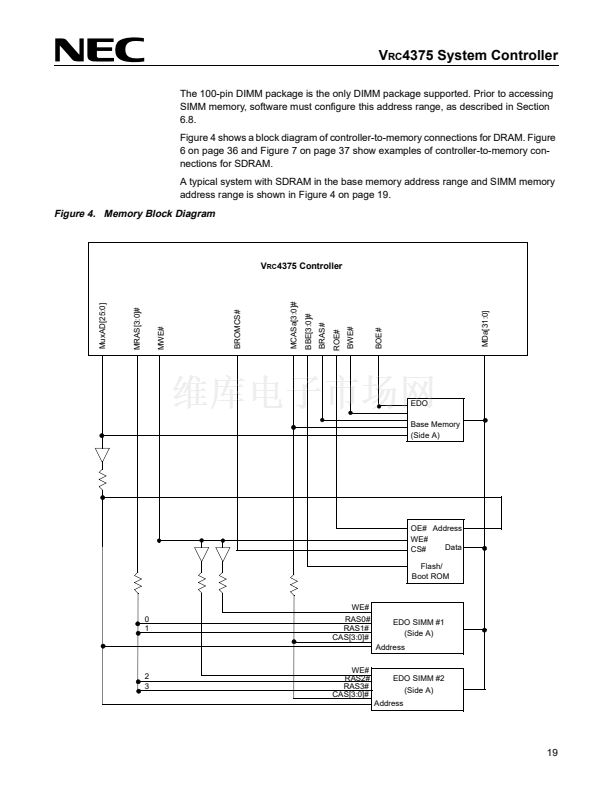

66 MHz memory bus

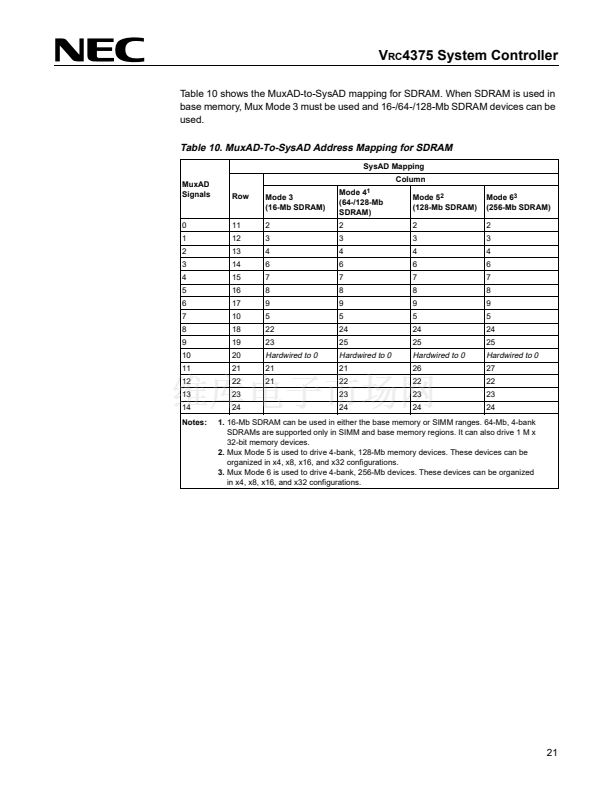

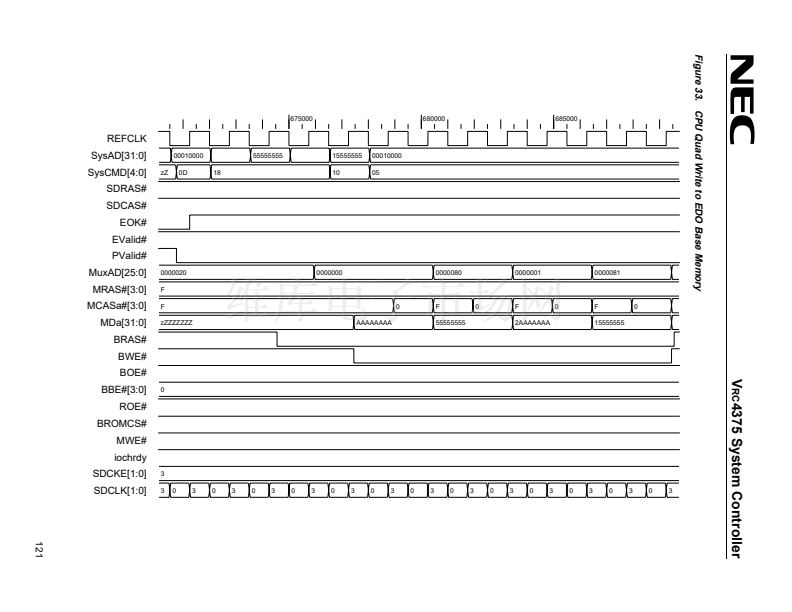

64 MB base memory range: SDRAM and EDO DRAM

256 MB SIMM memory range: SDRAM, EDO and fast-page DRAM

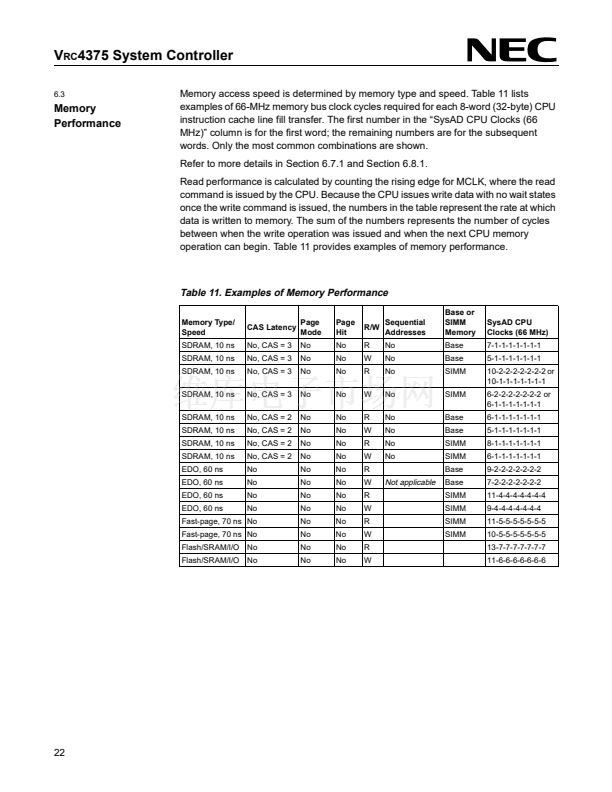

Several speed grades supported within each memory range

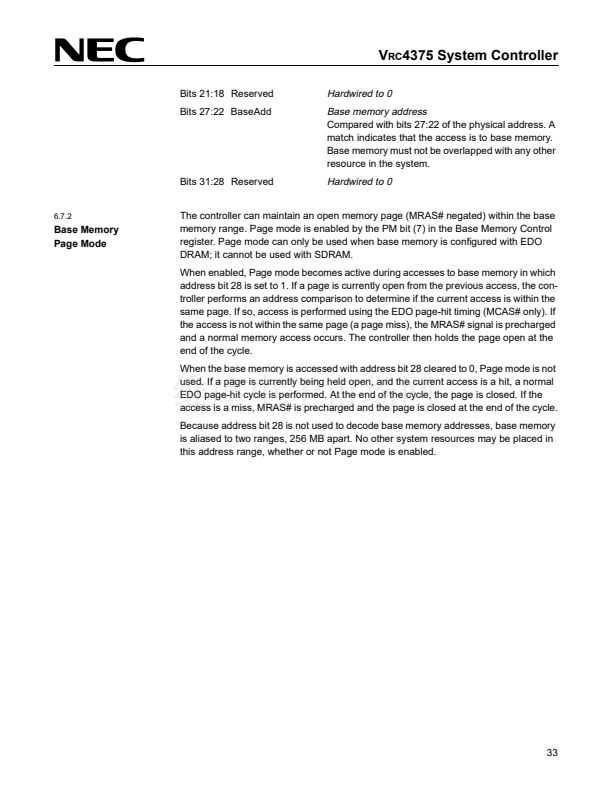

Open DRAM page maintained within base memory

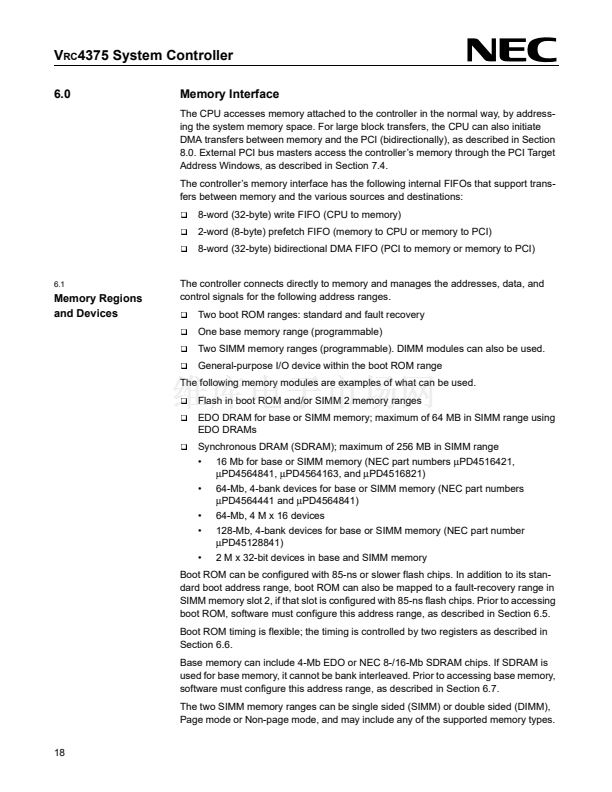

Eight-word (32-byte) write FIFO (CPU to memory)

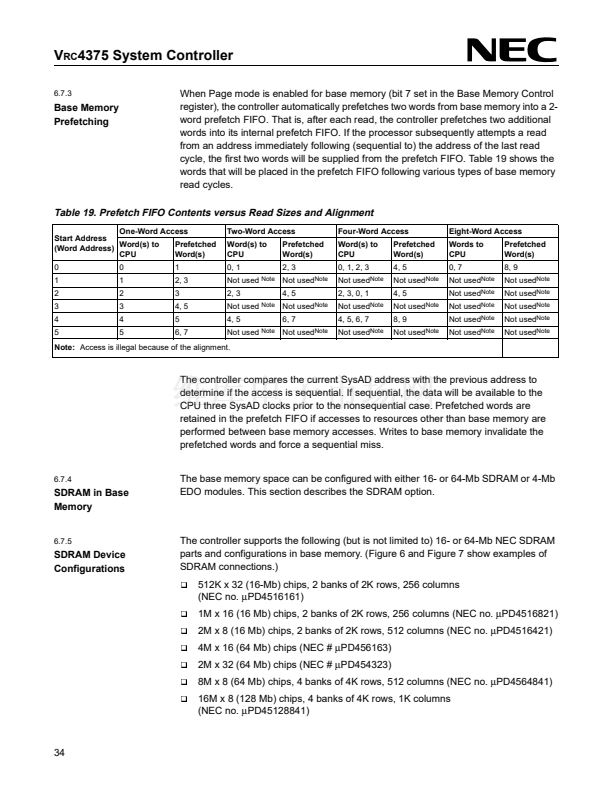

Two-word (8-byte) prefetch FIFO (memory to CPU or memory to PCI)

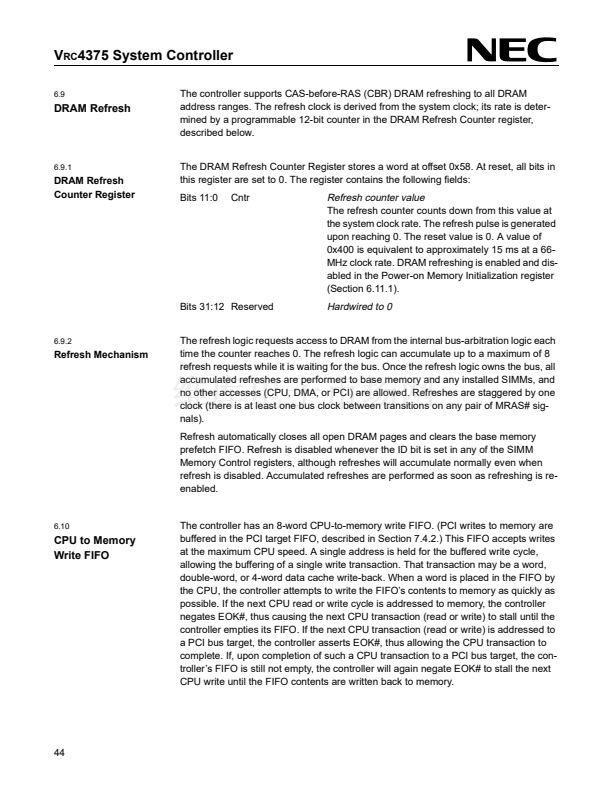

On-chip DRAM and SDRAM refresh generation

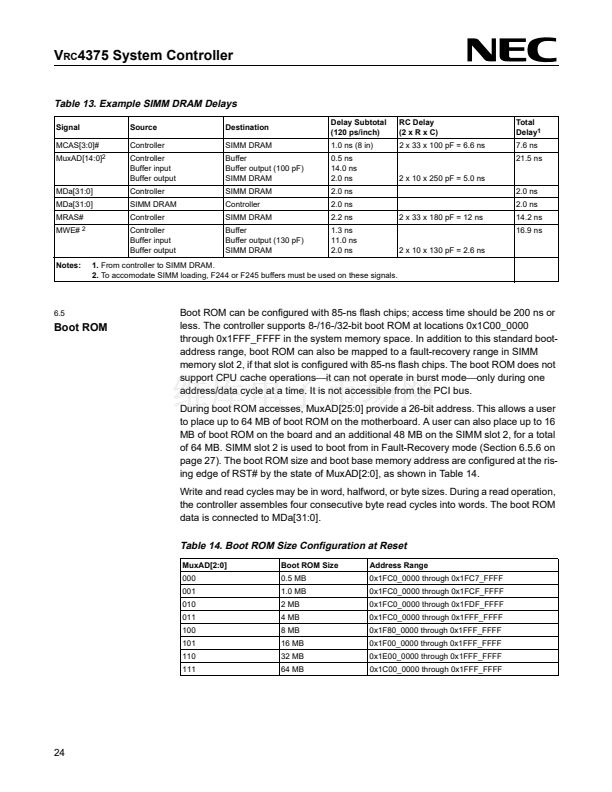

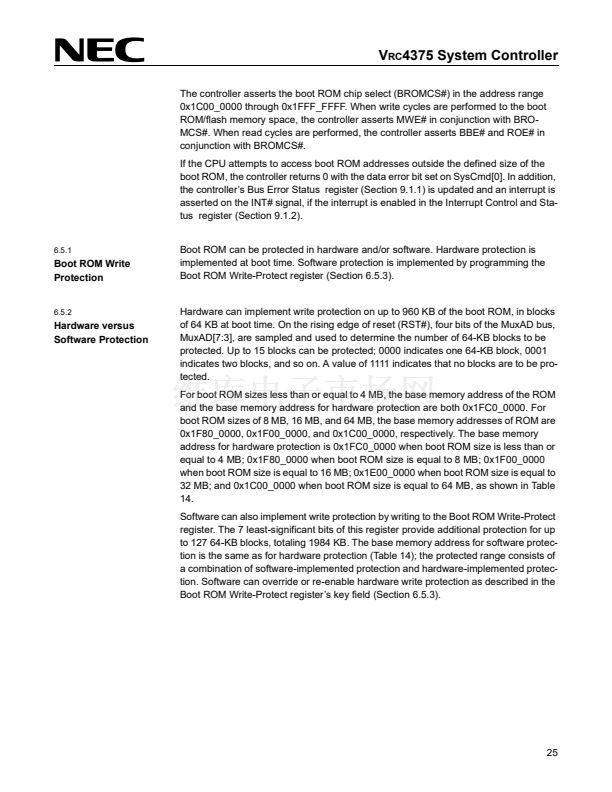

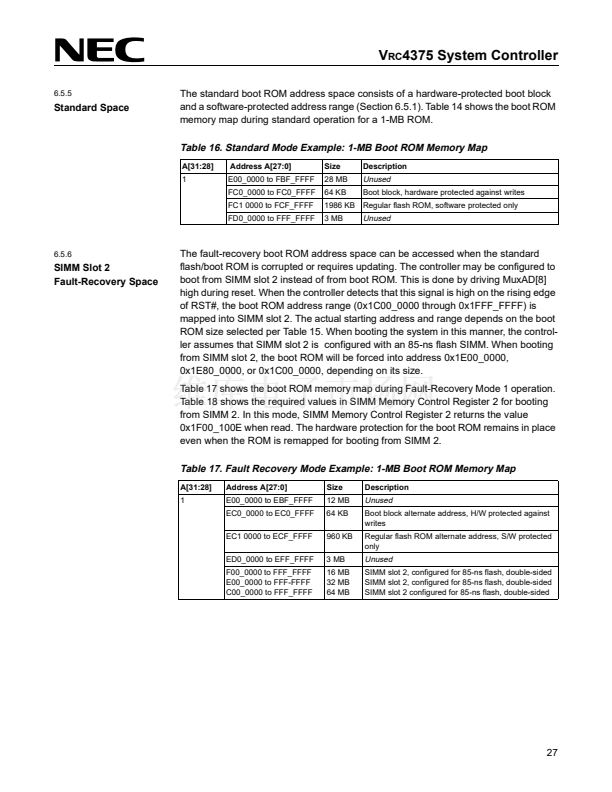

Up to 64 MB of write-protectable boot ROM or up to 64 MB of flash ROM

Flash/boot ROM devices with 8-/16-/32-bit configuration support

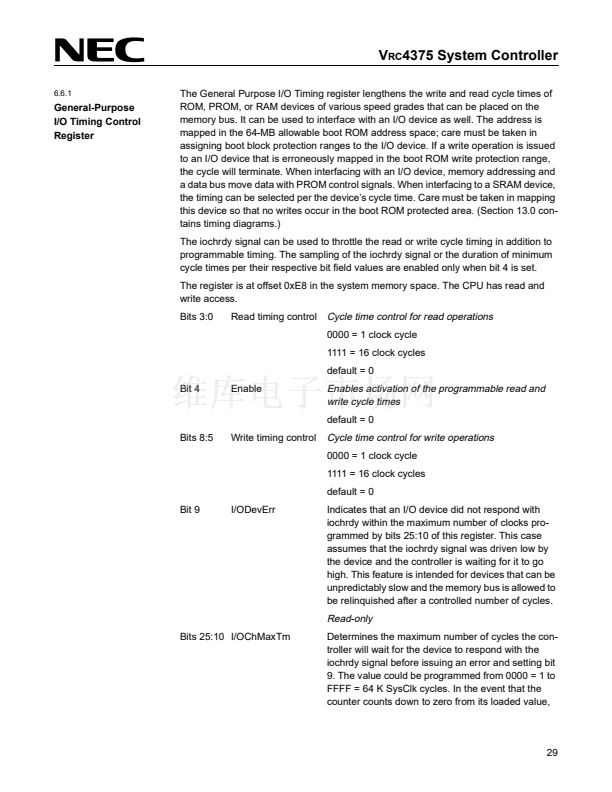

Programmable timing to interface general-purpose I/O device or boot ROM in

the boot ROM address range

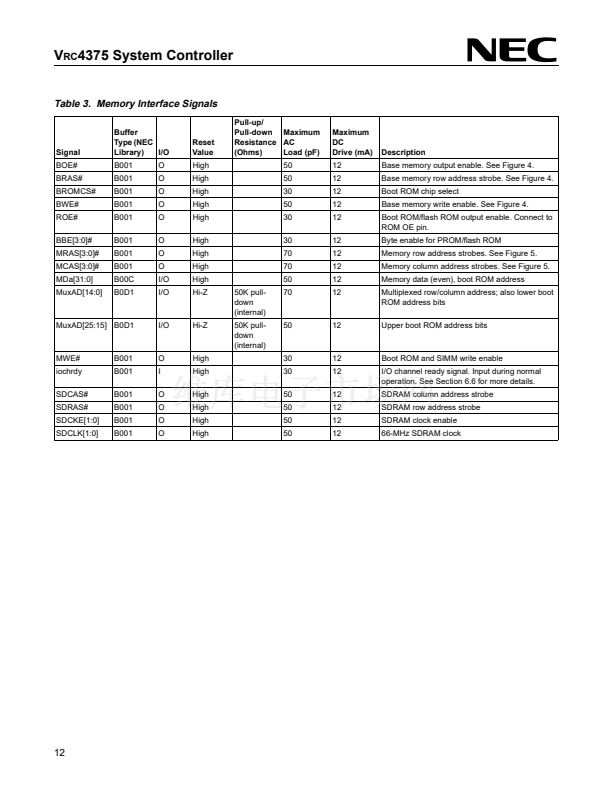

Memory Interface

鈥?/div>

U13749EU2V0DS00

NEC VRC chipsets are designed and Verified for use with NEC VR Series鈩?microprocessors. NEC makes

no claim as to the suitability of VRC chipsets for use with non-NEC microprocessors and does not warrant

their performance, suitability or use in such applications.
