NEW PRODUCTS 7
INDUSTRY鈥橲 FIRST SINGLE-CHIP LSI WITH
RF AMPLIFIER FOR CD PLAYER
碌PD63710
Introduction
The compact-disc player market is now
mature, in fact saturated, in the home audio
and portable fields. However, this is not the
case in the automobile field, where the
market is expected to grow at a rate of about
10% annually. The most recent player
systems are required to offer high cost
performance as well as be space saving by
reducing the number of components.
Masanori Ogura
Especially in the field of automobiles, a
compact disc player needs to be as small as
possible because it must coexist with other
equipment such as a mini-disc player and an
in-dash TV in a limited space. The single-
chip LSI for CD,
碌PD63710,
to be
introduced in this article has been developed
to satisfy these requirements.
The
碌PD63710
integrates the functions
necessary for a compact disc player on a
single chip, and in addition to existing-
product specifications, contains an RF
amplifier and its peripheral components to
enhance system integration. As a result, this
LSI can reduce the number of external
components, helping to create a small and
cost-effective system (Fig. 1).

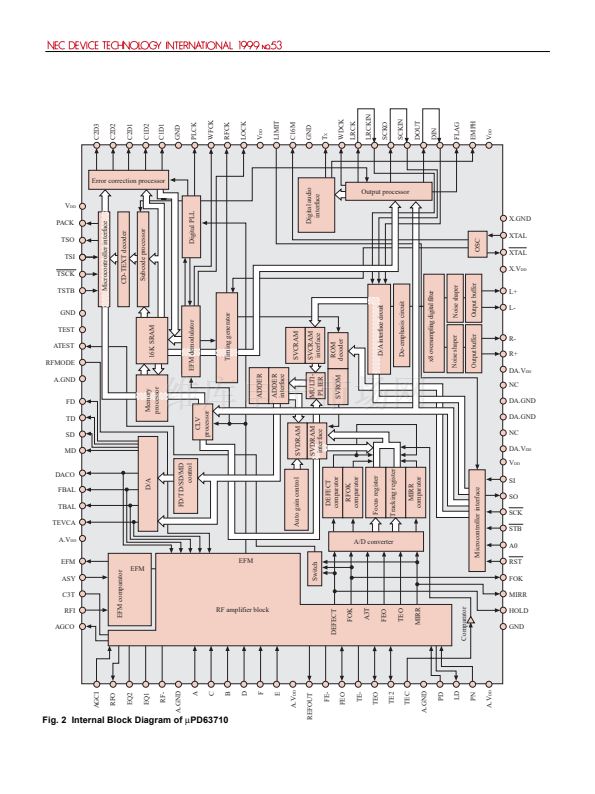

Product Outline
鈥?Industry-first integration of digital servo
CD mechanism
Spindle motor
Pickup (focus/tracking coil)
Sled motor
L channel R channel
Post filter
碌PD63710
Signals A to F
RF amplifier
EFM
Data processor
CD-TEXT
decoder
TE,FE
MIRR,DEFECT,RFOK
Digital servo
processor
D/A converter
CD-TEXT interface
Microcontroller interface
System control
microcontroller
4-bit/8-bit
碌PD78058,
etc.
FD
TD
MD
SD
4-channel
driver
Servo D/A
converter
Fig. 1 System Configuration Example of CD Player Using
碌PD63710
Published April 1999
2nd Systems Engineering Department, Semiconductor Solution Engineering Division
