UPD6336 Datasheet

  • UPD6336

  • QUAD/OCTAL 6BIT D/A CONVERTER CMOS LSI

  • 16頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

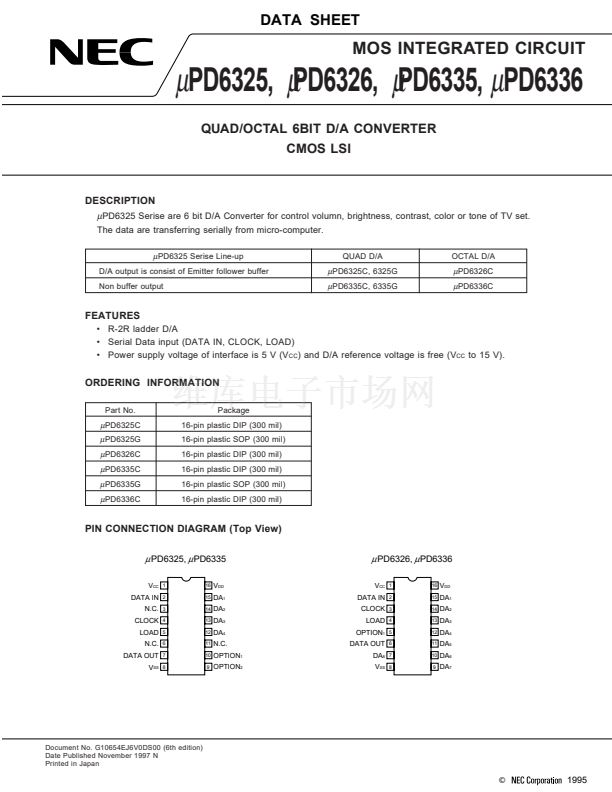

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD6325,
碌
PD6326,
碌
PD6335,
碌
PD6336
QUAD/OCTAL 6BIT D/A CONVERTER
CMOS LSI
DESCRIPTION
碌

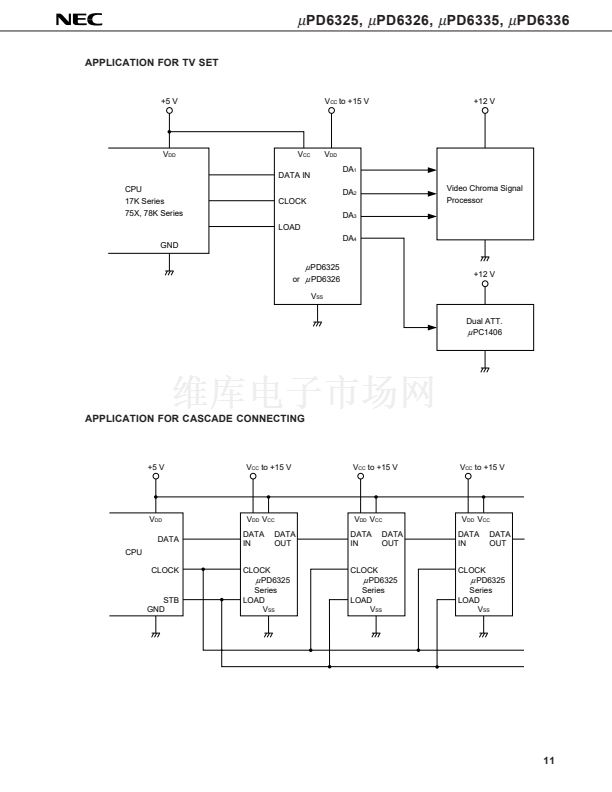

PD6325 Serise are 6 bit D/A Converter for control volumn, brightness, contrast, color or tone of TV set.
The data are transferring serially from micro-computer.
碌
PD6325 Serise Line-up

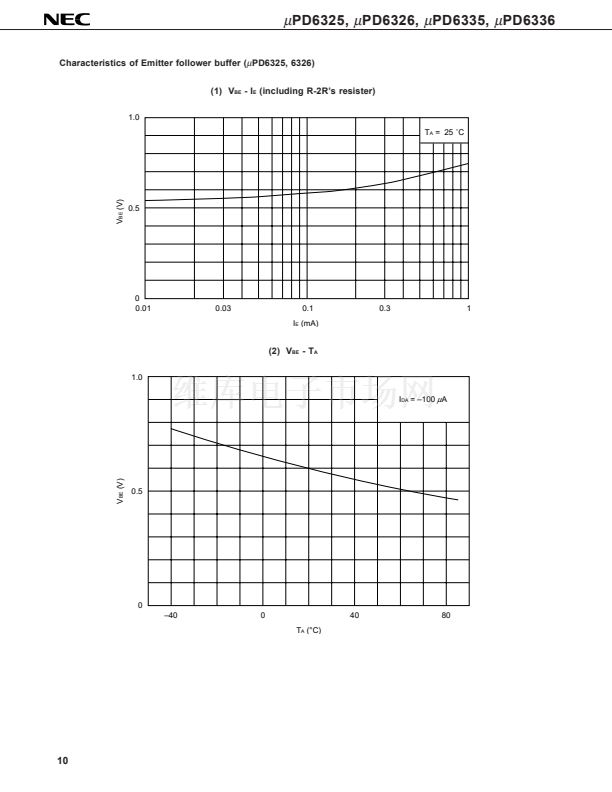

D/A output is consist of Emitter follower buffer
Non buffer output
QUAD D/A
OCTAL D/A
碌
PD6325C, 6325G
碌
PD6335C, 6335G
碌
PD6326C
碌
PD6336C
FEATURES
鈥?R-2R ladder D/A
鈥?Serial Data input (DATA IN, CLOCK, LOAD)
鈥?Power supply voltage of interface is 5 V (V
CC
) and D/A reference voltage is free (V
CC
to 15 V).
ORDERING INFORMATION
Part No.
Package
16-pin plastic DIP (300 mil)

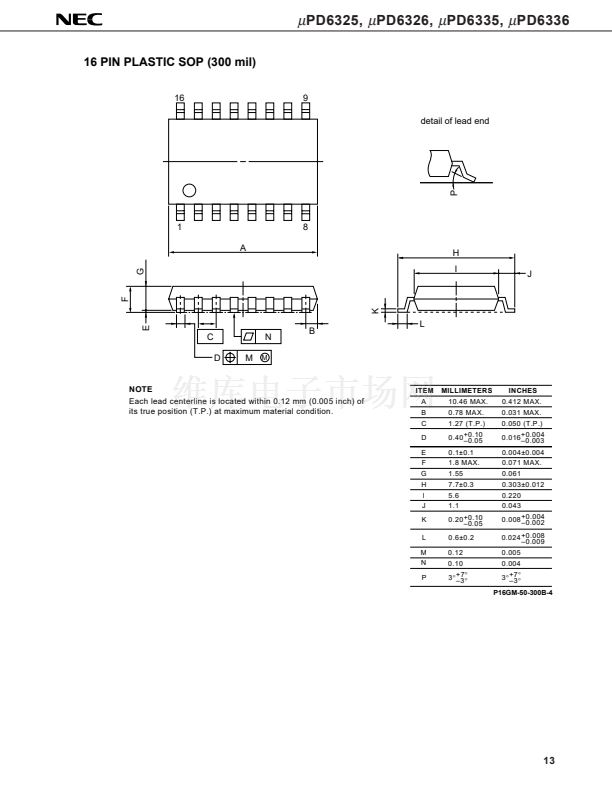

16-pin plastic SOP (300 mil)
16-pin plastic DIP (300 mil)
16-pin plastic DIP (300 mil)
16-pin plastic SOP (300 mil)
16-pin plastic DIP (300 mil)
碌
PD6325C
碌
PD6325G
碌
PD6326C
碌
PD6335C
碌
PD6335G
碌
PD6336C
PIN CONNECTION DIAGRAM (Top View)
碌
PD6325,
碌
PD6335
V
CC
DATA IN
N.C.
CLOCK
LOAD
N.C.
DATA OUT
V
SS
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
碌
PD6326,
碌
PD6336
V
CC
DATA IN
CLOCK
LOAD
OPTION
1
DATA OUT
DA
8
V
SS
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
DD
DA
1
DA
2
DA
3
DA
4
N.C.
OPTION
1
OPTION
2
V
DD
DA
1
DA
2
DA
3
DA
4
DA
5
DA
6
DA
7
Document No. G10654EJ6V0DS00 (6th edition)
Date Published November 1997 N
Printed in Japan
漏
1995
