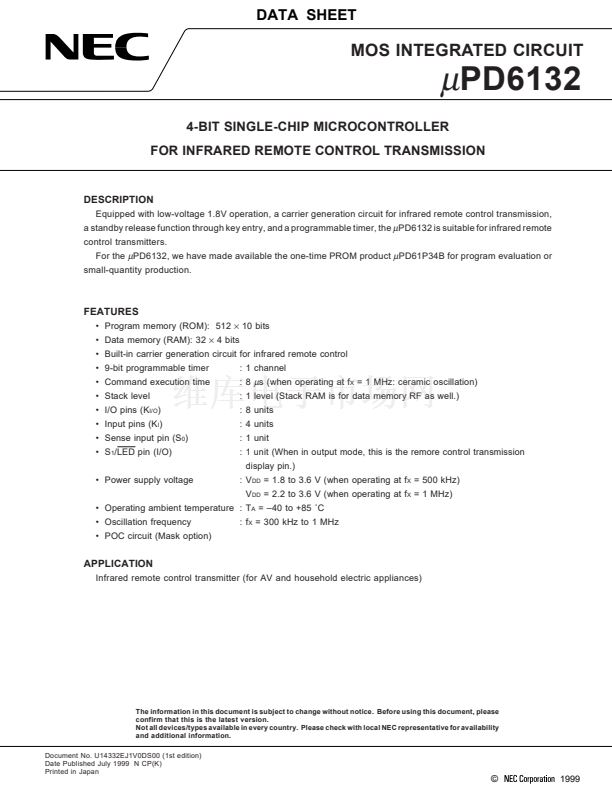

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD6132
4-BIT SINGLE-CHIP MICROCONTROLLER
FOR INFRARED REMOTE CONTROL TRANSMISSION
DESCRIPTION
Equipped with low-voltage 1.8V operation, a carrier generation circuit for infrared remote control transmission,
a standby release function through key entry, and a programmable timer, the
碌
PD6132 is suitable for infrared remote
control transmitters.
For the
碌
PD6132, we have made available the one-time PROM product
碌
PD61P34B for program evaluation or
small-quantity production.
FEATURES
鈥?Program memory (ROM): 512
脳
10 bits
鈥?Data memory (RAM): 32
脳
4 bits
鈥?Built-in carrier generation circuit for infrared remote control
鈥?9-bit programmable timer
鈥?Command execution time
鈥?Stack level
鈥?I/O pins (K
I/O
)
鈥?Input pins (K
I
)
鈥?Sense input pin (S
0
)
鈥?S
1
/LED pin (I/O)
鈥?Power supply voltage
: 1 channel
: 8
碌
s (when operating at f
X
= 1 MHz: ceramic oscillation)
: 1 level (Stack RAM is for data memory RF as well.)
: 8 units
: 4 units
: 1 unit
: 1 unit (When in output mode, this is the remore control transmission
display pin.)
: V
DD
= 1.8 to 3.6 V (when operating at f
X
= 500 kHz)
V
DD
= 2.2 to 3.6 V (when operating at f
X
= 1 MHz)
鈥?Operating ambient temperature : T
A
= 鈥?0 to +85 藲C
鈥?Oscillation frequency
鈥?POC circuit (Mask option)
: f
X
= 300 kHz to 1 MHz
APPLICATION
Infrared remote control transmitter (for AV and household electric appliances)
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
Document No. U14332EJ1V0DS00 (1st edition)
Date Published July 1999 N CP(K)
Printed in Japan
漏
1999
