UPD3728D Datasheet

  • UPD3728D

  • 7300 PIXELS x 3 COLOR CCD LINEAR IMAGE SENSOR

  • 24頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

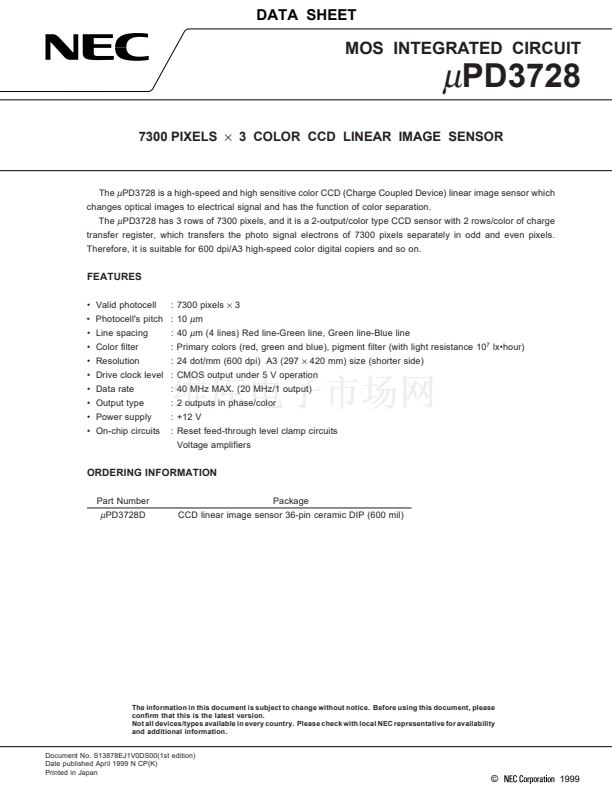

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD3728
7300 PIXELS
脳
3 COLOR CCD LINEAR IMAGE SENSOR
The
碌
PD3728 is a high-speed and high sensitive color CCD (Charge Coupled Device) linear image sensor which
changes optical images to electrical signal and has the function of color separation.
The
碌
PD3728 has 3 rows of 7300 pixels, and it is a 2-output/color type CCD sensor with 2 rows/color of charge
transfer register, which transfers the photo signal electrons of 7300 pixels separately in odd and even pixels.
Therefore, it is suitable for 600 dpi/A3 high-speed color digital copiers and so on.
FEATURES
鈥?Valid photocell
鈥?Line spacing
鈥?Color filter
鈥?Resolution
鈥?Data rate
鈥?Output type
鈥?Power supply
鈥?On-chip circuits
: 7300 pixels
脳
3
: 40
碌
m (4 lines) Red line-Green line, Green line-Blue line
: Primary colors (red, green and blue), pigment filter (with light resistance 10
7
lx鈥our)
: 24 dot/mm (600 dpi) A3 (297
脳
420 mm) size (shorter side)
: 40 MHz MAX. (20 MHz/1 output)
: 2 outputs in phase/color
: +12 V
: Reset feed-through level clamp circuits
Voltage amplifiers
鈥?Photocell's pitch : 10
碌
m
鈥?Drive clock level : CMOS output under 5 V operation
ORDERING INFORMATION
Part Number
Package
CCD linear image sensor 36-pin ceramic DIP (600 mil)
碌
PD3728D
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
Document No. S13878EJ1V0DS00(1st edition)
Date published April 1999 N CP(K)
Printed in Japan
漏
1999
