UPD3719 Datasheet

  • UPD3719

  • 10600 PIXELS x 3 COLOR CCD LINEAR IMAGE SENSOR

  • 20頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

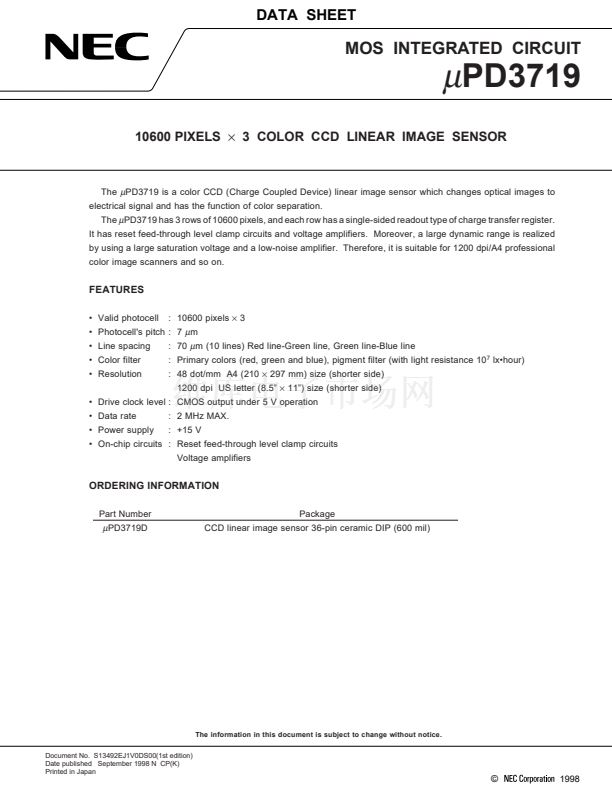

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD3719
10600 PIXELS
脳
3 COLOR CCD LINEAR IMAGE SENSOR
The
碌
PD3719 is a color CCD (Charge Coupled Device) linear image sensor which changes optical images to
electrical signal and has the function of color separation.
The
碌
PD3719 has 3 rows of 10600 pixels, and each row has a single-sided readout type of charge transfer register.
It has reset feed-through level clamp circuits and voltage amplifiers. Moreover, a large dynamic range is realized
by using a large saturation voltage and a low-noise amplifier. Therefore, it is suitable for 1200 dpi/A4 professional
color image scanners and so on.
FEATURES
鈥?Valid photocell
鈥?Line spacing
鈥?Color filter
鈥?Resolution
: 10600 pixels
脳
3
: 70
碌
m (10 lines) Red line-Green line, Green line-Blue line
: Primary colors (red, green and blue), pigment filter (with light resistance 10
7
lx鈥our)
: 48 dot/mm A4 (210
脳
297 mm) size (shorter side)
1200 dpi US letter (8.5鈥?/div>
脳
11鈥? size (shorter side)
鈥?Drive clock level : CMOS output under 5 V operation
鈥?Data rate
鈥?Power supply
: 2 MHz MAX.
: +15 V
Voltage amplifiers
鈥?Photocell's pitch : 7
碌
m
鈥?On-chip circuits : Reset feed-through level clamp circuits
ORDERING INFORMATION
Part Number
Package
CCD linear image sensor 36-pin ceramic DIP (600 mil)
碌
PD3719D
The information in this document is subject to change without notice.
Document No. S13492EJ1V0DS00(1st edition)
Date published September 1998 N CP(K)
Printed in Japan
漏
1998
