UPD30111S1-70-3C Datasheet

  • UPD30111S1-70-3C

  • MICROPROCESSOR|32-BIT|CMOS|BGA|224PIN|PLASTIC

  • 134頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD30111
V
R
4111
64-/32-BIT MICROPROCESSOR
TM
DESCRIPTION
The
碌
PD30111 (V
R
4111) is one of NEC's V
R
Series RISC (Reduced Instruction Set Computer) microprocessors
TM
and is a high-performance 64-/32-bit microprocessor employing the MIPS RISC architecture.
The V
R
4111 uses the high-performance, super power-saving V
R
4110 as the CPU core, and has many peripheral
functions such as a DMA controller, software modem interface, serial interface, keyboard interface, IrDA interface,
touch panel interface, real-time clock, A/D converter, and D/A converter. Configured with these functions, the
V
R
4111 is suitable for high-speed battery-driven portable information systems. The external memory bus width can
be selected from 32 bits and 16 bits, realizing high-speed data transfer.
Detailed function descriptions are provided in the following user鈥檚 manual. Be sure to read it before
designing.
鈥?/div>
V
R
4111 User's Manual (U13137E)
FEATURES
鈥?Employs 64-bit MIPS architecture
鈥?Conforms to MIPS III instruction set (deleting FPU,
LL, LLD, SC, and SCD instructions)
鈥?Optimized 5-stage pipeline
鈥?Supports MIPS16 instruction set
鈥?Supports high-speed product-sum operation
instructions
鈥?Supports four types of operating modes, enabling
more effective power-consumption management
鈥?Internal maximum operating frequency: 70 MHz
鈥?On-chip clock generator
鈥?Address space physical: 32 bits
virtual:
40 bits
Integrates 32 double entry TLBs
鈥?High-capacity instruction/data separated cache
memories
Instruction: 16 Kbytes
Data:
8 Kbytes
APPLICATIONS
鈥?/div>
Battery-driven portable information systems
鈥?/div>
Embedded controllers, etc.
ORDERING INFORMATION
Part Number
Package

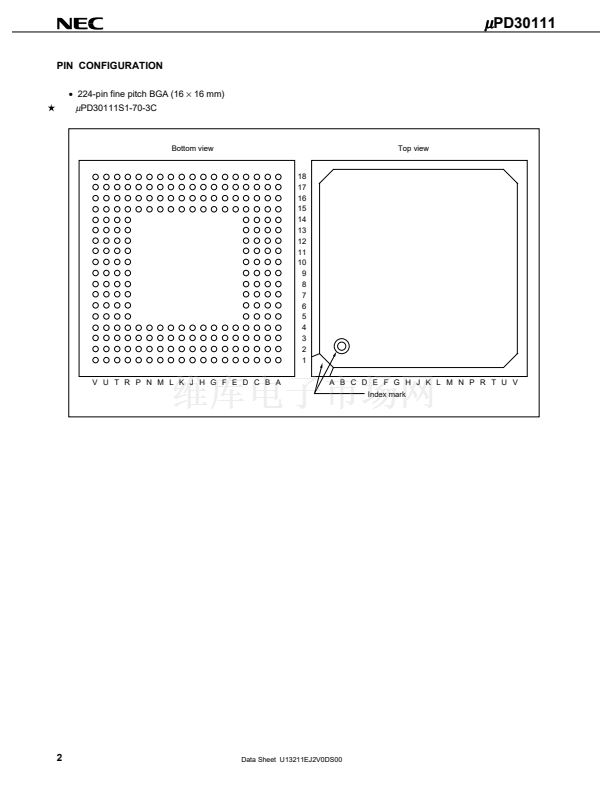

224-pin fine-pitch BGA (16
脳
16 mm)
Internal Maximum Operating Frequency
70 MHz
TM
鈥?DRAM interface and mask ROM interface to support
flash memory
鈥?Keyboard interface and touch panel interface
鈥?4-channel DMA controller
鈥?Serial interface (NS16550 compatible)
鈥?IrDA interface for infrared communication
鈥?Software modem interface
鈥?A/D and D/A converters to support digital voice I/O
鈥?Supports ISA bus subset
鈥?Power supply voltage: internal 2.3 to 2.7 V, external 3.0
to 3.6 V
鈥?Package: 224-pin fine-pitch FBGA
碌
PD30111S1-70-3C
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. U13211EJ2V0DS00 (2nd edition)
Date Published August 1999 N CP(K)
Printed in Japan
The mark
shows major revised points.
